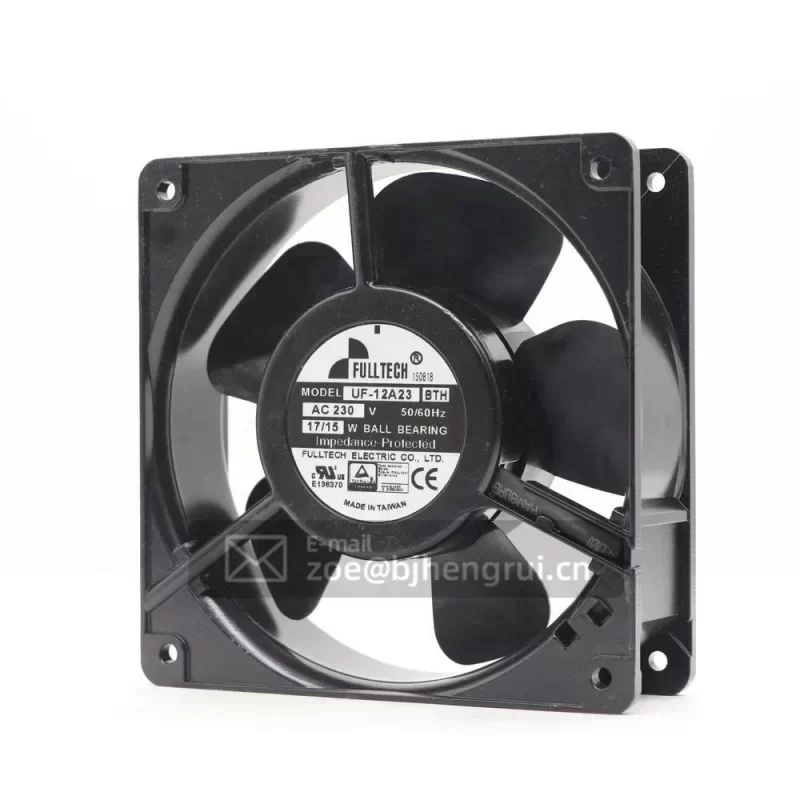

Fulltech UF12A23BTH 230V AC 120x120x38mm Cabinet Axial Fan

Name: Fulltech UF12A23BTH 230V AC 120x120x38mm Cabinet Axial Fan
Brand: Fulltech
SKU: 1600225806416
Availability: InStock
Rating: 5 (4 reviews)

$9.90

SKU: 1600225806416 Brand: Fulltech

Description
Reviews (0)

Description

The Fulltech UF-12A23BTH is a high-performance industrial axial cooling fan engineered for reliable thermal management in heavy-duty applications. This unit features a robust die-cast aluminum housing and a high-quality thermoplastic PBT impeller, designed to withstand rigorous operational environments. The integration of a precision dual ball bearing system ensures an extended service life and stable performance at a rated speed of 3100 RPM. With an IP55 protection rating, the UF-12A23BTH offers significant resistance to dust and moisture ingress, making it suitable for industrial control panels and outdoor enclosures. This model delivers a consistent airflow of 106 CFM (3.0 m³/min) while maintaining a controlled noise profile of 46 dBA. It is an essential component for maintaining optimal operating temperatures in server racks, power supplies, and automated machinery.

Technical Specifications:
Brand: Fulltech
Model Number: UF-12A23BTH
Original Engineering: Fulltech Electric Co., Ltd.
Voltage: 230 VAC
Current: 0.08 A
Power: 15 W
Speed: 3100 RPM
Airflow: 106 CFM (3.0 m³/min)
Noise Level: 46 dBA
Dimensions: 120 x 120 x 38 mm
Housing Material: Die-cast Aluminum
Impeller Material: Thermoplastic PBT
Bearing Type: Dual Ball Bearing
Protection Class: IP55
Weight: 0.53 kg
Lead Time: Contact for current availability

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China
Brand name: Fulltech
Model number: UF-12A23BTH
Voltage: 230V
Current type: AC
Dimension: 120 mm L x 120 mm W x 38 mm D
Noise: 46 dB
Housing material: Metal
Current: 0.08A
Speed: 3100 rpm
Air flow: 3 m3/min
Weight: 0.53kg
Protection class: IP55

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X12 cm
Single gross weight: 1.000 kg

Fulltech UF12A23BTH 230V AC 120x120x38mm Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
