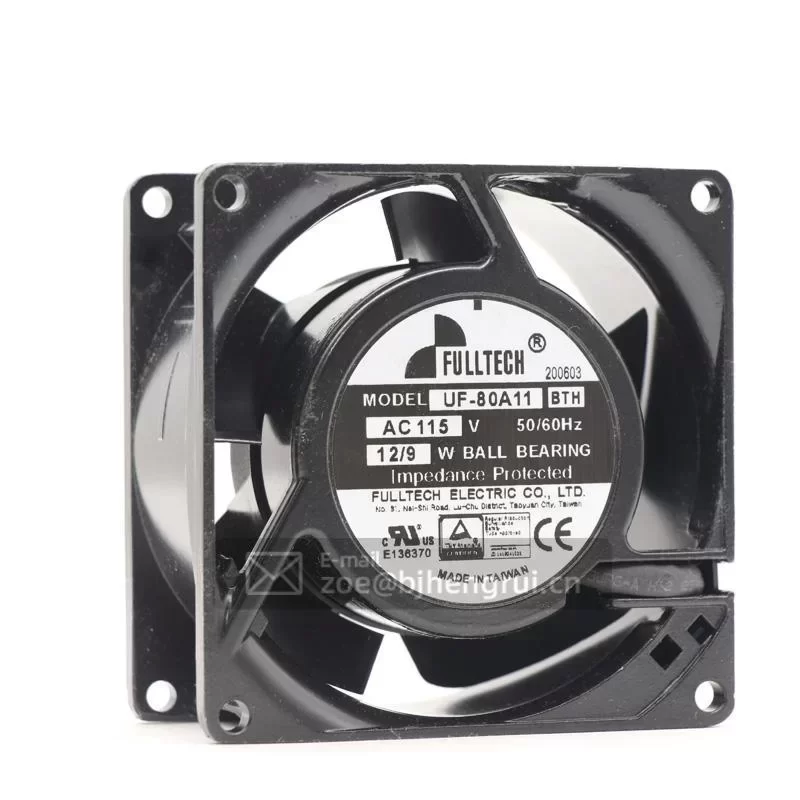

Fulltech UF80A11BTH 115V AC 80X80X38mm Cabinet Axial Fan

Name: Fulltech UF80A11BTH 115V AC 80X80X38mm Cabinet Axial Fan
Brand: Fulltech
SKU: 1600225616562
Availability: InStock
Rating: 5 (4 reviews)

$7.08

SKU: 1600225616562 Brand: Fulltech

Description
Reviews (0)

Description

The Fulltech UF-80A11BTH is a high-performance industrial axial fan engineered for continuous thermal management in demanding environments. This 8038 series component features a robust die-cast aluminum housing and a dual ball bearing system, ensuring extended MTBF (Mean Time Between Failures) compared to sleeve-bearing alternatives. The ‘T’ designation in the model string indicates a terminal-style connection, facilitating secure integration into industrial wiring looms, while the ‘H’ signifies a high-speed configuration optimized for maximum static pressure.

Technical Specifications:
Brand: Fulltech
Model: UF-80A11BTH
Dimensions: 80 x 80 x 38 mm
Voltage: 115V AC (50/60Hz)
Power Consumption: 12W
Rated Current: 0.15A
Rotational Speed: 2500 RPM
Airflow Capacity: 30 CFM (0.85 m³/min)
Noise Level: 32 dB(A)
Bearing Type: Dual Shielded Ball Bearings
Connection: Terminal Type (Faston #110)
Housing Material: Die-Cast Aluminum Alloy
Impeller Material: Reinforced Thermoplastic (UL 94V-0)
Motor Type: Shaded Pole Induction Motor
Insulation Class: Class B
Operating Temperature: -10°C to +70°C
Weight: 0.28 kg
Safety Standards: UL, CUL, TUV, CE

Industrial Applications:
1. Electrical Cabinet Thermal Management: Used for heat dissipation in NEMA-rated enclosures to protect sensitive PLC and VFD components from thermal degradation.
2. Telecommunications Infrastructure: Integrated into server racks and networking hubs where high static pressure is required to move air through high-density equipment.
3. Industrial Power Supplies: Provides active cooling for high-wattage transformers and rectifiers in welding or plating equipment to ensure operational stability.

Key Attributes
Voltage: 115V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: Fulltech
Model number: UF-80A11BTH
Voltage: 115VAC
Air flow: 30 CFM
Dimension: 80X80X38mm
Power Supply: 12w
Bearing Type: Ball Bearings
Current: 0.15A
Speed: 2500 RPM
Noise: 32 dB
Weight: 0.28 kg
Current type: AC

Packaging and Delivery
Selling Units: Single item

Fulltech UF80A11BTH 115V AC 80X80X38mm Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
