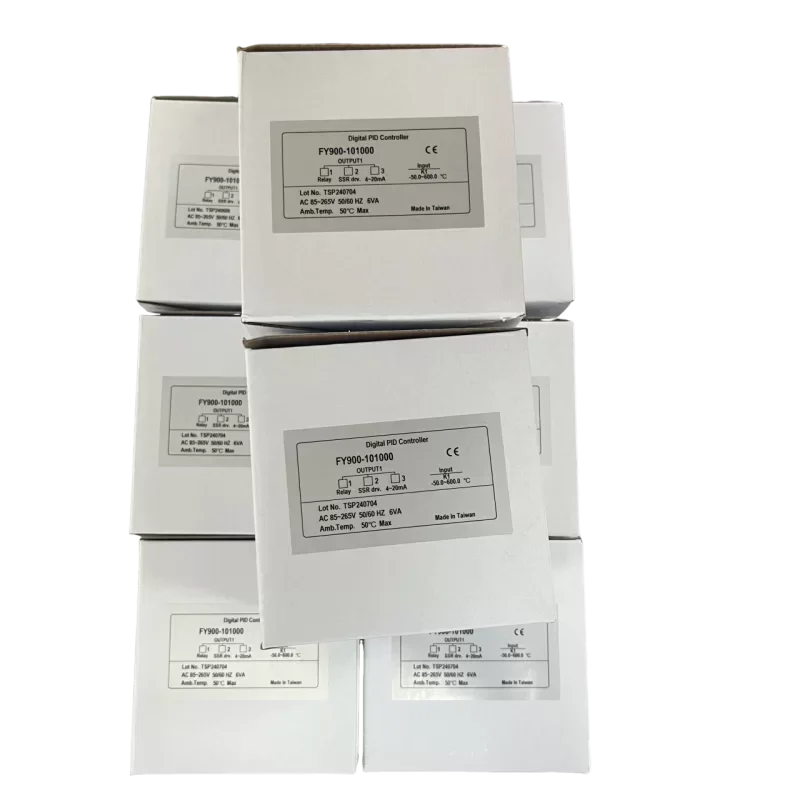

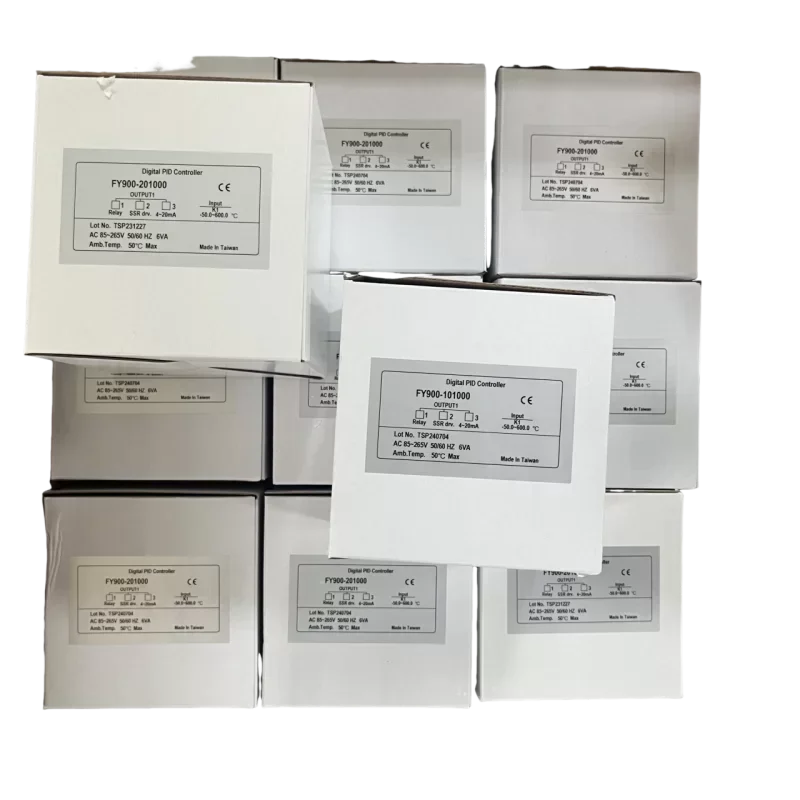

FY900-101000 TAIE Digital PID Temperature Controller

Description

The TAIE FY900-101000 is a high-precision, microprocessor-based digital temperature controller designed for complex industrial thermal regulation. Utilizing advanced Fuzzy Logic combined with PID control algorithms, this unit minimizes process overshoot and ensures rapid stability in dynamic environments. The controller features a standard 1/4 DIN (96×96 mm) form factor with a dual LED display for simultaneous monitoring of Process Value (PV) and Set Value (SV). The model suffix decoding indicates a configuration optimized for Relay control output with a dedicated Alarm channel, supporting Universal Input architecture for maximum sensor versatility.

Technical Specifications:
Manufacturer: TAIE (Taiwan)
Model Number: FY900-101000
Controller Series: FY Series (Fuzzy + PID)
Dimensions: 96 x 96 mm (1/4 DIN)
Panel Cutout Dimensions: 92 x 92 mm
Control Output 1: Relay Contact (SPST, 3A/240VAC, Resistive Load)
Control Output 2: None
Alarm Output 1: Relay (Standard Alarm)
Alarm Output 2: None
Input Signal Support: Universal (Thermocouple K, J, R, S, B, E, N, T / RTD Pt100 / Linear Voltage / Linear Current)
Control Method: PID with Auto-Tuning, ON/OFF, Fuzzy Logic
Measurement Accuracy: 0.2% of Full Scale
Sampling Time: 250 ms
Supply Voltage: 85~265 VAC (Wide Range)
Power Consumption: 6VA (AC) / 4W (DC)
Dielectric Strength: 2000 VAC (50/60Hz) for 1 minute
Insulation Resistance: > 10MΩ at 500VDC
Operating Temperature: 0 ~ 50 °C
Operating Humidity: 20 ~ 90 % RH (Non-condensing)
Weight: 230 g
Terminal Type: M3 Screw Terminal

Industrial Application:
This specific configuration is engineered for high-inertia thermal systems such as industrial ceramic kilns, heat treatment furnaces, and plastic extrusion barrel heating zones. The integrated Fuzzy Logic algorithm is critical for preventing temperature overshoot during the ramp-up phase, thereby protecting heating elements and ensuring consistent material properties in the final product.

Procurement & Lifecycle:
This product guarantees Original Engineering standards from TAIE, ensuring exact Technical Compatibility with existing 96x96mm panel cutouts and sensor wiring. It serves as a direct replacement for legacy PID controllers requiring relay-based switching. Please verify current Lead Time with our logistics team to ensure alignment with your maintenance schedules.

Key Attributes
Type: Temperature Controller
Place of origin: Taiwan
Model number: FY900-101000
Brand name: TAIE
Customized support: N/A
Warranty: 1 YEAR
Product Name: FY900-101000 Taiwan TAIE digital PID temperature controller
Supply voltage: 85~265 VAC, 24 VDC
Power Consumption: AC 6VA/ DC 4W
Operating temperature: 0 ~ 50°C
Humidity range: 20 ~ 90 % RH
Weight: 230g
Theory: TEMPERATURE CONTROLLER

Packaging and Delivery
Selling Units: Single item
Single package size: 30X15X15 cm
Single gross weight: 1.000 kg
