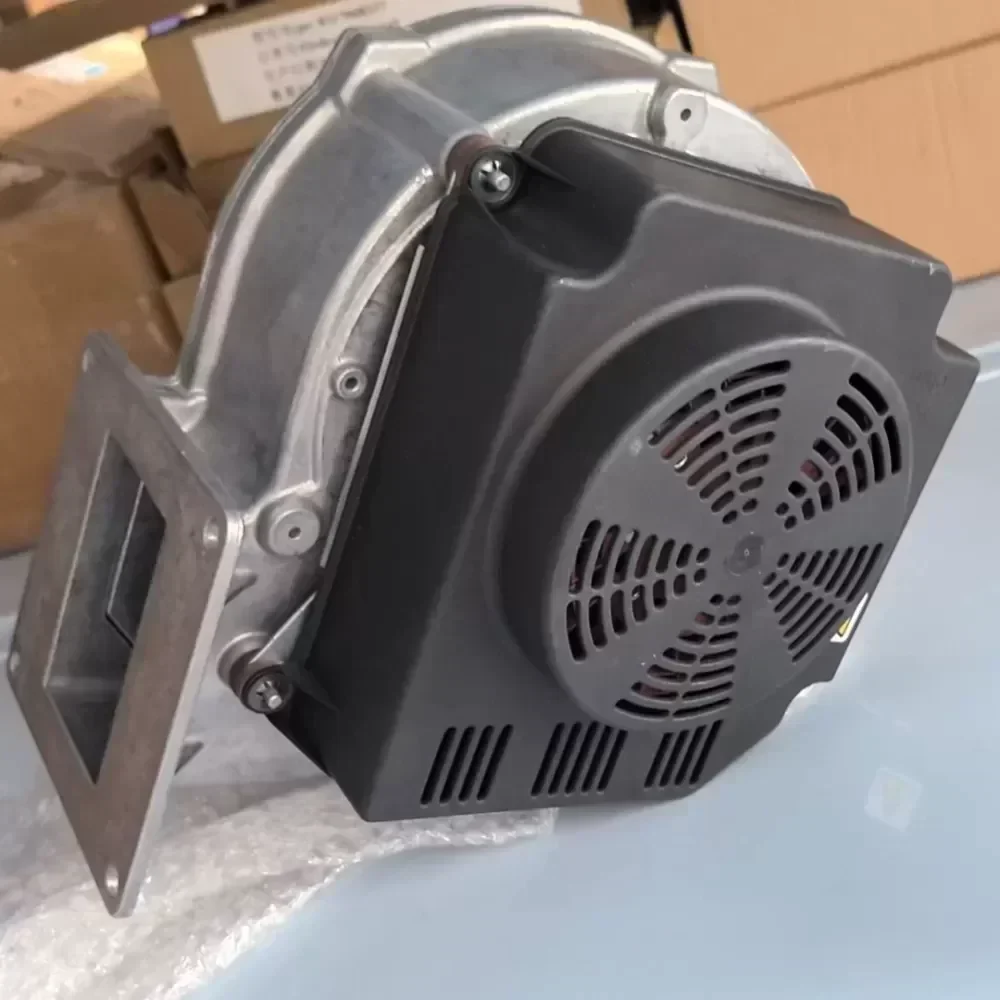

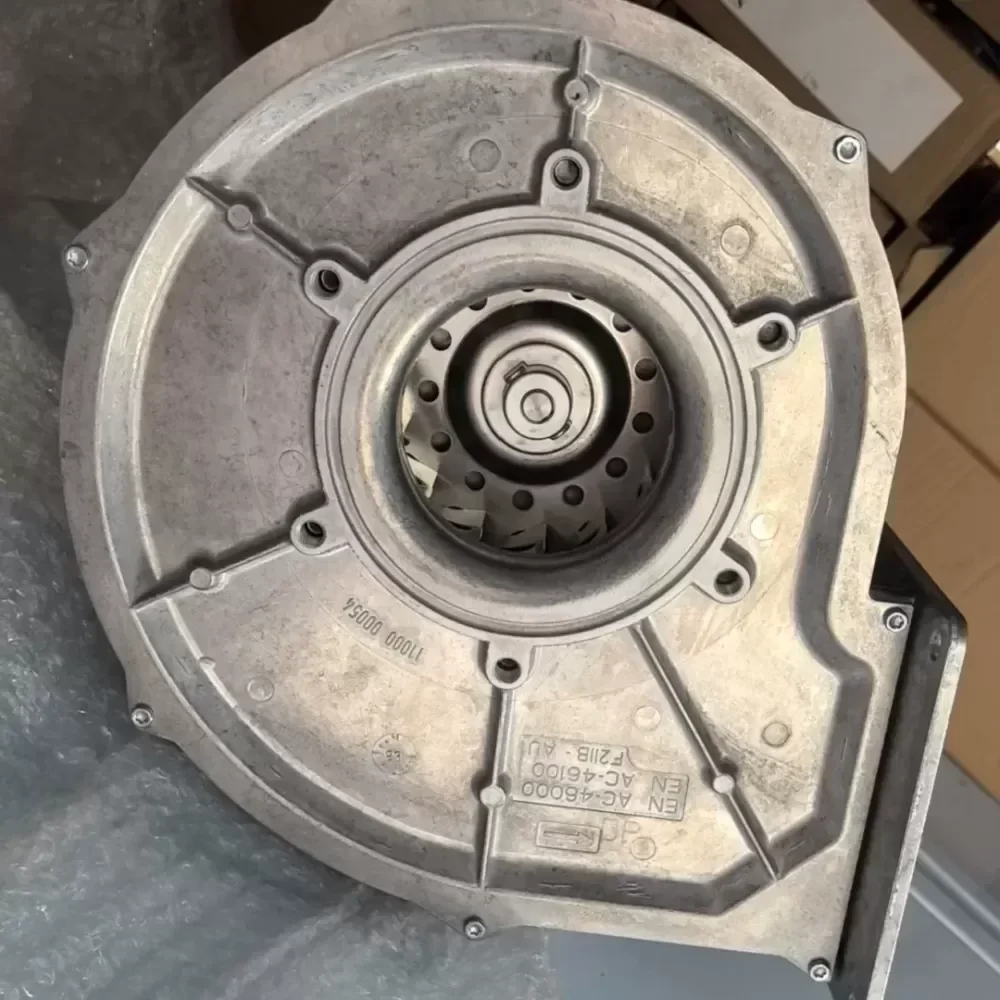

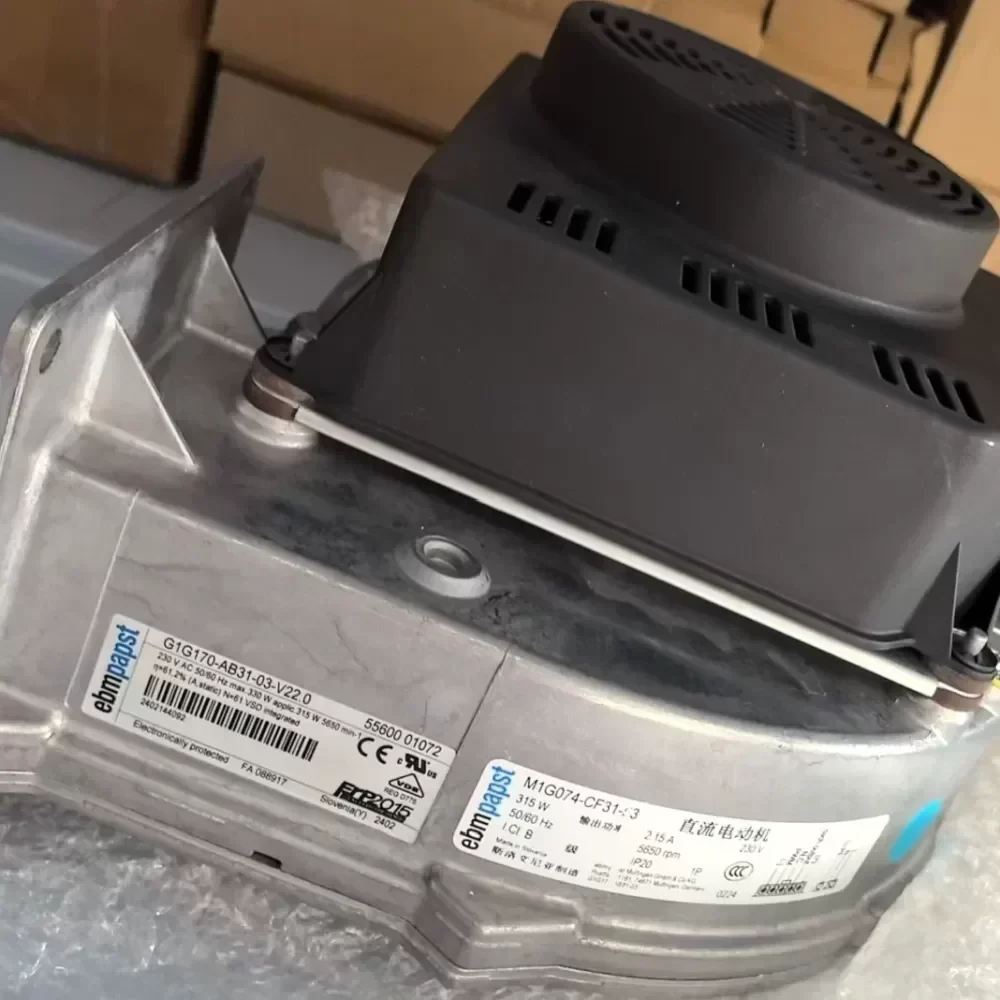

G1G170-AB31-03 ebmpapst fan

Name: G1G170-AB31-03 ebmpapst fan
Brand: ebmpapst
SKU: 923173018521
Availability: InStock
Rating: 5 (4 reviews)

$450.00

SKU: 923173018521 Brand: ebmpapst

Description
Reviews (0)

Description

The ebm-papst G1G170-AB31-03 is a high-performance EC centrifugal fan assembly integrated with the M1G074-CF31-53 motor. This unit represents Original Engineering from Germany, designed for high-pressure industrial applications requiring precise airflow control and superior energy efficiency. The system utilizes an electronically commutated (EC) motor to provide variable speed control and reduced power consumption compared to traditional AC models.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: G1G170-AB31-03
Motor Model: M1G074-CF31-53
Motor Type: EC (Electronically Commutated)
Nominal Voltage: 230 VAC
Voltage Range: 200 to 277 VAC
Frequency: 50/60 Hz
Power Consumption: 315 W
Speed: 5060 rpm
Current Draw: 1.40 A
Max Airflow: 880 m³/h
Max Back Pressure: 850 Pa
Direction of Rotation: Clockwise, viewed toward rotor
Bearing Type: Maintenance-free ball bearings
Housing Material: Die-cast aluminum
Impeller Material: Galvanized sheet steel
Number of Blades: 42
Ingress Protection: IP54
Insulation Class: B
Operating Temperature Range: -25 °C to +60 °C
Weight: 4.8 kg
Technical Compatibility: Integrated electronics with 0-10VDC/PWM control input and tach output

Industrial Application: This fan is engineered for high-density thermal management systems, specifically within telecommunications enclosures, server racks, and industrial frequency inverters. The G1G170-AB31-03 solves the critical problem of heat dissipation in restricted spaces where high static pressure is necessary to overcome internal resistance. Its EC logic ensures optimized Lead Time on thermal stabilization by adjusting speed dynamically based on real-time cooling demand, ensuring long-term reliability in continuous duty cycles.

G1G170-AB31-03 ebmpapst fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
