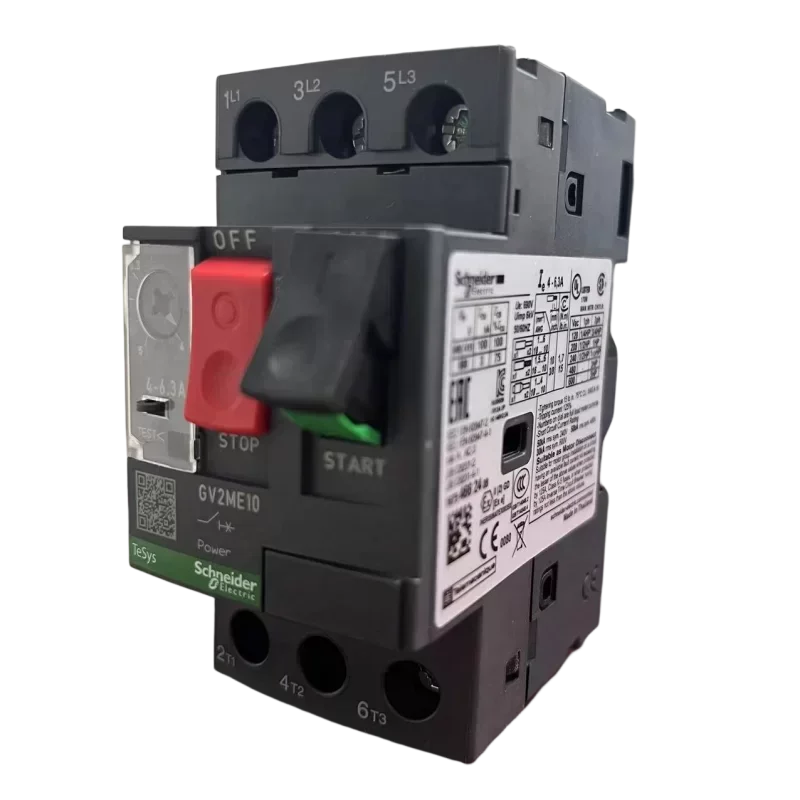

GV2ME10 3P 10A 2.5W Schneider TeSys Motor Circuit Breaker

Description

The Schneider Electric TeSys GV2ME10 is a high-performance Motor Protection Circuit Breaker (MPCB) engineered for the direct control and protection of motors. Belonging to the TeSys Deca frame (formerly TeSys GV2), this 3-pole thermal-magnetic device provides comprehensive protection against short-circuits and overloads, ensuring the longevity of downstream electromechanical equipment. The GV2ME10 features a push-button control interface and is optimized for standard industrial load management.

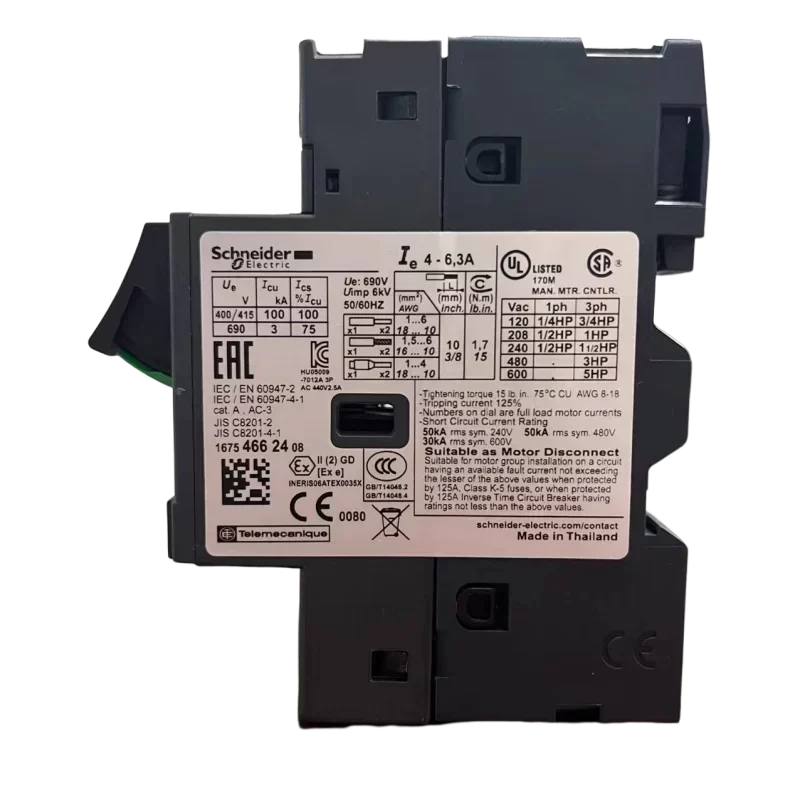

Technical Specifications
Manufacturer: Schneider Electric
Model Number: GV2ME10
Series: TeSys Deca / GV2
Device Short Name: GV2ME
Trip Unit Technology: Thermal-Magnetic
Poles Description: 3P
Utilization Category: AC-3 per IEC 60947-4-1
Thermal Protection Adjustment Range: 4.0 A to 6.3 A
Magnetic Tripping Current: 78 A (± 20 %)
Rated Operational Voltage (Ue): 690 V AC 50/60 Hz
Motor Power Application: 2.2 kW at 400/415 V AC
Breaking Capacity (Icu): 100 kA at 400/415 V AC
Control Type: Push-button
Power Dissipation per Pole: 2.5 W
Conventional Free Air Thermal Current: 10 A (Frame Rating)
Mechanical Durability: 100,000 cycles
Electrical Durability: 100,000 cycles for AC-3
Mounting Support: 35 mm symmetrical DIN rail, Panel (with adaptor plate)
Connection Type: Screw clamp terminals
Tightening Torque: 1.7 N.m
Height: 89 mm
Width: 45 mm
Depth: 78.5 mm
Net Weight: 0.26 kg
Fire Resistance: 960 °C per IEC 60695-2-1
Ambient Air Temperature for Storage: -40…80 °C
Ambient Air Temperature for Operation: -20…60 °C
Ingress Protection: IP20 per IEC 60529
Suitability for Isolation: Yes, conforming to IEC 60947-1
Certifications: CB, UL, CSA, CCC, EAC, UKCA, RINA, LROS, DNV-GL, BV

Industrial Application
This unit is specifically calibrated for the protection of 3-phase induction motors rated at 2.2 kW (at 400V), commonly found in industrial conveyor belts, HVAC ventilation fans, and hydraulic pump systems. The GV2ME10 provides critical phase failure sensitivity and local isolation capabilities. Its high breaking capacity of 100 kA at 400V allows it to function without upstream fuses in most standard industrial distribution grids, reducing panel footprint and maintenance complexity.

Logistics and Compatibility
Original Engineering guarantees precise fitment within TeSys contactor assemblies for compact motor starters. Please verify Technical Compatibility with your specific motor load curve and inrush current requirements. Contact our supply team for current Lead Time and bulk quantity logistics.

Key Attributes
Breaking Capacity: 3P
Rated Voltage: Other
Place of Origin: Thailand
Model Number: GV2ME10
Brand Name: Schneider
Rated Frequency (Hz): 50~60Hz
Product name: GV2ME10 3P 10A 2.5W Schneider TeSys Motor Circuit Breaker
Current Range: 10 A
Power dissipation per pole: 2.5 W
Storage temp.: -40...80 °C
Fire resistance: 960 °C
Height*Width*Depth: 89*45*78.5 mm
Weight: 0.26 kg
Type: Magnetic

Packaging and Delivery
Selling Units: Single item
Single package size: 10X5X8 cm
Single gross weight: 2.000 kg
