Description

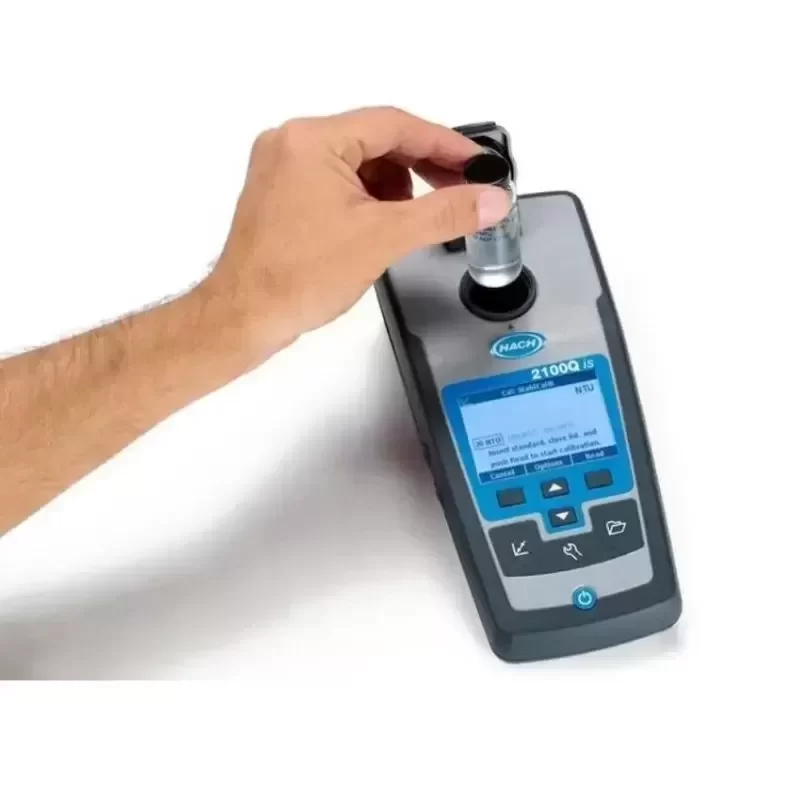

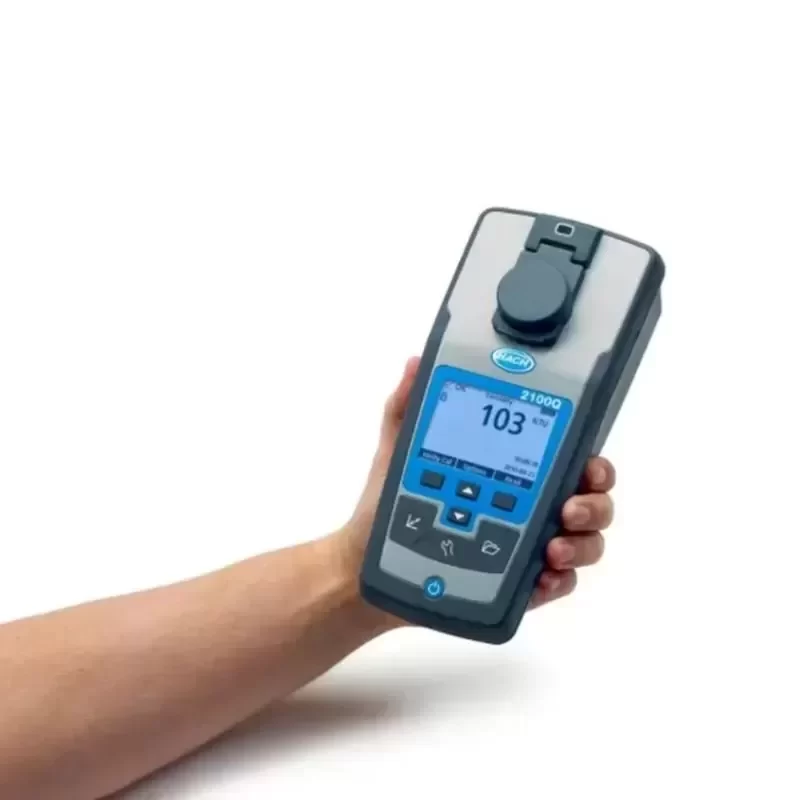

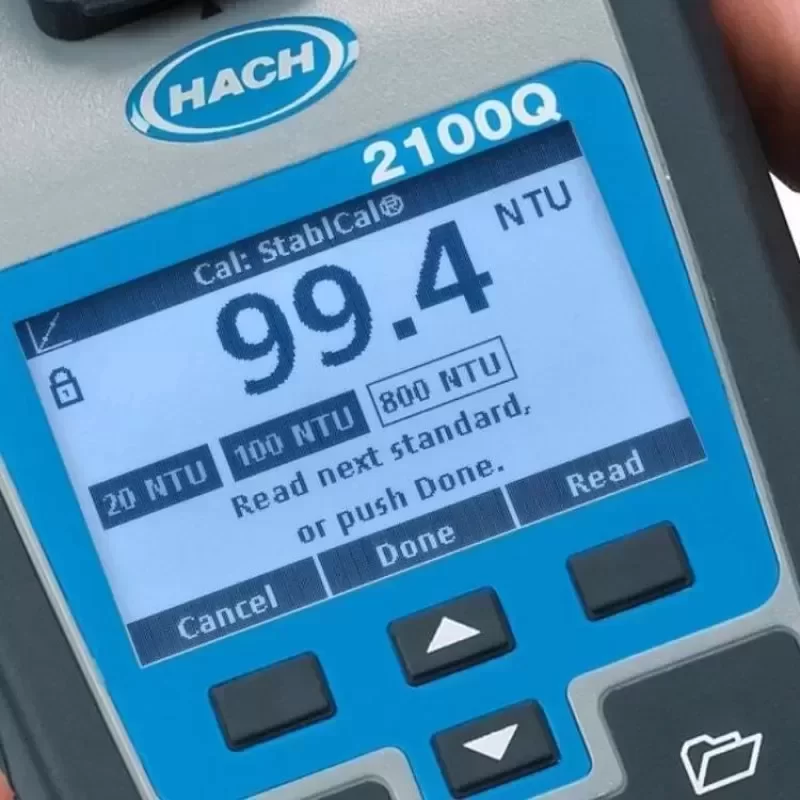

The HACH 2100Q Portable Turbidimeter is a premier field analysis instrument engineered for rigorous water quality monitoring and compliance with EPA 180.1 standards. This device employs a tungsten filament light source and advanced optical geometry to deliver laboratory-grade accuracy in a handheld form factor. The unit features a simplified user interface with on-screen assisted calibration and verification, ensuring data integrity in remote operational environments. The robust IP67 design allows for operation in challenging field conditions without compromising the optical bench stability.
Technical Specifications:
Brand: HACH
Model Number: 2100Q
Measurement Method: Ratio Turbidimetric Determination
Regulatory Compliance: EPA Method 180.1
Measurement Range: 0 to 1000 NTU
Accuracy: ±2 % of reading plus stray light (0 to 1000 NTU)
Resolution: 0.01 NTU on lowest range
Repeatability: ±1 % of reading or 0.01 NTU
Stray Light: <0.02 NTU
Light Source: Tungsten Filament Lamp
Display Type: Graphic LCD (240 x 160 pixels)
Data Logging Capacity: 500 records
Power Supply: 4 x AA Alkaline batteries
Battery Life: Approximately 3000 tests
Enclosure Rating: IP67 (dust-tight and waterproof)
Operating Temperature: 0 °C to 50 °C
Sample Cell Compatibility: 25 mm round cells
Dimensions (H x W x D): 77 mm x 107 mm x 229 mm
Instrument Weight: 527 g (excluding batteries)
Gross Shipping Weight: 3.000 kg
Certifications: CE, WEEE
Industrial Application:
This turbidimeter is specifically deployed in municipal water distribution systems and industrial wastewater effluent monitoring where rapid settling samples or colored matrices are present. The 2100Q utilizes a ratio measurement mode that corrects for interferences caused by color and large particles, solving the critical problem of false high readings in complex fluid analysis. This ensures precise control over filtration processes and regulatory reporting.
Procurement Information:
This unit represents Original Engineering from HACH, ensuring full Technical Compatibility with StablCal standards and existing data management workflows. Please verify current Lead Time for volume orders or specific OEM customization requirements.
Key Attributes
Place of origin: United States
Brand name: HACH
Customized support: OEM
Material: Plastic
Power: AA batteries
Warranty: 1 years
Accuracy: ± 2 % of reading plus stray light
Certifications: CE certified
Compliance Certifications: CE/WEEE
Data Logging: 500 records
Dimensions (H x W x D): 77 mm x 107 mm x 229 mm
Display Size: 240 x 160 pixels
Display Type: Graphic LCD
Enclosure Rating: IP67
Packaging and Delivery
Selling Units: Single item
Single package size: 36X28X21 cm
Single gross weight: 3.000 kg
