Description

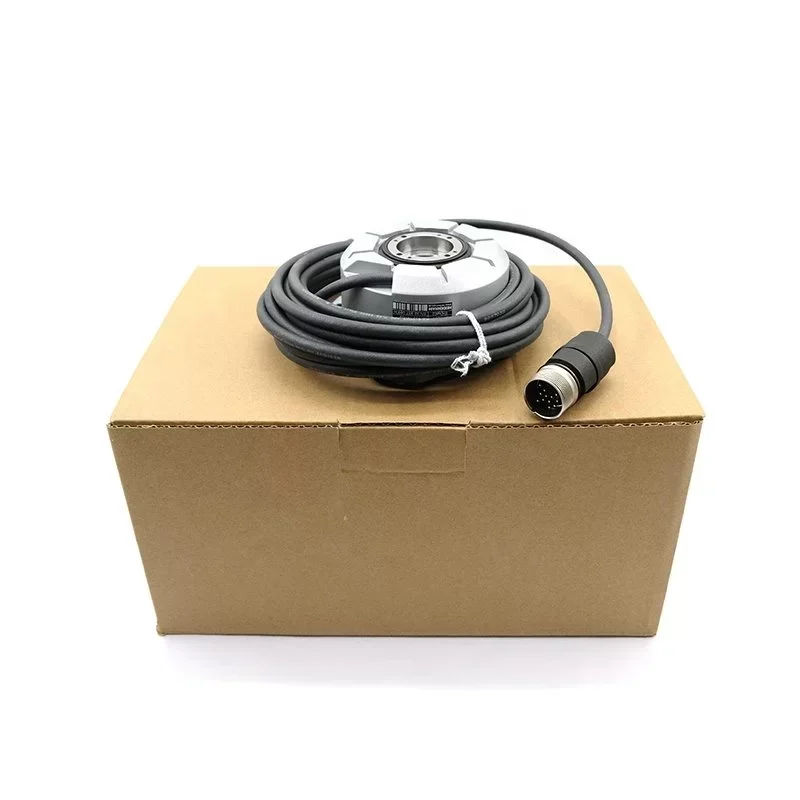

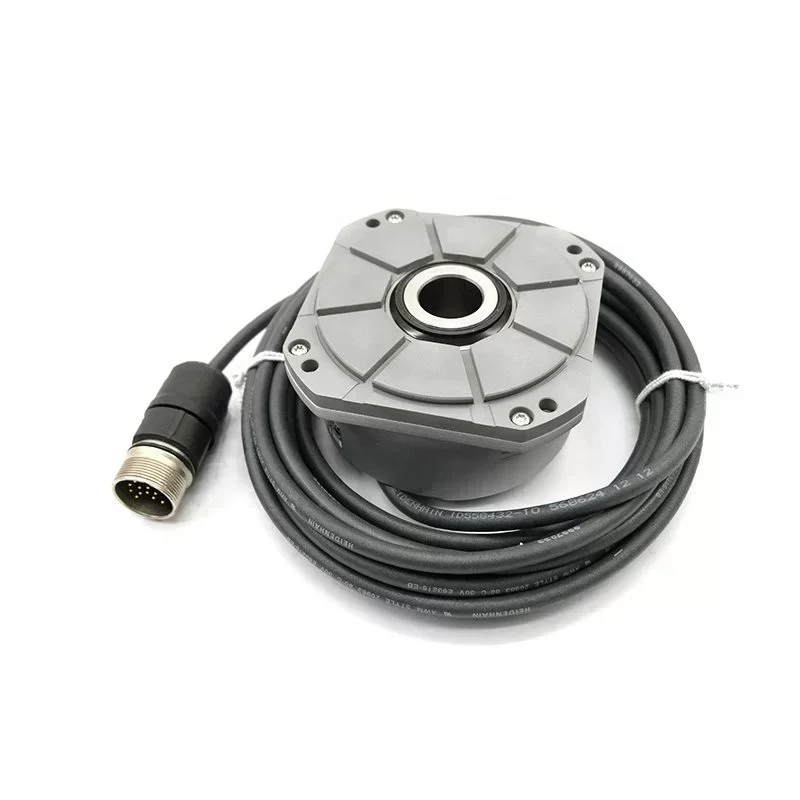

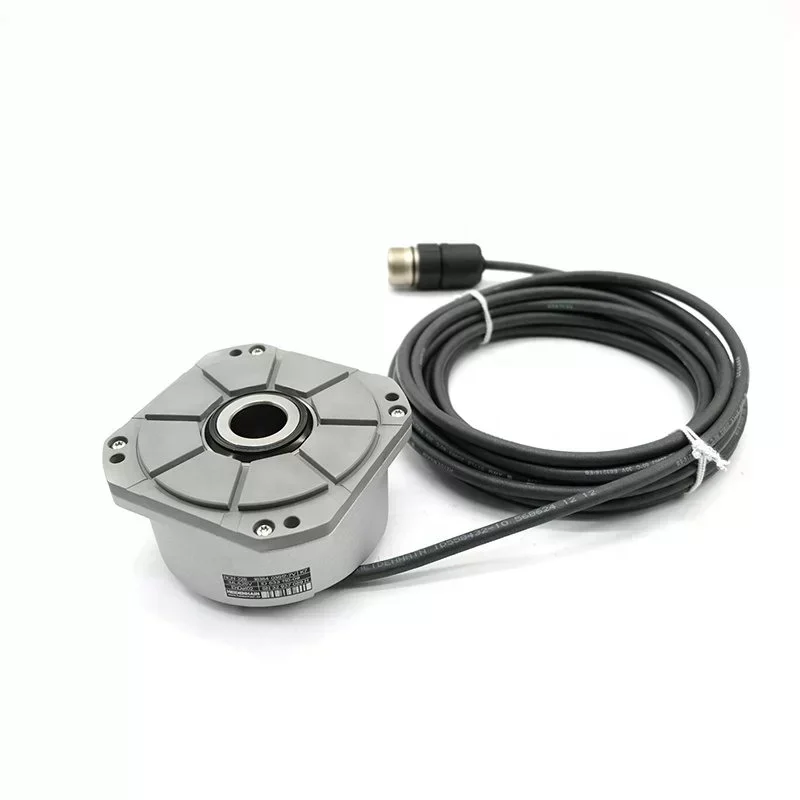

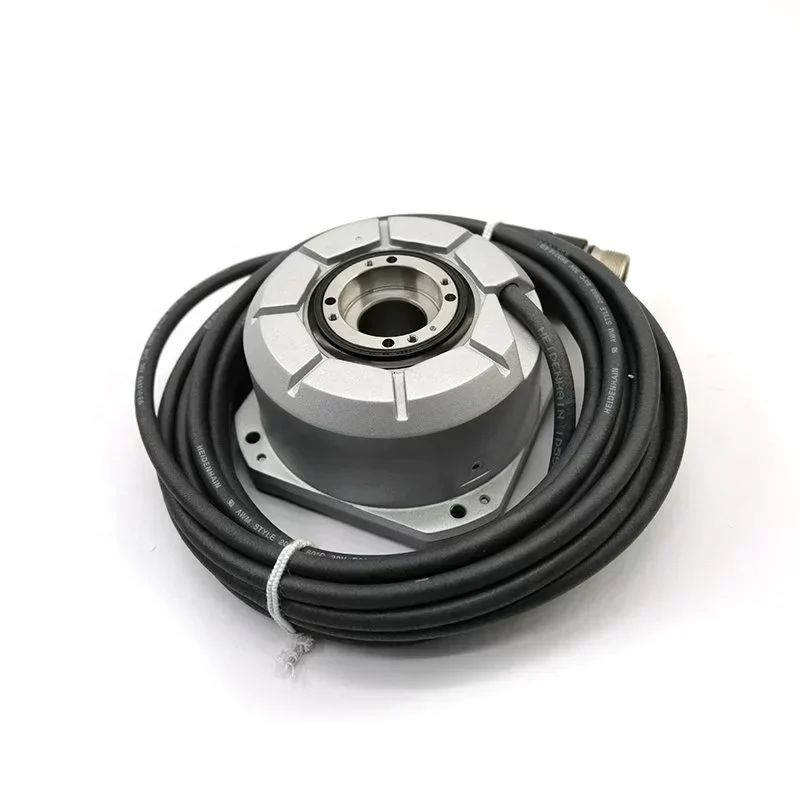

The HEIDENHAIN RCN 226 series, specifically model 533 110-09, is a high-precision absolute angle encoder engineered for sophisticated motion control and positioning tasks. This unit features an integral bearing and a stator coupling, which ensures high measurement accuracy by isolating the internal scanning unit from mechanical stresses. As an original engineering component from Germany, it provides the reliability required for high-end industrial automation and precision machining.
Technical Parameters:
Brand: HEIDENHAIN
Model Number: 533 110-09
Encoder Type: Absolute Angle Encoder
Interface: EnDat 2.2
Resolution: 16384 lines
Shaft Type: Hollow shaft Ø 20 mm
System Accuracy: ±5.0 arc seconds
Voltage Range: 3.6 – 14 VDC
Protection Rating: IP64
Weight: 1.000 kg
Industrial Application:
This encoder is a critical component for CNC rotary tables, tilting axes, and high-precision robotic joints. It is specifically designed to maintain signal integrity in environments with high vibration and thermal fluctuations, making it indispensable for aerospace and automotive manufacturing sectors where micron-level accuracy is mandatory.
Logistics and Support:
Condition: Original New
Warranty: 12 Months
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Packaging: Industrial Grade Carton
Availability: In Stock for Immediate Dispatch
Key Attributes
Place of Origin: Germany
Model Number: 533 110-09
Brand Name: HEIDENHAIN
Product Name: HEIDENHAIN Encoder
Condition: Original new
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece
Packaging and Delivery
Selling Units: Single item
Single package size: 15X15X15 cm
Single gross weight: 1.000 kg
