Description

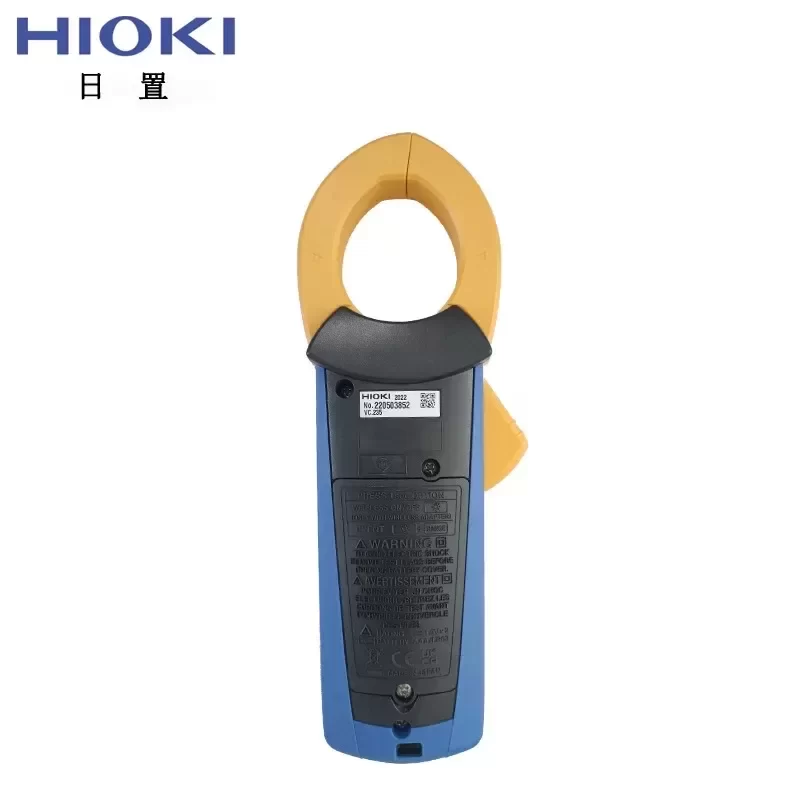

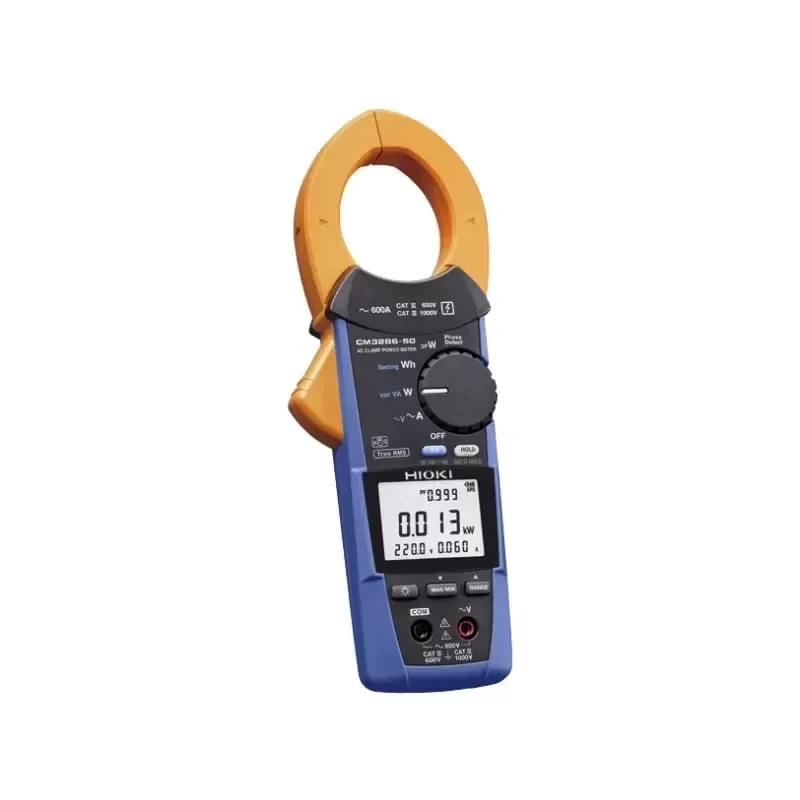

The Hioki CM3286-50 is a high-precision handheld AC power meter designed for comprehensive power analysis and phase detection in single-phase and balanced three-phase circuits. This instrument utilizes True RMS rectification to ensure accurate measurement of distorted waveforms found in modern inverter-driven power supplies. The CM3286-50 distinguishes itself with integrated harmonic analysis capabilities and wireless connectivity compatibility, streamlining data logging and reporting workflows via the GENNECT Cross application. Engineered for rigorous field use, it features a robust jaw design and extended temperature tolerance, ensuring reliability in extreme thermal environments.
Manufacturer: Hioki E.E. Corporation
Model Number: CM3286-50
Device Type: AC Clamp Power Meter
Measurement Method: True RMS
AC Current Range: 0.060 A to 600.0 A
AC Voltage Range: 80.0 V to 600.0 V
Power Measurement Capabilities: Active (W), Reactive (var), Apparent (VA)
Power Factor Range: -1.000 to 1.000
Frequency Range: 45 Hz to 999.9 Hz
Harmonic Levels: Up to 30th order (via application)
Phase Detection: Lead/Lag indication
Jaw Aperture: Ø 46 mm (1.81 in)
Display: Digital LCD, max. 9999 counts
Refresh Rate: 5 times/second
Operating Temperature: -25°C to 65°C (-13°F to 149°F)
Ingress Protection: IP50 (Dust Protected)
Power Supply: 2 x LR03 Alkaline batteries
Dimensions: 82 mm x 241 mm x 37 mm
Weight: 450 g
Safety Category: CAT IV 600 V, CAT III 1000 V

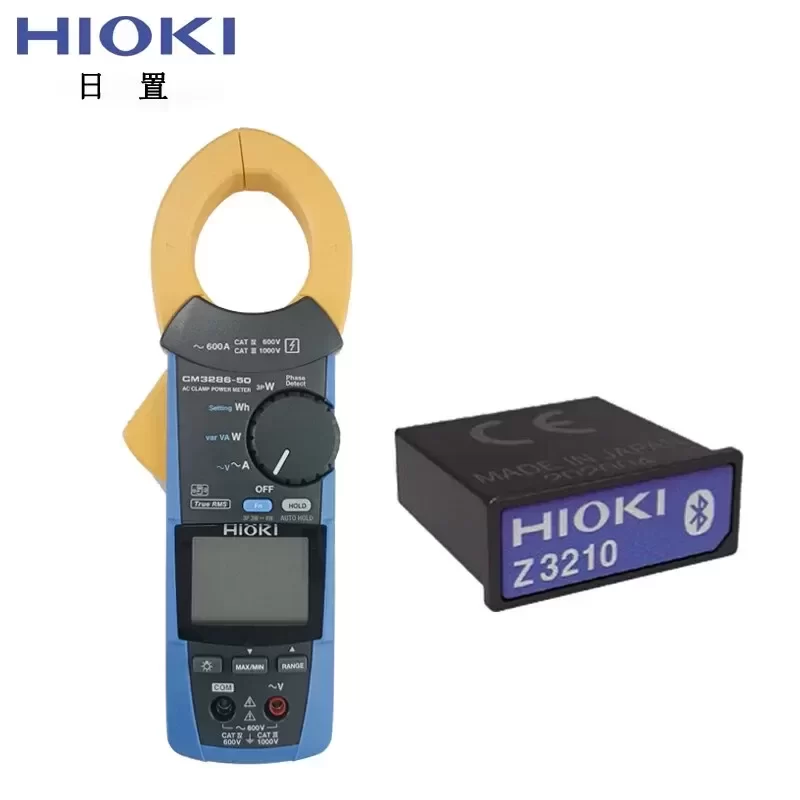

Connectivity: Bluetooth (Z3210 Adapter compatible)
Origin: Japan
Industrial Application:
This unit is essential for electrical maintenance teams conducting energy audits and power quality troubleshooting in industrial distribution panels. Its specific ability to measure power factor and harmonics makes it indispensable for diagnosing efficiency losses in motor control centers and detecting electricity theft in utility grids. The Original Engineering of the clamp mechanism ensures consistent accuracy even in crowded cabling environments. Please verify Technical Compatibility with your existing data logging systems and inquire about current Lead Time for volume procurement.
Key Attributes
Measuring Voltage Range: 600 V
Place of Origin: Japan
Model Number: CM3286-50
Brand Name: Hioki
Dimensions: 82 x 241 x 37 mm
Display Type: Digital Only
Measuring Capacitance Range: ,
Measuring Current Range: 600A
Measuring Inductance Range: ,
Measuring Resistance Range: ,
Operating Temperature: -13 to 149°F (-25 to 65°C or less)
Weight: 450g
Product name: Hioki
Model: CM3286-50
Maximum Current AC: 600 A
Maximum Voltage DC: 600 V
Maximum Conductor Size: 46 MM (1.81 IN)
Operating Temperature: -13 to 149°F (-25 to 65°C or less)
Power Supply: 2 x LR03 Alkaline batteries
Safety Approval: RoHS
IP Rating: IP50
Packaging and Delivery

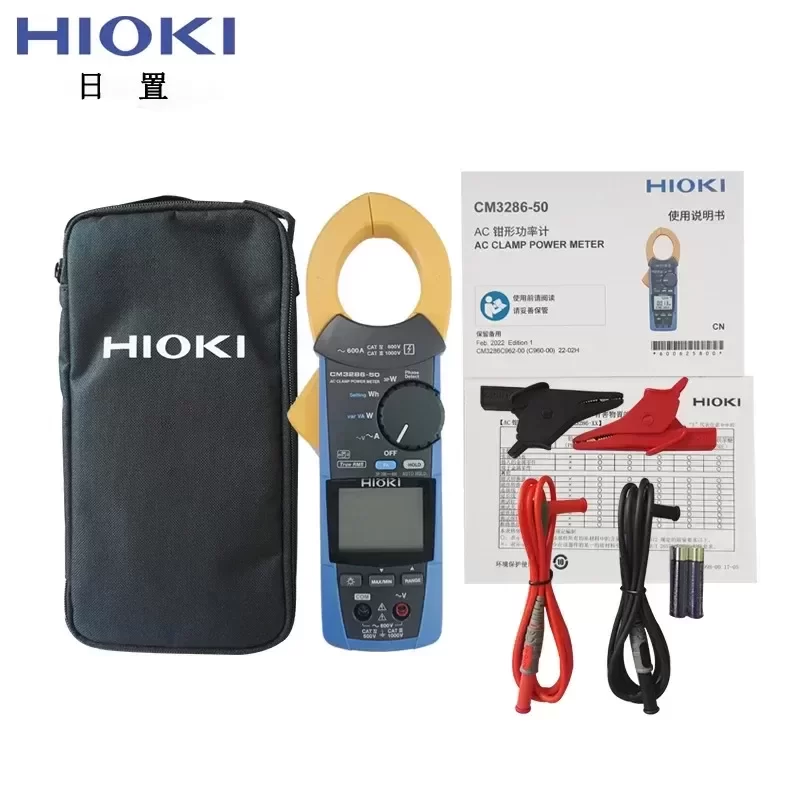

Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
