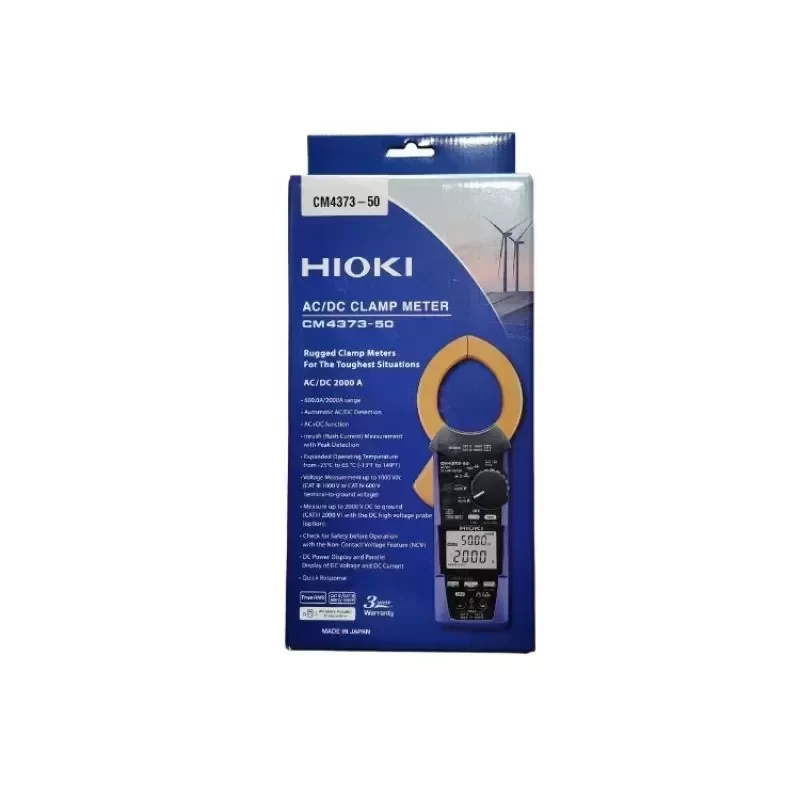

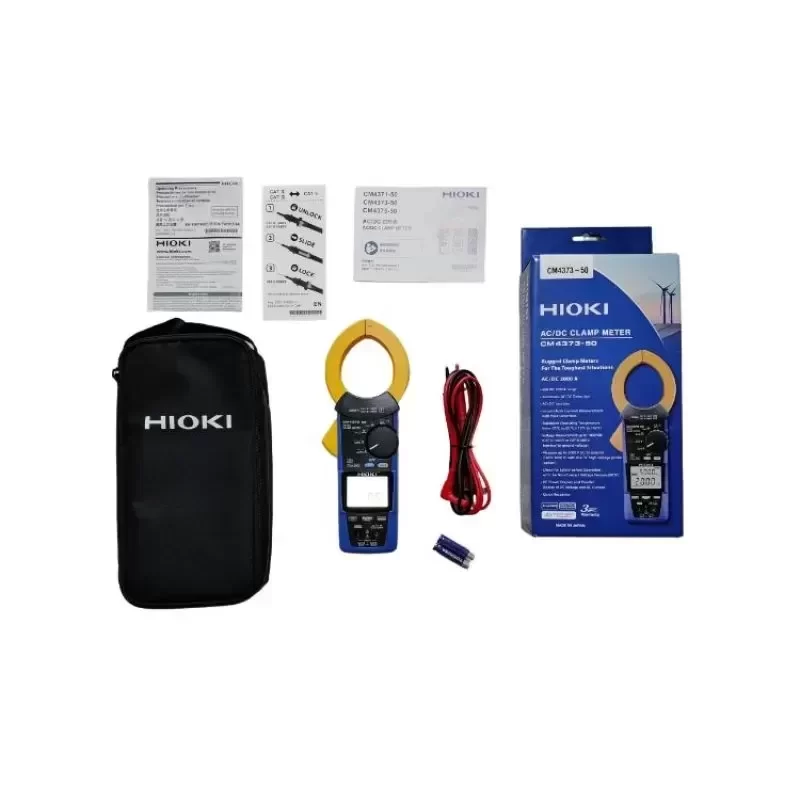

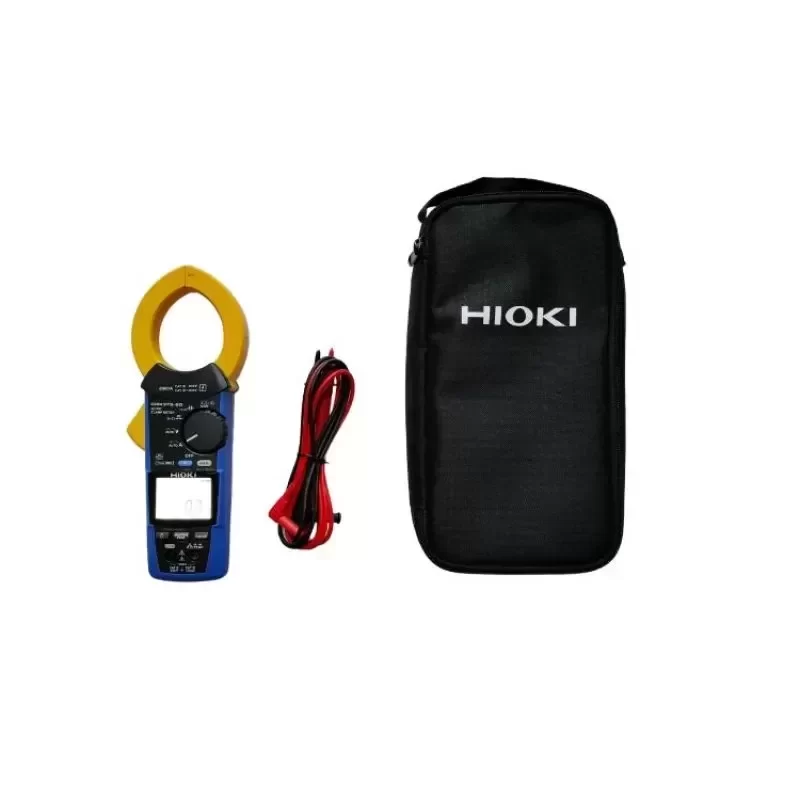

Hioki CM4373-50 True RMS 2000A AC DC Clamp Meter Open Voltage Inspections of Solar Panels

Description

Hioki CM4373-50 True RMS 2000A AC DC Clamp Meter for Open Voltage Inspections of Solar Panels

Key Attributes
Max. Ac Current: 1000 A
Max. DC Current: 1000 A
Measuring Voltage Range: 1000 V
Place of Origin: Japan
Model Number: CM4373-50
Brand Name: Hioki
Dimensions: 25 * 7 * 4cm
Display Type: Digital Only
Instrument Safety Rating: CAT III 600V
Max. Ac Voltage: 1000 V
Max. DC Voltage: 1000 V
Measuring Capacitance Range: 1.000 μF to 1000 μF
Measuring Current Range: 2000 A
Measuring Inductance Range: 9.999 Hz to 999.9 Hz
Measuring Resistance Range: 600.0 Ω to 6.000 MΩ
Operating Temperature: -40.0 to 400.0 ℃
Parameters Measured: Frequency, DC Current, AC Voltage
Weight: 530g
DC+AC Current range: 600.0 A/2000 A
DC/AC Voltage range: 1000V
Resistance range: 600.0 Ω to 6.000 MΩ
Capacitance range: 1.000 μF to 1000 μF
Frequency range: 9.999 Hz to 999.9 Hz
Temperature (K): -40.0 to 400.0 °C
Dustproof, waterproof: IP54
Power supply: LR03 Alkaline battery x 2

Packaging and Delivery
Selling Units: Single item
Single package size: 30X16X12 cm
Single gross weight: 1.200 kg
