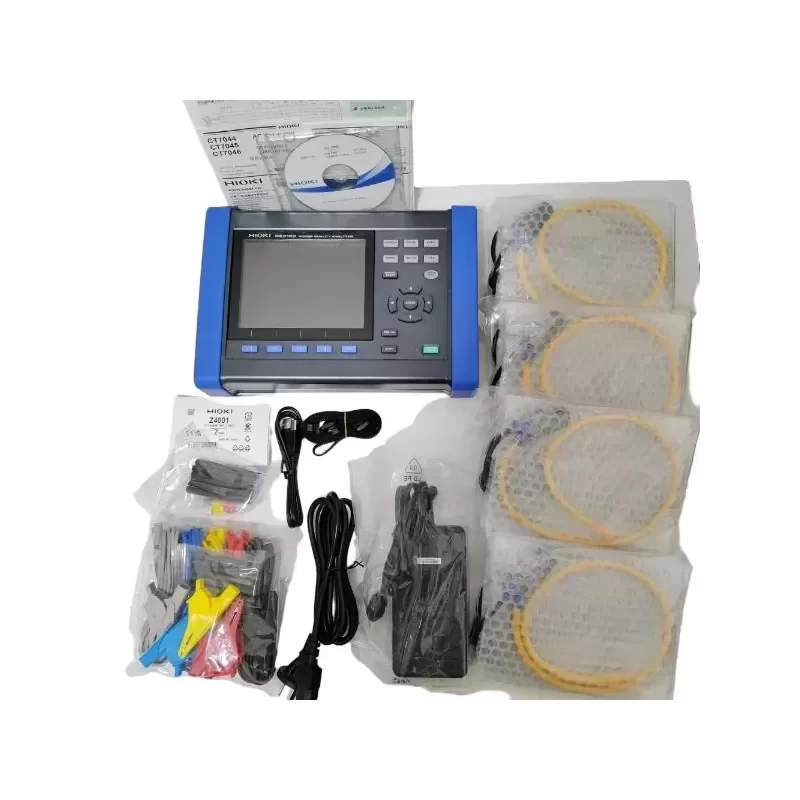

Hioki PQ3198/6000 Three-Phase Power Quality Analyzer with 6000A Sensor and Additional Options

Description

Hioki PQ3198/6000 Three-Phase Power Quality Analyzer with 6000A Sensor and Additional Options

Key Attributes
Accuracy Class: ±0.1 % rdg
Measuring Energy Range: 300.00 W to 3.0000 MW
Phase: Three Phase
Place of Origin: Japan
Model Number: PQ3198/6000
Brand Name: Hioki
Dimensions: 30cm*21cm*7cm
Display Type: Digital Only
Operating Temperature: -10-60degree
Output Voltage: 600.00 V rms
Voltage measurement: 600.00 V rms
Transient measurement: 6.0000 kV peak
Current ranges: 500.00 mA to 5.0000 kA AC
Power ranges: 300.00 W to 3.0000 MW
Voltage: ±0.1%
Transient voltage: 2 MHz sampling
Frequency cycle: 40 to 70 Hz
Display: 6.5-inch TFT color LCD (640 x 480 dots)

Packaging and Delivery
Selling Units: Single item
Single package size: 48X32X28 cm
Single gross weight: 5.400 kg
