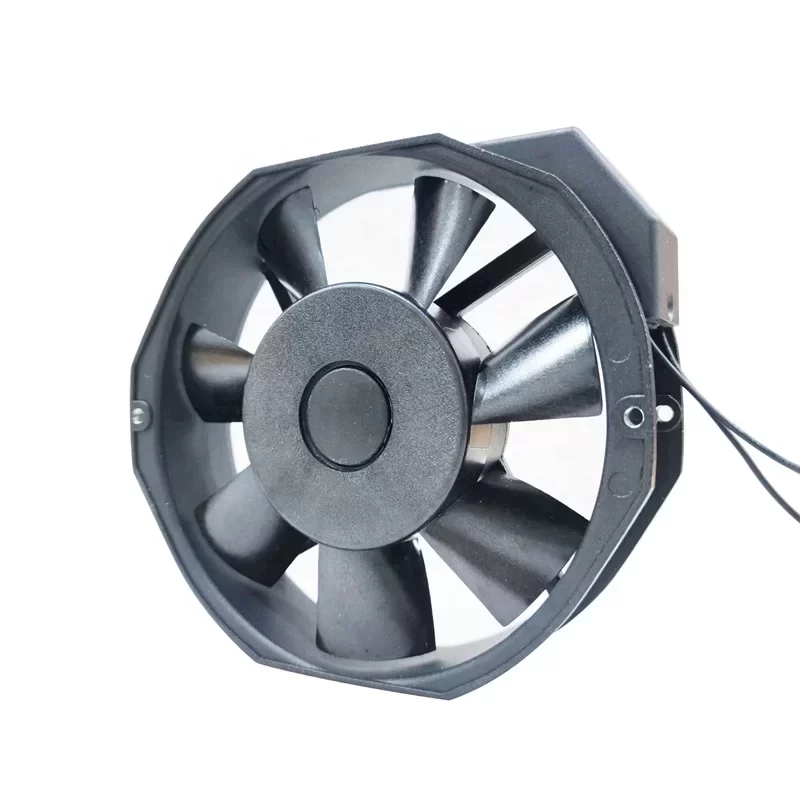

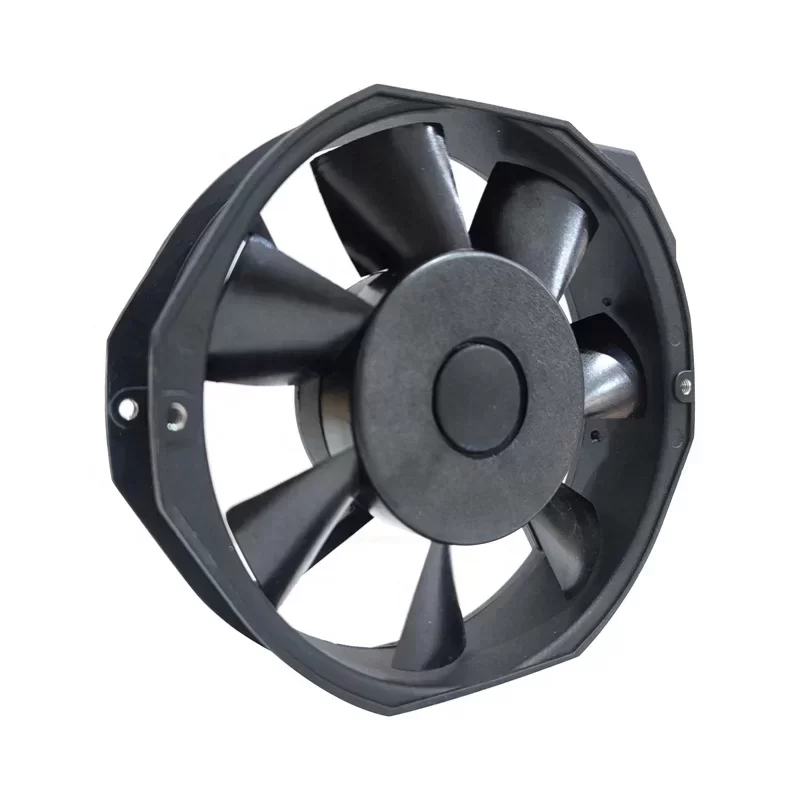

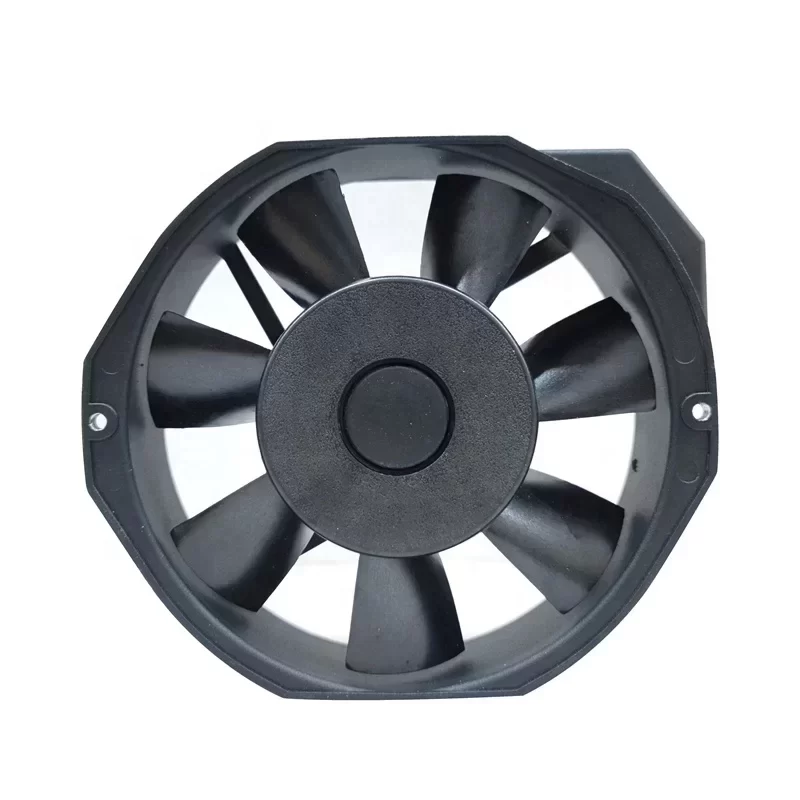

HR17238V1HBT 17238 172x38mm 115V AC Inverter Axial Fan

HR17238V1HBT 17238 172x38mm 115V AC Inverter Axial Fan

Name: HR17238V1HBT 17238 172x38mm 115V AC Inverter Axial Fan
SKU: 10000005133384
Availability: InStock
Rating: 5 (4 reviews)

$7.51

SKU: 10000005133384

Description
Reviews (0)

Description

The HR17238V1HBT is a high-performance industrial axial cooling fan engineered for continuous thermal regulation in demanding electrical environments. This unit features Original Engineering designed to maintain optimal operating temperatures within inverter cabinets, power supplies, and telecommunications enclosures. The dual ball bearing system ensures extended lifecycle reliability and Technical Compatibility with standard 172mm mounting configurations.

Technical Specifications:
Brand: HR
Model Number: HR17238V1HBT
Component Type: AC Axial Cooling Fan
Dimensions: 172 x 172 x 38 mm
Rated Voltage: 115V AC
Operating Frequency: 50/60 Hz
Input Current: 0.25/0.21 A
Power Rating: 27/25 W
Bearing System: Precision Dual Ball Bearing
Housing Material: Die-cast Aluminum with Black Coating
Impeller Material: Reinforced PBT Plastic (UL94V-0)
Termination: Terminal Block
Insulation Resistance: 500MΩ at 500VDC
Dielectric Strength: 1500VAC/min
Operating Temperature Range: -10°C to +70°C
Storage Temperature Range: -40°C to +80°C
Protection Rating: Impedance Protected
Service Life: 50,000 Hours (L10 at 25°C)
Weight: 850g

Industrial Application:
The HR17238V1HBT is specifically utilized in high-capacity inverter cabinets where heat dissipation is critical to prevent component degradation. Its high static pressure capability allows it to push air through dense internal components, ensuring system stability during peak loads. For procurement planning, please contact our sales department regarding current Lead Time and bulk shipping logistics.

Key Attributes
Voltage: 115V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China
Brand name: HR
Model number: HR17238V1HBT
Voltage: 115VAC
Frequency: 50/60HZ
Current: 0.25/0.21A
Power: 27/25W
Bearing type: Ball Bearing
Type: Axial Flow Fan
Applicable Industries: Other

Packaging and Delivery
Selling Units: Single item

HR17238V1HBT 17238 172x38mm 115V AC Inverter Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
