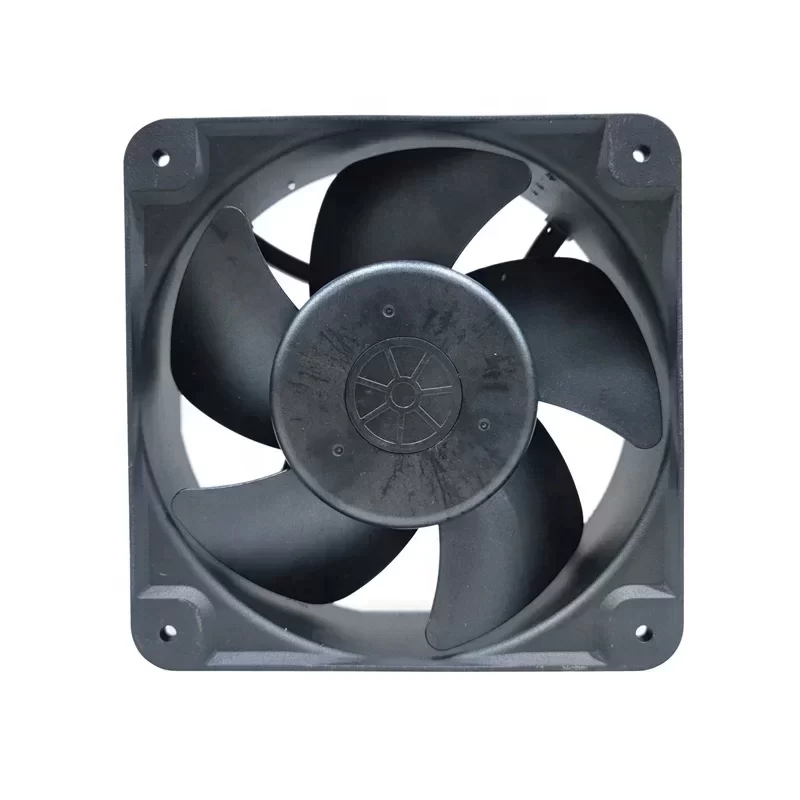

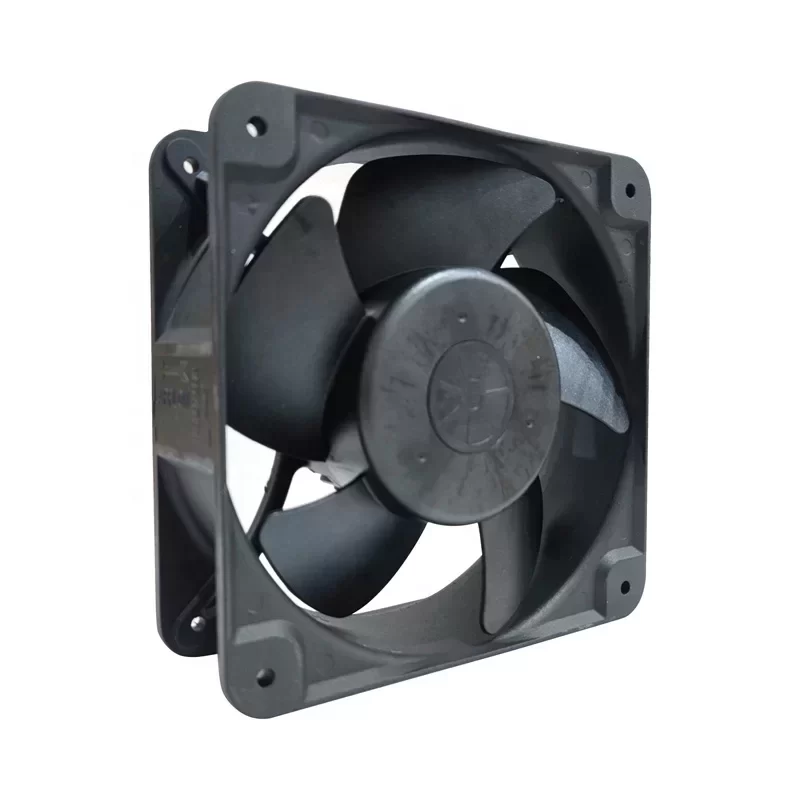

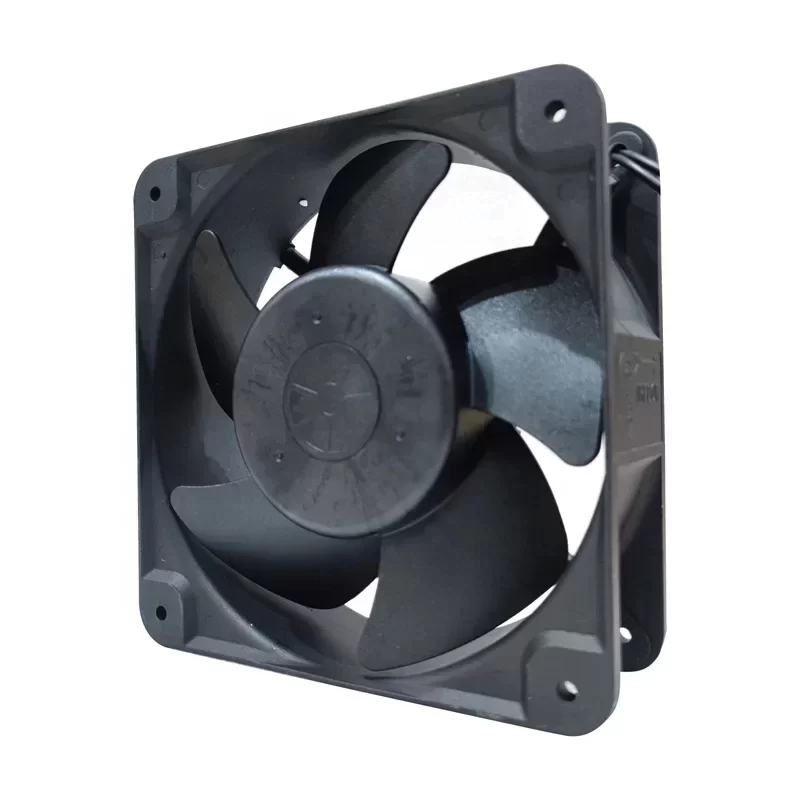

Name: HR18060HA2-BL 180x180x60mm 200V 240V AC Axial Fan
SKU: 1600384683723
Availability: InStock
Rating: 5 (4 reviews)

$11.50

SKU: 1600384683723

Description
Reviews (0)

Description

Model Number: HR18060HA2-BL
Manufacturer: HR
Product Category: AC Axial Cooling Fan
Frame Dimensions: 180mm x 180mm x 60mm
Input Voltage: 200V – 240V AC
Frequency: 50/60 Hz
Rated Current: 0.32A at 50Hz / 0.30A at 60Hz
Input Power: 39W at 50Hz / 38W at 60Hz
Bearing System: High-Precision Dual Ball Bearing
Blade Material: Reinforced Thermoplastic PBT (UL94V-0)
Frame Material: Die-cast Aluminum Alloy with Black Coating
Motor Type: Shaded Pole Induction Motor
Insulation Class: Class B
Dielectric Strength: 1500VAC for 1 minute
Operating Temperature Range: -10°C to +70°C
Storage Temperature Range: -40°C to +80°C
Static Pressure: 0.65/0.75 Inch-H2O
Airflow Volume: 320/360 CFM
Noise Level: 58/62 dB(A)
Mounting Type: Free Standing / Panel Mount
Termination: Lead Wires
Weight: 0.800 kg
Certifications: CE, RoHS Compliant

Engineering Overview:
The HR18060HA2-BL is a high-performance industrial axial fan engineered for continuous thermal management in high-density electronic enclosures. Utilizing a dual ball bearing system, this unit ensures extended service life and Technical Compatibility with both vertical and horizontal mounting orientations. The Original Engineering design focuses on aerodynamic efficiency, providing high static pressure to overcome resistance in filtered cabinet systems. The die-cast aluminum housing provides superior heat dissipation for the motor assembly, ensuring stable operation under high-duty cycles.

Industrial Application:
This model is specifically designed for cooling high-power inverters, server racks, and industrial control panels where heat dissipation is critical for system stability. Its robust construction and high-torque motor make it suitable for harsh environments requiring reliable Lead Time performance and consistent airflow in CNC machinery, power supply units, and telecommunications infrastructure. The 180mm footprint is an industry standard for large-scale ventilation requirements in automated manufacturing environments.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: HR
Model number: HR18060HA2-BL
Voltage: 230V
Frequency: 50/60HZ
Current: 0.32/0.3A
Power: 39/38W
Bearing type: Ball Bearing
Size: 180*180*60mm
Type: Axial Flow Fan

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X12 cm
Single gross weight: 0.800 kg

HR18060HA2-BL 180x180x60mm 200V 240V AC Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
