Description

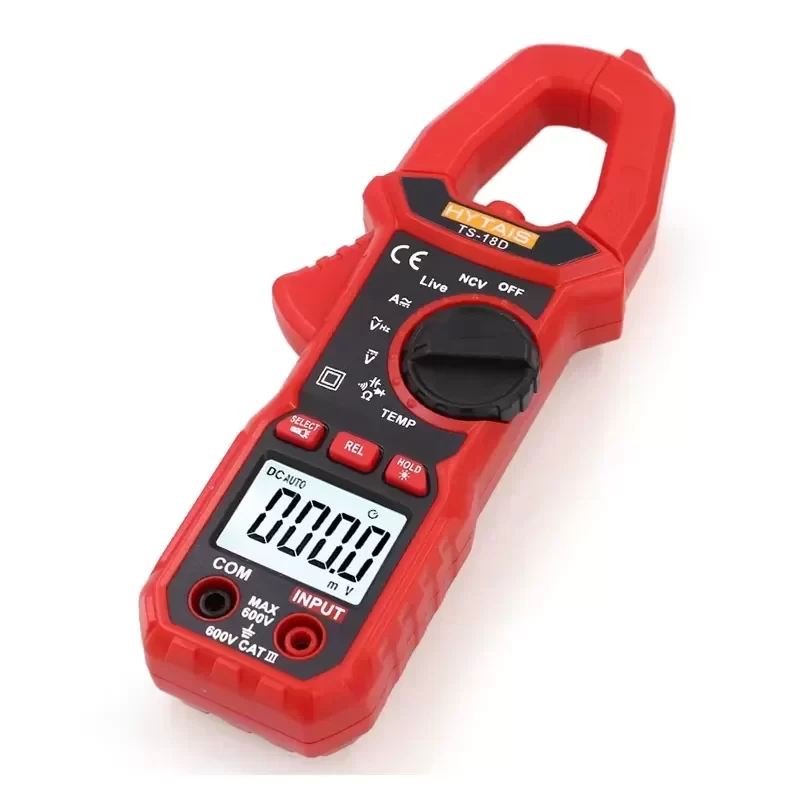

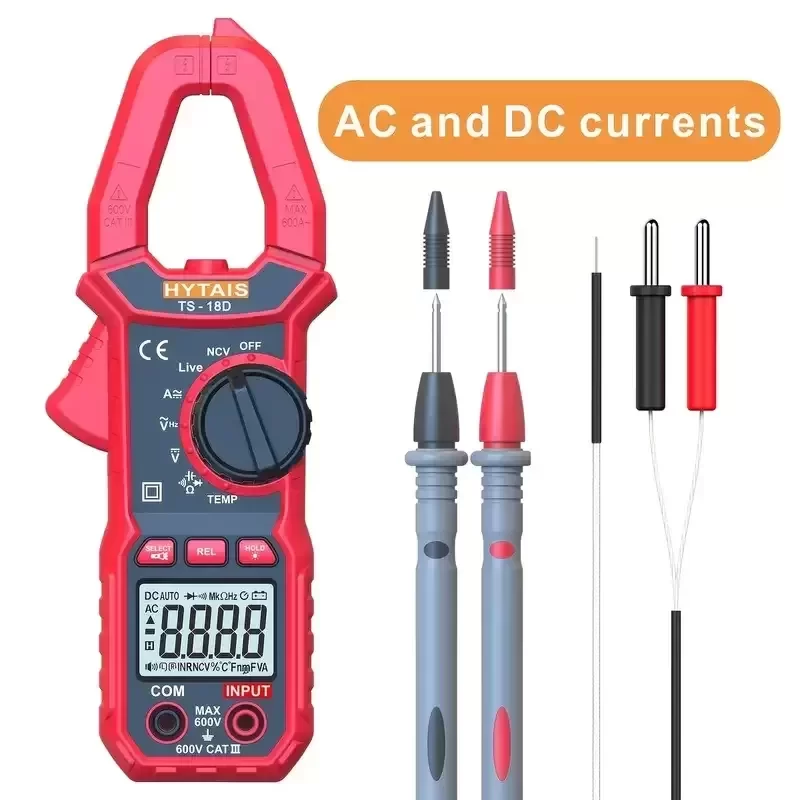

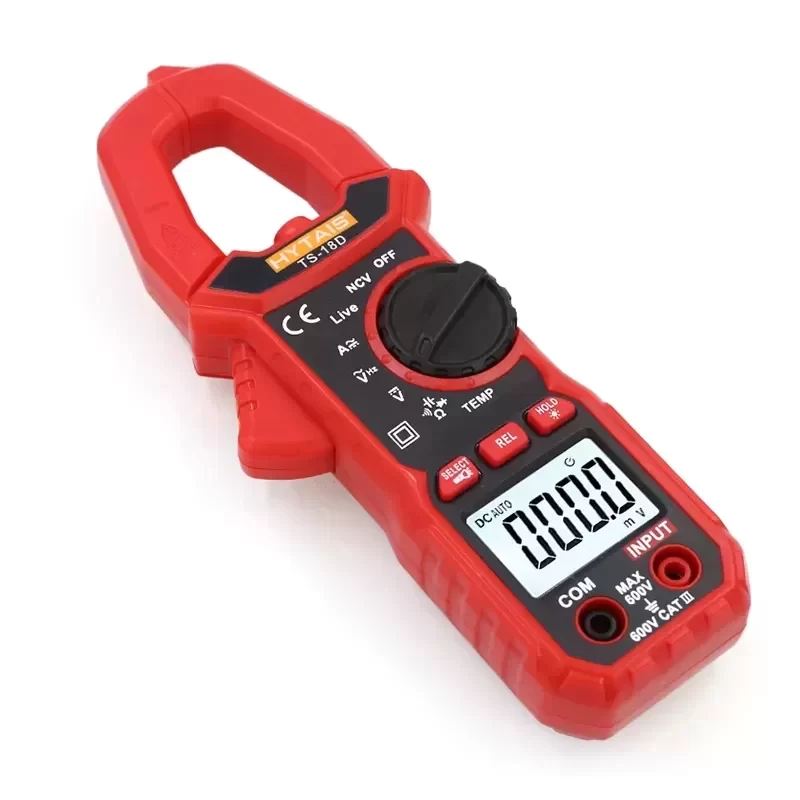

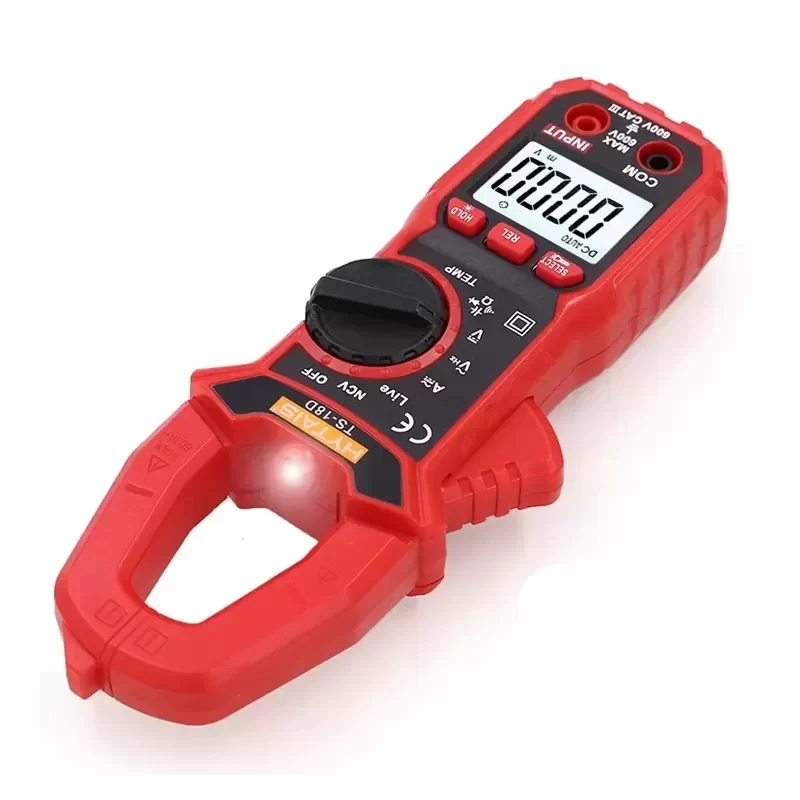

The HYTAIS TS-18D Digital Clamp Multimeter is a precision diagnostic instrument engineered for comprehensive electrical maintenance in industrial and automotive sectors. This device distinguishes itself with dual-mode AC and DC current measurement capabilities up to 600A, facilitating versatile analysis of both alternating current distribution systems and direct current battery or solar arrays. The unit integrates Original Engineering components to ensure stable Auto-Ranging performance and accurate data retention via the Data Hold function. Designed for Technical Compatibility with standard industrial control panels and cabling, the TS-18D features a Φ28 mm jaw opening suitable for medium-gauge conductors. The ergonomic chassis houses a high-contrast LCD display and operates on standard 1.5V AAA power sources, ensuring field readiness with minimal Lead Time for deployment.
TECHNICAL SPECIFICATIONS
Brand: HYTAIS
Model Number: TS-18D
Device Type: AC/DC Digital Clamp Meter
Ranging Mode: Auto-Ranging
Display Type: Digital LCD
Max AC Current: 600 A
Max DC Current: 600 A
Max Voltage (AC/DC): 600 V
Resistance Range: Up to 60 MΩ
Capacitance Range: Up to 60 mF
Jaw Opening Size: Φ28 mm
Sampling Rate: 3 times/second (Nominal)
Operating Temperature: 0 to 40 ℃
Power Supply: 2 x 1.5V AAA Batteries
Data Retention: Data Hold Function
Dimensions: 185 mm x 71 mm x 32 mm
Weight: 197 g
Gross Weight: 0.320 kg
Origin: Guangdong, China
INDUSTRIAL APPLICATION
This instrument is specifically calibrated for non-intrusive load monitoring in mixed-voltage environments. It is critical for diagnosing Variable Frequency Drives (VFDs) and DC motor controllers where circuit interruption is not feasible. The 600A DC capability allows technicians to verify output currents on solar inverters and heavy-duty automotive charging systems, while the 60mF capacitance range enables immediate health checks on start/run capacitors in HVAC compressors without requiring secondary equipment.
Key Attributes
Clamp Opening Size: Φ28 mm
Max. Ac Current: 600 A
Max. DC Current: 600 A
Measuring Voltage Range: 600V
Place of Origin: Guangdong, China
Model Number: TS-18D
Brand Name: HYTAIS
Dimensions: 185*71*32mm
Display Type: Digital Only
Measuring Capacitance Range: 60mF
Measuring Current Range: 600A
Measuring Inductance Range: -
Measuring Resistance Range: 60MΩ
Operating Temperature: 0~40 ℃
Weight: 197g
Product name: TS18D Digital Clamp Multimeter
Ranging: Auto
Name: CLAMP METER
Display: LCD Display
Data hold: Data Hold
Batteries: 1.5V A A A
Key word: Digita clamp meter
Packaging and Delivery
Selling Units: Single item
Single package size: 24X11X5 cm
Single gross weight: 0.320 kg
