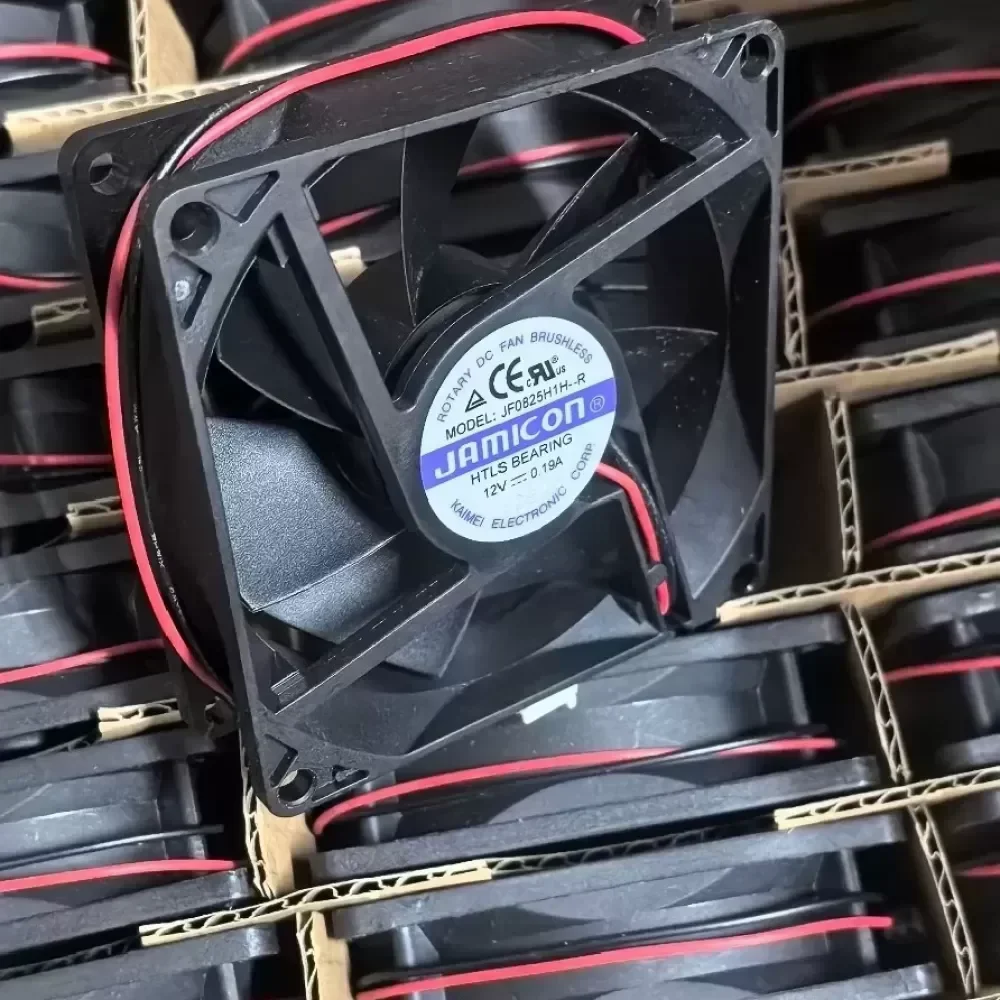

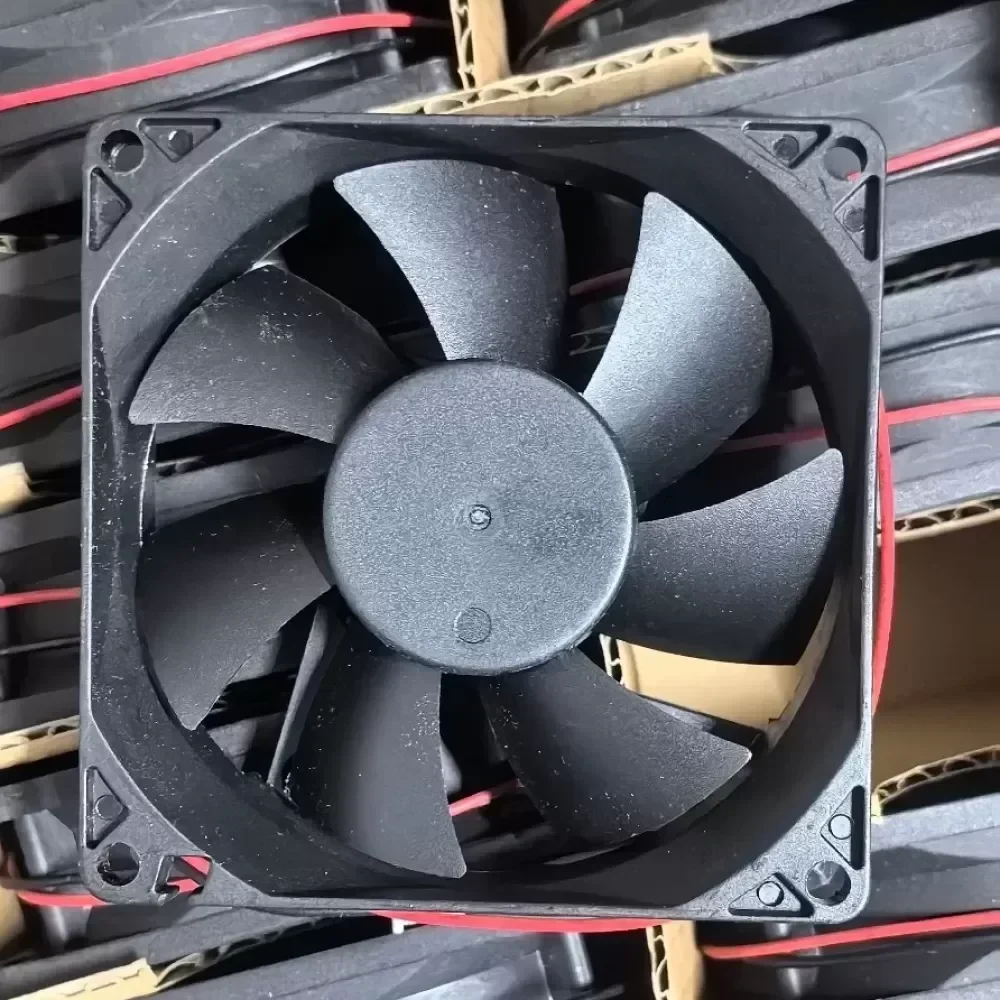

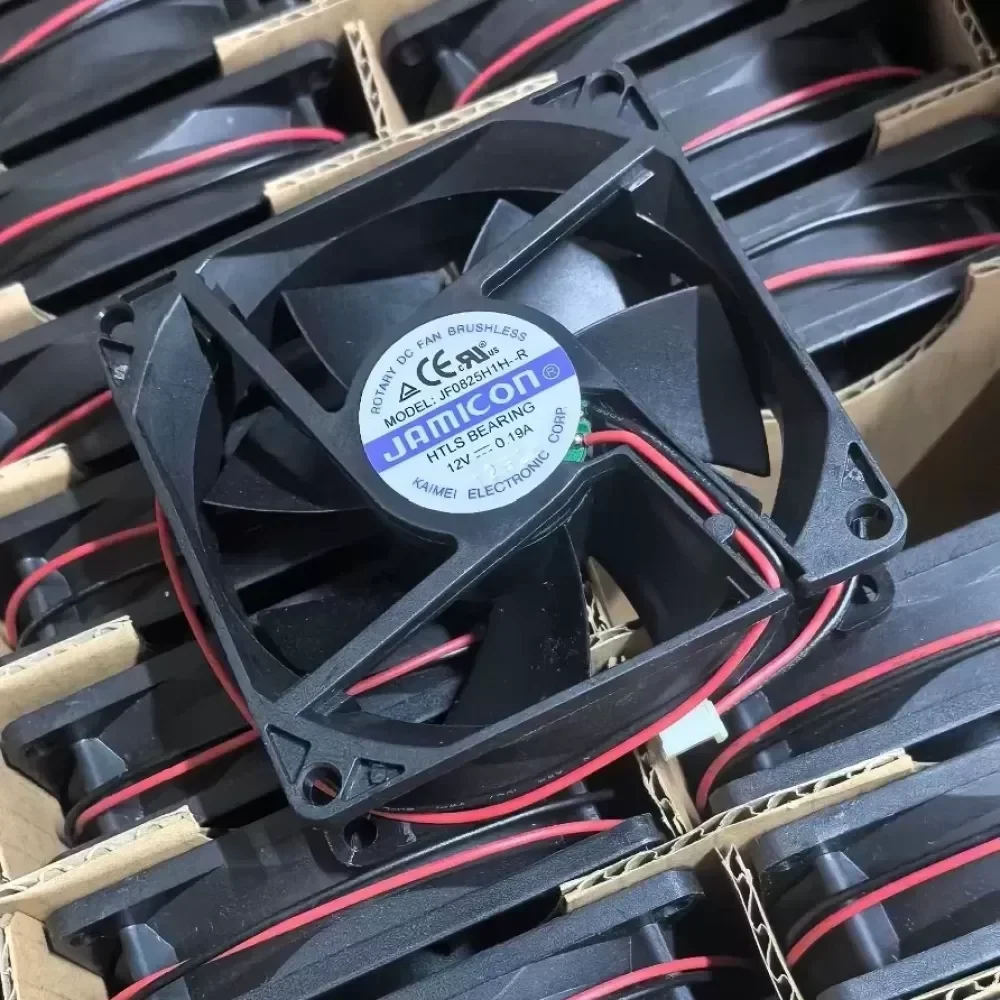

JF0825H1H-R JAMICON 8025 fan

Name: JF0825H1H-R JAMICON 8025 fan
Brand: Jamicon
SKU: 900021857876
Availability: InStock
Rating: 5 (4 reviews)

$1.29

SKU: 900021857876 Brand: Jamicon

Description
Reviews (0)

Description

The Jamicon JF0825H1H-R is a high-performance DC axial fan engineered for critical thermal management in industrial electronics and power conversion systems. This 80mm unit features a high-speed motor winding configuration, indicated by the 0.49A current rating, designed to deliver maximized airflow and static pressure in restricted environments. The fan construction utilizes durable thermoplastic materials to withstand continuous operation in demanding temperature zones, ensuring reliability in 24/7 operational cycles.

TECHNICAL SPECIFICATIONS
Manufacturer: Jamicon (Kaimei Electronic Corp)
Model: JF0825H1H-R
Product Category: DC Axial Cooling Fan
Frame Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12V DC
Current Rating: 0.49A
Power Consumption: 5.88W
Nominal Speed: 4200 RPM ±10%
Max Airflow: 48.5 CFM (Approximate)
Static Pressure: 6.5 mmH2O
Housing Material: Glass Fiber Reinforced PBT (UL94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL94V-0)
Bearing System: High-Precision Ball Bearing or Hydraulic System
Noise Level: 43.0 dBA
Dielectric Strength: 500V AC for 1 Minute
Insulation Resistance: 10MΩ at 500V DC
Operating Temperature: -10°C to +70°C
Termination: Lead Wires (UL1007 AWG24)

INDUSTRIAL APPLICATION
This specific cooling solution is optimized for high-density server chassis, telecommunications rectifiers, and industrial instrumentation where standard low-current fans fail to provide adequate cooling velocity. The 0.49A specification denotes a high-torque motor capable of maintaining RPM against back pressure found in filtered enclosures or tightly packed component arrays. Utilizing Original Engineering parts ensures Technical Compatibility with existing fan controllers and thermal monitoring circuits, preventing overheating risks associated with generic substitutes. Please verify stock levels for immediate dispatch and confirm Lead Time for volume procurement.

JF0825H1H-R JAMICON 8025 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
