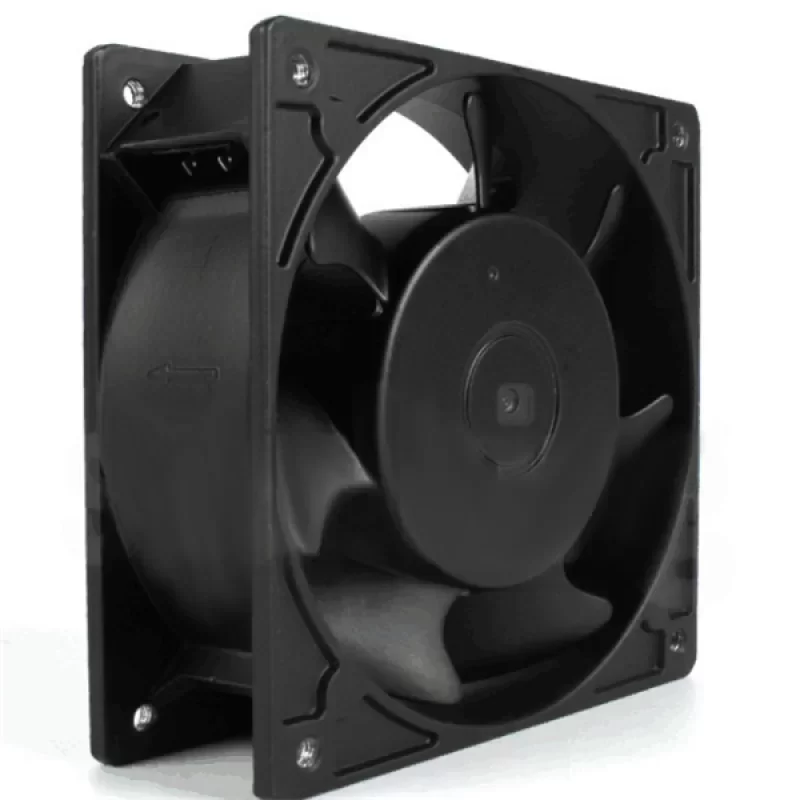

KAKU KA1238XA3 380V/400V AC 120x120x38mm Cabinet Axial Fan

Name: KAKU KA1238XA3 380V/400V AC 120x120x38mm Cabinet Axial Fan
Brand: KAKU
SKU: 1600294360835
Availability: InStock
Rating: 5 (4 reviews)

$18.10

SKU: 1600294360835 Brand: KAKU

Description
Reviews (0)

Description

Brand: KAKU
Model Number: KA1238XA3
Product Category: AC Axial Cooling Fan
Frame Size: 120 x 120 x 38 mm
Rated Voltage: 380V/400V AC
Operating Frequency: 50/60 Hz
Input Power: 23W (50Hz) / 20W (60Hz)
Rated Current: 0.09A (50Hz) / 0.08A (60Hz)
Rotational Speed: 2500 RPM (50Hz) / 2850 RPM (60Hz)
Airflow Volume: 105 CFM (50Hz) / 123 CFM (60Hz)
Static Pressure: 7.9/9.2 mm-H2O
Noise Level: 44/48 dB(A)
Bearing System: High-Precision Dual Ball Bearing
Frame Material: Die-cast Aluminum Alloy with Black Anticorrosion Coating
Impeller Material: Reinforced PBT Plastic (UL94V-0 Flame Retardant)
Insulation Resistance: 500MΩ at 500VDC
Dielectric Strength: 1500VAC for 1 minute
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +80°C
Service Life: 50,000 hours at 25°C
Weight: 470g
Technical Compatibility: Standard 12038 industrial mounting patterns
Original Engineering: Precision-balanced impeller for minimized harmonic vibration
Lead Time: Standard industrial procurement cycles apply

Application Scenario: The KAKU KA1238XA3 is specifically engineered for high-voltage industrial environments where 380V/400V power distribution is standard, such as CNC machine control cabinets, industrial server racks, and power distribution switchgear. Its dual ball bearing system ensures continuous 24/7 operation in both vertical and horizontal orientations, solving the critical problem of thermal accumulation in high-density electrical enclosures. The high static pressure capability allows for efficient heat dissipation even when the fan is mounted behind dense dust filters or restrictive ventilation grilles, ensuring the longevity of sensitive internal electronics.

Key Attributes
Voltage: 380/400V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China
Brand name: KAKU
Model number: KA1238XA3
Size: 120x120x38mm
Type: AC Axail Cooling Fan
Bearing Type: Ball Bearing
Frequency: 50/60 Hz
Rated voltage: 380V/400V
Power: 23/20W
Current: 0.09/0.08A
Speed: 2500/2850RPM
Air flow: 105/123CFM
Weight: 470g

Packaging and Delivery
Selling Units: Single item

KAKU KA1238XA3 380V/400V AC 120x120x38mm Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
