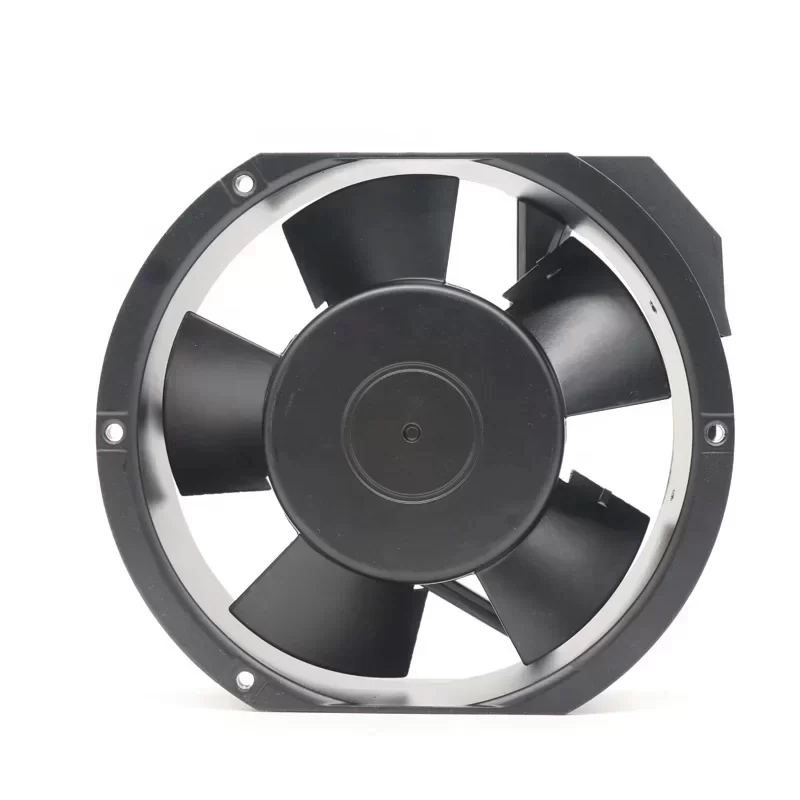

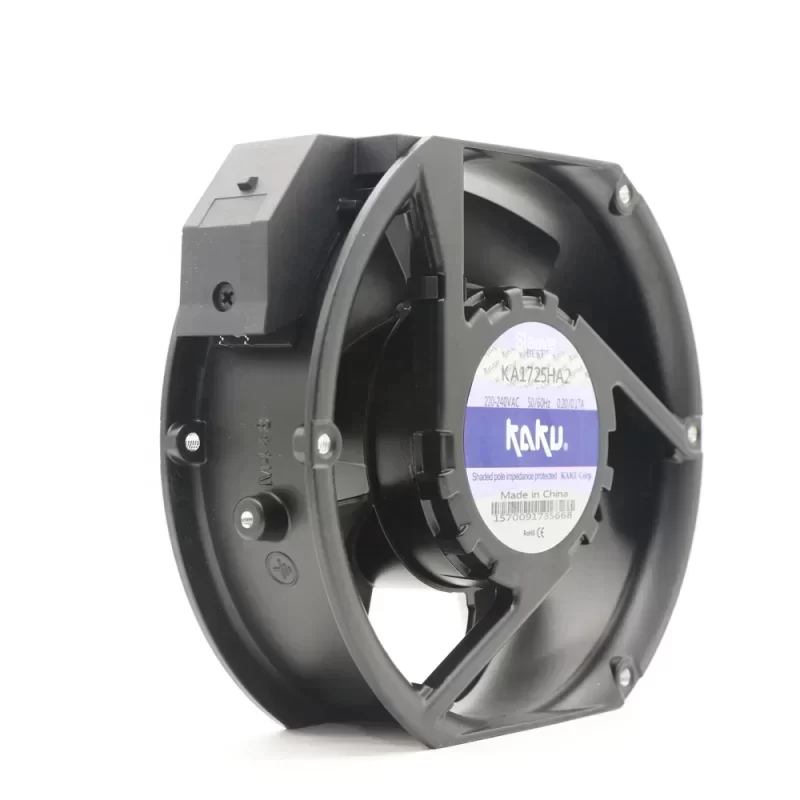

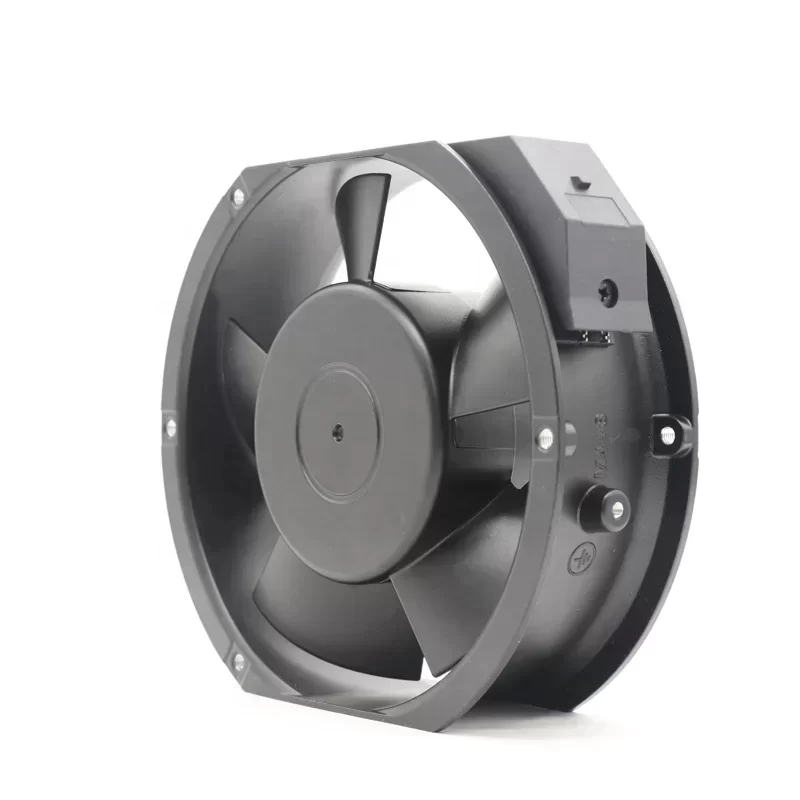

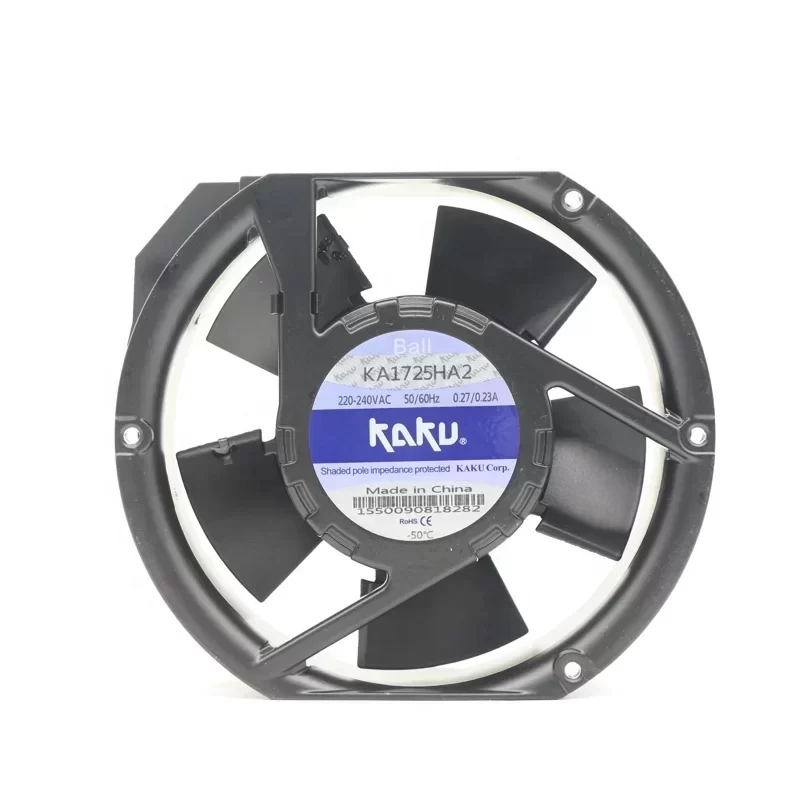

KAKU KA1725HA2 KA1725HA2-B 220-240V AC IP55 AC Axial Fan

KAKU KA1725HA2 KA1725HA2-B 220-240V AC IP55 AC Axial Fan

Name: KAKU KA1725HA2 KA1725HA2-B 220-240V AC IP55 AC Axial Fan
Brand: KAKU
SKU: 1600292356082
Availability: InStock
Rating: 5 (4 reviews)

$8.26

SKU: 1600292356082 Brand: KAKU

Description
Reviews (0)

Description

Manufacturer: KAKU
Model Number: KA1725HA2-B
Product Category: AC Axial Cooling Fan
Original Engineering: High-Performance Thermal Management System
Frame Dimensions: 172mm x 150mm x 51mm
Input Voltage: 220V-240V AC
Frequency: 50/60 Hz
Rated Current: 0.35A / 0.28A
Power Consumption: 45W / 50W
Rotational Speed: 2800 RPM / 3200 RPM
Maximum Airflow: 200 CFM / 220 CFM
Static Pressure: 0.65 / 0.78 Inch-H2O
Noise Level: 57 dBA / 59 dBA
Bearing Type: Dual Ball Bearing
Ingress Protection: IP55 Rated
Insulation Class: Class B
Dielectric Strength: 1500VAC for 1 minute
Frame Material: Die-cast Aluminum Alloy with Black Coating
Impeller Material: Reinforced PBT Plastic (UL 94V-0)
Operating Temperature Range: -10°C to +70°C
Service Life: 30000 Hours at 25°C
Weight: 950g
Technical Compatibility: Standard 17250 footprint for Cabinet and Inverter integration
Lead Time: Optimized for global B2B supply chains
Application: The KAKU KA1725HA2-B is engineered for critical thermal regulation in high-capacity UPS units and industrial frequency inverters. Its IP55 rating ensures operational stability in environments prone to dust and moisture ingress, preventing localized hotspots that lead to premature semiconductor failure. The dual ball bearing system supports continuous 24/7 duty cycles, maintaining system uptime in mission-critical power distribution cabinets.

Key Attributes
Voltage: 220-240V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: Kaku
Model number: KA1725HA2
Type: Axial fan
Size: 150 mm x 170 mm x 50 mm
Voltage: 220/240V
Current: 0.35/0.28A
Power: 45/50W
Air flow: 200/220CFM
Speed: 2800/3200RPM
Bearing Type: Sleeve/Ball
Noise: 57/59DBA
Life: 30000 hours

Packaging and Delivery
Selling Units: Single item

KAKU KA1725HA2 KA1725HA2-B 220-240V AC IP55 AC Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
