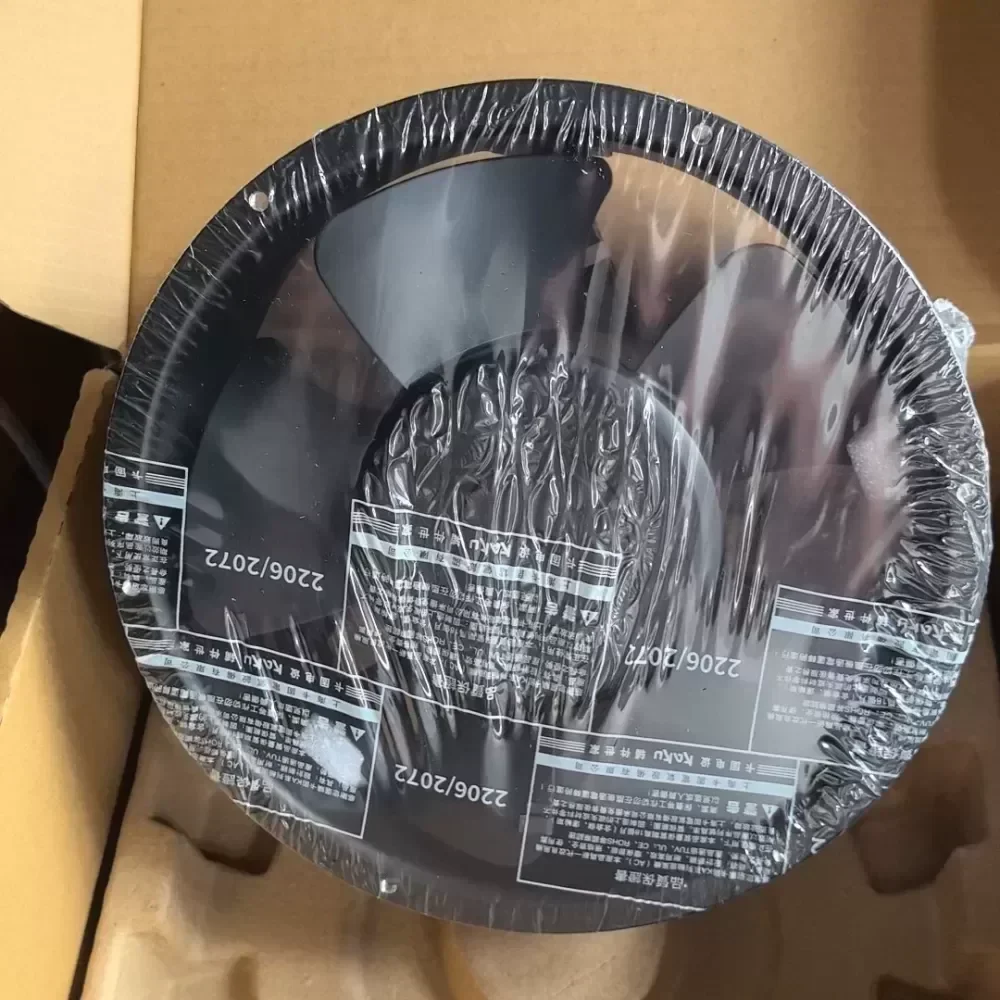

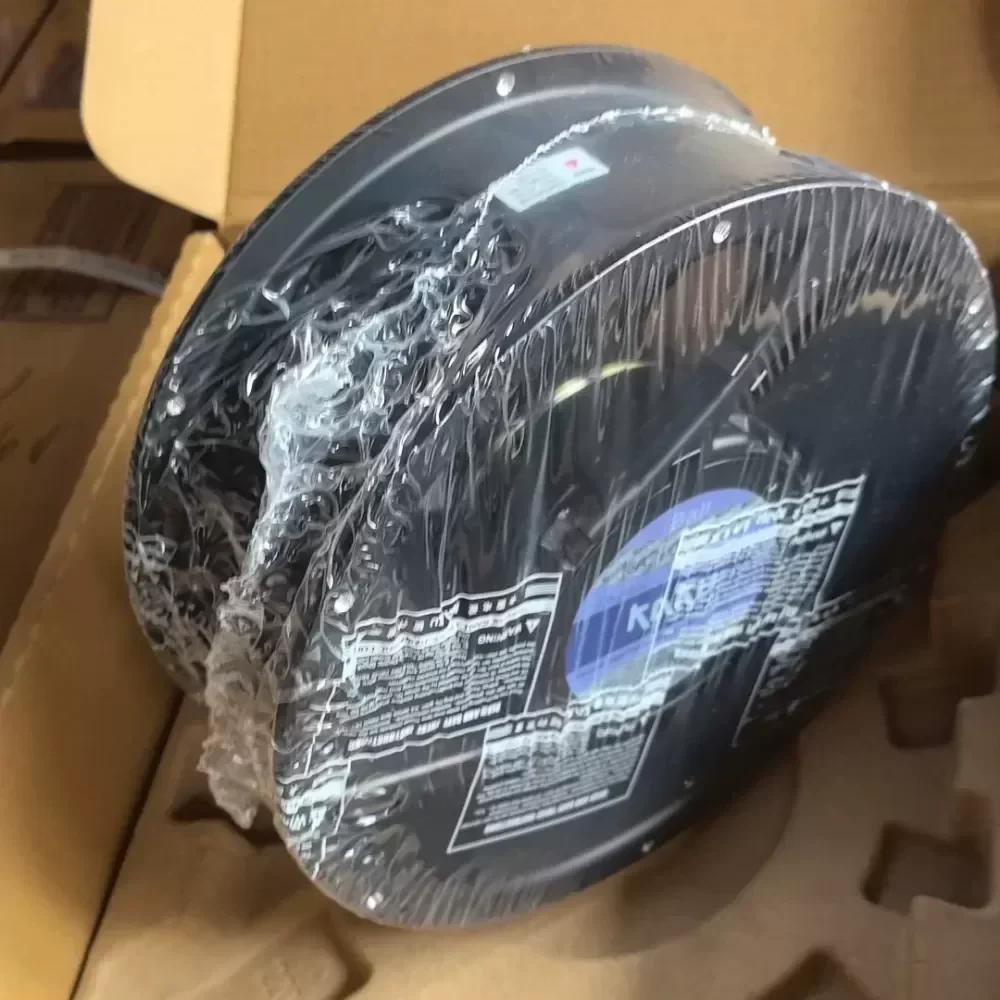

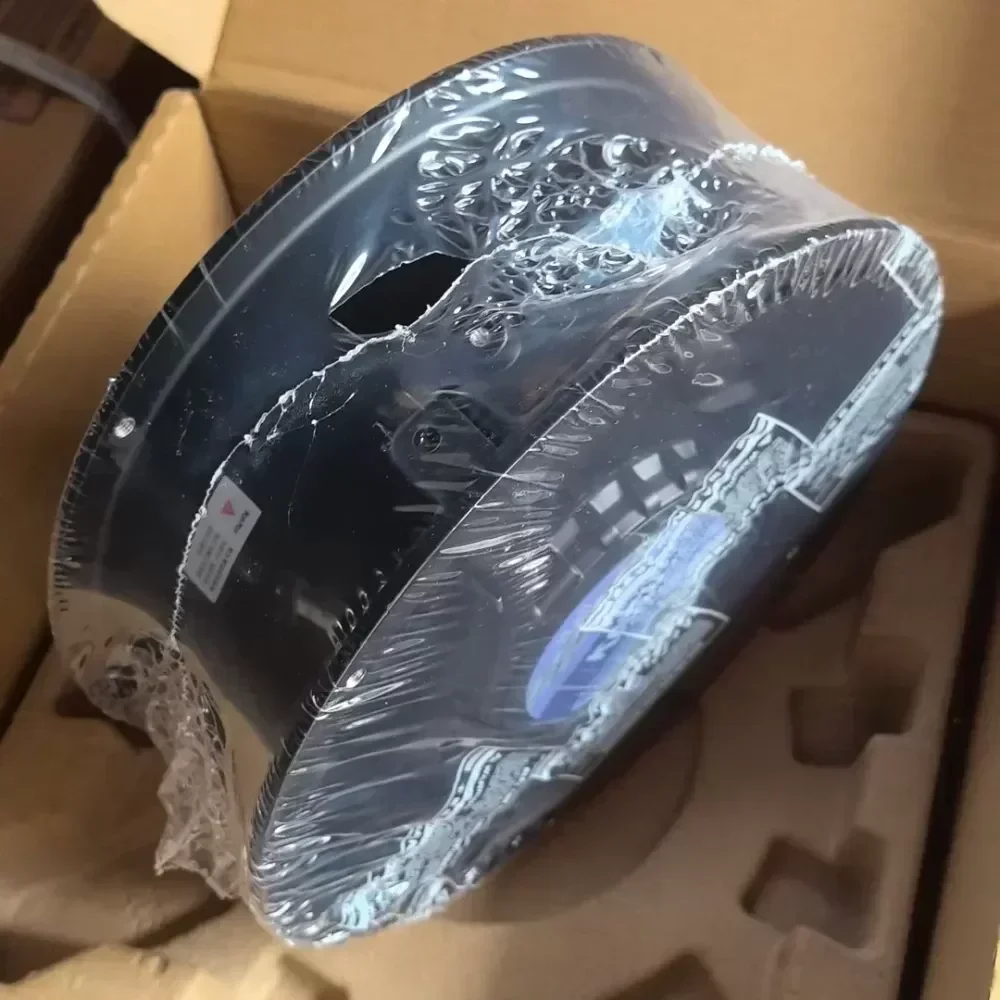

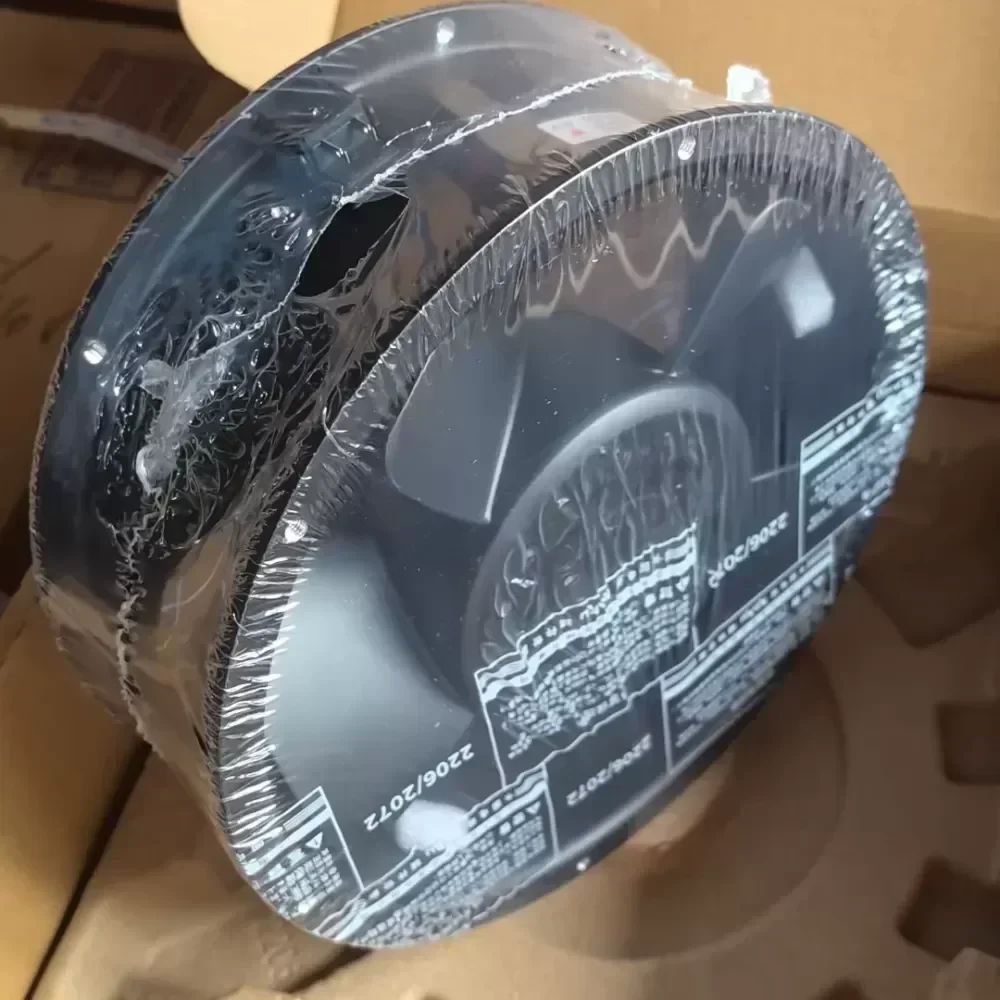

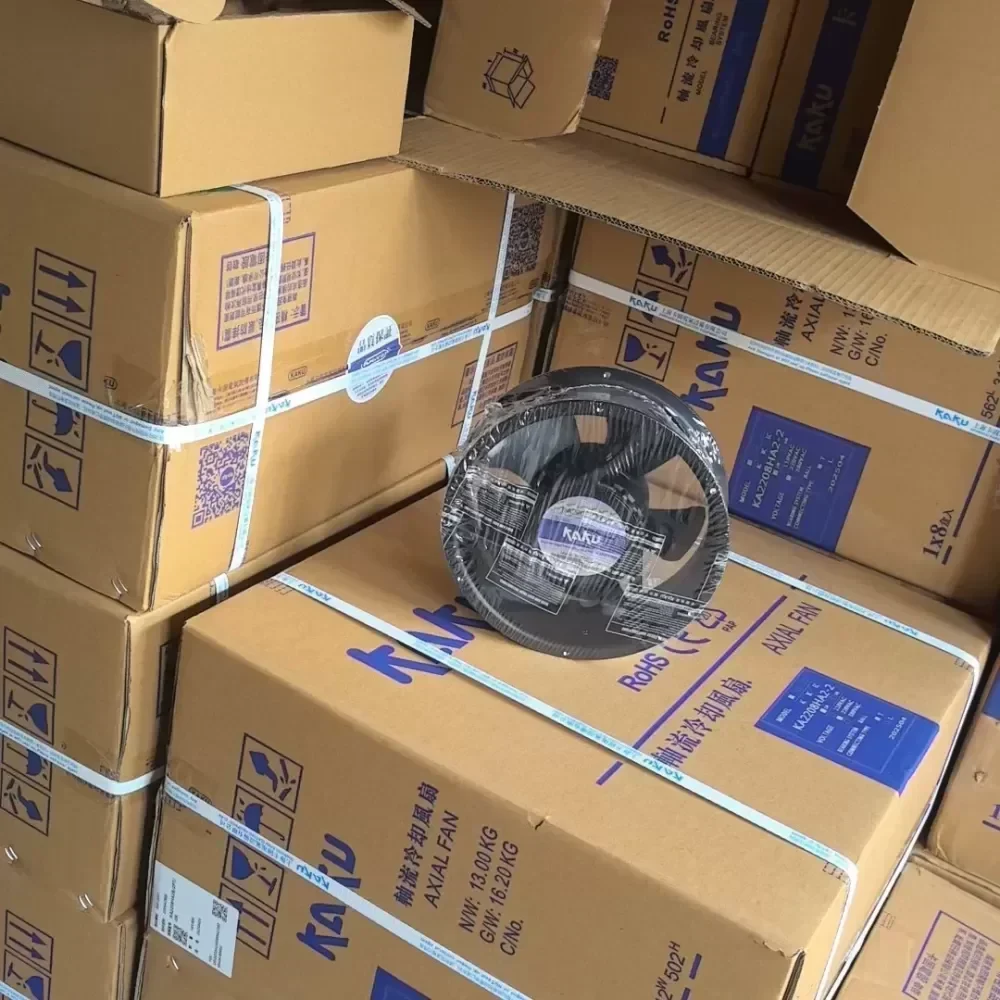

KAKU KA2208HA2-2 all-metal fan new

Name: KAKU KA2208HA2-2 all-metal fan new
Brand: KAKU
SKU: 919537386328
Availability: InStock
Rating: 5 (4 reviews)

$30.71

SKU: 919537386328 Brand: KAKU

Description
Reviews (0)

Description

The KAKU KA2208HA2 represents Original Engineering designed for rigorous industrial thermal management. This unit is a robust, all-metal cooling solution engineered for high-static pressure environments requiring continuous operation. Featuring a die-cast aluminum frame and metal impellers, this model ensures structural integrity under thermal stress and vibration. It provides stable performance without maintenance due to its high-grade bearing architecture, ensuring long-term reliability in critical infrastructure.

Technical Specifications:
Manufacturer: KAKU
Model Number: KA2208HA2
Component Type: AC Axial Fan
Frame Dimensions: 220mm x 220mm x 80mm
Shape: Round/Oval Frame
Construction Material: Die-Cast Aluminum Frame, Metal Impeller
Rated Voltage: 220V – 240V AC
Frequency: 50 / 60 Hz
Rated Current: 0.27 A (50Hz) / 0.23 A (60Hz)
Power Input: Approx. 60W / 53W
Rotational Speed: 2500 / 2800 RPM
Max Airflow: 880 / 1020 m³/h (approx. 518 / 600 CFM)
Static Pressure: 0.75 / 0.95 Inch-H2O
Noise Level: 60 / 62 dB(A)
Bearing System: Dual Ball Bearing
Operating Temperature Range: -20°C to +80°C
Insulation Resistance: Min 100MΩ at 500V DC
Dielectric Strength: 1500V AC for 1 minute
Protection Class: IP54
Life Expectancy: 50,000 Hours at 25°C
Connection Type: Terminal Block / Lead Wire

Industrial Application:
The KA2208HA2 is specifically calibrated for high-load electrical cabinets, variable frequency drive (VFD) cooling, and heavy-duty welding equipment where rapid heat dissipation is critical to prevent component failure. Its all-metal construction allows it to withstand harsh industrial environments involving vibration and elevated temperatures better than plastic alternatives. The dual ball bearing system ensures Technical Compatibility with both vertical and horizontal mounting orientations. Please verify your system requirements to ensure immediate integration. Contact us for current Lead Time and bulk availability.

KAKU KA2208HA2-2 all-metal fan new

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
