KF0715H1SABR JAMICON fan

Name: KF0715H1SABR JAMICON fan
Brand: Jamicon
SKU: 904714849188
Availability: InStock
Rating: 5 (4 reviews)

$2.29

SKU: 904714849188 Brand: Jamicon

Description
Reviews (0)

Description

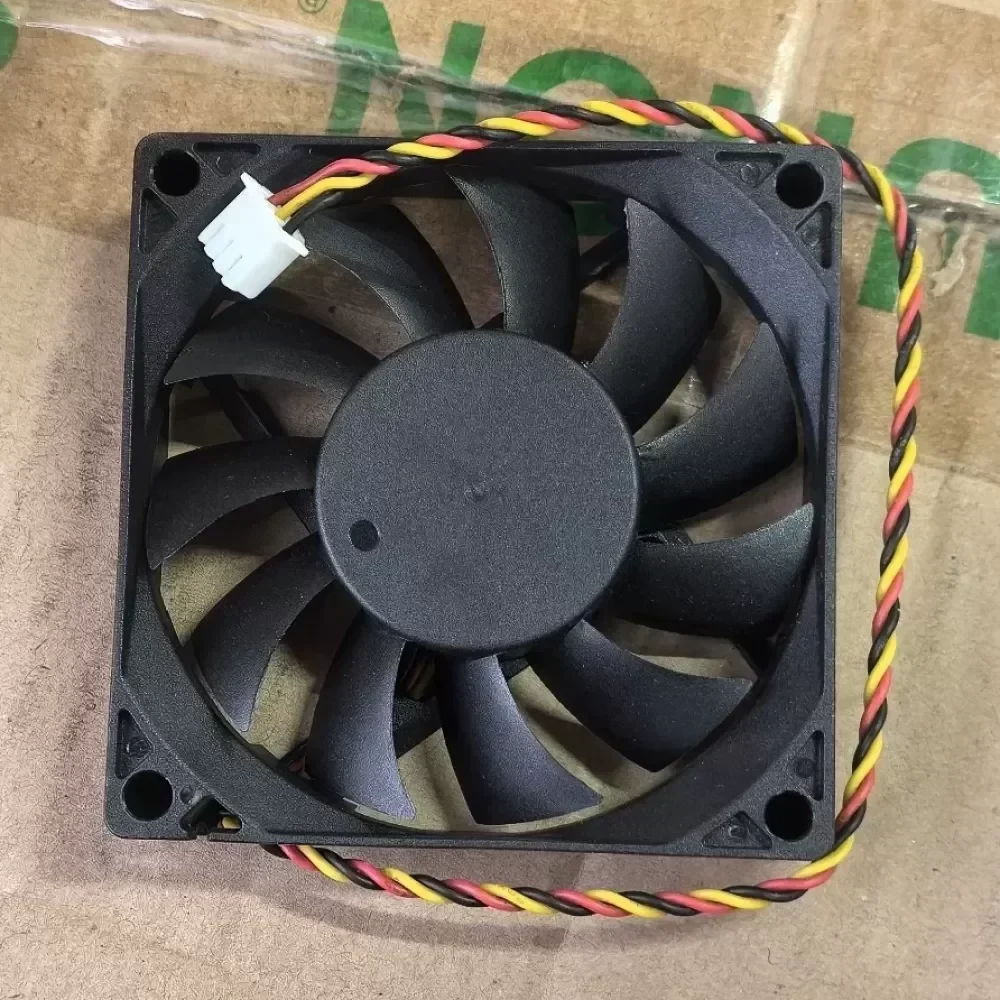

The JAMICON KF0715H1SABR is a high-performance DC axial cooling fan engineered for critical thermal regulation in industrial electronics and power management systems. Representing Original Engineering by Kaimei Electronic Corp, this unit is optimized for applications requiring a high airflow-to-size ratio, specifically within Uninterruptible Power Supply (UPS) units where consistent heat dissipation is vital for component longevity. The fan operates on a 12V DC nominal voltage with a current draw of 0.41A, indicating a high-torque motor design capable of sustaining elevated RPMs to overcome system impedance. The 70mm x 70mm x 15mm low-profile chassis facilitates installation in slimline enclosures or blade servers. This model features a 3-wire interface, providing a frequency generator (FG) tachometer signal that allows the host system to monitor fan speed and trigger alarms in the event of thermal drift or rotation failure, ensuring Technical Compatibility with intelligent monitoring circuits. Immediate availability of this specific revision helps mitigate the operational risks associated with the extended Lead Time often found in global supply chains for specialized cooling components.

Technical Specifications:
Manufacturer: JAMICON (Kaimei Electronic Corp)
Model Number: KF0715H1SABR
Component Type: DC Axial Fan
Frame Dimensions: 70mm x 70mm x 15mm
Rated Voltage: 12V DC
Rated Current: 0.41A
Power Consumption: 4.92 W
Bearing System: Sleeve Bearing
Speed Code: H (High Speed)
Wire Configuration: 3-Wire (Positive, Negative, Tachometer Sensor)
Housing Material: Glass Fiber Reinforced PBT (UL94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL94V-0)
Insulation Resistance: 10M Ohm min. at 500V DC
Dielectric Strength: 500V AC for 1 Minute
Operating Temperature: -10°C to +70°C
Safety Certifications: UL, cUL, TUV, CE

KF0715H1SABR JAMICON fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
