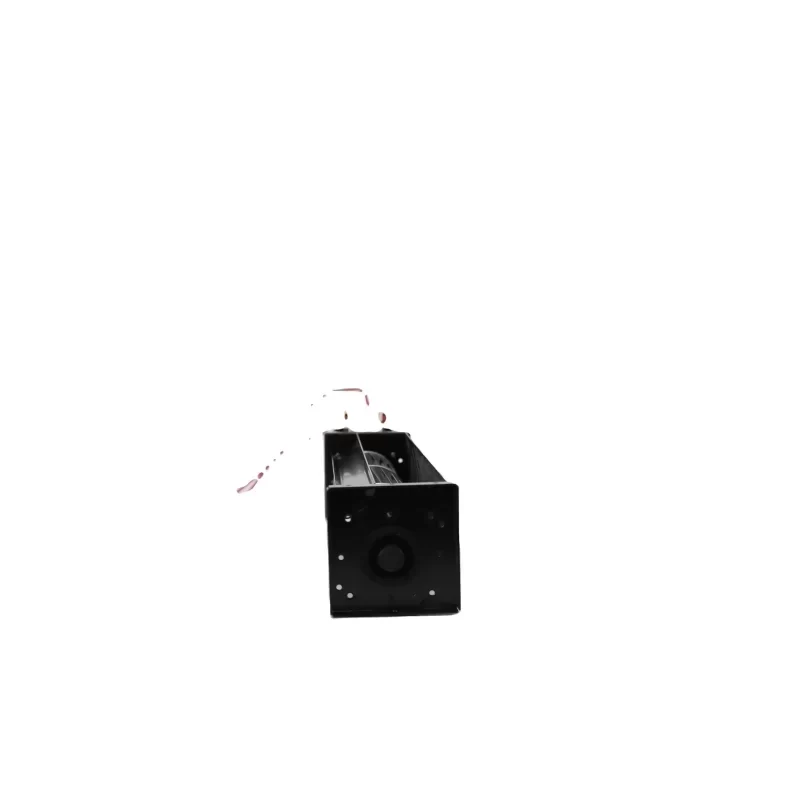

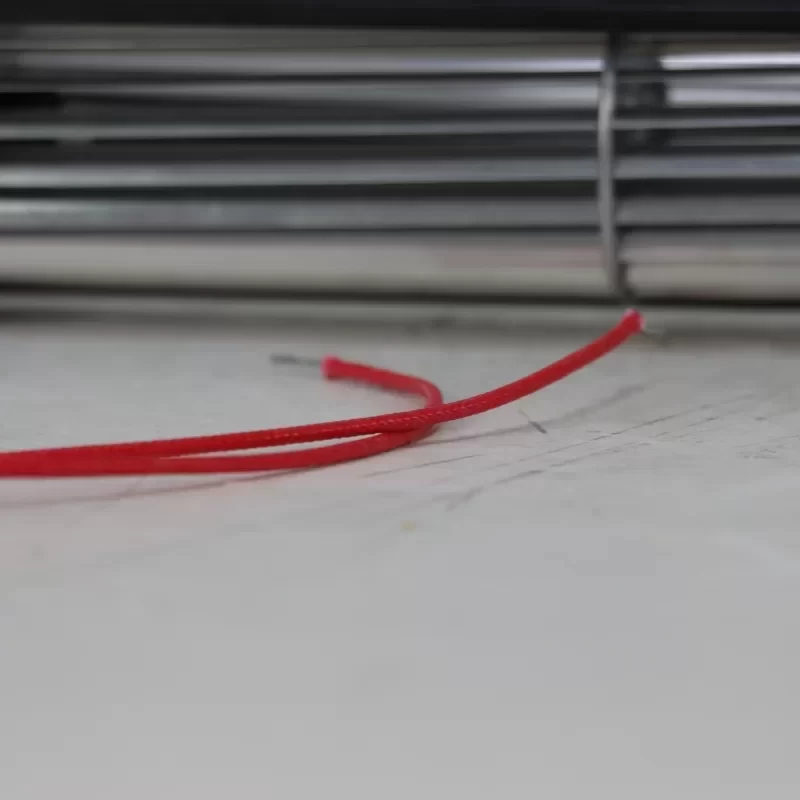

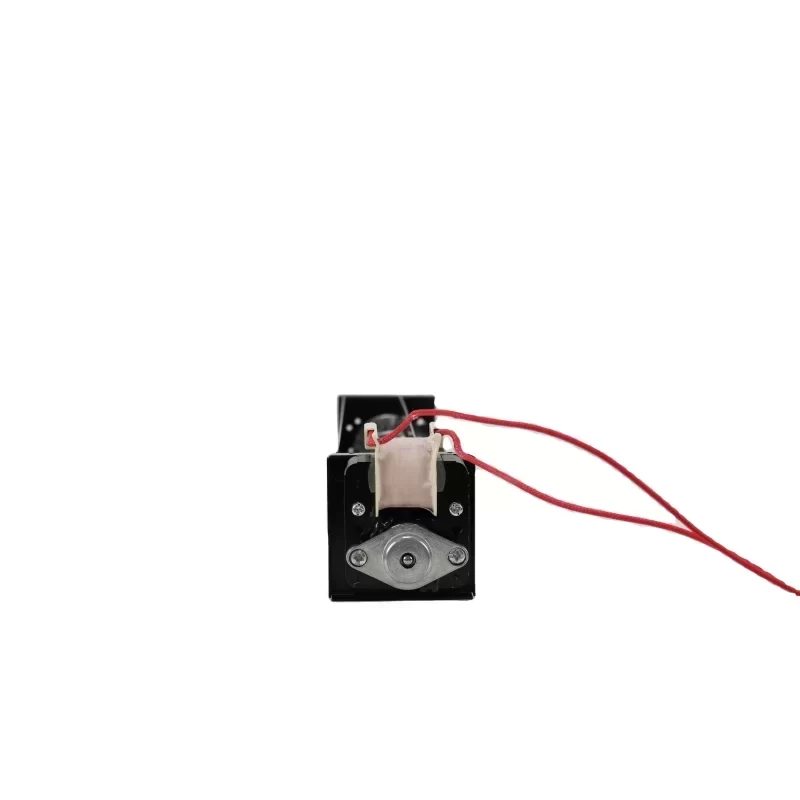

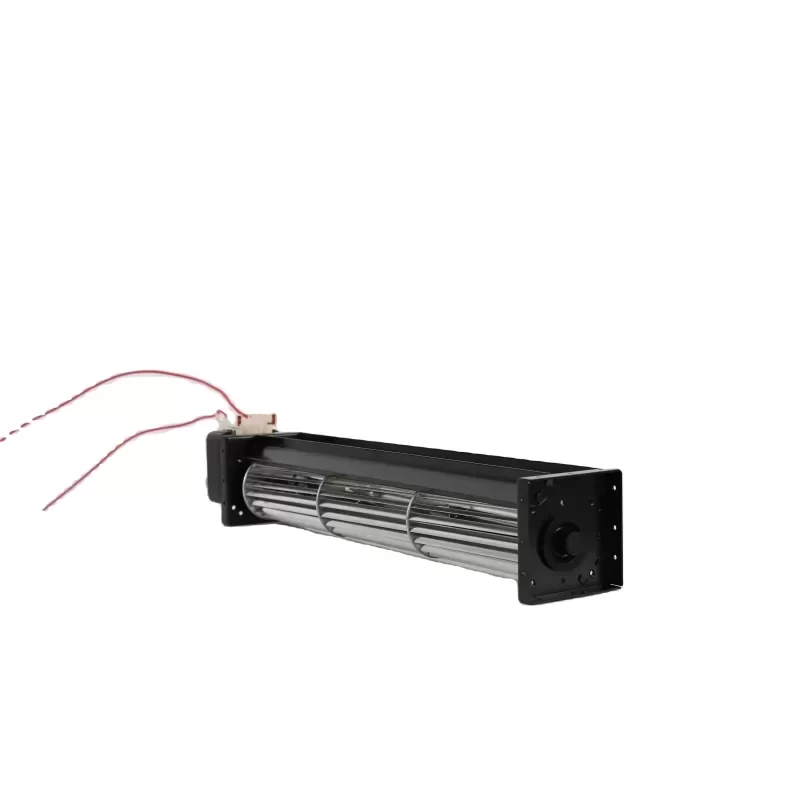

KPA-AC43230-Q120 120V 230V AC Tangential Cross Flow Fan

KPA-AC43230-Q120 120V 230V AC Tangential Cross Flow Fan

Name: KPA-AC43230-Q120 120V 230V AC Tangential Cross Flow Fan
SKU: 1600989195546
Availability: InStock
Rating: 5 (4 reviews)

$20.00

SKU: 1600989195546

Description
Reviews (0)

Description

The Krubo KPA-AC43230-Q120 is a high-performance tangential (cross-flow) fan engineered for industrial thermal management and ventilation applications requiring uniform, wide-area laminar airflow. This unit features a robust cast iron blade construction, ensuring structural integrity and long-term reliability in demanding environments. Operating on a dual-voltage configuration of 120 – 230 VAC at 50/60 Hz, the fan delivers a consistent 2800 RPM speed with a power consumption of 23W, making it an energy-efficient solution for continuous operation.

Technical Specifications:
Brand: Krubo
Model: KPA-AC43230-Q120
Type: Tangential / Cross Flow Fan
Voltage: 120 – 230 VAC
Frequency: 50/60 Hz
Current: 0.38 A
Power: 23 W
Speed: 2800 RPM
Airflow: 138 m³/h
Static Pressure: 21 Pa
Blade Material: Cast Iron
Mounting: Free Standing
Core Component: High-performance AC Motor
Warranty: 1 Year

Industrial Applications:
The KPA series is critical for applications where space is constrained but high-volume laminar flow is required. Common deployments include air curtains, electronic cabinet cooling, HVAC heat exchangers, and industrial drying equipment. Its original engineering ensures low noise levels relative to airflow output, making it suitable for both commercial and industrial machinery. This component is designed for high-duty cycles and maintains stable performance across varying thermal loads.

Logistics and Support:
This product is available with standard lead times for global distribution. Krubo provides OEM customized support and online technical assistance to ensure seamless integration into existing systems. Each unit is supplied as a single item, optimized for rapid installation in free-standing configurations.

Key Attributes
Blade Material: Cast Iron
Mounting: Free Standing
Place of origin: China
Voltage: 120V/230V
Customized support: OEM
Brand name: Krubo
Model number: KPA-AC43290-Q120
Warranty: 1 Year
After-sales Service Provided: Online support
Voltage: 120V/230V
Current: 0.38A
Air flow: 138m3/h
Speed: 2800RPM
Size: 300mm
Pressure: 21Pa
Frequency: 50/60HZ
Type: CROSS FLOW FAN
Core Components: Motor
Applicable Industries: Other

Packaging and Delivery
Selling Units: Single item

KPA-AC43230-Q120 120V 230V AC Tangential Cross Flow Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
