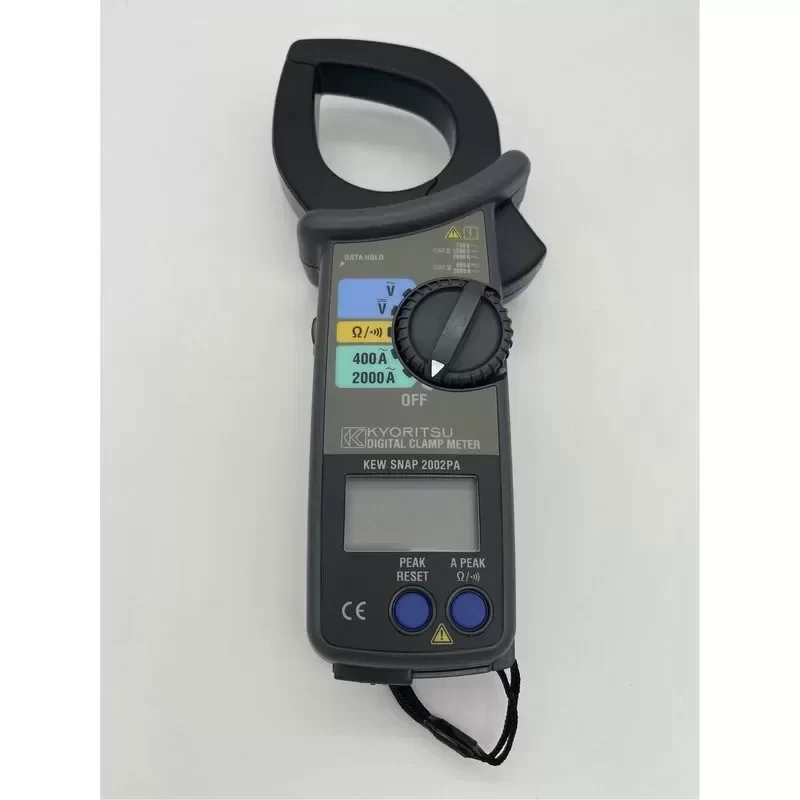

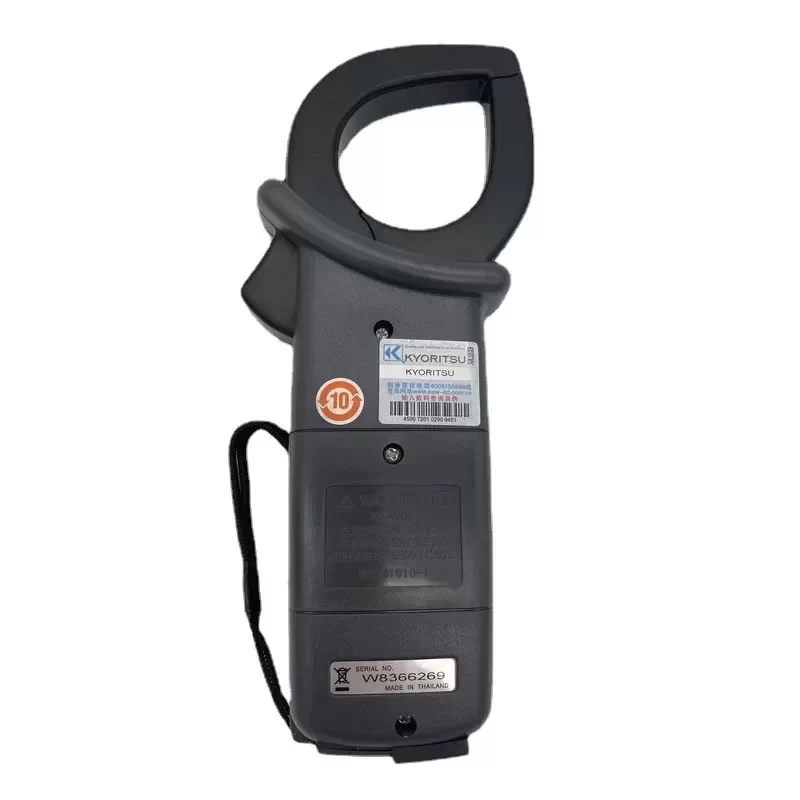

Kyoritsu 2002PA Clamp Meter 2000A 1000V

Description

Kyoritsu 2002PA Clamp Meter 2000A 1000V

Key Attributes
Measuring Voltage Range: 1000V
Place of Origin: Japan
Model Number: 2002PA
Brand Name: Kyoritsu
Dimensions: 116 x 68.5 x 30mm
Display Type: Digital Only
Measuring Capacitance Range: ,
Measuring Current Range: 20 A, 200 A, 200 A, 2000A
Measuring Inductance Range: ,
Measuring Resistance Range: 100 kΩ minimum
Operating Temperature: -10 to 50°C
Weight: 200g
Product name: Kyoritsu
Model: 2002PA
Current Ranges: Current Ranges 20 A, 200 A, 200 A , 2000A
Output Sensitivity (AC-coupled): 100 mV, 10 mV, 1 mV, 1 mV per A
Load Impedance: 100 kΩ minimum
Accuracy: At 25°C ±1%
Frequency Range: 10 Hz to 20 kHz (-3 dB)
Output Connection: Molded 4mm safety plugs (not integrated)
Dimensions: 116 x 68.5 x 30mm

Packaging and Delivery
Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
