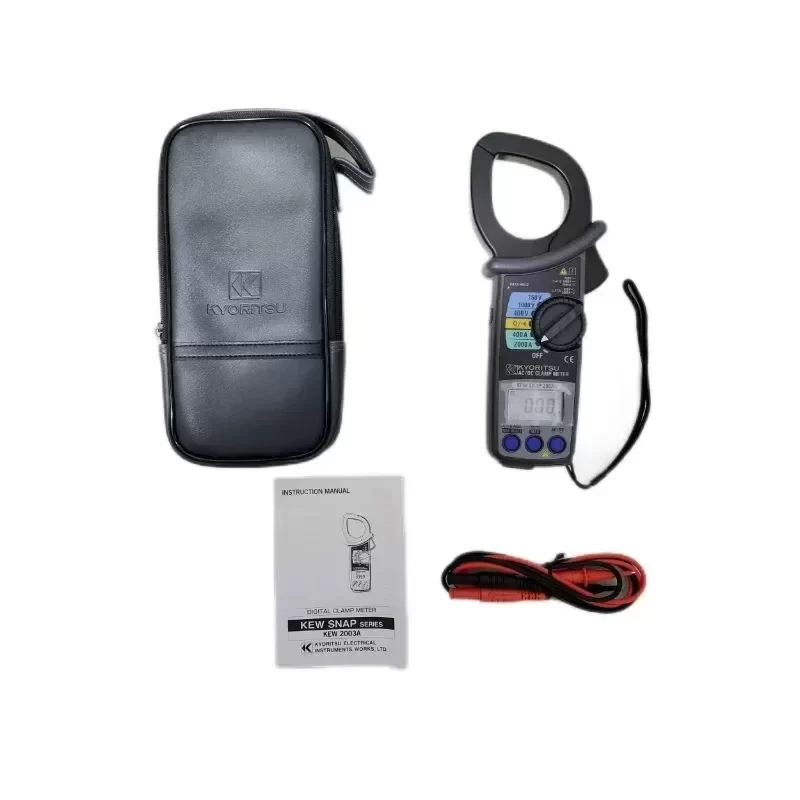

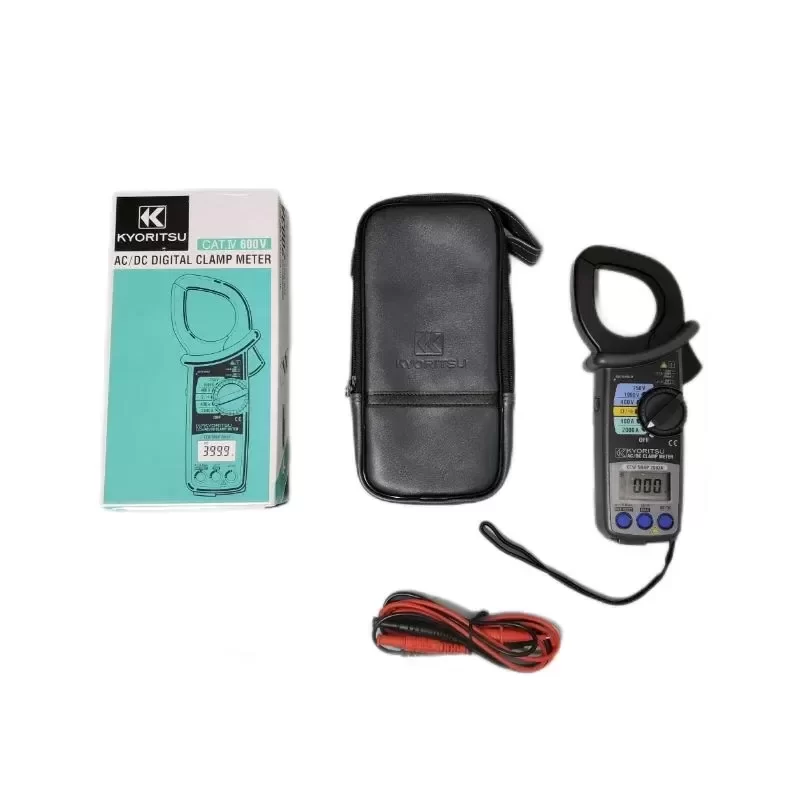

Kyoritsu 2003A Digital Clamp Meter 2000A 1000V Measures DC Current and Frequency

Description

Kyoritsu 2003A Digital Clamp Meter 2000A 1000V Measures DC Current and Frequency

Key Attributes
Max. Ac Current: 2000A
Max. DC Current: 2000A
Measuring Voltage Range: 1000V
Place of Origin: Thailand
Model Number: 2003A
Brand Name: Kyoritsu
Dimensions: 49 x 250 x 105 mm
Display Type: Digital Only
Max. Ac Voltage: 1000V
Max. DC Voltage: 1000 V
Measuring Capacitance Range: ,
Measuring Current Range: 400/200A
Measuring Inductance Range: 400/4000Ω
Measuring Resistance Range: 400/4000Ω
Operating Temperature: 0 to 40°
Parameters Measured: DC Current, AC Voltage, Frequency
Weight: 500g
Output Voltage: 400/200A, DC400mV/200mV
Withstand Voltage: 5550V AC for 1 minute
Operating System: Dual Integration
Operating Temperature Humidity: 0 to 40° Humidity up to 85%
Frequency response: 40Hz - 1kHz
Conductor size: 55mm max.

Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X8 cm
Single gross weight: 1.000 kg
