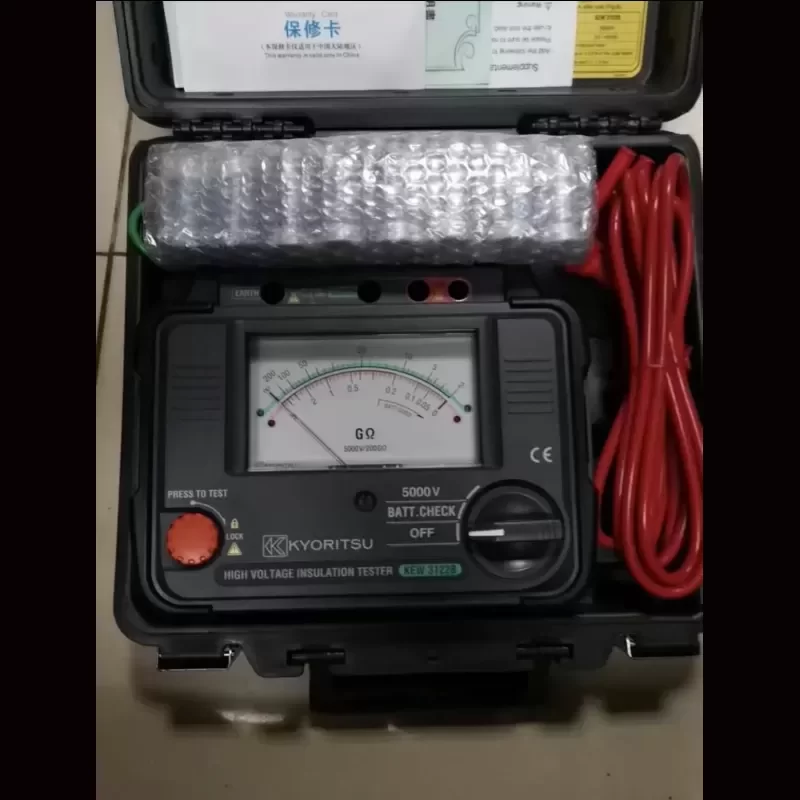

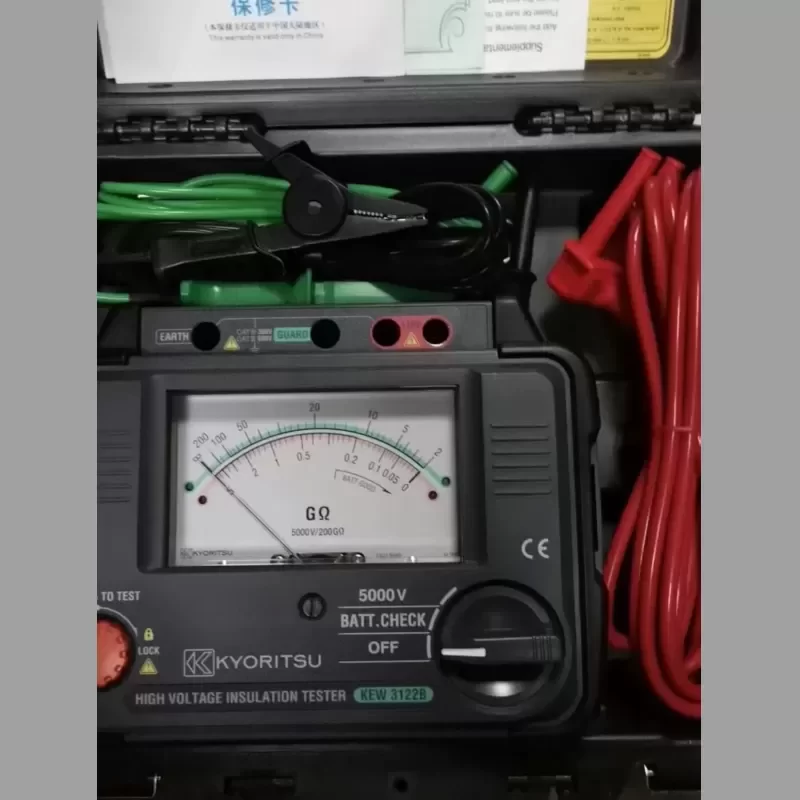

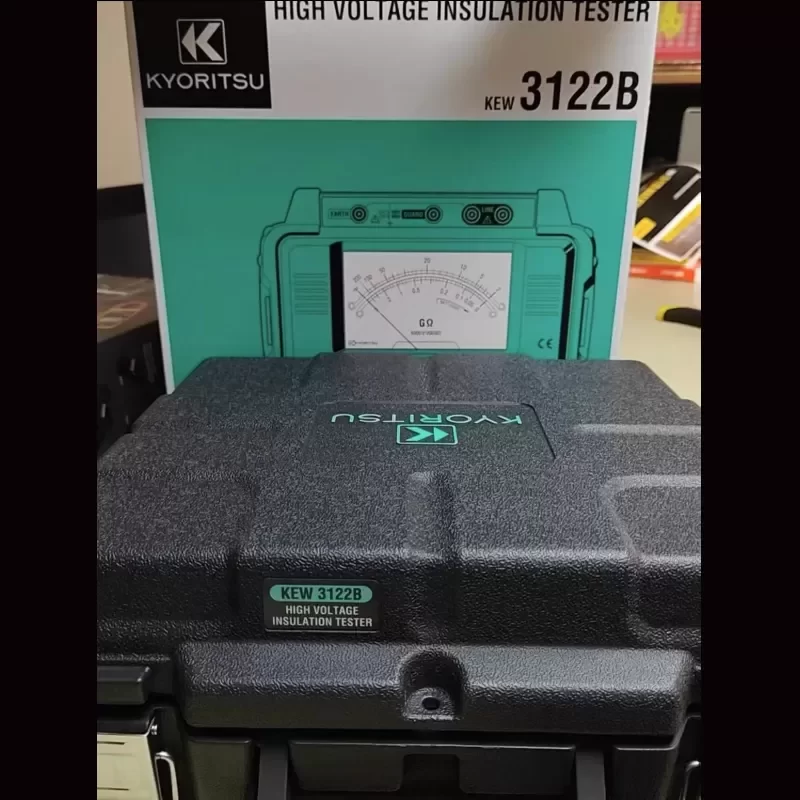

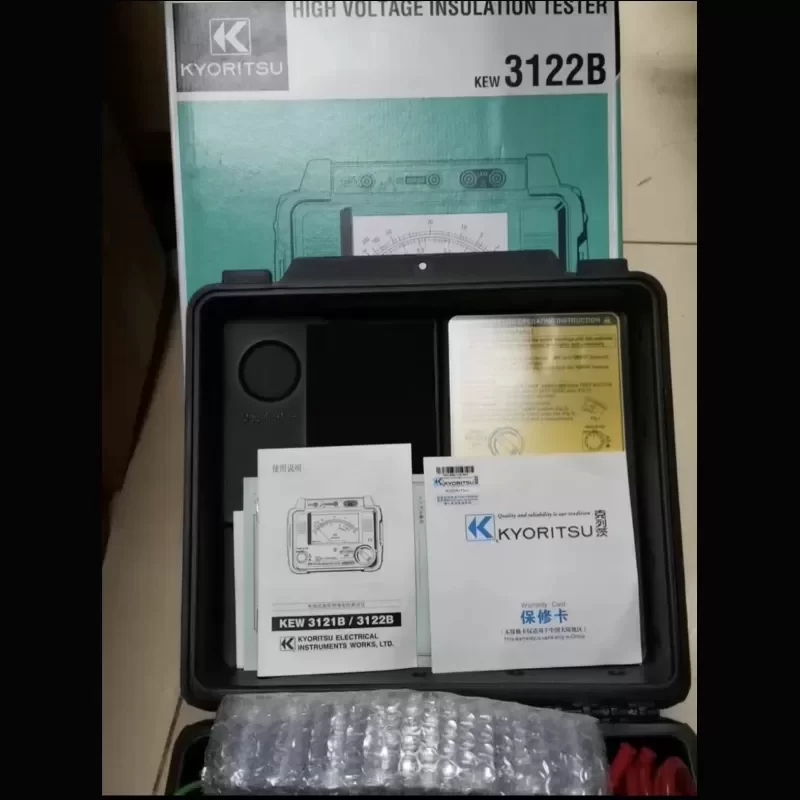

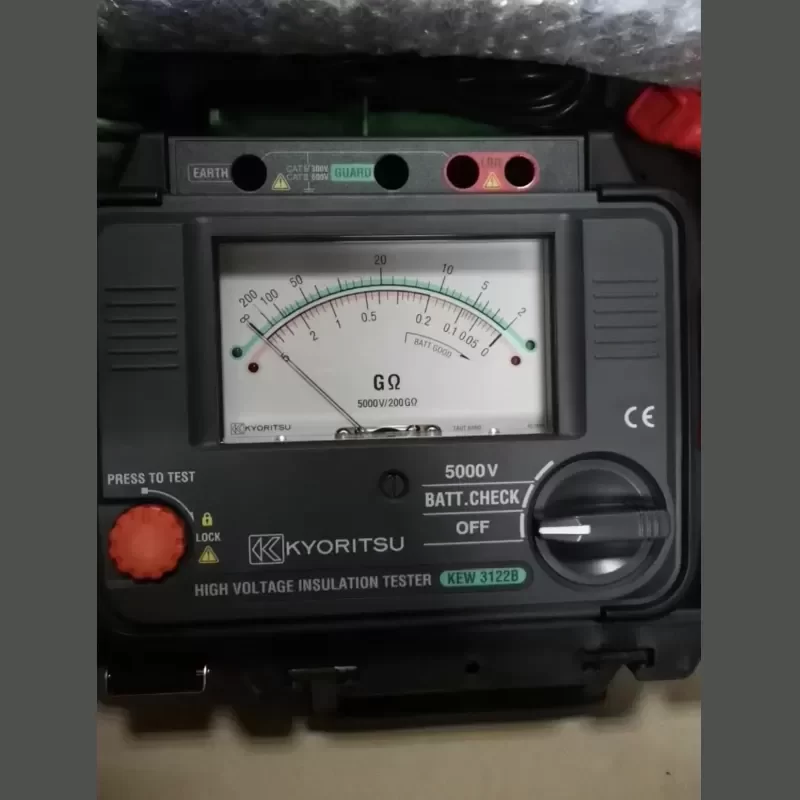

Kyoritsu 3122B Digital High Voltage Insulation Testers 5000V

Description

Kyoritsu 3122B Digital High Voltage Insulation Testers 5000V

Key Attributes
Accuracy Class: ±5%
Current Range: 0 A ~ 10 A
Insulation Resistance: 5GΩ/200GΩ
Measuring Range: 5GΩ/200GΩ
Testing Voltage: 5000V
Place of Origin: Japan
Model Number: 3122B
Brand Name: Kyoritsu
Current Resolution: 1 mA
Dimensions: 177(L) x 226(W) x 100(D)mm
Display Type: Digital Only
Operating Temperature: -10 to 50℃
Speed Range: 10 m/s
Time Resolution: 10 ms
DC test voltage: 5000V
Measuring ranges: 5GΩ/200GΩ (Auto-ranging)
Accuracy: ±5%
Applicable standards: IEC 61010-031, IEC 61326-1, 2-2
Power source DC12V: LR14/R14 x 8
Dimensions: 380(L) x 430(W) x 154(D)mm
Weight (including batteries): 1.7kg approx.

Packaging and Delivery
Selling Units: Single item
Single package size: 39X43X16 cm
Single gross weight: 2.200 kg
