LINKWELL F2E-160 B-230 Fan 230

Name: LINKWELL F2E-160 B-230 Fan 230
SKU: 909717812924
Availability: InStock
Rating: 5 (4 reviews)

$8.29

SKU: 909717812924

Description
Reviews (0)

Description

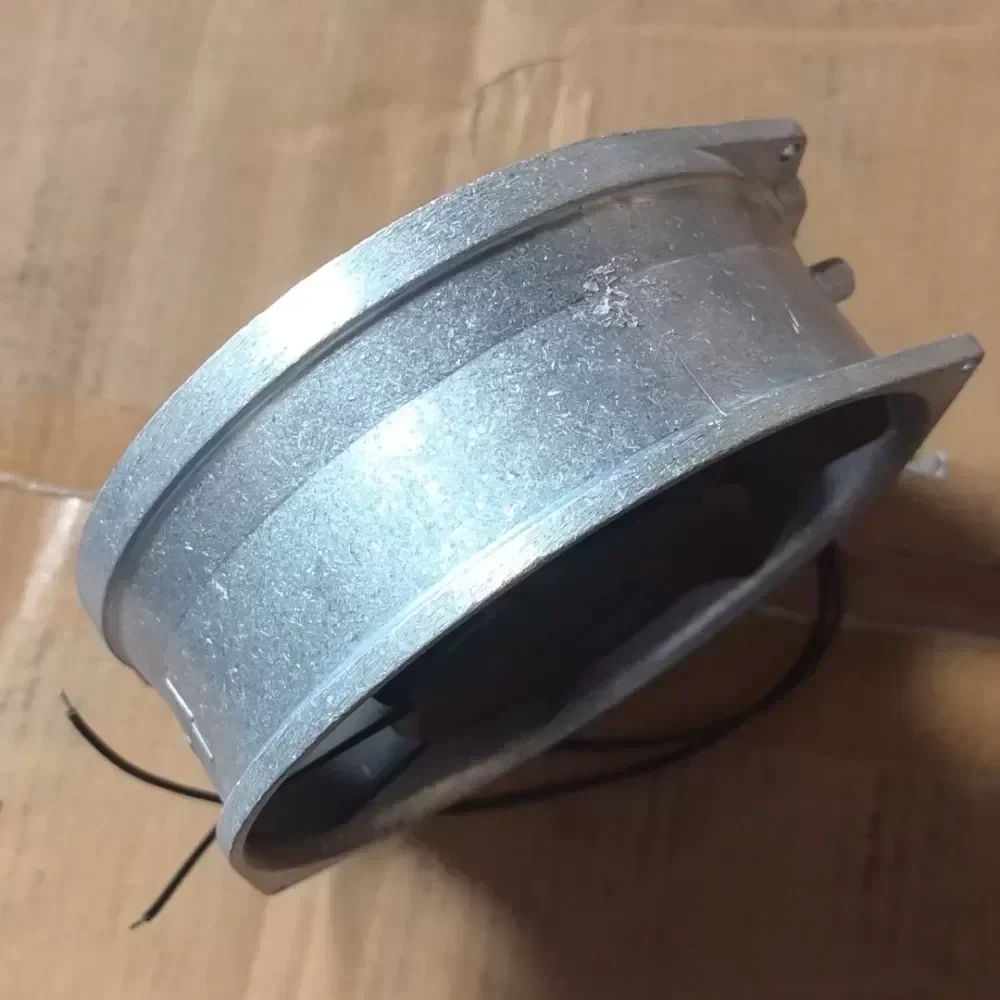

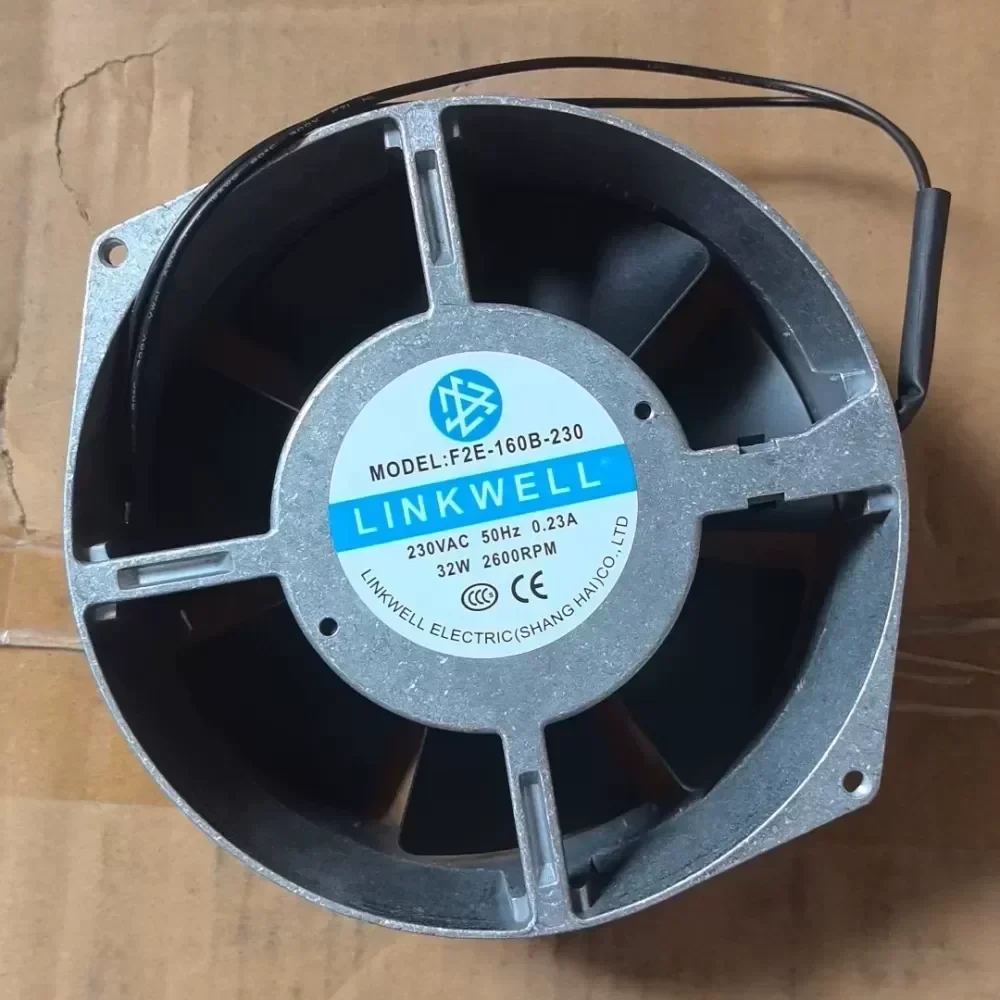

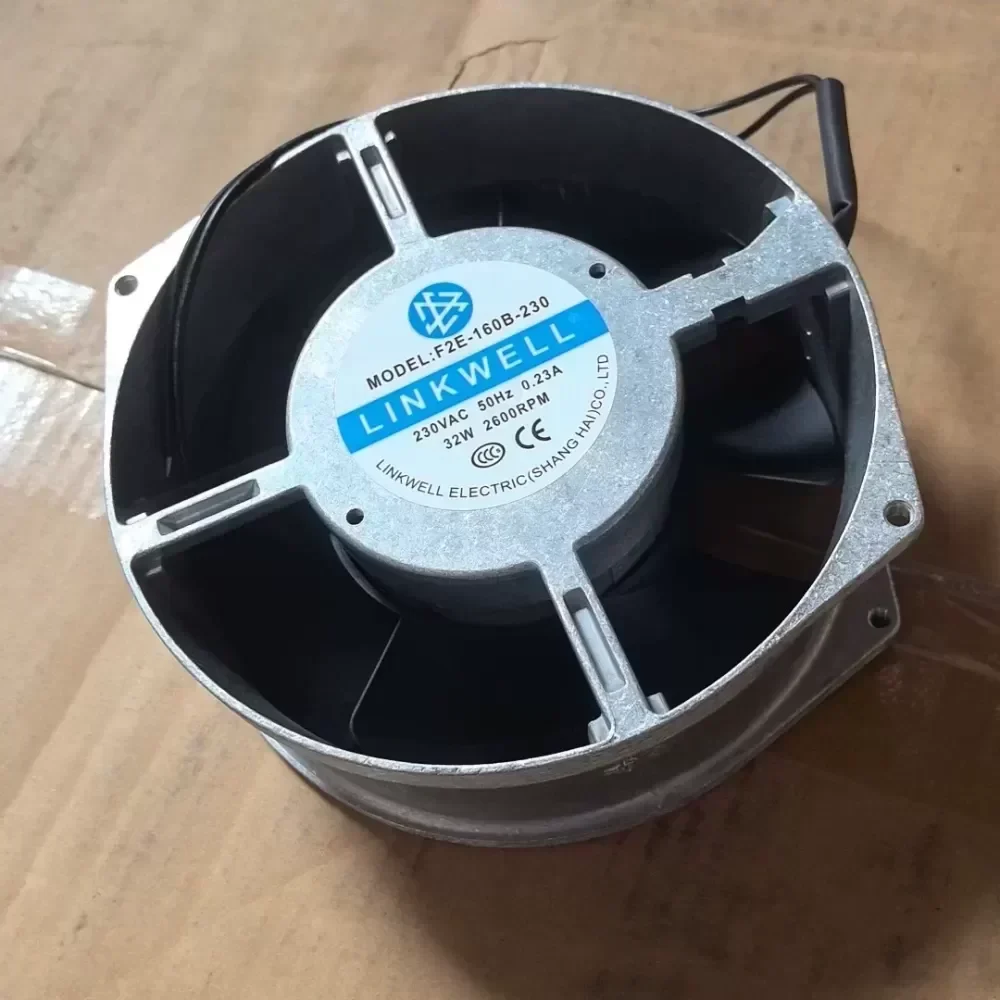

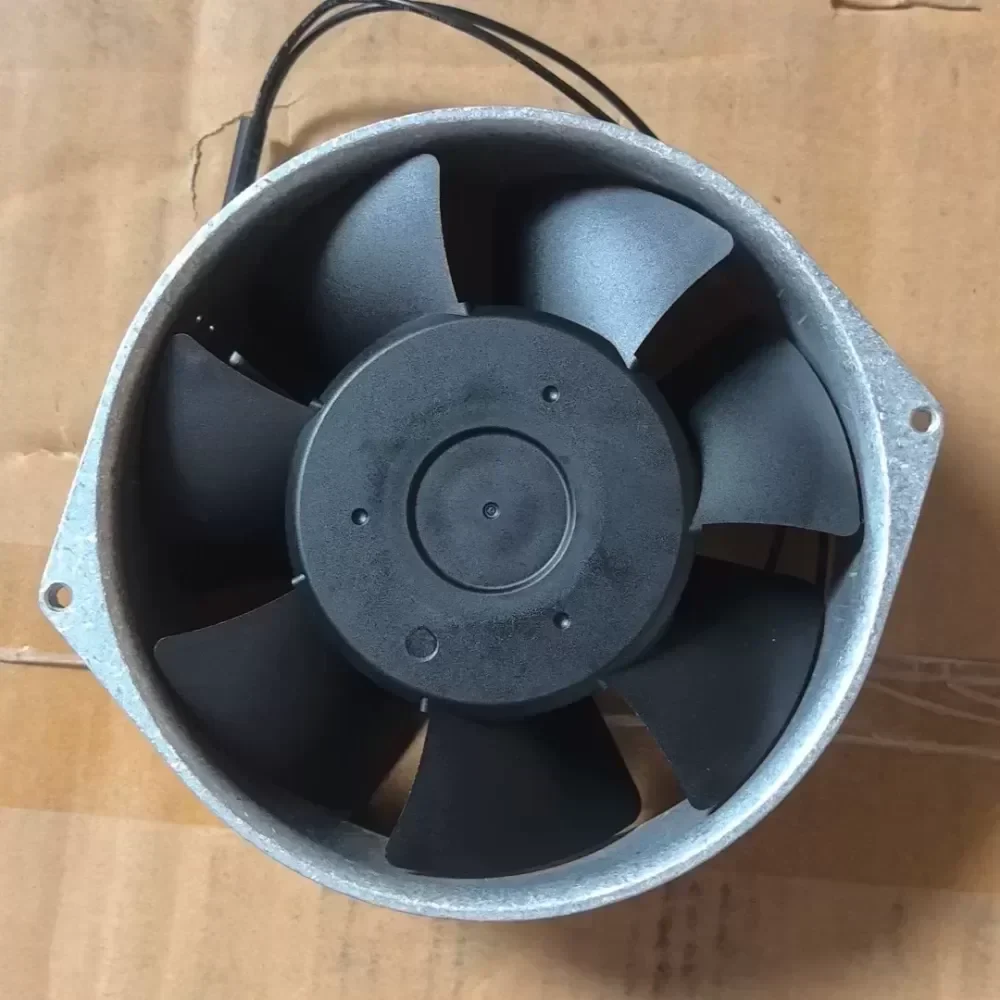

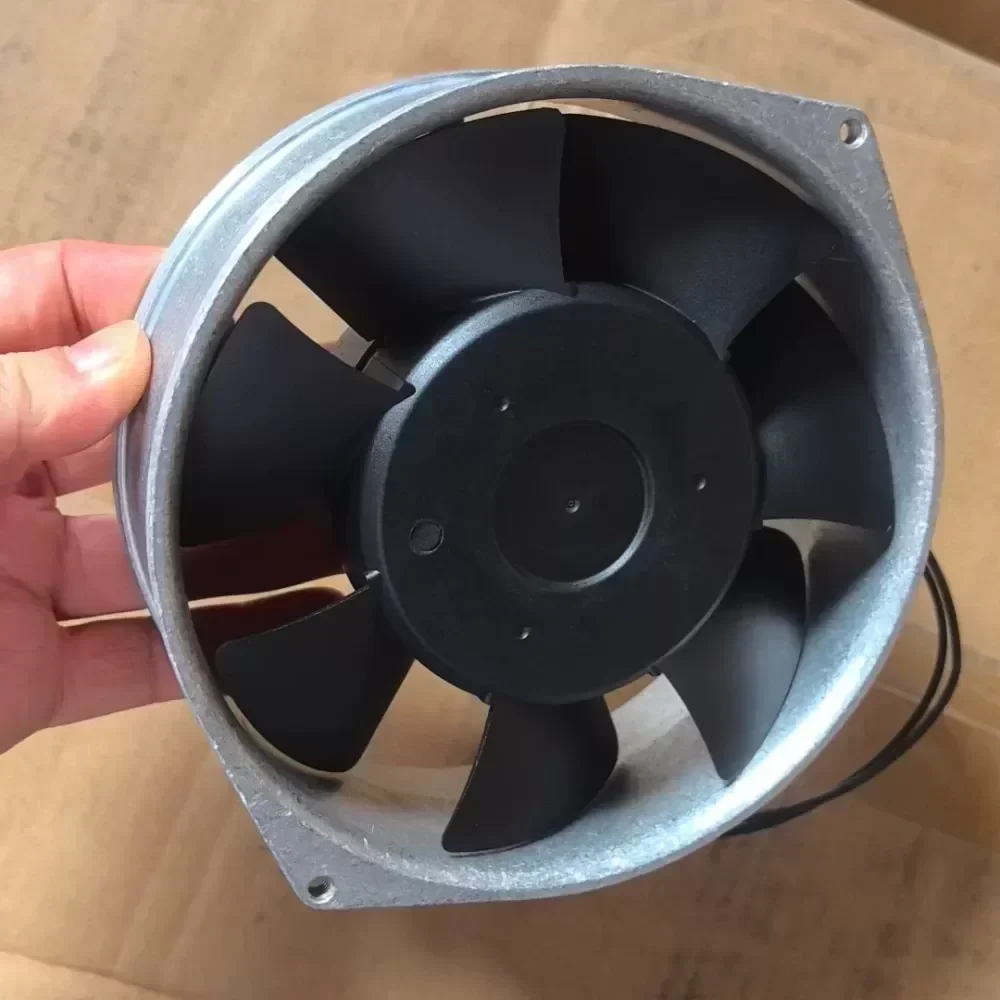

The LINKWELL F2E-160 B-230 is a high-performance AC axial fan engineered for critical thermal management in industrial enclosures and power electronics. This unit features a robust die-cast aluminum housing and a thermoplastic PBT impeller, ensuring structural integrity under continuous thermal load. Utilizing a dual ball bearing system, the fan delivers consistent airflow with extended operational longevity compared to sleeve bearing alternatives. It is specifically calibrated for 230V AC operation, making it a direct replacement for standard cabinet cooling solutions requiring high static pressure and durability.

TECHNICAL SPECIFICATIONS:
Manufacturer: LINKWELL
Model Number: F2E-160 B-230
Device Type: Oval AC Axial Fan
Dimensions: 172mm x 150mm x 51mm
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Power Consumption: 32 W
Rotational Speed: 2600 RPM
Bearing Type: Dual Ball Bearing
Airflow Capacity: Approx. 320 m³/h
Noise Level: 50 dBA
Housing Material: Die-Cast Aluminum Alloy
Impeller Material: Black PBT (UL94V-0)
Insulation Resistance: Min. 500MΩ at 500VDC
Dielectric Strength: 1500VAC for 1 Minute
Operating Temperature: -10°C to +65°C
Life Expectancy: 50,000 Hours at 25°C
Mounting: Flange Mount
Weight: 0.90 kg

INDUSTRIAL APPLICATION:
This cooling unit is specifically designed for maintaining optimal operating temperatures in Uninterruptible Power Supply (UPS) chassis and high-density server cabinets. The specific airflow profile generated by the 2600 RPM speed effectively mitigates thermal throttling in power rectifiers, inverters, and variable frequency drives (VFDs). Its oval form factor allows for integration into space-constrained electrical panels where standard square fans cannot fit, ensuring Technical Compatibility with legacy and modern infrastructure.

PROCUREMENT DATA:
This component represents Original Engineering quality, ensuring adherence to manufacturer safety and performance standards. Contact our supply team to verify current stock levels and confirm the Lead Time for bulk or urgent maintenance requirements.

LINKWELL F2E-160 B-230 Fan 230

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
