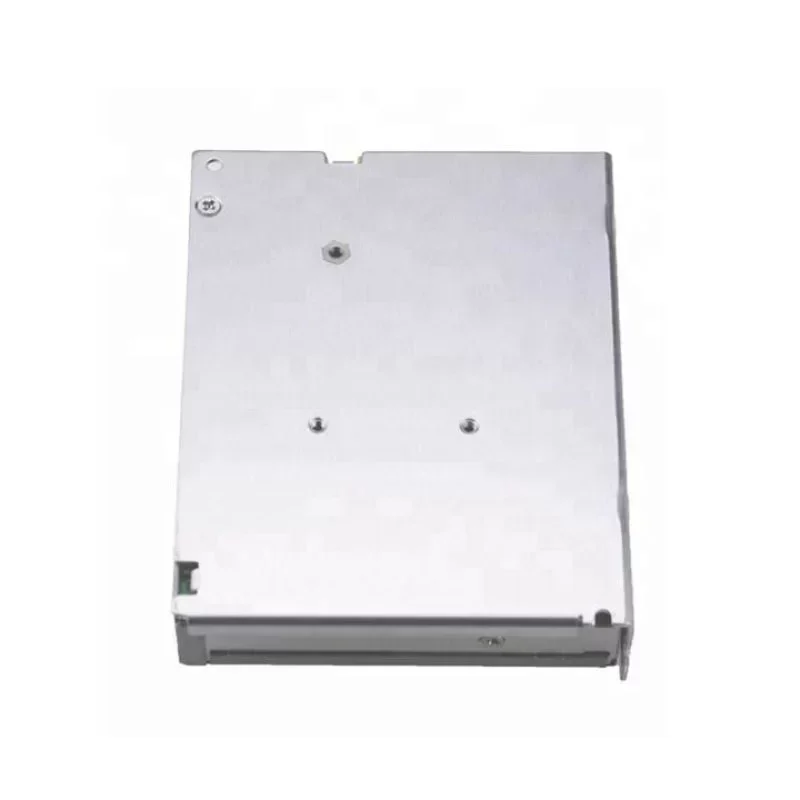

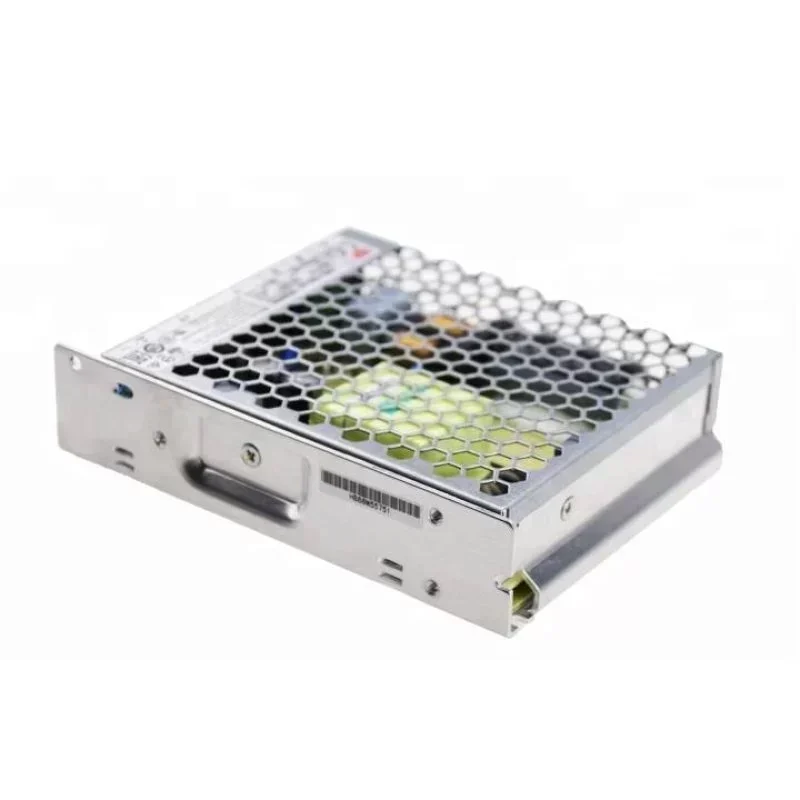

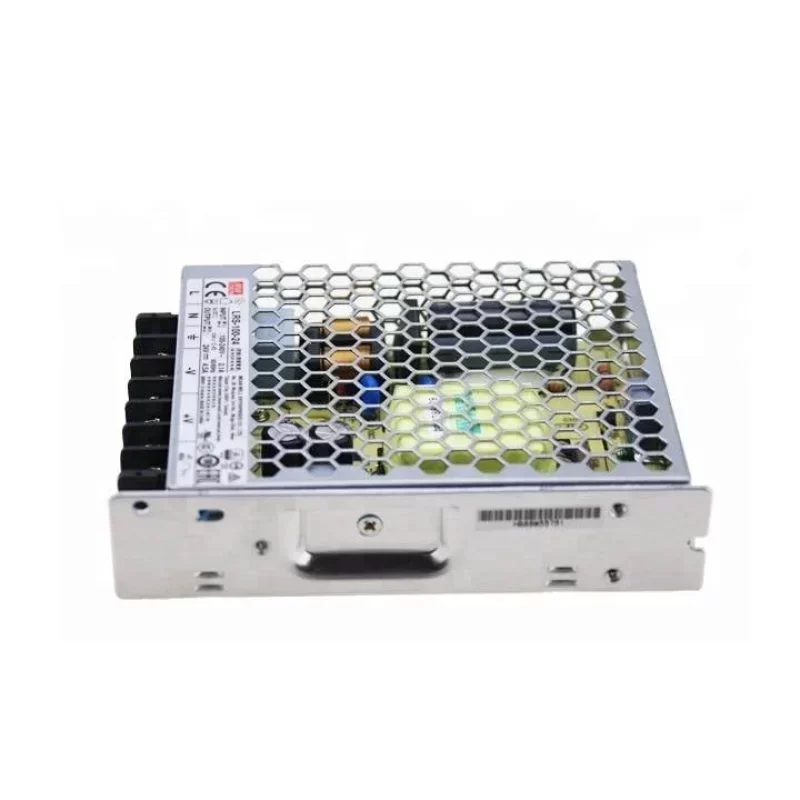

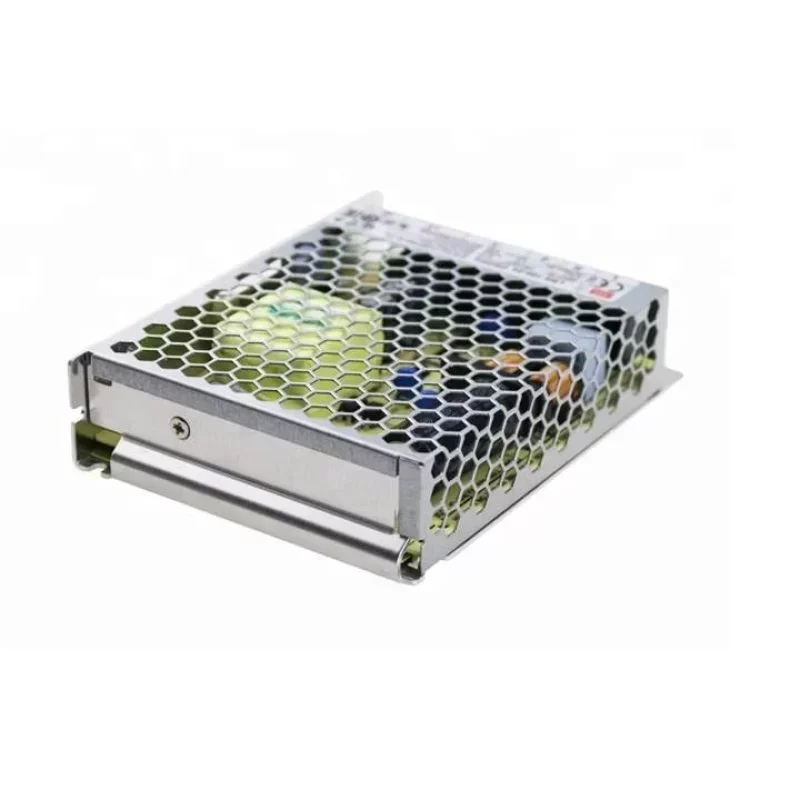

LRS-100-24 24V Mean Well 100W 230VAC to 24VDC Switching Enclosed LED Power Supply

Description

The MEAN WELL LRS-100-24 is a 108W single-output enclosed type power supply featuring a 30mm low profile design. This unit incorporates Original Engineering to provide high efficiency and long-term reliability for industrial applications. It is engineered for seamless Technical Compatibility with a wide range of automation machinery and electronic systems.

Technical Specifications:
Brand: MEAN WELL
Model Number: LRS-100-24
Output Voltage: 24V DC
Output Current: 4.5A
Rated Power: 108W
Input Voltage Range: 85 ~ 264 VAC or 120 ~ 373 VDC
Input Frequency: 47 ~ 63 Hz
Efficiency: 90%
Ripple and Noise: 150 mVp-p
Voltage Adjustment Range: 21.6 ~ 28.8V
Overload Protection: 110 ~ 150% rated output power
Overvoltage Protection: 28.8 ~ 33.6V
Working Temperature: -30 ~ +70°C
Working Humidity: 20 ~ 90% RH non-condensing
Storage Temperature: -40 ~ +85°C
Vibration Resistance: 5G 10 ~ 500Hz
Safety Standards: UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1
Electromagnetic Compatibility: EN55032 Class B, EN61000-3-2 Class A
Dimensions: 129 x 97 x 30 mm (L*W*H)
Weight: 0.34 kg
Cooling: Natural air convection
MTBF: 648.6K hours min. MIL-HDBK-217F (25°C)

Industrial Application:
The LRS-100-24 is specifically optimized for industrial control systems where vertical space is constrained. Its 1U low profile and 5G vibration resistance make it ideal for installation in control cabinets for CNC machinery, robotic arms, and automated production lines. The high efficiency rating minimizes thermal dissipation, ensuring stable Lead Time performance in sealed enclosures without the requirement for active cooling components.

Key Attributes
Input Voltage: 85 ~ 264 VAC, 120 ~ 373 VDC
Output Current: 4.5A
Output Voltage: 24 V
Place of Origin: Taiwan, China
Output Power: 108W
Model Number: LRS-100-24
Brand Name: MEAN WELL
Output Frequency: 47~63 Hz
Output Type: Single
Product Name: LRS-100-24 24V 108W 4.5A Mean Well Single Output Power Supply
Ripple & Noise: 150 mVp-p
Efficiency: 90 %
Overload: 110 ~ 150 % rated output
Type of Shipping: Express
Standards: TUV / EAC / TP / TC
Working Temp: -30 ~ +70°C
Humidity: 20 ~ 90 % RH
Dimension (L*W*H): 129 * 97 * 30 mm
Weight: 0.34 kg

Packaging and Delivery
Packaging Details: 40*30*30 cm
Port of dispatch: Taiwan
Selling Units: Single item
