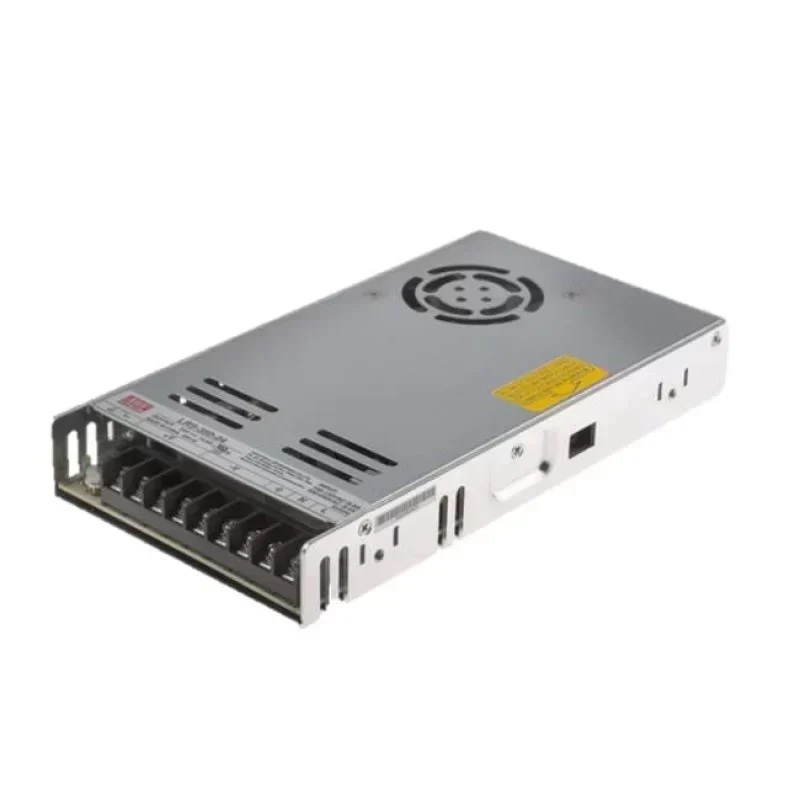

Mean Well 350W Switching Power Supply 15V LRS-350-15

Description

Mean Well 350W Switching Power Supply 15V LRS-350-15

Key Attributes
Input Voltage: 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC
Output Current: 23.2A
Output Voltage: 15V
Place of Origin: Taiwan, China
Model Number: LRS-350-15
Brand Name: Meanwell
Output Frequency: 47 ~ 63Hz
Output Type: Single
Ripple/noise: Universal
Efficiency: 79.5%~89%
AC Current: 6.8A/115VAC 3.4A/230VAC
Over Load: 110 ~ 140% rated output power
Working Temp: -25 ~ +70℃ (Refer to "Derating Curve")
Working Humidity: 20 ~ 90% RH non-condensing
Dimension: 215*115*30 mm
Weight: 0.76Kg; 15pcs/12.4Kg/0.78CUFT
Output Power: 348W

Packaging and Delivery
Selling Units: Single item
Single package size: 30X15X10 cm
Single gross weight: 5.000 kg
