Description

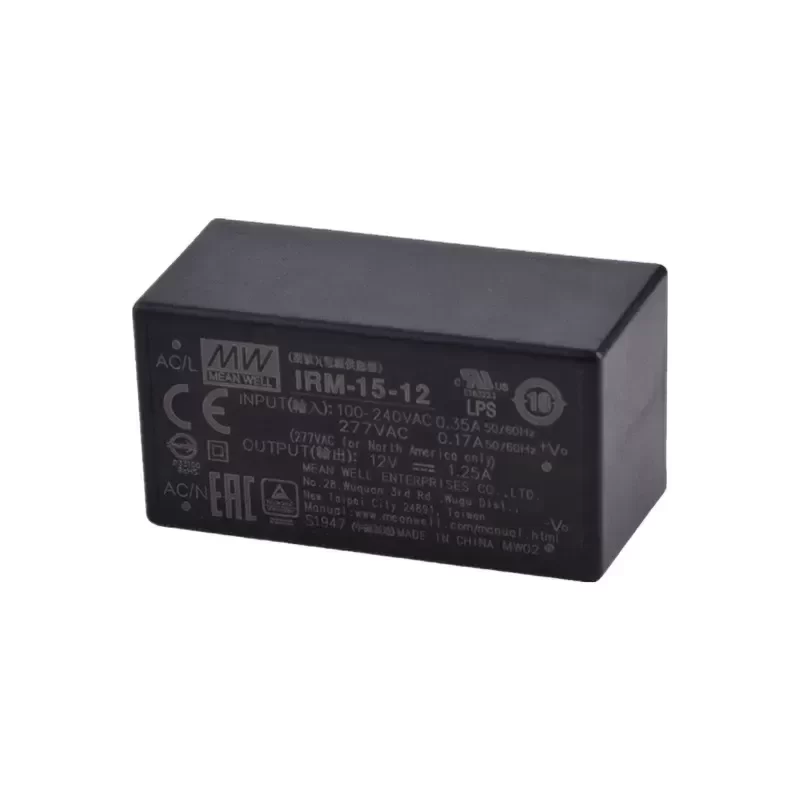

The Mean Well IRM-15-12 is a 15 Watt miniature AC-DC encapsulated power supply module designed for direct PCB integration. This unit features a compact footprint and ultra-low no-load power consumption, adhering to global energy efficiency regulations. The fully potted silicone design provides heat dissipation and protection against dust and moisture, ensuring reliability in industrial environments. Below are the comprehensive technical specifications derived from the manufacturer engineering data.
Manufacturer: Mean Well
Model Number: IRM-15-12
Product Series: IRM-15
Output Power: 15W
Output Voltage: 12V DC
Output Current: 1.25A
Input Voltage Range: 85-305VAC or 120-430VDC
Frequency Range: 47-63Hz
Efficiency: 83 Percent
No Load Power Consumption: Less than 0.1W
Ripple and Noise: 150mVp-p
Voltage Tolerance: +/- 2.5 Percent

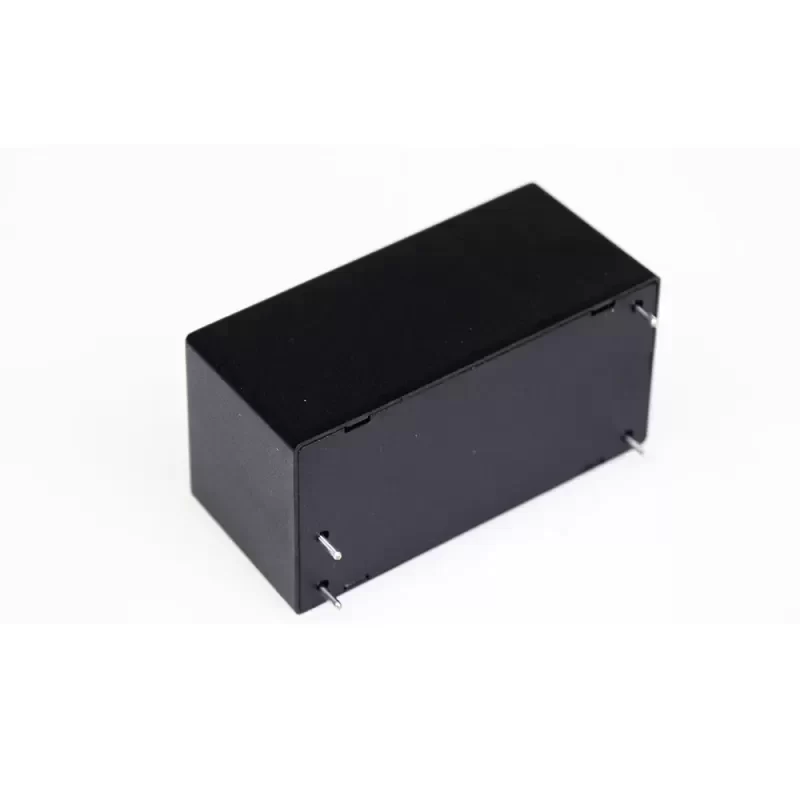

Mounting Type: PCB Through-Hole
Encapsulation: Fully Potted
Dimensions: 52.4mm x 27.2mm x 24mm
Working Temperature: -30 to +70 Degrees Celsius
Storage Temperature: -40 to +85 Degrees Celsius
Vibration: 10-500Hz, 5G 10min/1cycle
Safety Standards: UL62368-1, TUV EN62368-1, EAC TP TC 004
EMC Emission: Compliance to EN55032 Class B
Protections: Short Circuit, Overload, Over Voltage
Isolation Class: Class II
MTBF: 900K hrs min. MIL-HDBK-217F
Weight: 0.049 kg (Net Component Weight)
Industrial Application:
This module is engineered for industrial electrical equipment, mechanical automation systems, and handheld electronic devices requiring high reliability in harsh environments. Its 5G vibration resistance and dust-proof encapsulation make it the optimal solution for powering auxiliary control circuits in factory automation environments or IoT sensor nodes where space is limited and low standby power is critical. The Class II isolation eliminates the need for a safety ground connection, simplifying PCB layout in compact instrumentation.
Procurement Data:
Ensure Technical Compatibility by verifying the PCB pinout and thermal constraints of your enclosure before integration. We supply Original Engineering components with verified traceability to maintain system integrity. Contact our support team for current Lead Time and volume availability for the IRM-15 series.
Key Attributes
Input Voltage: 85 ~ 305VAC or 120 ~ 430VDC
Output Current: 1.25A
Output Voltage: 12 V
Place of Origin: Guangdong, China
Model Number: IRM-15-12
Brand Name: Mean Well
Application: Industrial Equipment
Efficiency: -
Output Frequency: -
Output Type: Single
Protection: Overvoltage Protection, Overloading Protection
Type: AC-DC
Place of Origin: China
Brand Name: Mean Well
Model Number: IRM-15-12
Output Power:: 15W
Input Voltage: 85 ~ 305VAC 120 ~ 430VDC
Output Current: 1.25A
Output Type: Single
Output Voltage: 12V
Packaging and Delivery
Selling Units: Single item
Single package size: 20X15X10 cm
Single gross weight: 0.330 kg
