Description

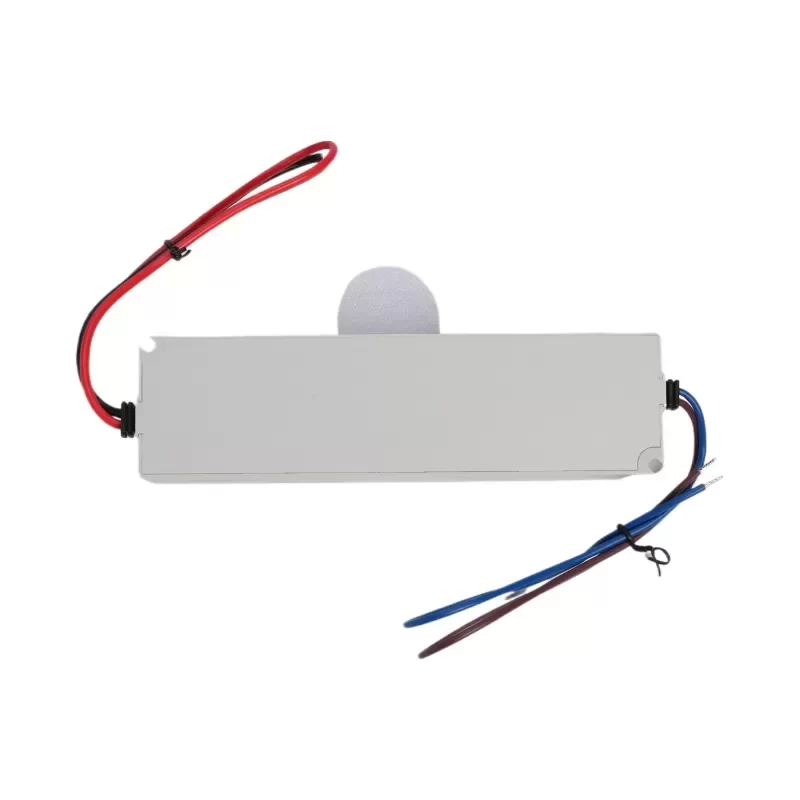

The MEAN WELL LPV-100-12 is a 102W single-output switching power supply designed specifically for LED lighting applications requiring Constant Voltage (CV) architecture. This unit features a fully encapsulated IP67 design, utilizing a flame-retardant plastic enclosure to protect internal electronics from dust and moisture ingress, making it suitable for both indoor and outdoor installations without direct sunlight exposure. The driver operates on a universal AC input range (90-264VAC) and converts to a stable 12VDC output with high efficiency. The LPV series is characterized by its Class II power unit design (no Frame Ground), low cost, and high reliability under convection cooling.
Technical Specifications:
Manufacturer: MEAN WELL
Model Number: LPV-100-12
Product Series: LPV (Constant Voltage)
Input Voltage: 90 ~ 264VAC | 127 ~ 370VDC
Frequency Range: 47 ~ 63Hz
Output Voltage: 12V DC
Rated Current: 8.5A
Current Range: 0 ~ 8.5A
Rated Power: 102W
Efficiency: 85% Typical
Ripple & Noise: 120mVp-p
Voltage Tolerance: ±5.0%
Line Regulation: ±1.0%
Load Regulation: ±2.0%
Protection Rating: IP67
Overload Protection: 110 ~ 150% rated output power (Hiccup mode, auto-recovery)
Over Voltage Protection: 13.8 ~ 16.2V (Shut down o/p voltage, re-power on to recover)
Working Temperature: -25 ~ +70°C
Vibration Resistance: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety Standards: UL8750, CSA C22.2 No 250.13-12, EN62368-1 approved
EMC Standards: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A
Isolation: Class II (No FG)
Cooling Method: Free air convection
Dimensions: 190mm x 52mm x 37mm
Weight: 0.63 kg (Net) / 0.70 kg (Gross)
Case Material: Plastic (UL 94V-0)
Industrial Application:
This driver is engineered for low-voltage LED lighting systems where water resistance and compact form factors are prerequisites. It is the standard power solution for LED channel letters, moving signs, LED strip lighting, and architectural decorative lighting. The Class II isolation design eliminates the need for a ground connection, simplifying installation in plastic signage structures.
Procurement Data:
Verify Technical Compatibility with your specific LED load requirements before installation. We supply Original Engineering components directly from the manufacturer. Contact our sales team for current Lead Time and volume pricing.
Key Attributes
Cooling Method: Air Cooling
Input Voltage: 90-264VAC
Output Current: 8.5A
Output Voltage: 12 V
Place of Origin: Guangdong, China
Model Number: R1-LPV-100-12
Brand Name: MEAN WELL
Output Frequency: 47~ 63Hz
Output Type: Single
Output Power: 102W
Product name: LED Driver / LED Power Supply
Type: AC-DC
Packaging and Delivery
Selling Units: Single item
Single package size: 19X6X4 cm
Single gross weight: 0.700 kg
