Description

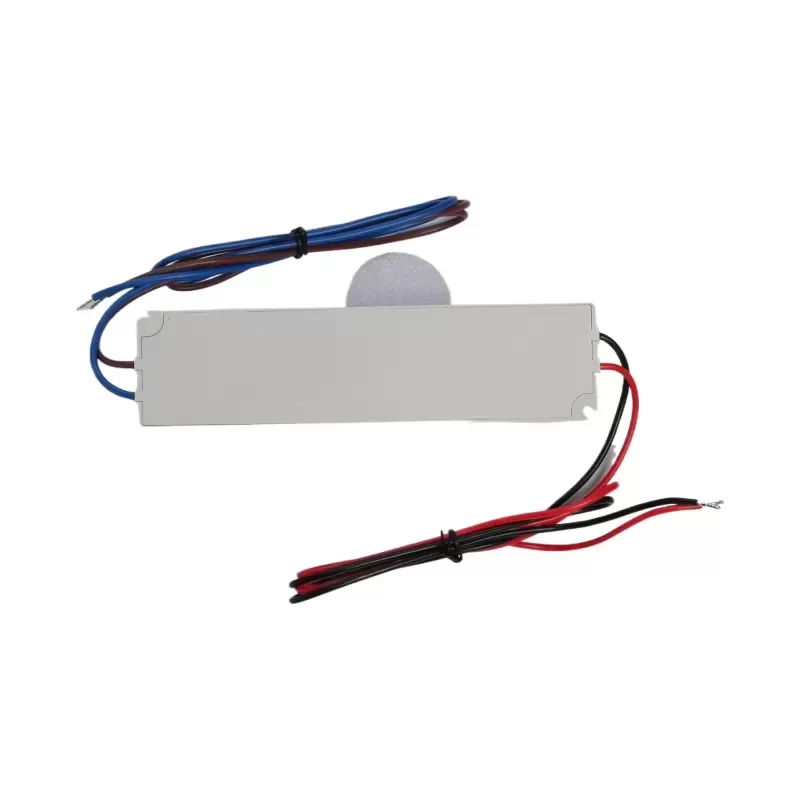

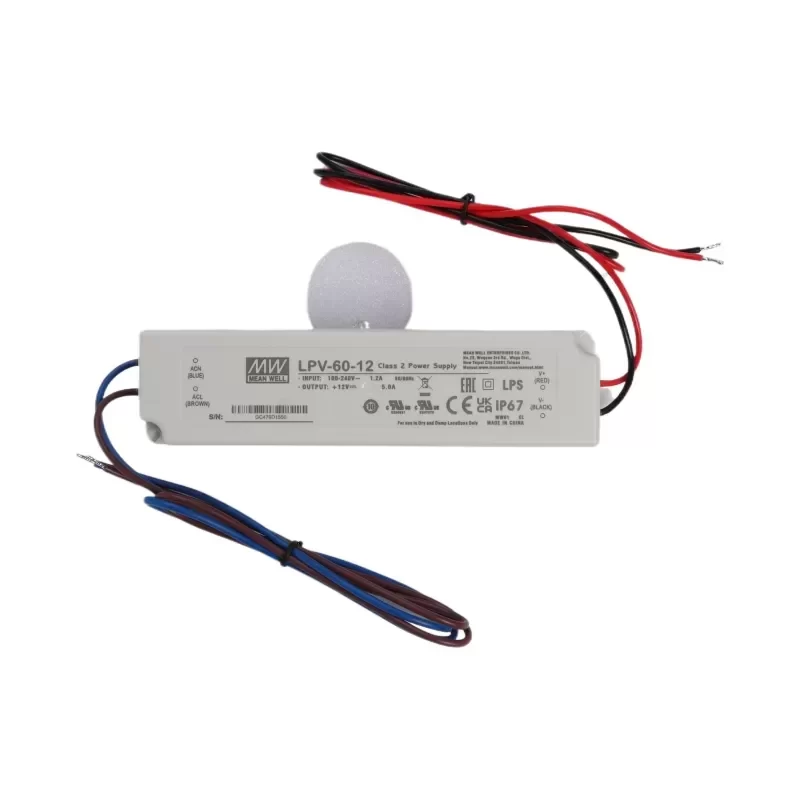

The Mean Well LPV-60-12 is a 60W Single Output Switching Power Supply specifically engineered for LED lighting applications requiring robust environmental protection. This Constant Voltage (CV) driver features a fully encapsulated IP67 design, utilizing a UL 94V-0 flame-retardant plastic enclosure to ensure operational stability in high-humidity and dusty environments. The unit operates on a universal AC input range and delivers a regulated 12V DC output, making it critical for architectural lighting, LED signage, and decorative illumination systems. Original Engineering protocols ensure high reliability with a Mean Time Between Failures (MTBF) exceeding 700,000 hours.
Technical Specifications:
Manufacturer: MEAN WELL
Series: LPV-60
Model Number: LPV-60-12
Technology: AC-DC Constant Voltage Switching Mode
Input Voltage Range: 90 ~ 264VAC / 127 ~ 370VDC
Frequency Range: 47 ~ 63Hz
Rated Output Voltage: 12V DC
Rated Output Current: 5A
Current Range: 0 ~ 5A
Rated Power: 60W
Ripple and Noise: 120mVp-p
Efficiency: 83% (Typical)
Inrush Current: Cold start 60A/230VAC
AC Current: 1.2A/115VAC, 1A/230VAC
Leakage Current: <0.25mA / 240VAC
Overload Protection: 110 ~ 150% rated output power (Hiccup mode, auto-recovery)
Over Voltage Protection: 13.8 ~ 16.2V (Shut down o/p voltage, re-power on to recover)
Ingress Protection Rating: IP67
Working Temperature: -30 ~ +70°C
Vibration Resistance: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety Standards: UL8750, CSA C22.2 No 250.13-12, BIS IS15885, EAC TP TC 004, IP67 approved
EMC Emission: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A
Dimensions (L x W x H): 162.5mm x 42.5mm x 32mm
Weight: 0.4kg
Cable Type: 16AWG / 18AWG (Input/Output)
Cooling Method: Free air convection
Industrial Application:
This power supply is optimized for outdoor or damp-location LED installations, specifically channel letter signage and architectural contour lighting. Its IP67 rating and Class 2 power unit designation allow for direct integration into non-climate-controlled enclosures where moisture ingress and thermal fluctuation are prevalent. The LPV-60-12 ensures consistent luminosity across LED arrays by maintaining stable voltage output despite input fluctuations. Contact us for current Lead Time and Technical Compatibility verification for specific lighting arrays.
Key Attributes
Cooling Method: Air Cooling
Input Voltage: 90-264VAC
Output Current: 5A
Output Voltage: 12 V
Place of Origin: Guangdong, China
Model Number: R1-LPV-60-12
Brand Name: MEAN WELL
Input Current: 1.2A/110VAC 1A/230VAC
Output Frequency: 47~ 63Hz
Output Type: Single
Product name: LED Driver / LED Power Supply
Type: AC-DC
Packaging and Delivery
Selling Units: Single item
Single package size: 17X5X4 cm
Single gross weight: 0.470 kg
