Description

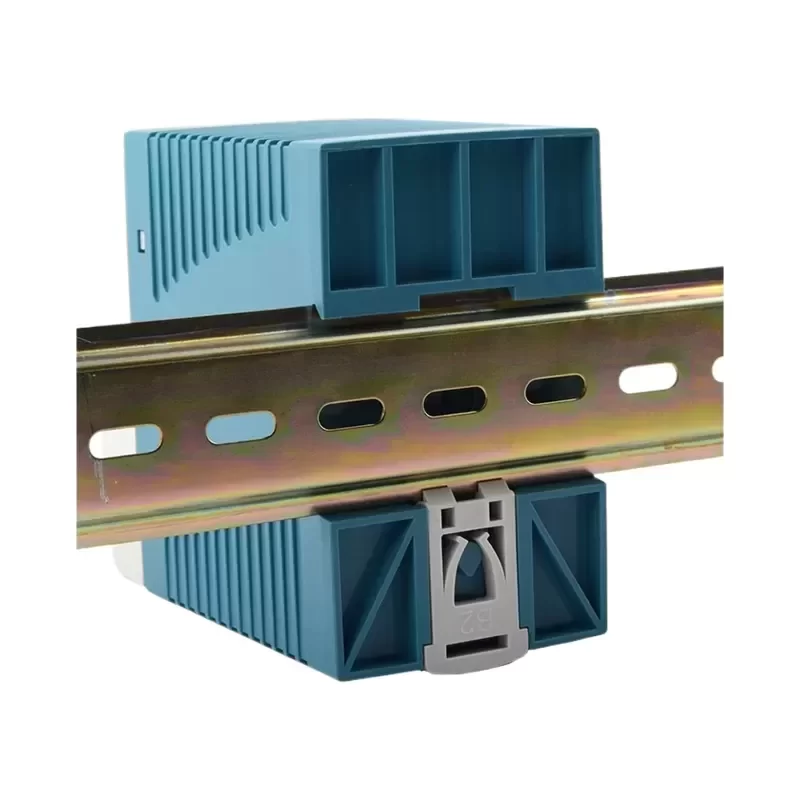

The MEAN WELL MDR-100-24 is a high-performance industrial DIN rail power supply engineered for precision automation and control systems. This unit utilizes Original Engineering to ensure long-term reliability and Technical Compatibility with standard TS-35/7.5 or 15 mounting rails.
Technical Specifications:
Manufacturer: MEAN WELL.
Model Number: MDR-100-24.
Output Voltage: 24V DC.
Output Current: 4A.
Rated Power: 96W.
Input Voltage Range: 85 to 264VAC or 120 to 370VDC.
Input Frequency: 47 to 63Hz.
Efficiency: 86%.
No Load Power Consumption: <1W.
DC OK Signal: Relay contact.
Cooling Method: Natural air convection.
Operating Temperature: -10 to +60°C.
Storage Temperature: -40 to +85°C.
Operating Humidity: 20% to 90% RH non-condensing.
Dimensions: 55mm x 90mm x 100mm (W x H x D).
Weight: 0.42kg.
Protections: Short circuit, Overload, Over voltage, Over temperature.
Safety Standards: UL508, TUV EN60950-1, EAC TP TC 004 approved.
EMC Standards: EN55032 Class B, EN61000-3-2,3.
Application Scenario:
The MDR-100-24 is specifically designed for space-constrained industrial environments where high-density mounting is required. Its ultra-slim 55mm profile allows for maximum cabinet space utilization. The integrated DC OK relay contact provides a critical hardware-level status signal to PLCs or supervisory systems, ensuring immediate fault detection in automated assembly lines and building management systems. This model is essential for applications requiring low standby power loss and high electrical isolation. Lead Time for this component is optimized for rapid integration into global B2B supply chains.
Key Attributes
Cooling Method: Natural air cooling
Input Voltage: 85-264VAC 120-370VDC
Output Current: 4A
Output Voltage: 24 V
Place of Origin: Guangdong, China
Model Number: L1-MDR-100-24
Brand Name: MEAN WELL
Output Frequency: 47~ 63Hz
Output Type: Single
Output Power: 96W
Input AC Current: 1.3A/115VAC 0.8A/230VAC
Operating temperature: -10 ~ +60℃
Packaging and Delivery
Selling Units: Single item
Single package size: 10X6X9 cm
Single gross weight: 0.490 kg
