Description

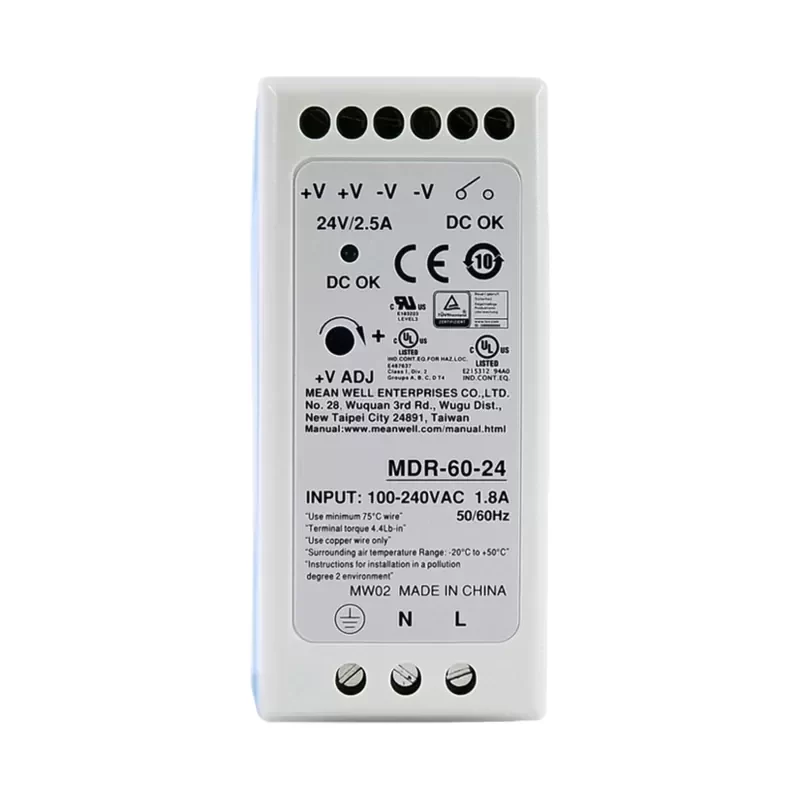

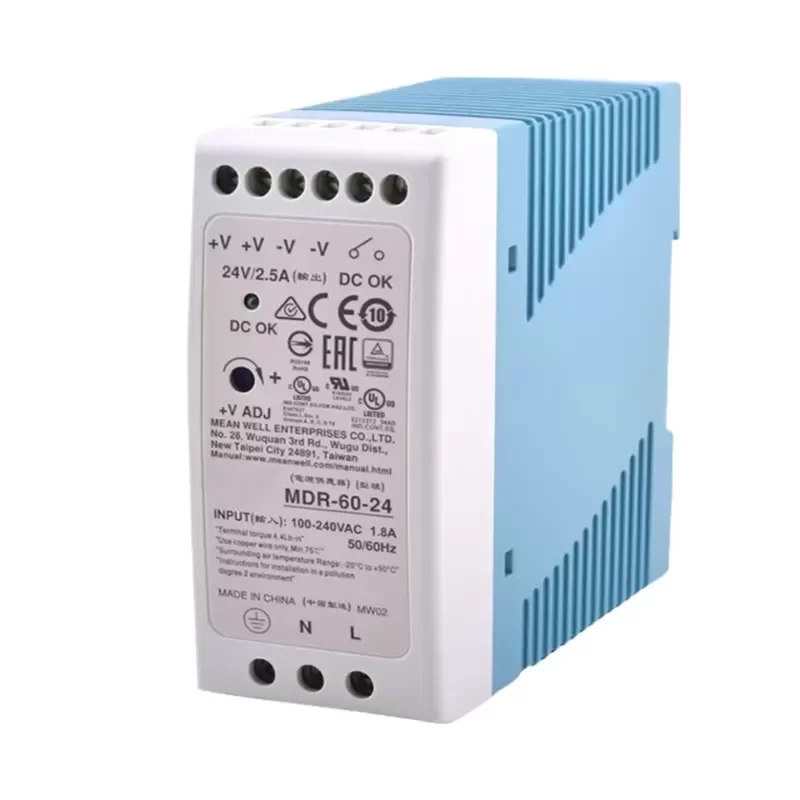

The MEAN WELL MDR-60-24 is a 60W Single Output Industrial DIN Rail Power Supply engineered for high-density installation in factory automation environments. This unit utilizes Original Engineering standards to deliver a regulated 24V DC output with a focus on minimizing no-load power consumption, making it suitable for energy-efficient control systems. The ultra-slim form factor allows for optimized utilization of rail space within crowded control cabinets, ensuring Technical Compatibility with standard TS-35/7.5 or TS-35/15 mounting rails. The device features a plastic housing designed to facilitate effective heat dissipation through free air convection, ensuring reliability without internal fans.
Specific Industrial Application:
This power supply is specifically architected for decentralized control architectures, such as powering Programmable Logic Controllers (PLCs), Human-Machine Interfaces (HMIs), and electromechanical sensors in conveyor automation systems. Its integrated DC OK relay contact enables remote monitoring of the power status, a critical feature for predictive maintenance in continuous process manufacturing. The unit maintains operational stability under convection cooling, eliminating the need for forced air in sealed enclosures, and provides robust protection against voltage fluctuations common in industrial grids.
Technical Specifications:
Manufacturer: MEAN WELL
Model Number: MDR-60-24
Product Series: MDR Series (Miniature DIN Rail)
Output Power: 60W
Output Voltage: 24V DC
Output Current: 2.5A
Current Range: 0 to 2.5A
Input Voltage Range (AC): 85 to 264VAC
Input Voltage Range (DC): 120 to 370VDC
Input Frequency: 47 to 63Hz
Efficiency: 88% (Typical)
Voltage Adjustment Range: 24V to 30V DC
Ripple and Noise: 150mVp-p
Overload Protection: 105% to 160% rated output power (Constant current limiting, auto-recovery)
Over Voltage Protection: 31.2V to 36V (Shut down o/p voltage, re-power on to recover)
No Load Power Consumption: Less than 0.75W
Signaling: DC OK Relay Contact
Cooling Method: Free air convection
Operating Temperature: -20°C to +70°C
Working Humidity: 20% to 90% RH non-condensing
Mounting Interface: DIN Rail TS-35/7.5 or 15
Dimensions (W x H x D): 40mm x 90mm x 100mm
Case Material: Plastic
Net Weight: 0.33 kg
Safety Standards: UL508, TUV EN62368-1, EAC TP TC 004
EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3
Lead Time: Dependent on current global stock levels
Key Attributes
Cooling Method: Natural air cooling
Input Voltage: 85-264VAC 120-370VDC
Output Current: 2.5A
Output Voltage: 24 V
Place of Origin: Guangdong, China
Model Number: L2-MDR-60-24
Brand Name: MEAN WELL
Output Frequency: 47~ 63Hz
Output Type: Single
Output Power: 60W
Input AC Current: 1.8A/115VAC 1A/230VAC
Operating temperature: -20 ~ +70℃
Packaging and Delivery
Selling Units: Single item
Single package size: 10X4X9 cm
Single gross weight: 0.390 kg
