Description

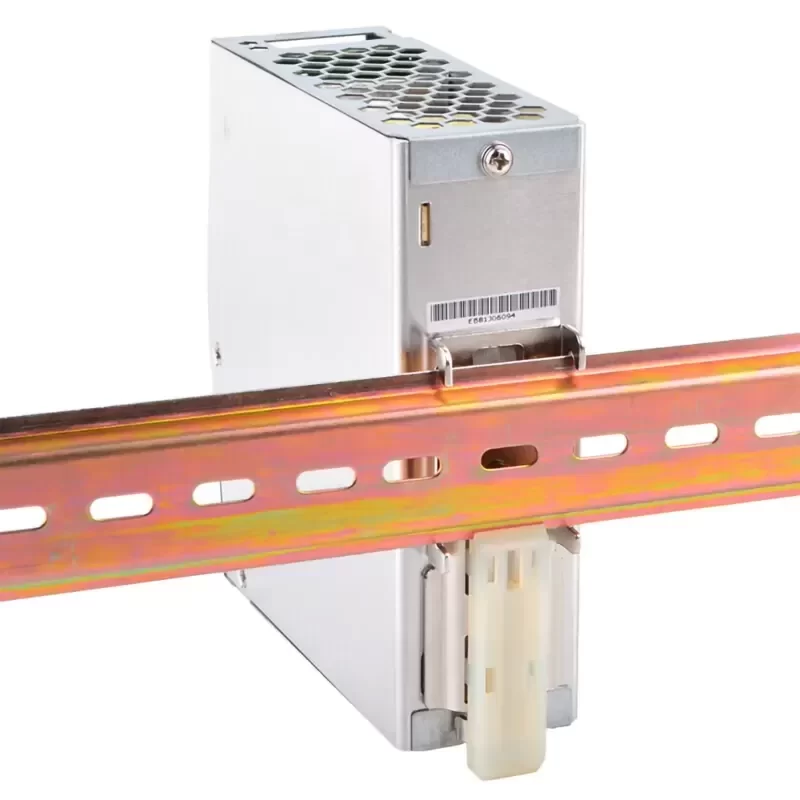

The MEAN WELL NDR-120-24 is a high-efficiency, single-output industrial DIN rail power supply designed for space-constrained automation environments. Belonging to the NDR-120 series, this unit features a slim 40mm width metal housing, allowing for high-density installation on TS-35/7.5 or TS-35/15 mounting rails. It utilizes Original Engineering to accept a universal AC input range (90-264VAC) and converts it to a regulated 24V DC output with 89% efficiency. The design incorporates active power factor correction and comprehensive protection circuitry against short circuit, overload, over voltage, and over temperature. This unit relies on free air convection for cooling, eliminating the need for mechanical fans and increasing long-term reliability. Technical Compatibility is guaranteed for industrial control systems, semiconductor fabrication equipment, and electro-mechanical apparatus requiring stable DC power in harsh environments. Contact our supply chain team for current Lead Time and volume pricing.
TECHNICAL SPECIFICATIONS:
Manufacturer: MEAN WELL
Model Number: NDR-120-24
Series: NDR (Economical Slim DIN Rail)
Output Power: 120W
Output Voltage: 24V DC
Output Current: 5A
Current Range: 0 to 5A
Voltage Adjustment Range: 24V to 28V
Ripple and Noise: 120mVp-p
Line Regulation: ±0.5%
Load Regulation: ±1.0%
Input Voltage Range: 90 to 264VAC, 127 to 370VDC
Input Frequency: 47 to 63Hz
Efficiency: 89% (Typ.)
AC Current: 2.25A/115VAC, 1.3A/230VAC
Inrush Current: 20A/115VAC, 35A/230VAC (Cold Start)
Leakage Current: <1mA / 240VAC
Overload Protection: 105% to 130% rated output power (Constant current limiting, auto-recovery)
Over Voltage Protection: 29V to 33V (Shut down o/p voltage, re-power on to recover)
Over Temperature Protection: Shut down o/p voltage, re-power on to recover
Working Temperature: -20°C to +70°C
Working Humidity: 20% to 95% RH non-condensing
Vibration Resistance: 10 to 500Hz, 2G 10min/1cycle, 60min each along X, Y, Z axes
Mounting Interface: DIN Rail TS-35/7.5 or TS-35/15
Dimensions (W x H x D): 40mm x 125.2mm x 113.5mm
Net Weight: 0.60kg
Housing Material: Metal
Safety Standards: UL508, TUV EN62368-1, EAC TP TC 004
EMC Emission: EN55032 (CISPR32) Class B, EN61000-3-2,-3
EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2)
MTBF: 456.3K hrs min. MIL-HDBK-217F (25°C)
APPLICATION SCENARIO:
This power supply is specifically engineered for industrial control cabinets where panel real estate is at a premium. The 40mm slim profile allows integrators to maximize the number of power units or control components on a single DIN rail. It is ideally suited for powering Programmable Logic Controllers (PLCs), HMI screens, and industrial sensors in factory automation lines where inductive loads and electrical noise are prevalent. The high immunity level (EN61000-6-2) ensures uninterrupted operation in heavy industry settings.
Key Attributes
Cooling Method: Natural air cooling
Input Voltage: 90-264VAC/127-370VDC
Output Current: 5A
Output Voltage: 24 V
Place of Origin: Guangdong, China
Model Number: L1-NDR-120-24
Brand Name: MEAN WELL
Output Frequency: 47~ 63Hz
Output Type: Single
Output Power: 120W
Input AC Current: 90-264VAC/127-370VDC
Operating temperature: -20 ~ +70℃
Packaging and Delivery
Selling Units: Single item
Single package size: 12X4X13 cm
Single gross weight: 0.720 kg
