Description

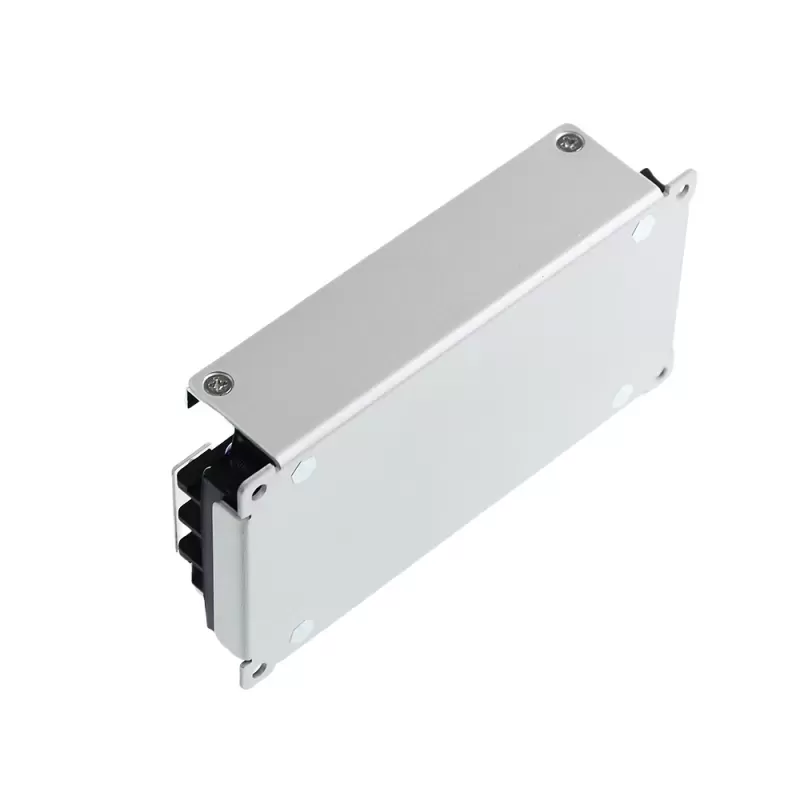

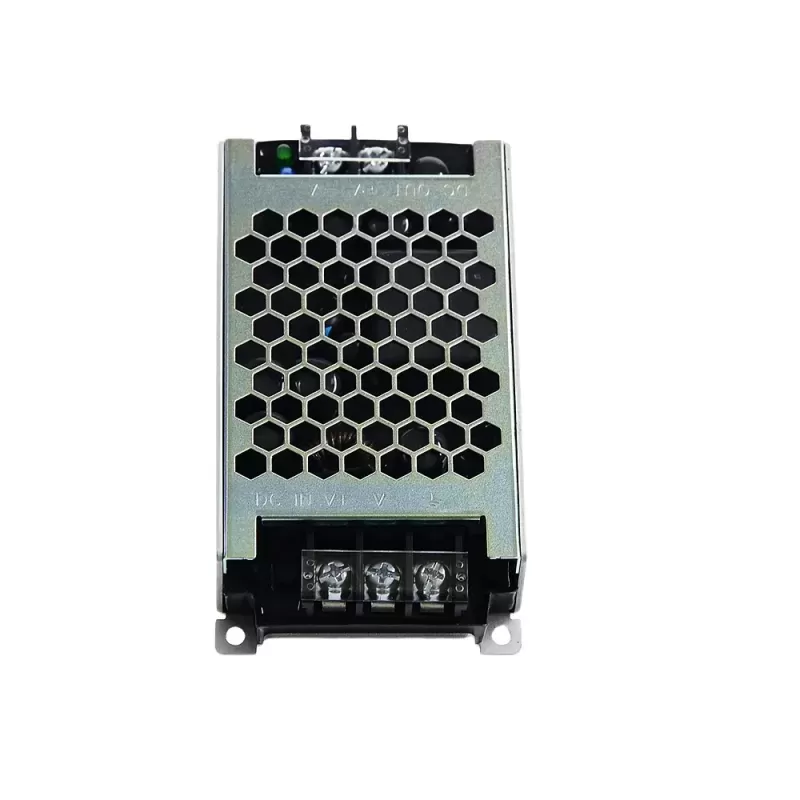

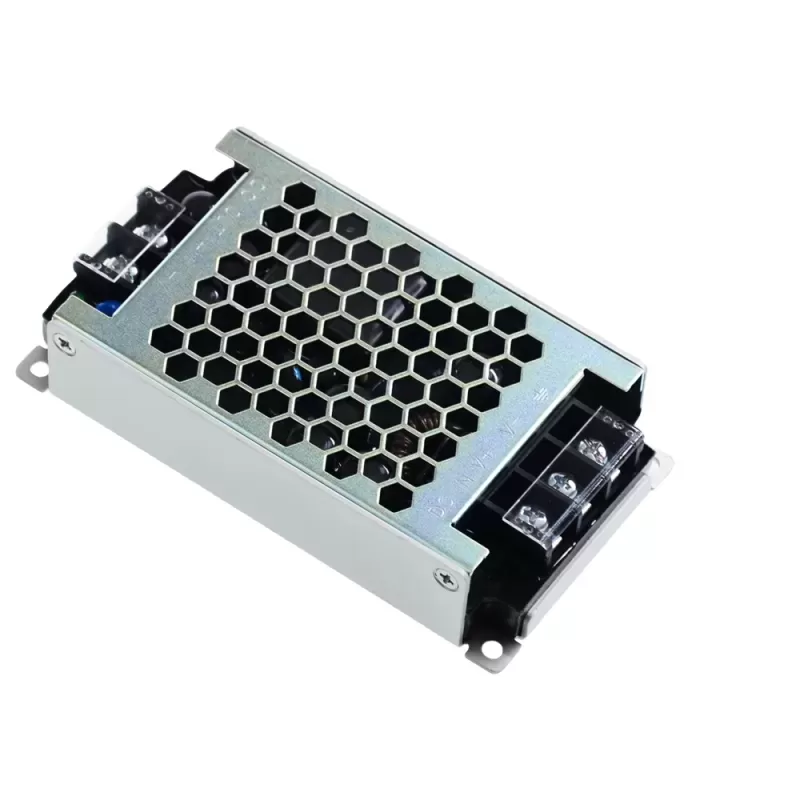

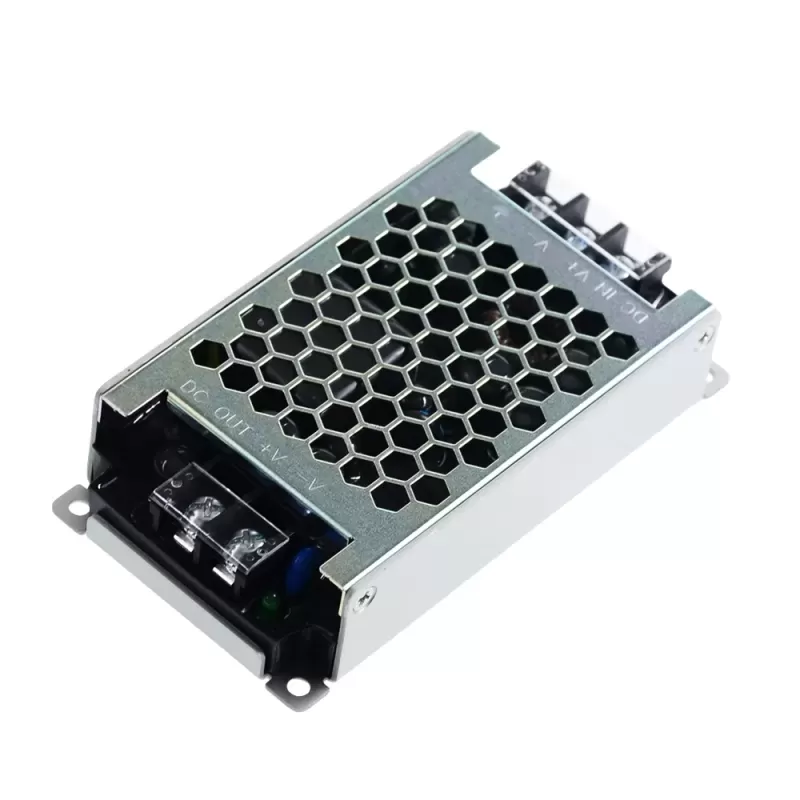

The Mean Well RSD-30G-12 is a high-reliability 30W DC-DC converter specifically engineered to meet the rigorous demands of the railway industry and harsh industrial environments. This unit complies with the EN50155 railway standard, ensuring stable operation under conditions of high vibration, mechanical shock, and extreme thermal fluctuations. Featuring a 4:1 wide input range of 9 – 36 VDC, the RSD-30G-12 delivers a precise 12 VDC output, making it a critical component for rolling stock, trackside signaling, and telecommunications infrastructure.
Technical Specifications:
Brand: MEAN WELL
Model Number: RSD-30G-12
Input Voltage Range: 9 – 36 VDC
Output Voltage: 12 VDC
Rated Power: 30 W
Output Current: 2.5 A
Isolation Voltage: 4000 VDC I/O isolation
Operating Temperature: -40 to +70 °C
Vibration Resistance: 5G
Protection: Short Circuit, Overload, Overvoltage, Over Temperature
Cooling: Free air convection
Weight: 0.250 kg
Dimensions: 113 x 60 x 25 mm
Industrial Application Scenarios:
The RSD-30G-12 is essential for onboard railway systems, including passenger information displays, lighting control, and wireless communication modules. Its robust, fanless design also makes it suitable for industrial automation, CCTV surveillance in remote locations, and smart grid monitoring where input voltage stability is variable and maintenance access is limited.
Original Engineering and Quality Assurance:
This product represents Mean Well original engineering, designed for long-term durability with a high MTBF (Mean Time Between Failures). For procurement planning and project scheduling, please contact our sales department regarding current Lead Time and bulk availability for large-scale infrastructure deployments.
Key Attributes
Input Voltage: 9 ~ 36VDC
Output Voltage: 12 V
Place of Origin: Jiangsu, China
Model Number: RSD-30G-12
Brand Name: MEANWELL
Application: Industry, CCTV, Led Lighting, Smart Home, Laboratory, 3D Printer, Industrial Equipment
Output Type: Single
Protection: Short Circuit Protection, Overcurrent Protection, Overvoltage Protection, Over Temperature Protection
Type: DC-DC
Packaging and Delivery
Selling Units: Single item
Single package size: 11.3X6X2.5 cm
Single gross weight: 0.250 kg
