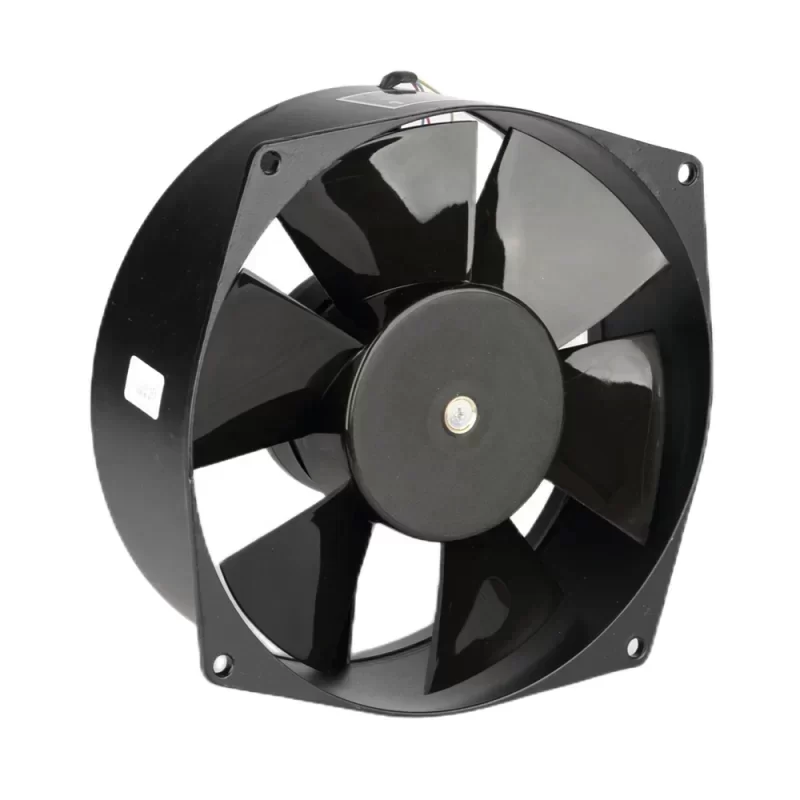

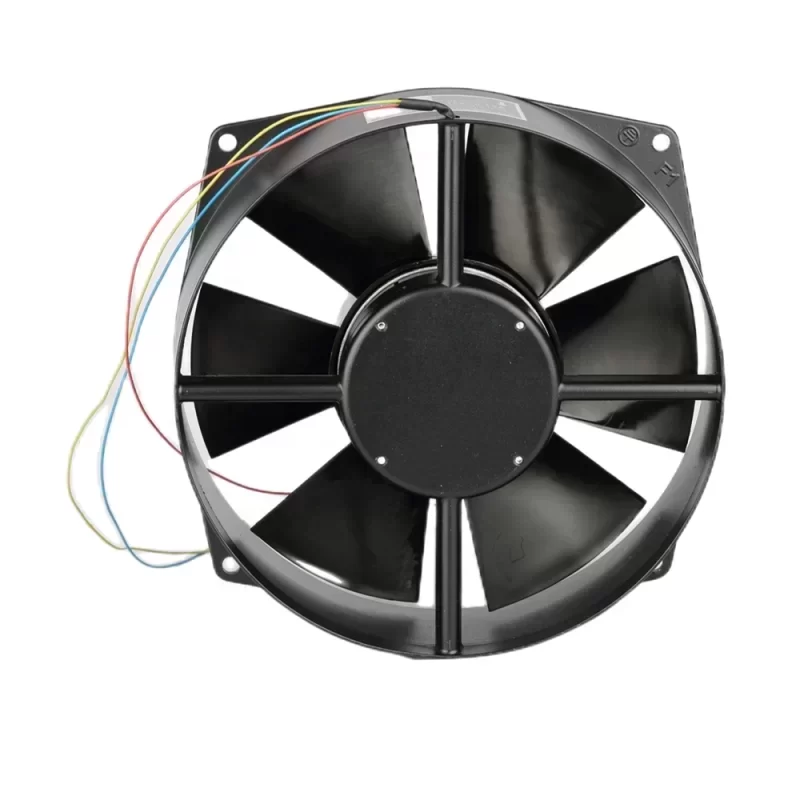

MEIXING 200FZY7-D 380V 8Inch 210x210x70mm AC Axial Fan

MEIXING 200FZY7-D 380V 8Inch 210x210x70mm AC Axial Fan

Name: MEIXING 200FZY7-D 380V 8Inch 210x210x70mm AC Axial Fan
Brand: MEIXING
SKU: 1600727766236
Availability: InStock
Rating: 5 (4 reviews)

$6.42

SKU: 1600727766236 Brand: MEIXING

Description
Reviews (0)

Description

The MEIXING 200FZY7-D is a professional-grade 380V AC axial fan engineered for high-demand industrial cooling applications. This 210mm unit features a single-flange housing design, optimized for seamless integration into electrical enclosures, ventilation systems, and heavy-duty machinery. The internal motor is supported by a high-precision double ball bearing system, ensuring low friction and a long operational lifespan even under continuous 24/7 duty cycles. With a power rating of 65W and a rotational speed reaching 2700 RPM, the 200FZY7-D provides efficient heat extraction for critical electronic components. The inclusion of a 0.6uF/630V capacitor guarantees reliable starting torque and electrical stability across the 380V power input range.

Technical Specifications:
Brand: MEIXING
Model Number: 200FZY7-D
Operating Voltage: 380 VAC
Input Power: 65 W
Rated Current: 0.11 A

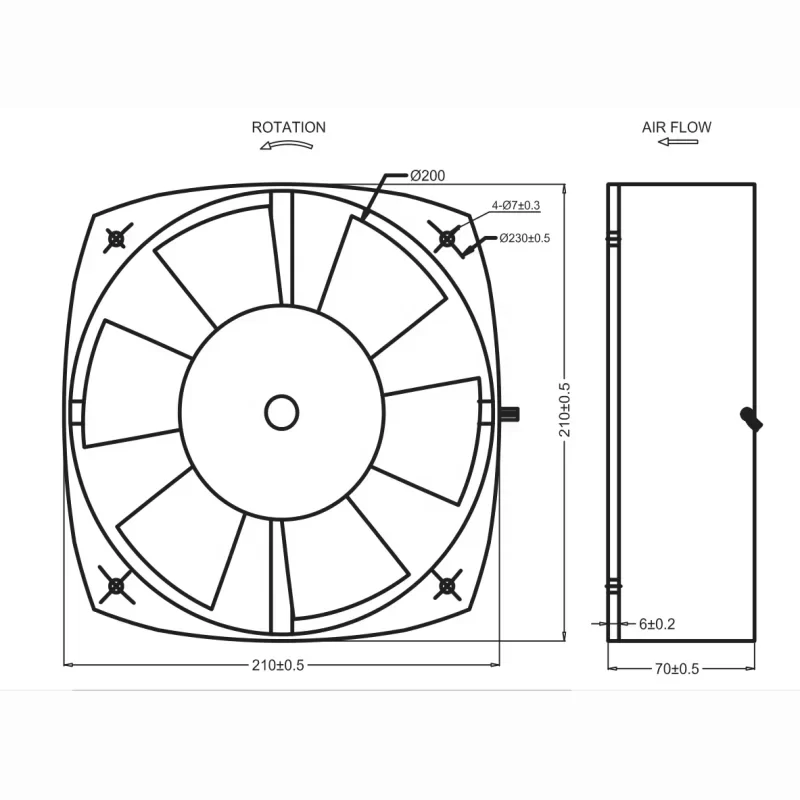

Dimensions: 210 x 210 x 70 mm
Fan Speed: 2650 – 2700 RPM
Acoustic Noise: 70 dB
Bearing System: Double Ball Bearing
Capacitor Specification: 0.6uF / 630V
Blade Material: Reinforced Plastic
Mounting Configuration: Single Flange
Weight: 1.30 kg
Warranty: 1 Year

Industrial Application:
The MEIXING 200FZY7-D is specifically designed for thermal regulation in high-voltage environments. It is a critical component for cooling welding equipment, industrial power supplies, frequency converters, and automated control cabinets. Its robust airflow capacity makes it an ideal choice for maintaining optimal operating temperatures in server rooms and telecommunications infrastructure. Original Engineering standards ensure compatibility with OEM and ODM requirements, while optimized Lead Time and global shipping availability support rapid maintenance and repair operations (MRO).

Key Attributes
Voltage: 380v
Mounting type: Free Standing
Type: Axial Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Zhejiang, China
Brand name: MEIXING
Model number: 200FZY 7-D 380V
Size: 210x210x70mm
Model: 200FZY7-D
Voltage: 380V
Capacitor: 0.6uf/630V
Bearing Type: Double Ball Bearing
Current: 0.11A
Color: Blue/Black
Speed: 2650-2700RPM
Noise: 70dB
Power: 65W

Packaging and Delivery
Selling Units: Single item
Single package size: 22X21X10 cm
Single gross weight: 1.300 kg

MEIXING 200FZY7-D 380V 8Inch 210x210x70mm AC Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
