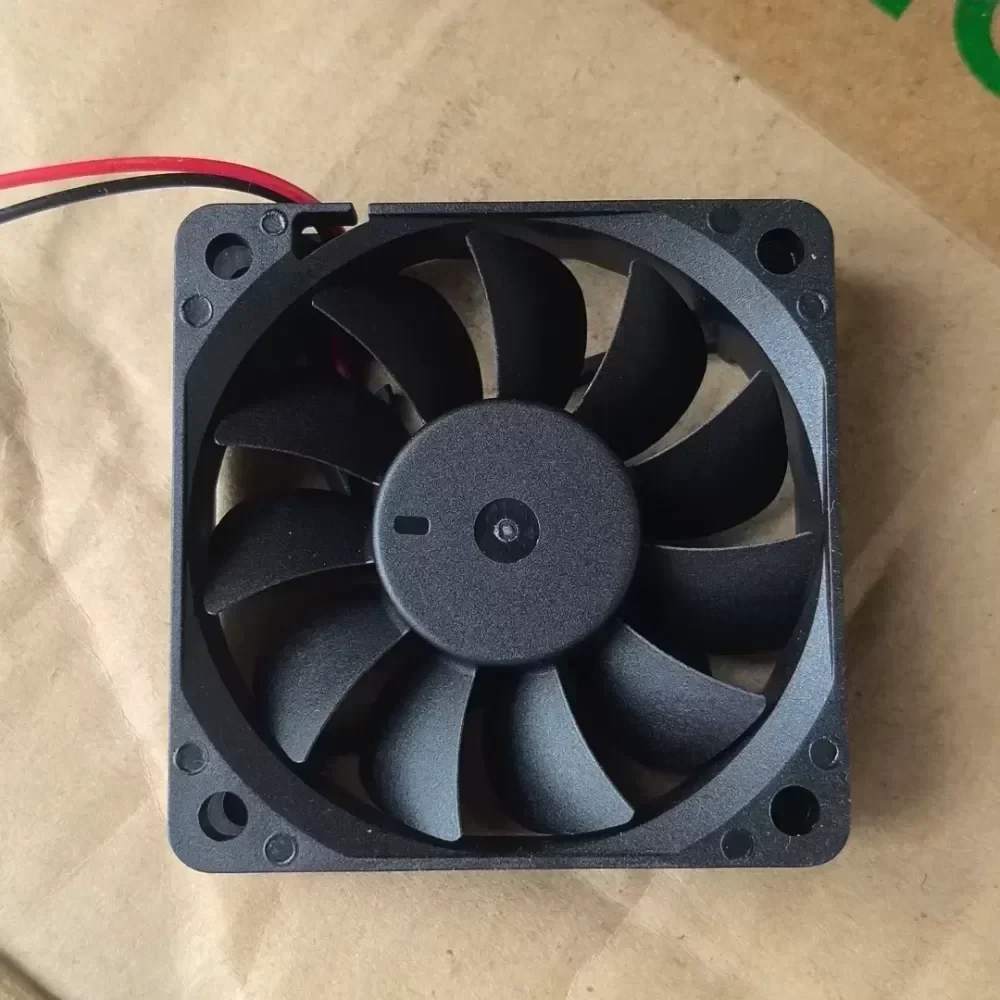

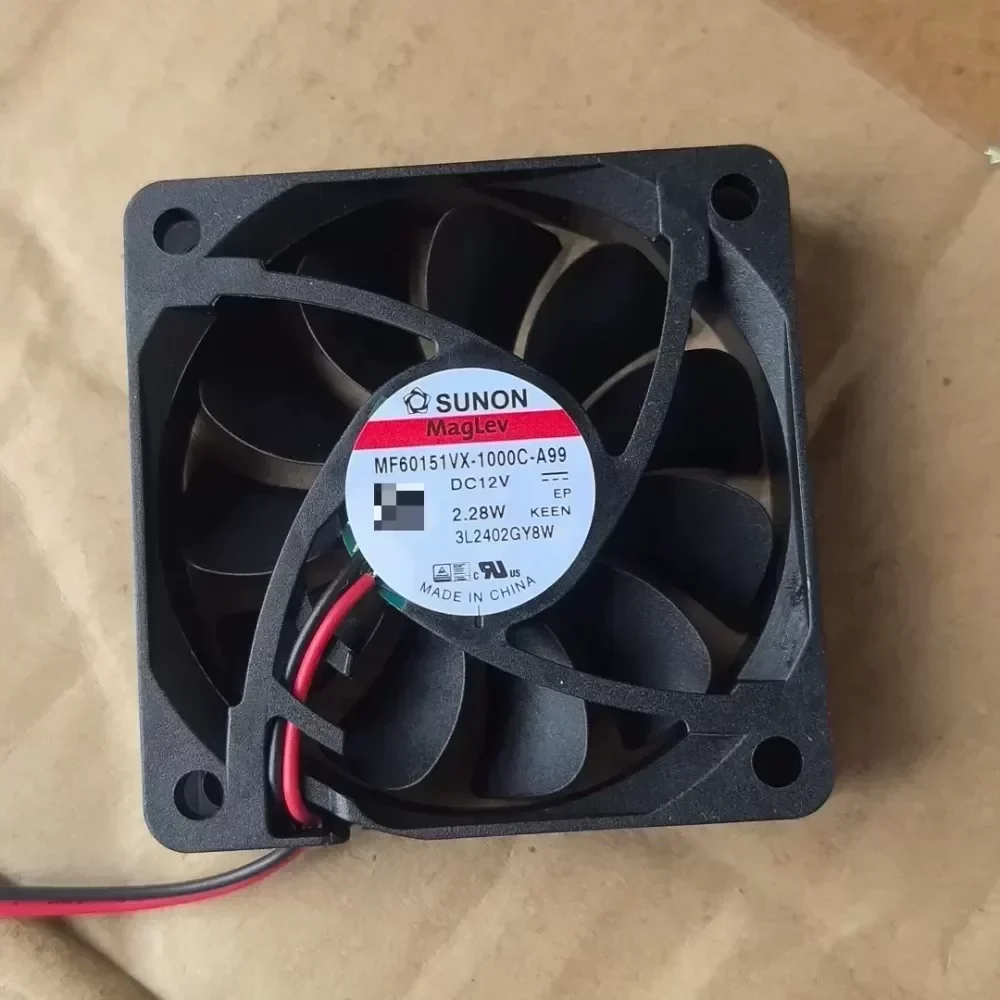

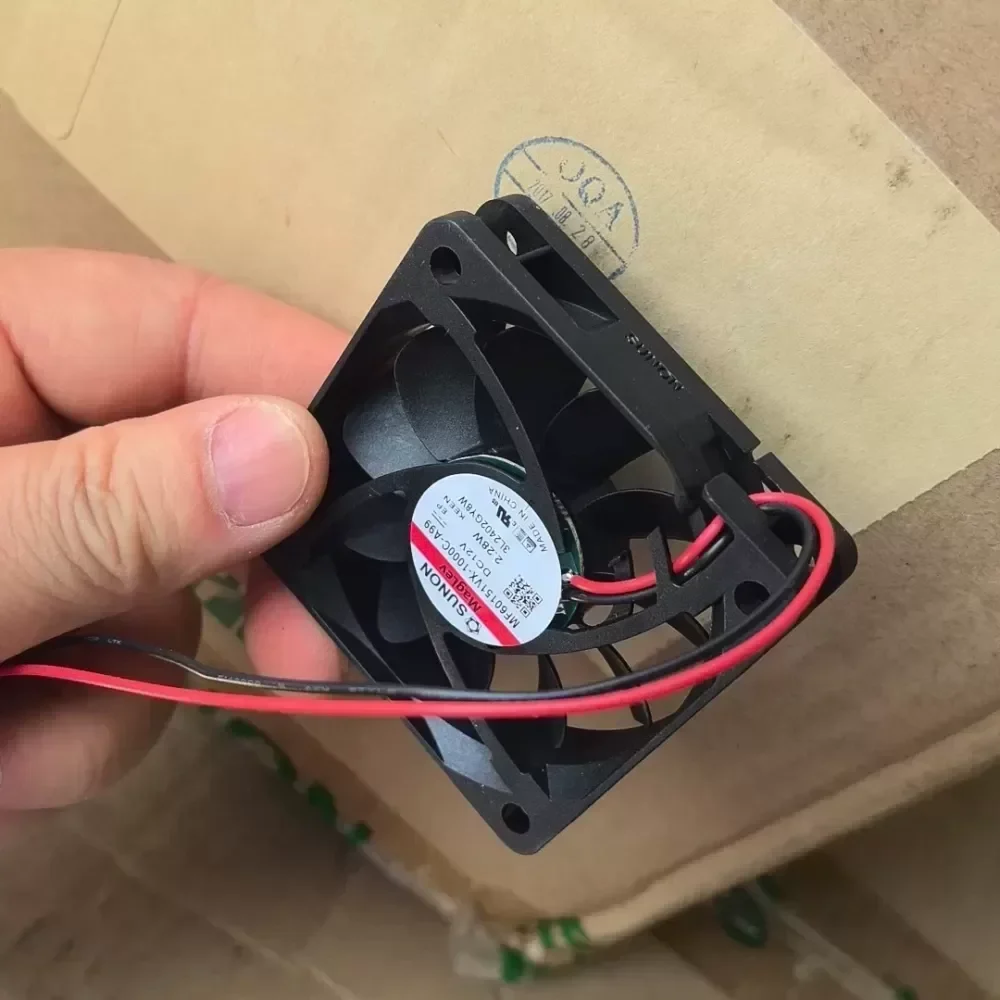

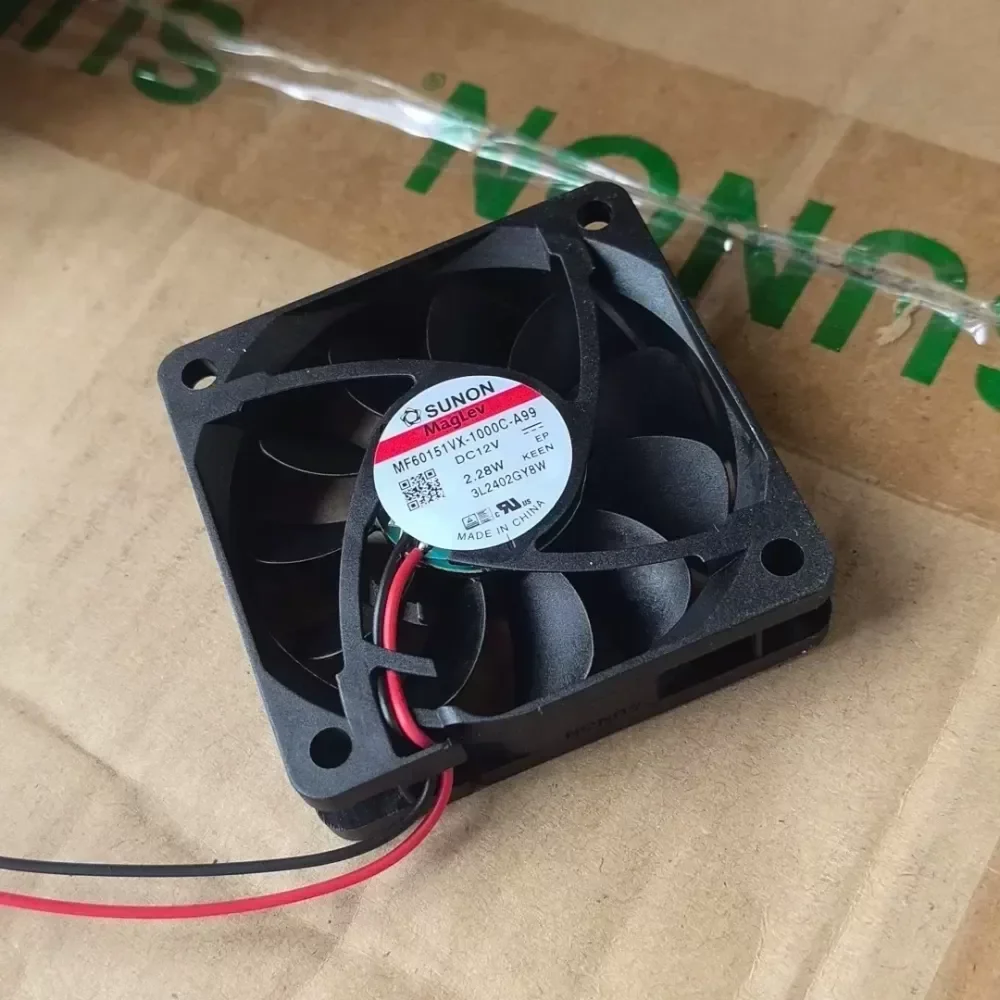

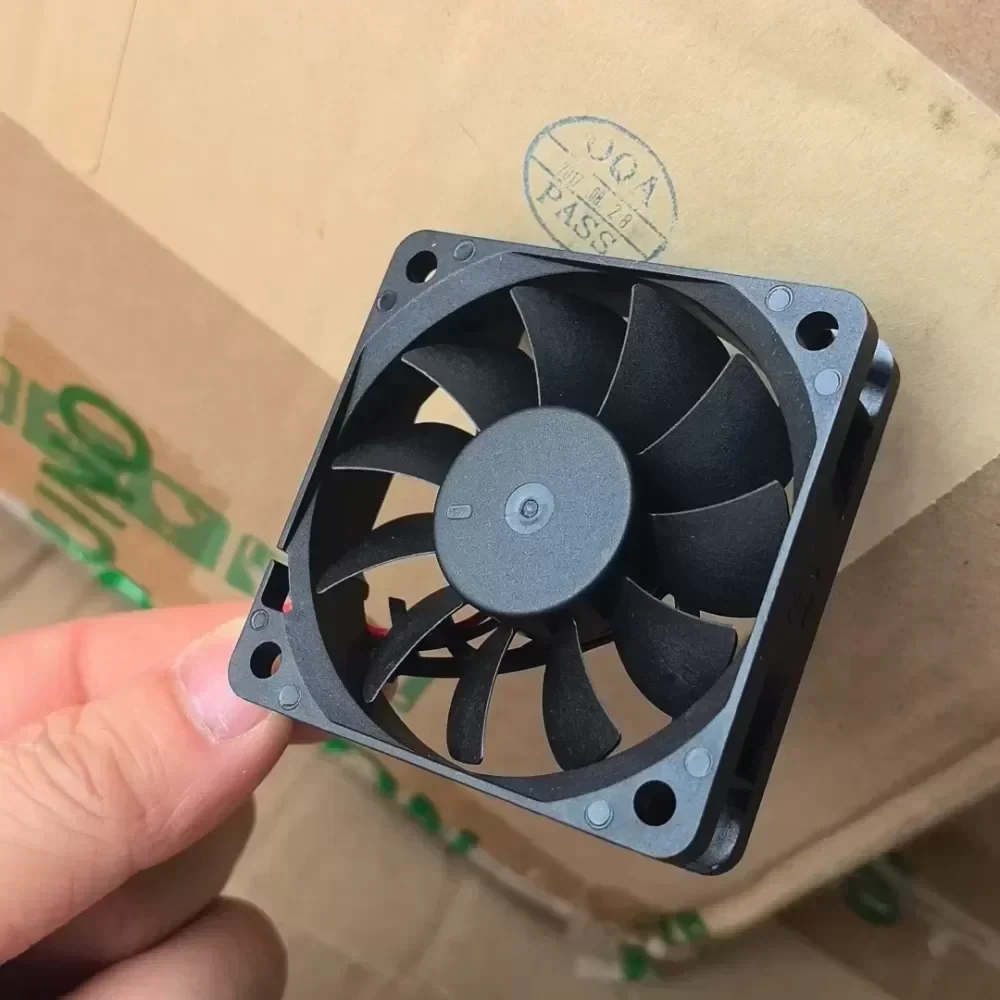

MF60151Vx-1000C-A99 SUNON fan

Name: MF60151Vx-1000C-A99 SUNON fan
Brand: SUNON
SKU: 918460474859
Availability: InStock
Rating: 5 (4 reviews)

$2.86

SKU: 918460474859 Brand: SUNON

Description
Reviews (0)

Description

The SUNON MF60151VX-1000C-A99 is a high-performance DC axial fan engineered with proprietary MagLev technology to deliver superior thermal regulation in compact industrial enclosures. This unit features the Vapo bearing system, which utilizes magnetic levitation to eliminate physical contact between the shaft and bearing, significantly reducing friction, noise, and vibration while extending service life beyond traditional ball bearing equivalents. Designed for high-static pressure environments, the fan operates at a rated voltage of 12 VDC with a power consumption of 2.28 W, achieving a rotational speed of 5400 RPM. The impeller and frame are constructed from reinforced thermoplastic PBT, meeting UL94V-0 flammability standards for safety in critical infrastructure. Original Engineering protocols ensure precise Technical Compatibility with sensitive electronic assemblies, minimizing electromagnetic interference and ensuring consistent performance curves.

Brand: SUNON
Model Number: MF60151VX-1000C-A99
Type: DC Axial Fan
Motor Technology: MagLev (Magnetic Levitation)
Bearing System: Vapo Bearing
Rated Voltage: 12 VDC
Operating Voltage Range: 4.5 to 13.8 VDC
Rated Current: 0.19 A
Power Consumption: 2.28 W
Rated Speed: 5400 RPM ± 15%
Airflow: 30.4 CFM (0.86 m³/min)
Static Pressure: 0.24 Inch-H2O
Acoustic Noise: 36.0 dB(A)
Dimensions: 60 x 60 x 15 mm
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Weight: 43.0 g
Wire Gauge: 26 AWG (UL1007)
Insulation Resistance: 10M Ohms at 500 VDC
Dielectric Strength: 500 VAC for 1 Minute
Safety Certifications: UL, CUR, TUV

Application Scenario:
This high-velocity cooling solution is specifically engineered for high-density telecommunications server racks and medical diagnostic imaging equipment where component density restricts airflow paths. The high static pressure capability of 0.24 Inch-H2O allows the fan to force air effectively through tightly packed heatsinks and restricted ducts, preventing thermal throttling in continuous-duty processors. The MagLev design ensures reliability in remote automation controllers where maintenance access is limited. Current Lead Time information and bulk procurement data are available for supply chain planning.

MF60151Vx-1000C-A99 SUNON fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
