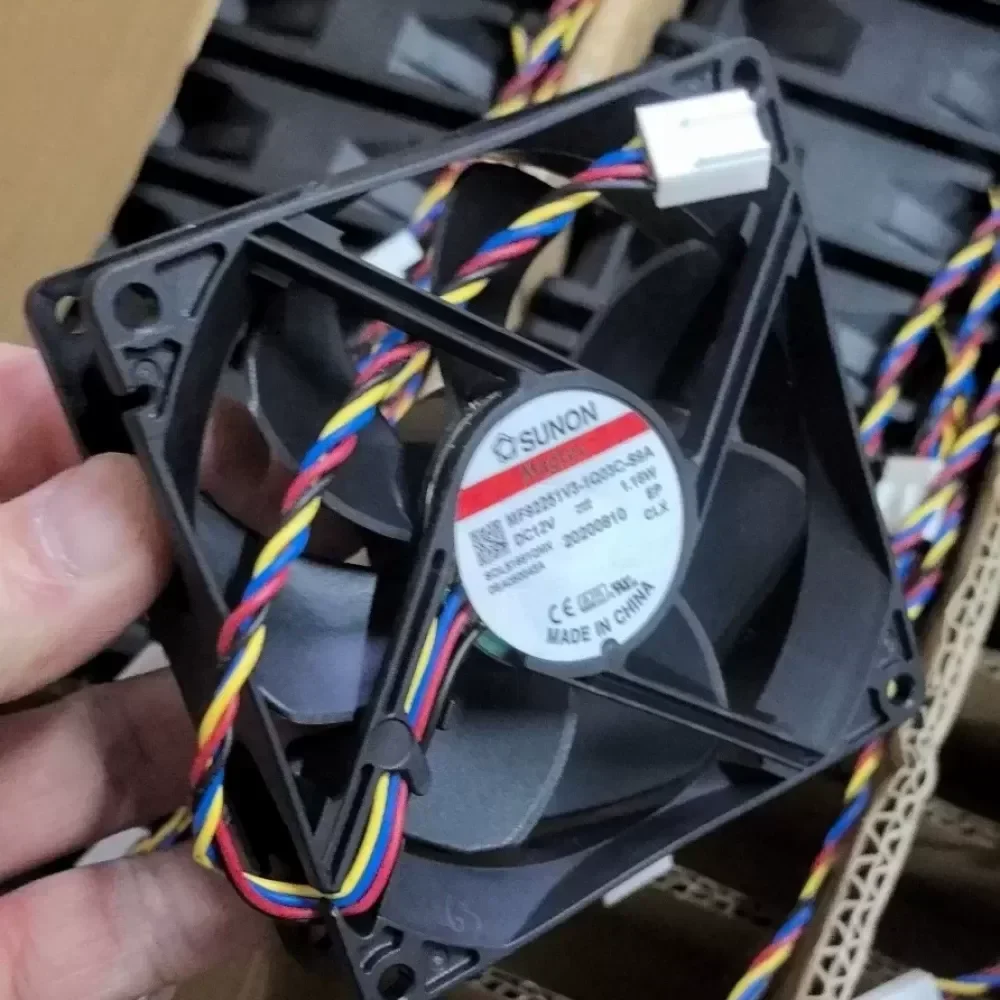

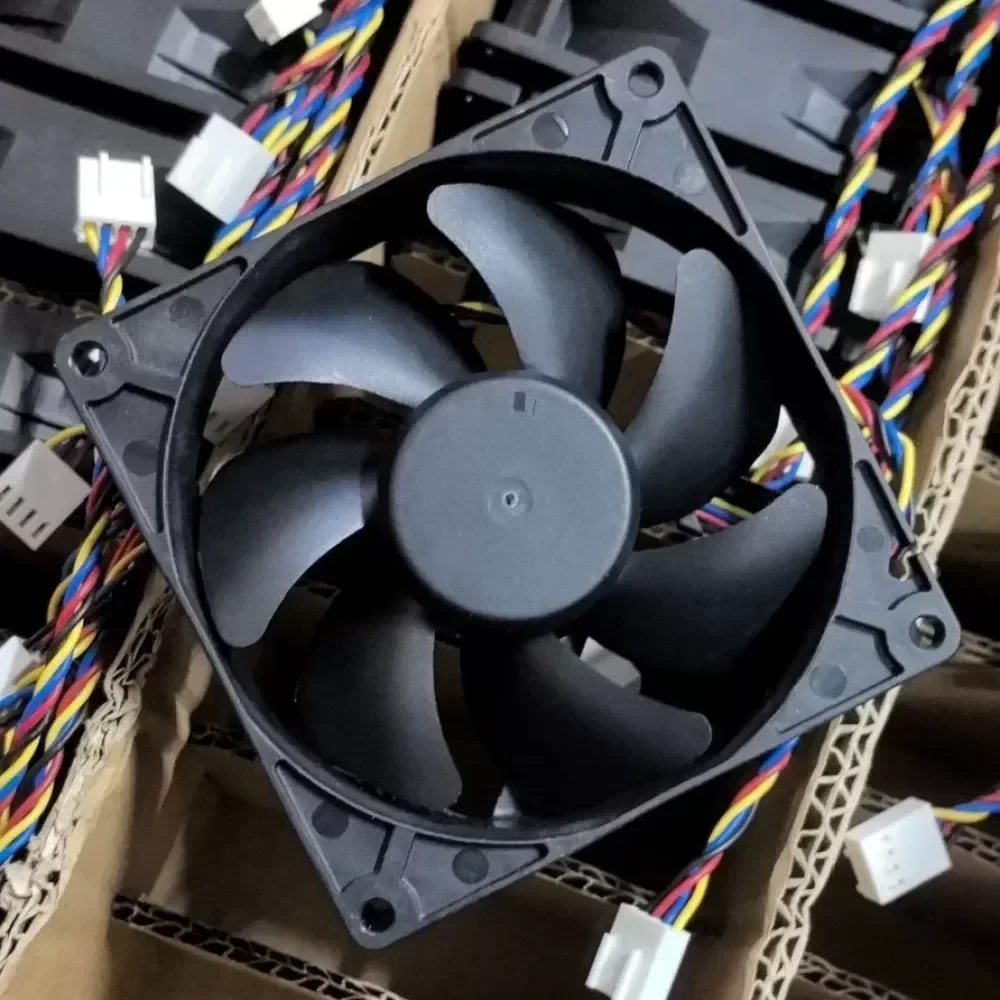

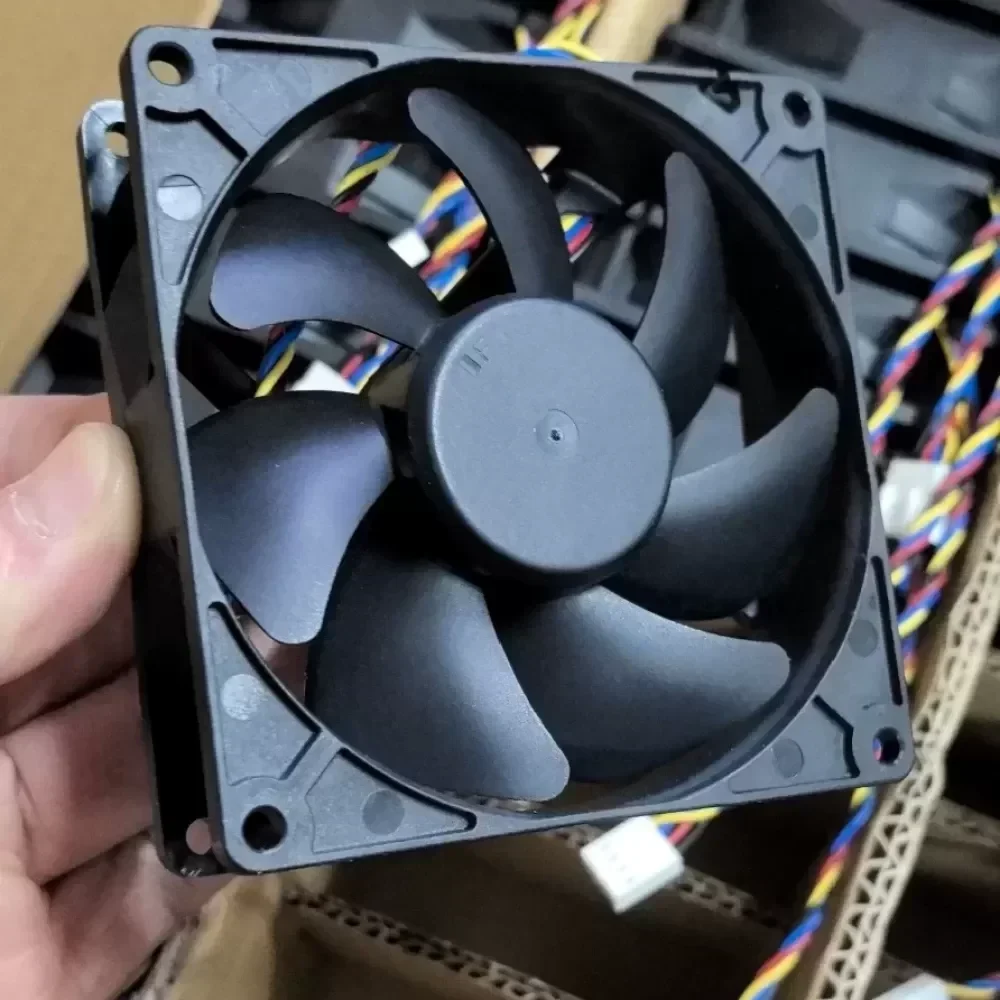

MF92251V3-1Q03C-S9A Sunon 9225 fan

Name: MF92251V3-1Q03C-S9A Sunon 9225 fan
Brand: SUNON
SKU: 903952223406
Availability: InStock
Rating: 5 (4 reviews)

$2.29

SKU: 903952223406 Brand: SUNON

Description
Reviews (0)

Description

The Sunon MF92251V3-1Q03C-S9A is a precision-engineered DC axial fan utilizing proprietary Magnetic Levitation (MagLev) technology to eliminate friction and vibration. Designed for applications requiring acoustic silence without compromising thermal efficiency, this unit features a 4-wire PWM interface for dynamic speed regulation. The Vapo bearing system ensures extended operational lifecycle and stability, making it a superior choice for continuous-duty electronics.

TECHNICAL SPECIFICATIONS
Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
Model Number: MF92251V3-1Q03C-S9A
Component Type: DC Axial Fan
Series: MagLev MF Series
Frame Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 4.5V to 13.8V DC
Rated Current: 0.08 A (Typical)
Power Consumption: 0.96 W
Rated Speed: 2400 RPM ± 15%
Max Airflow: 39.5 CFM (1.12 m³/min)
Static Pressure: 0.10 Inch-H2O
Acoustic Noise: 28.0 dBA
Bearing System: Vapo Bearing (MagLev)
Control Interface: 4-Wire PWM (Pulse Width Modulation)
Signal Output: 3rd Wire Tachometer / 4th Wire PWM
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Weight: 92.0 g
Safety Certifications: UL, CUR, TUV, CE

INDUSTRIAL APPLICATION
This specific configuration is engineered for noise-sensitive electronic enclosures, such as medical diagnostic equipment, studio-grade audio servers, and precision laboratory instrumentation. The MagLev technology significantly reduces rotor tilt and vibration, ensuring Technical Compatibility with sensitive optical or measuring devices where micro-vibrations can cause data errors. The PWM functionality allows the host system to modulate cooling based on real-time thermal loads, optimizing energy consumption and acoustic signature.

LOGISTICS AND COMPLIANCE
This unit represents Original Engineering from Sunon, ensuring adherence to strict quality control standards. For maintenance planning and lifecycle management, verify current Lead Time availability to prevent downtime in critical cooling subsystems.

MF92251V3-1Q03C-S9A Sunon 9225 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
