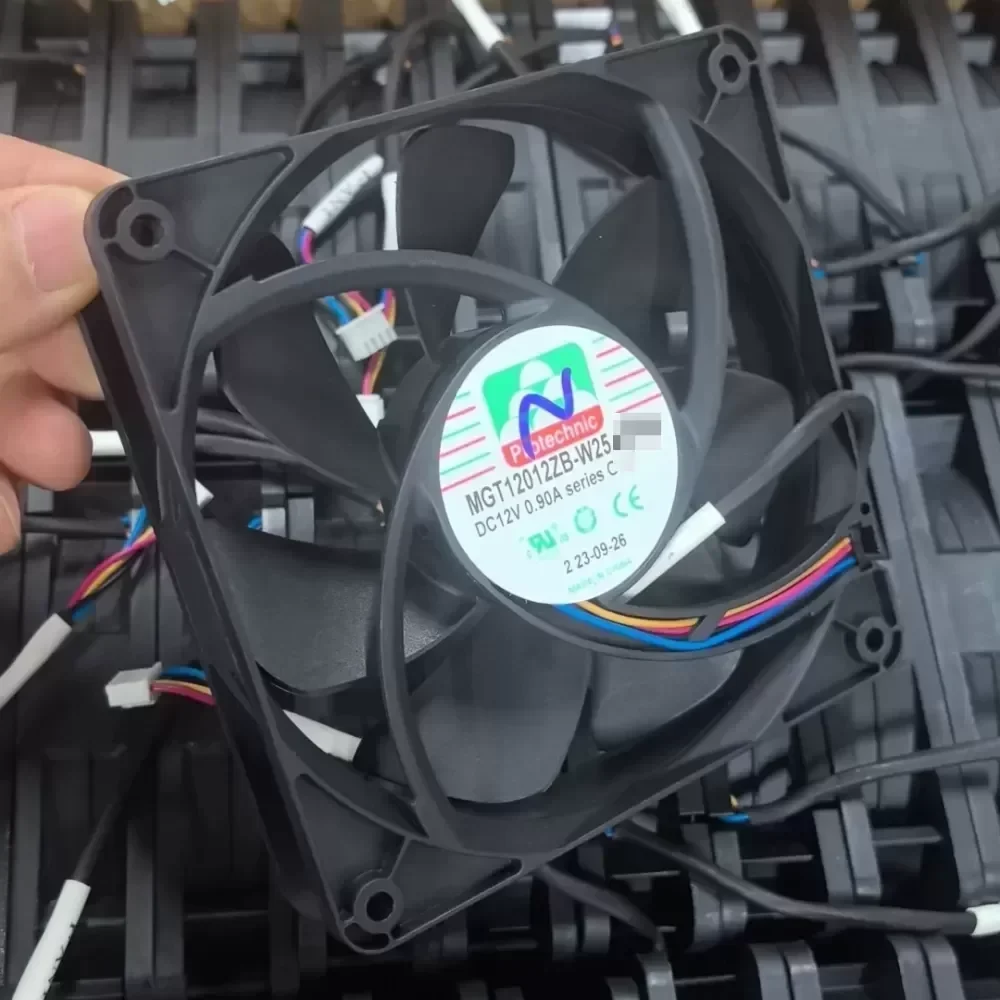

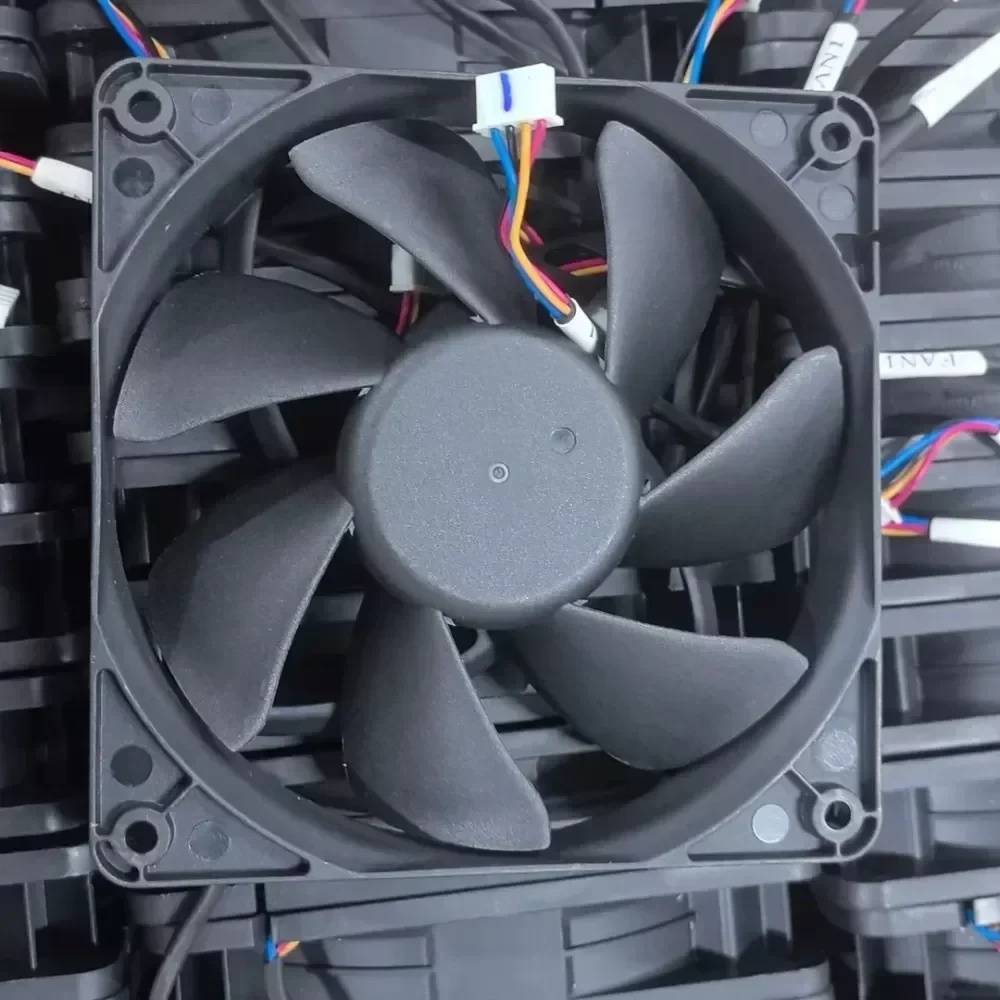

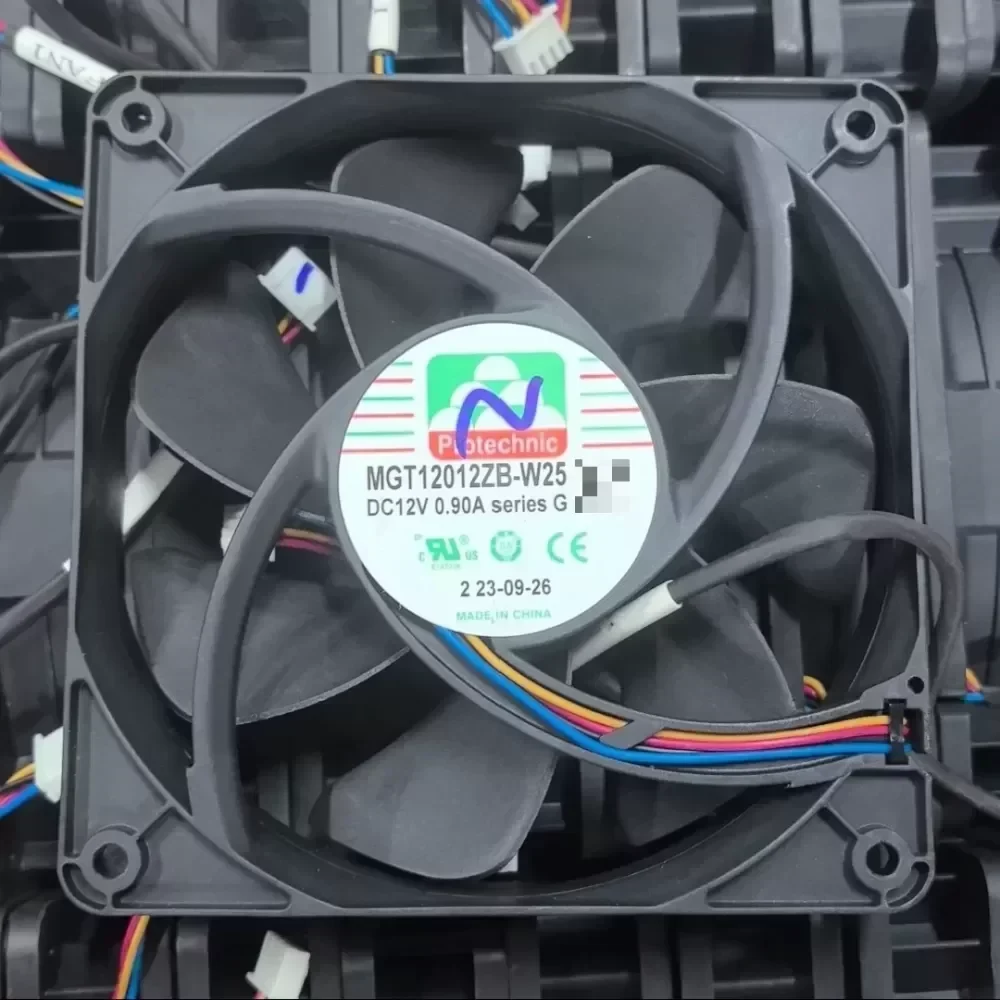

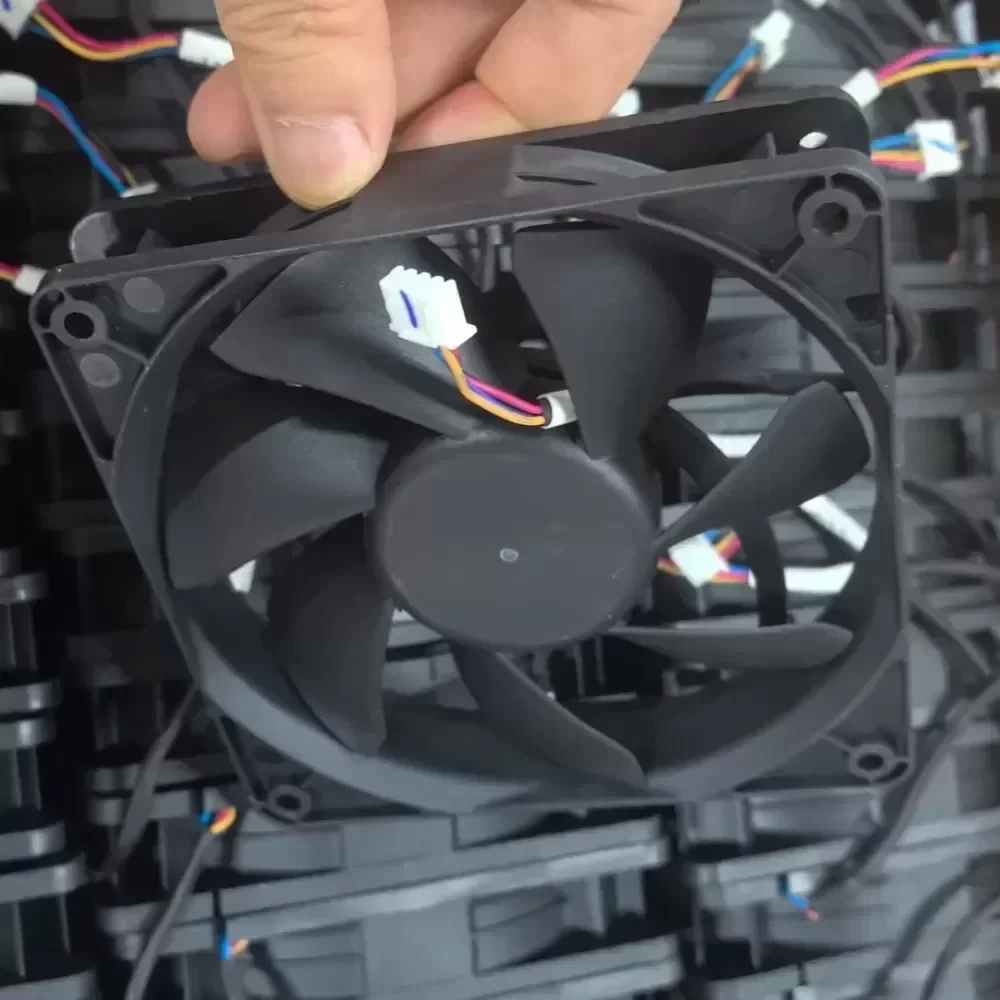

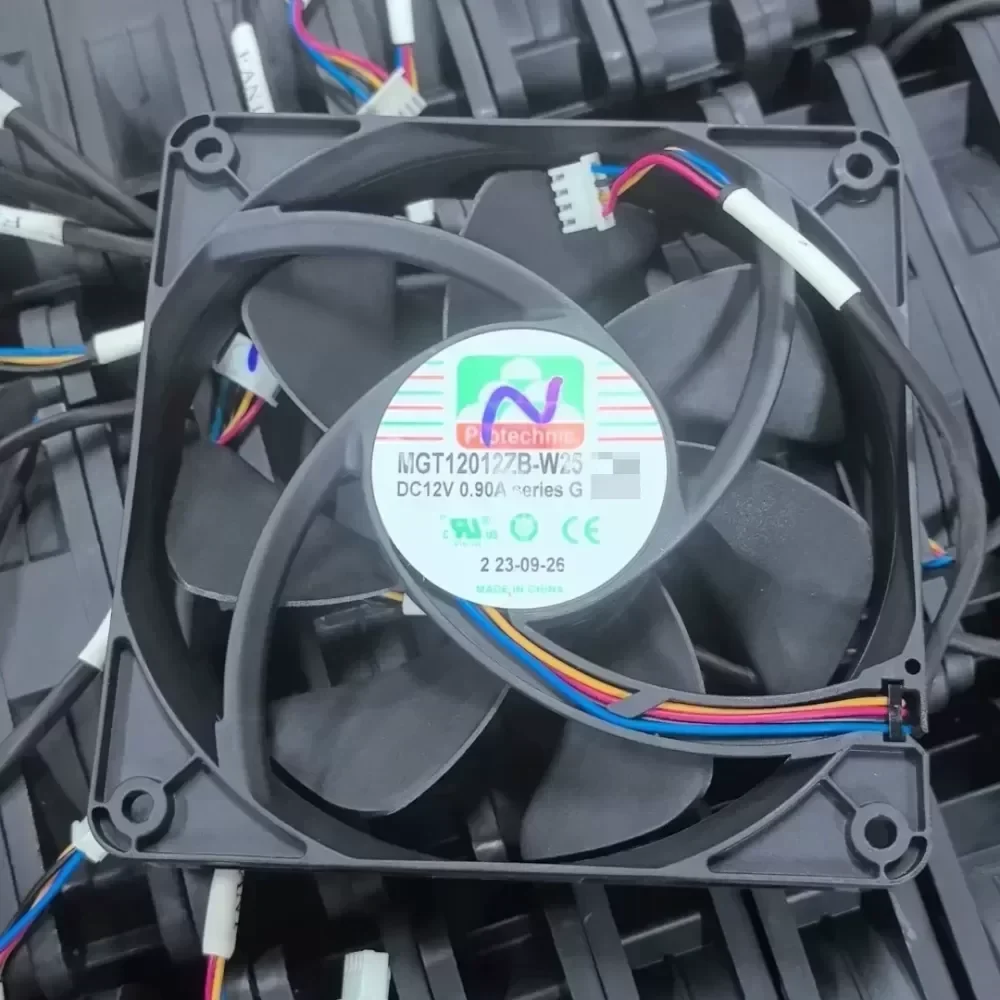

MGT12012ZB-W25 Protechnic fan

Name: MGT12012ZB-W25 Protechnic fan
Brand: Protechnic
SKU: 923754775798
Availability: InStock
Rating: 5 (4 reviews)

$3.29

SKU: 923754775798 Brand: Protechnic

Description
Reviews (0)

Description

Protechnic MGT12012ZB-W25 High-Performance Axial Fan. This industrial-grade cooling solution is engineered for high-density thermal management and precision thermal regulation. Utilizing a 4-wire PWM interface, the unit provides dynamic speed modulation to maintain optimal airflow-to-noise ratios in variable load environments. The dual ball bearing architecture ensures extended service life and high reliability in continuous 24/7 operation cycles. Original Engineering standards guarantee Technical Compatibility with high-end server chassis and industrial control systems.

Technical Specifications:
Manufacturer: Protechnic Electric
Model Number: MGT12012ZB-W25
Frame Size: 120 x 120 x 25 mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Rated Current: 0.90A
Power Consumption: 10.8W
Bearing Type: Dual Ball Bearing
Interface: 4-Wire PWM (Pulse Width Modulation)
Lead Wire Configuration: Red (VCC), Black (GND), Yellow (Tachometer/FG), Blue (PWM Control)
Material Frame: Thermoplastic PBT (UL 94V-0)
Material Impeller: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Insulation Resistance: 10M Ω at 500V DC
Dielectric Strength: 5mA Max at 500V AC for 1 minute
Safety Certifications: UL, TUV, CE, RoHS Compliant
Weight: 160g

Application Scenario:
The Protechnic MGT12012ZB-W25 is specifically designed for high-heat dissipation requirements in server racks, industrial workstations, and telecommunications enclosures. Its 0.90A high-torque motor is optimized to overcome significant static pressure in restricted airflow environments, such as dense heatsink arrays or high-impedance dust-filtered intakes. This model is the ideal replacement part for maintaining system integrity where Lead Time and reliability are critical factors for preventing hardware throttling or thermal failure.

MGT12012ZB-W25 Protechnic fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
