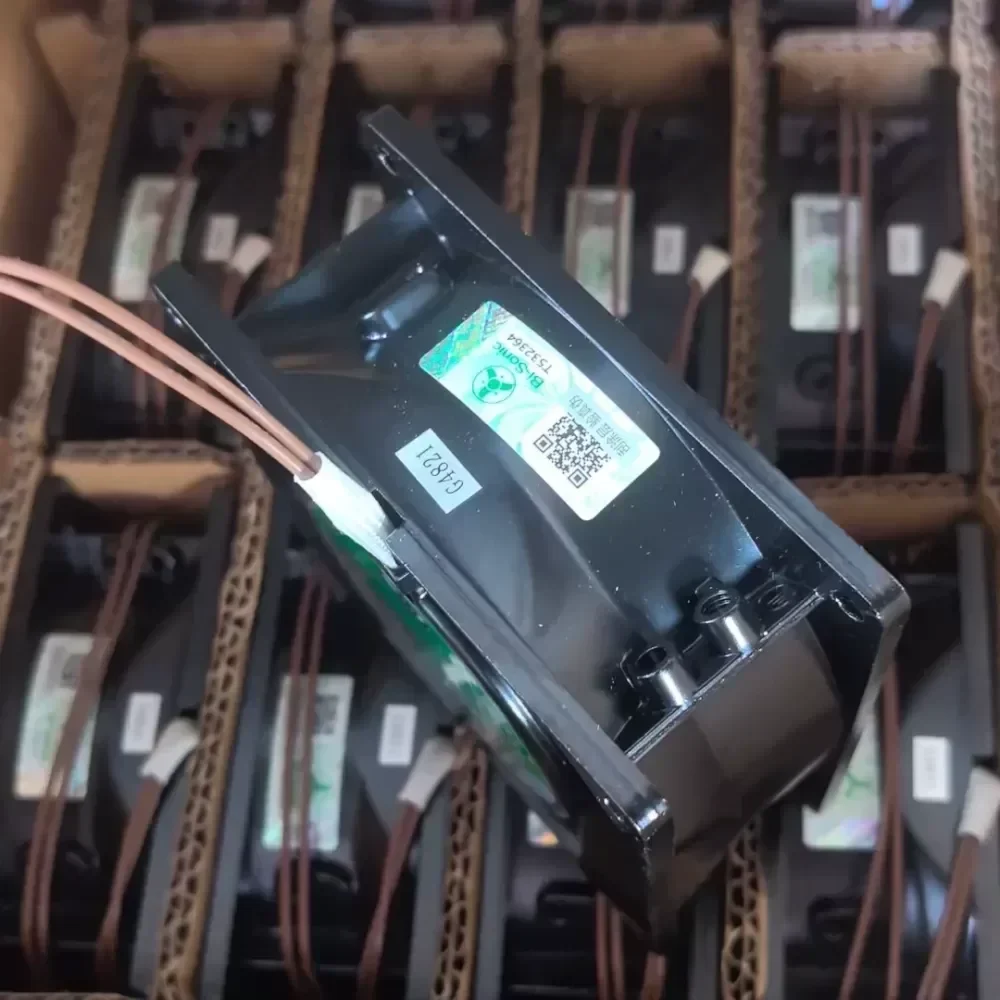

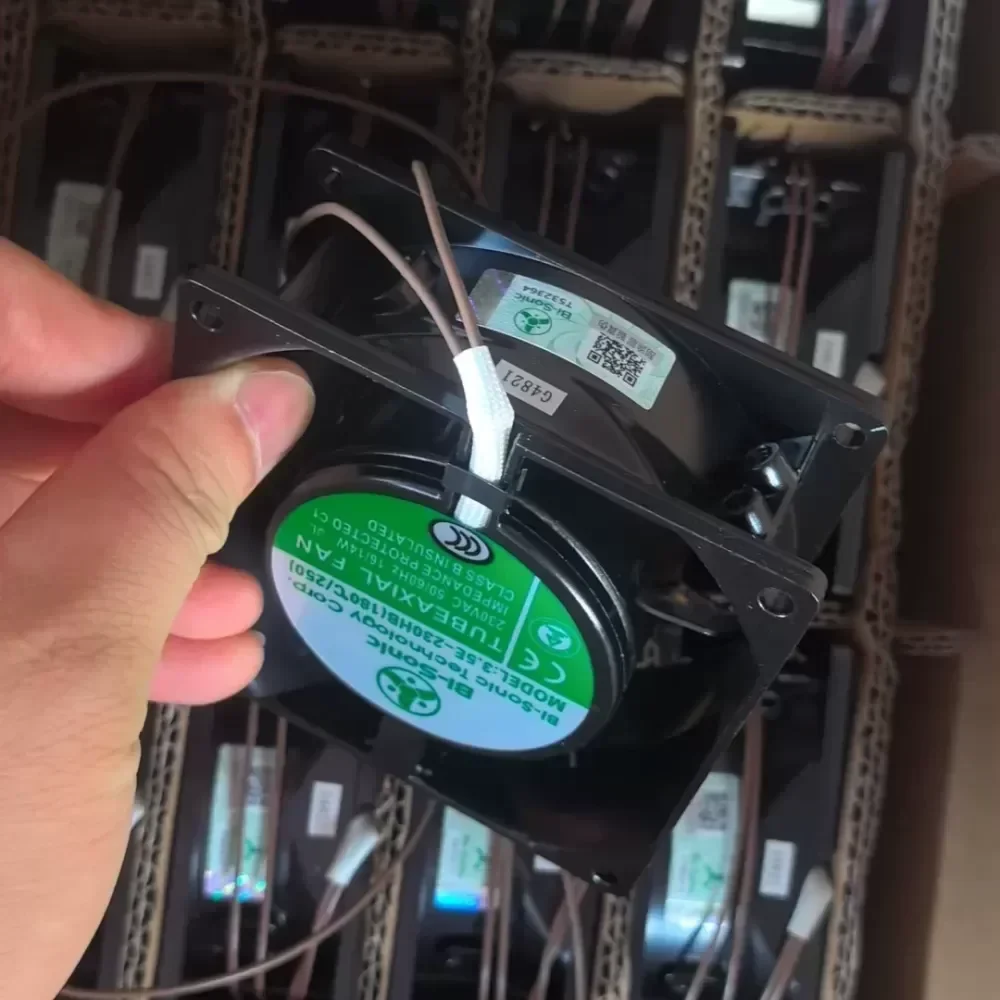

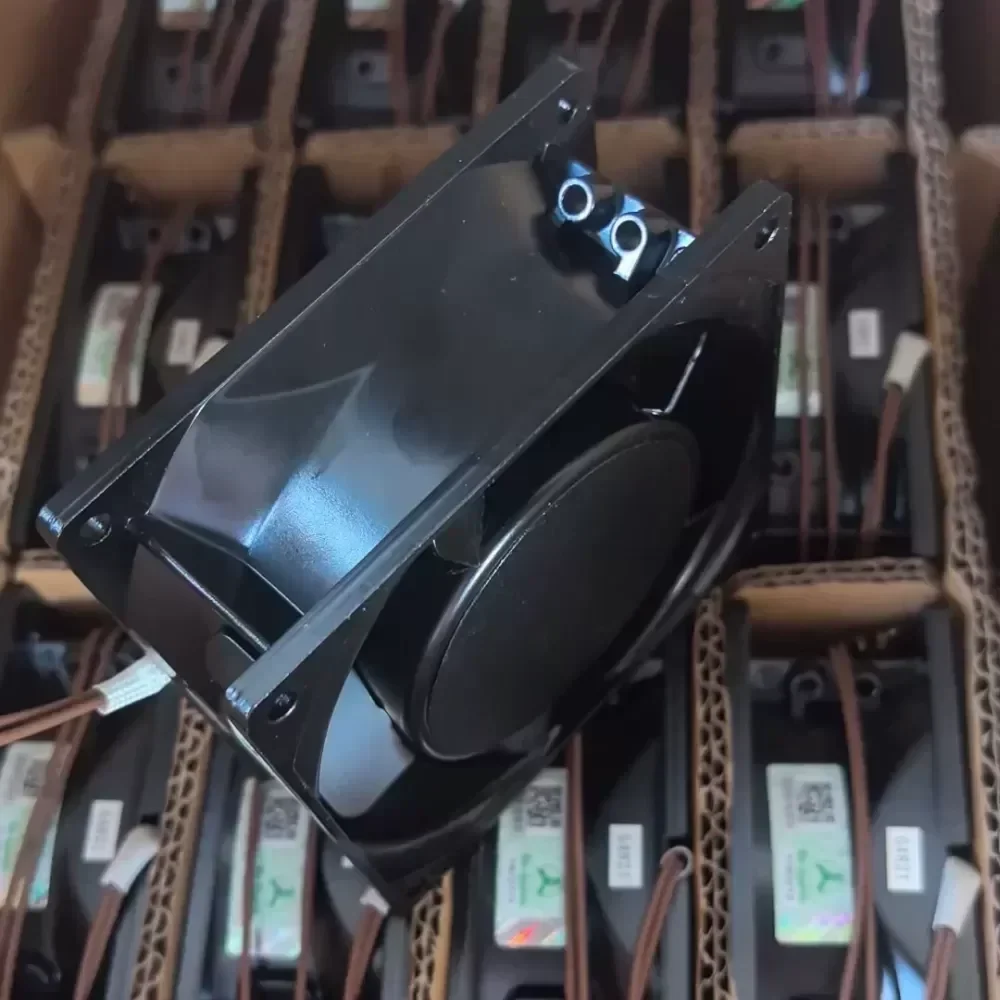

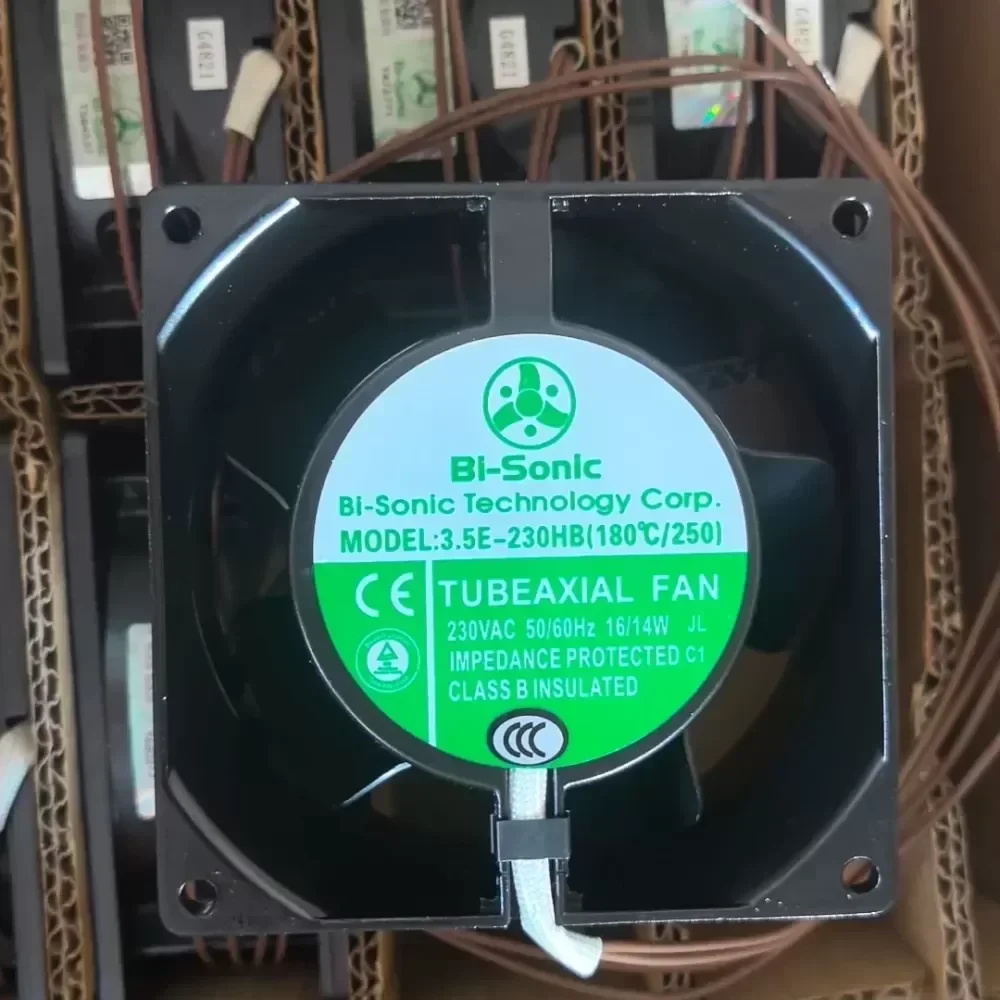

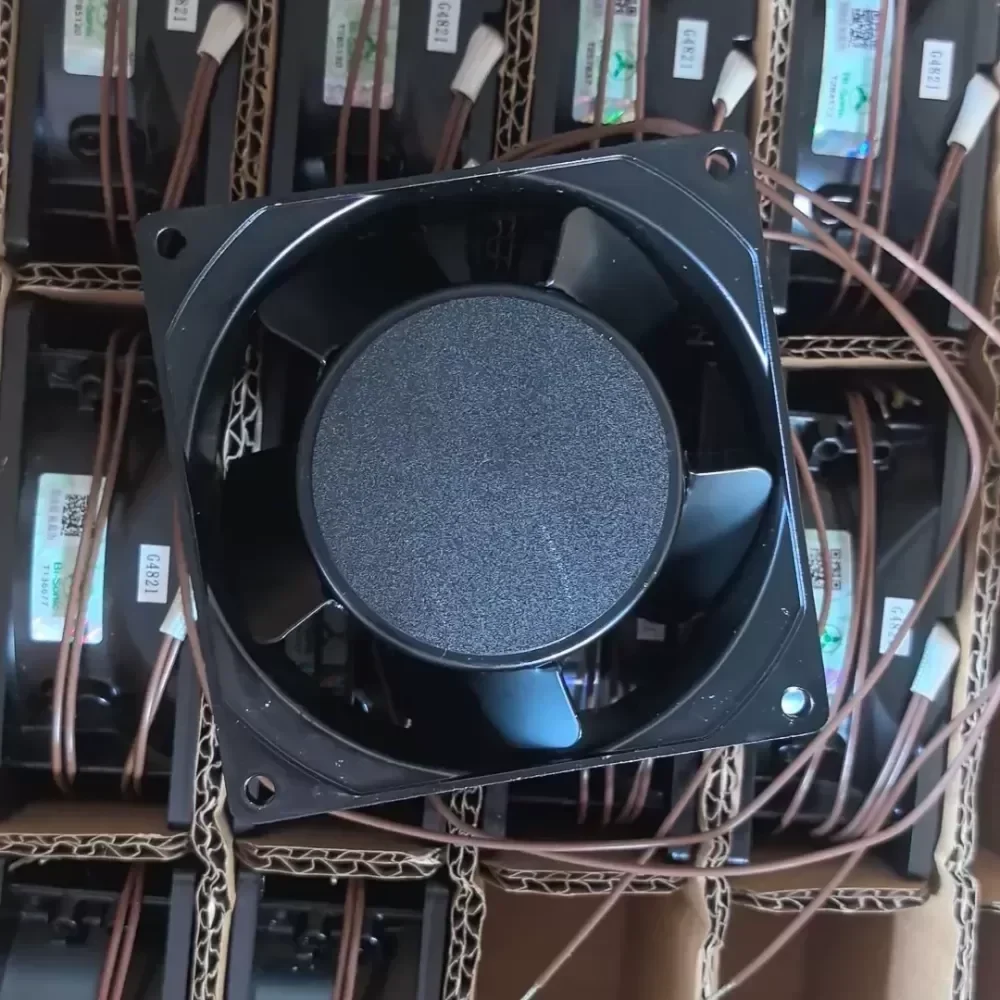

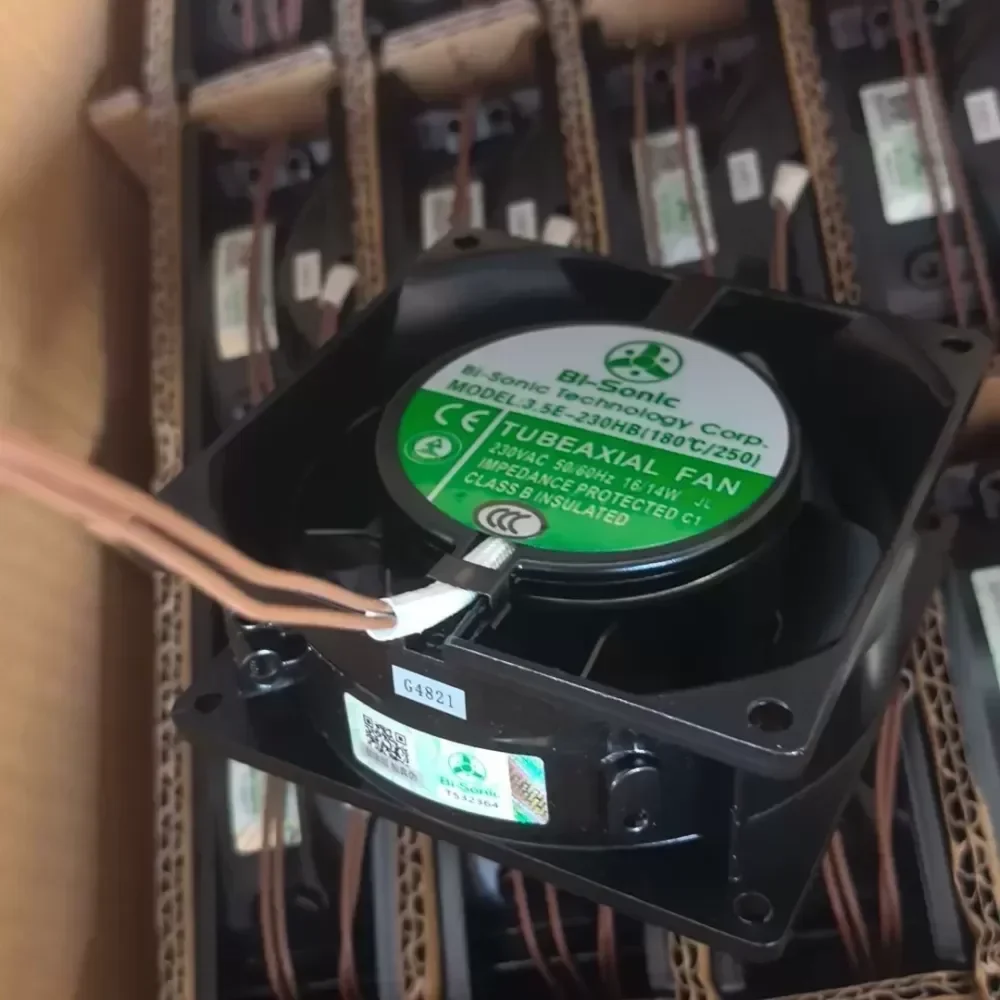

The Bi-Sonic 3.5E-230HB is a high-performance AC axial fan engineered for extreme thermal management in industrial enclosures. Featuring Original Engineering from Taiwan Bi-Sonic, this unit utilizes an all-metal construction to ensure structural integrity in high-temperature environments where standard composite materials fail.
Technical Specifications:
Manufacturer: Bi-Sonic Technology Corp.
Model: 3.5E-230HB
Frame Dimensions: 92 x 92 x 38 mm
Input Voltage: 230 VAC
Frequency: 50/60 Hz
Input Power: 16/14 W
Rated Current: 0.10/0.09 A
Rotational Speed: 2700/3000 RPM
Airflow Capacity: 35/42 CFM
Static Pressure: 0.18/0.22 Inch-H2O
Noise Emission: 35/38 dB(A)
Bearing Type: Precision Dual Ball Bearing
Housing Material: Die-cast Aluminum Alloy
Impeller Material: Metal (Steel)
Insulation Class: Class B (Rated for 130°C)
Dielectric Strength: 1500 VAC for 1 minute
Operating Temperature Range: -20°C to +80°C
Technical Compatibility: Standard 92mm mounting patterns for industrial cabinets
Lead Time: Optimized for global B2B supply chains
Industrial Application: This fan is specifically designed for heat dissipation in CNC machine tool cabinets and high-density server racks. The all-metal blade design prevents deformation under continuous high-heat loads, ensuring consistent airflow and preventing critical component failure in 24/7 manufacturing cycles.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
