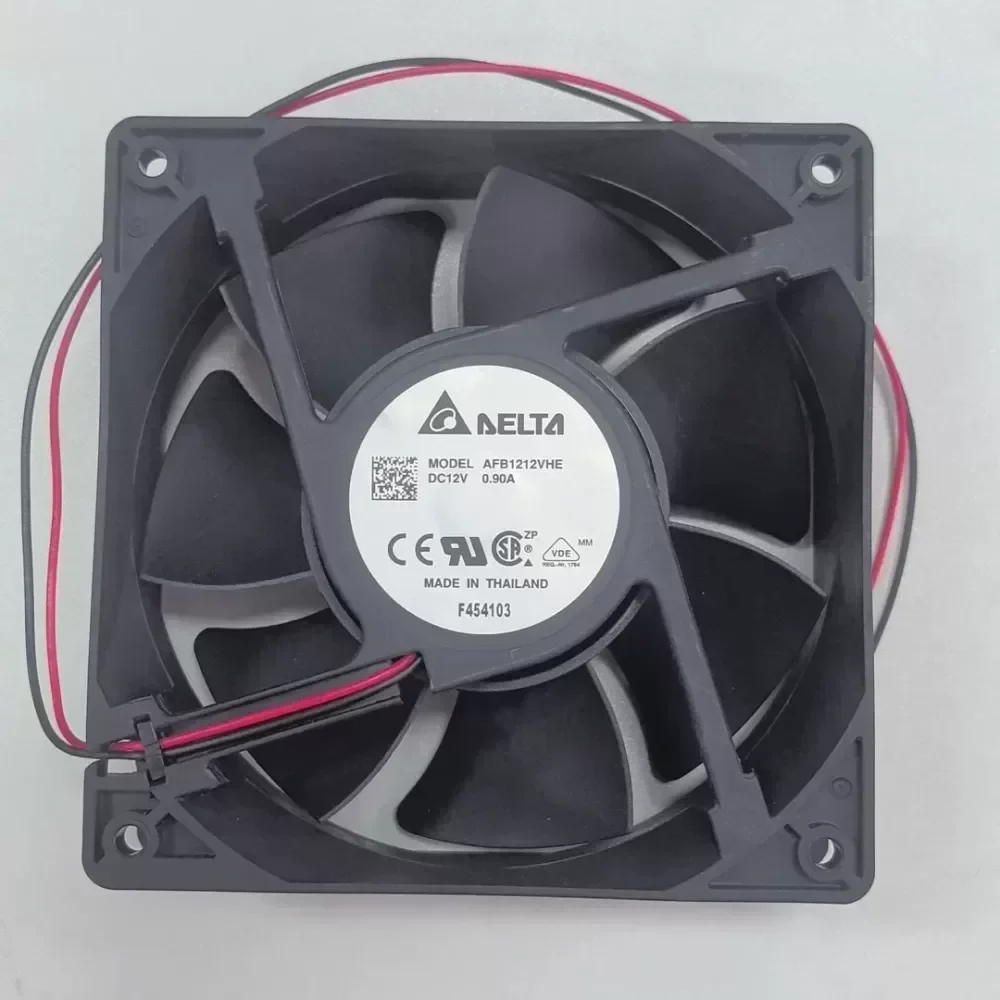

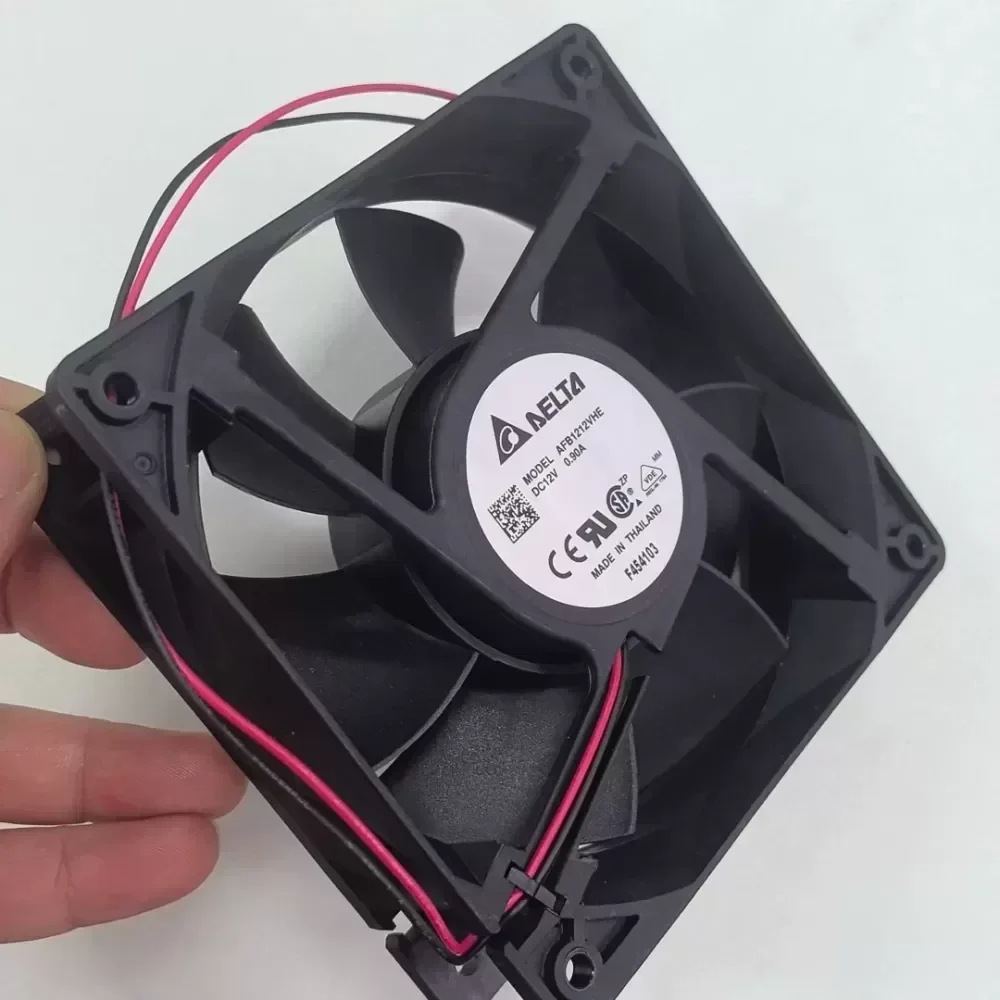

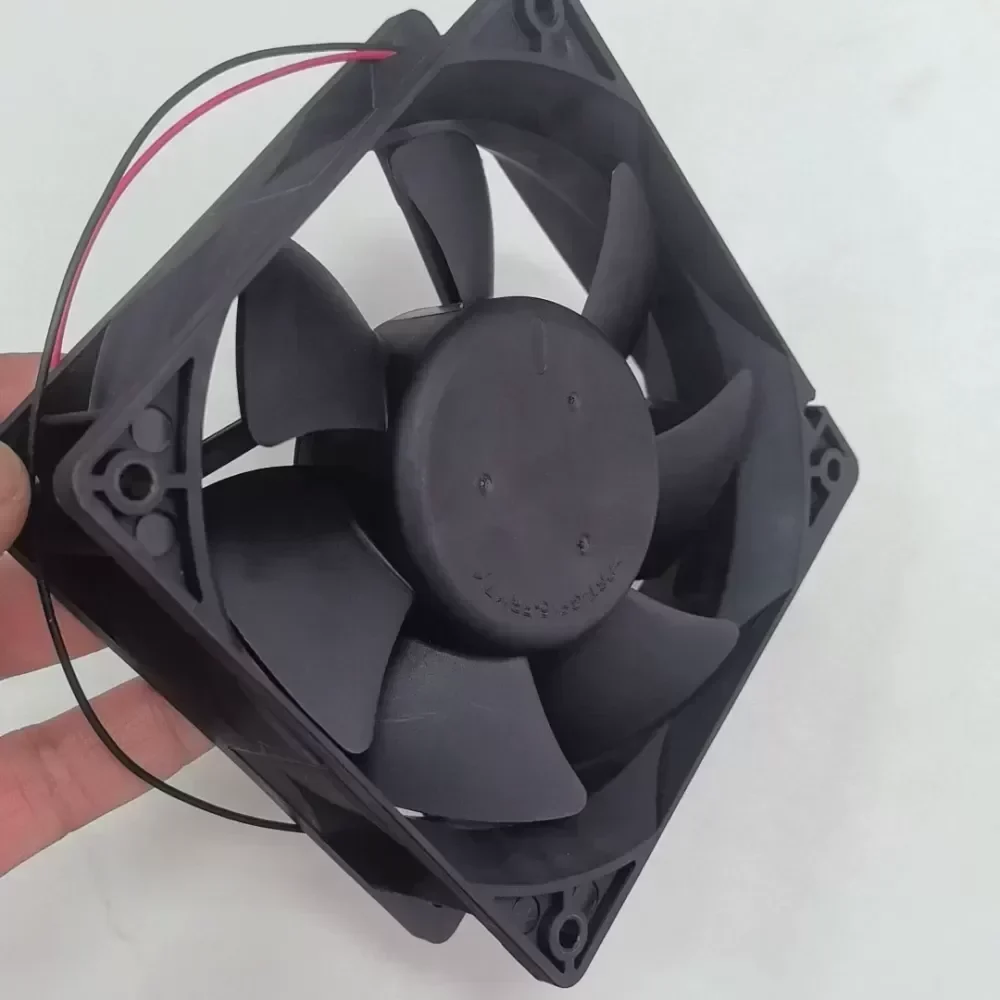

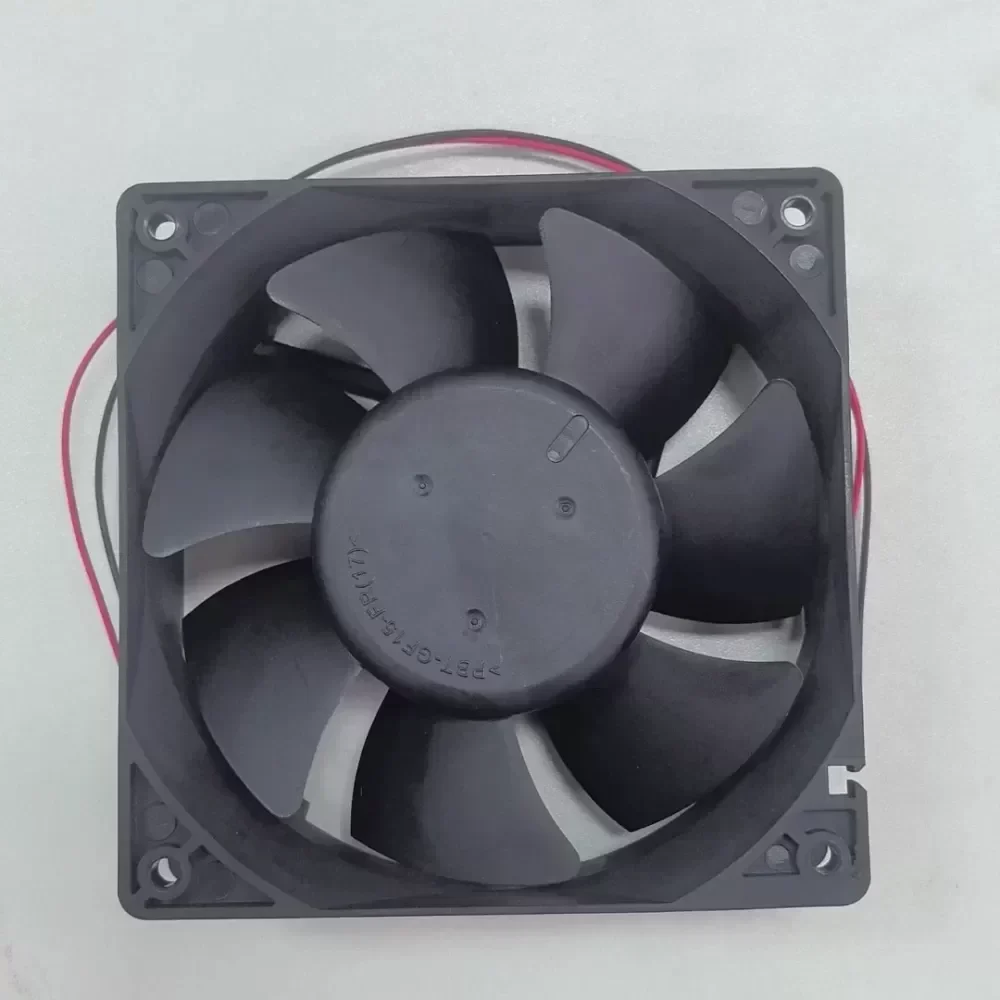

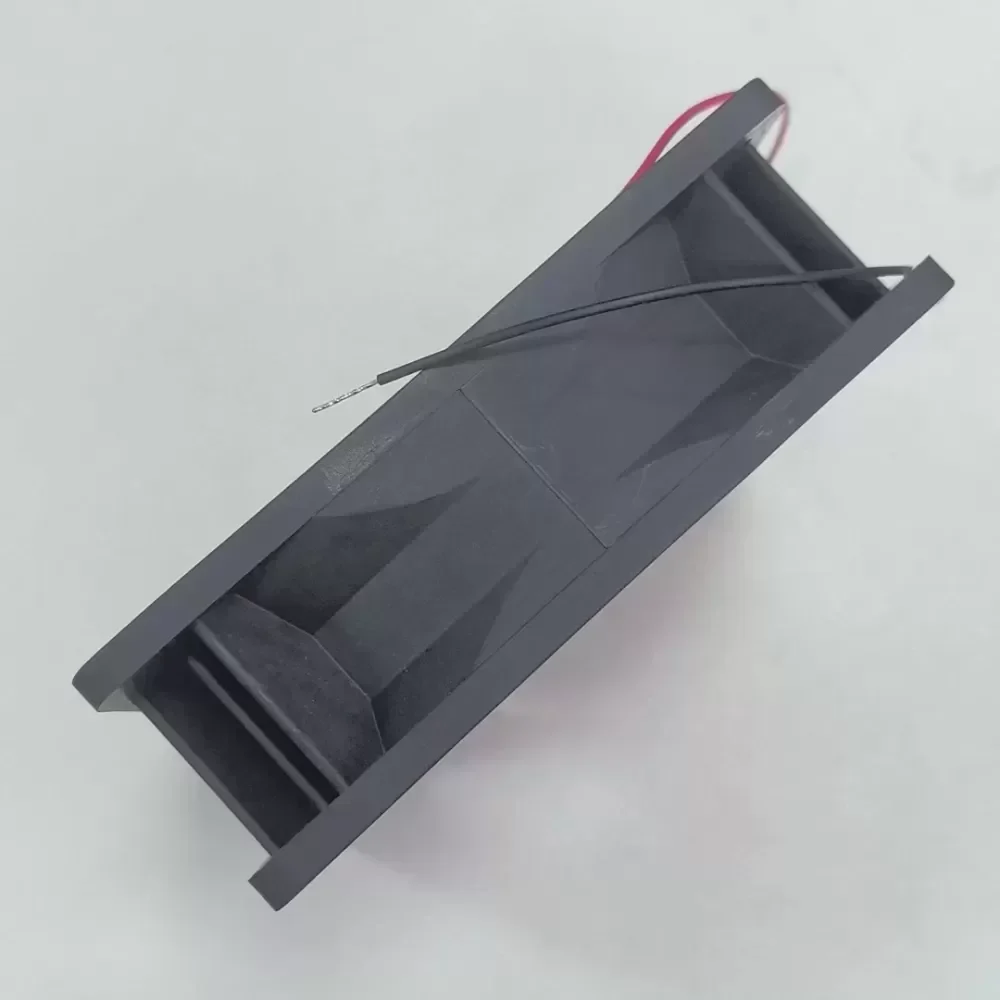

The Delta AFB1212VHE is a high-density axial cooling solution designed for critical thermal management in industrial electronics. Utilizing Original Engineering standards, this 120mm x 38mm fan provides the high static pressure performance required for dense system architectures.
Technical Specifications:
Manufacturer: Delta Electronics
Model: AFB1212VHE
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0 to 13.8 VDC
Rated Current: 0.90A
Input Power: 10.80W
Rated Speed: 3200 RPM
Maximum Air Flow: 3.680 m³/min
Maximum Air Flow CFM: 129.96 CFM
Maximum Static Pressure: 10.70 mmH2O
Maximum Static Pressure InH2O: 0.421 inH2O
Noise Level: 48.0 dB-A
Bearing Type: Dual Ball Bearing
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Weight: 256g
Origin: Thailand
Certifications: UL, CSA, VDE, CE
Industrial Application:
The AFB1212VHE is optimized for Technical Compatibility with high-availability systems including Uninterruptible Power Supplies (UPS), telecommunications racks, and industrial server enclosures. Its dual ball bearing construction ensures a maintenance-free lifecycle in 24/7 operating conditions. The 38mm depth provides the necessary torque and blade pitch to overcome high impedance caused by internal components and EMI filtering.
Procurement Data:
This product is sourced from surplus industrial inventory, allowing for competitive pricing on high-specification components. Please inquire regarding current Lead Time for volume orders.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
