New Delta fan AFC1212DE 12V 1.60

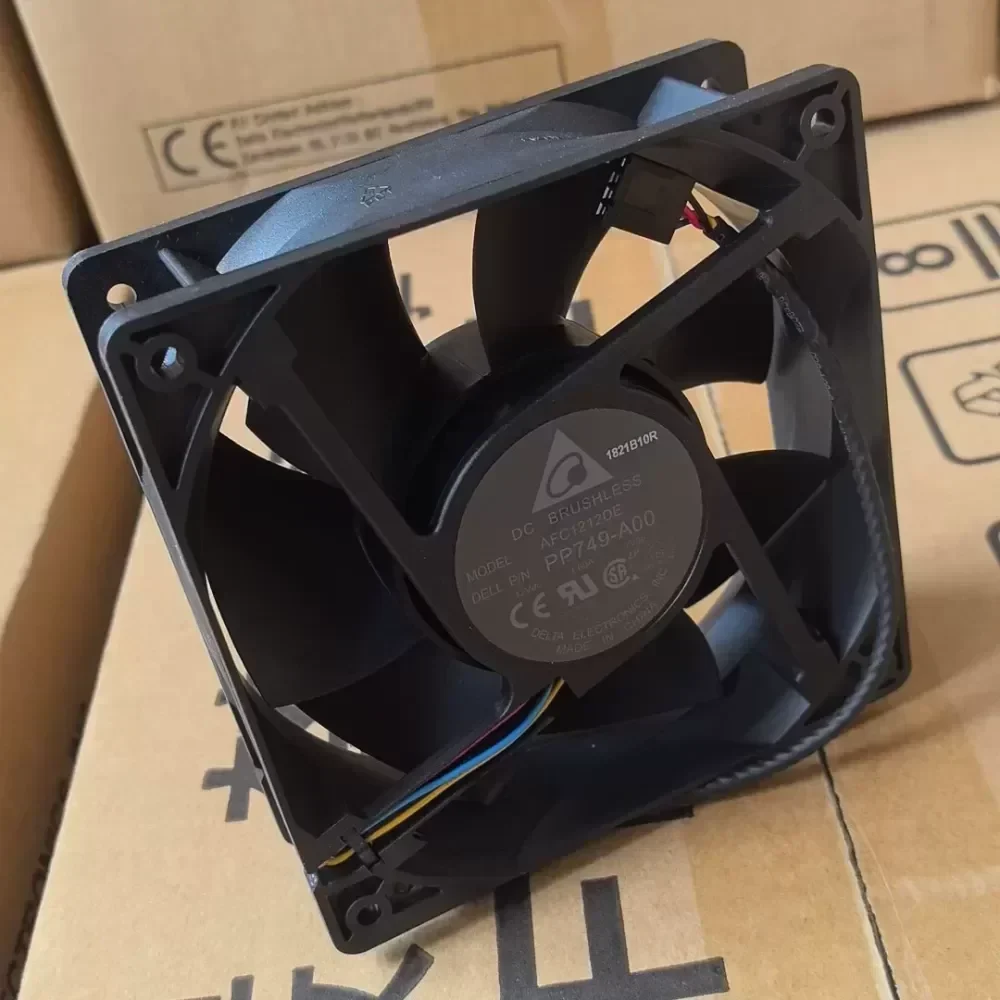

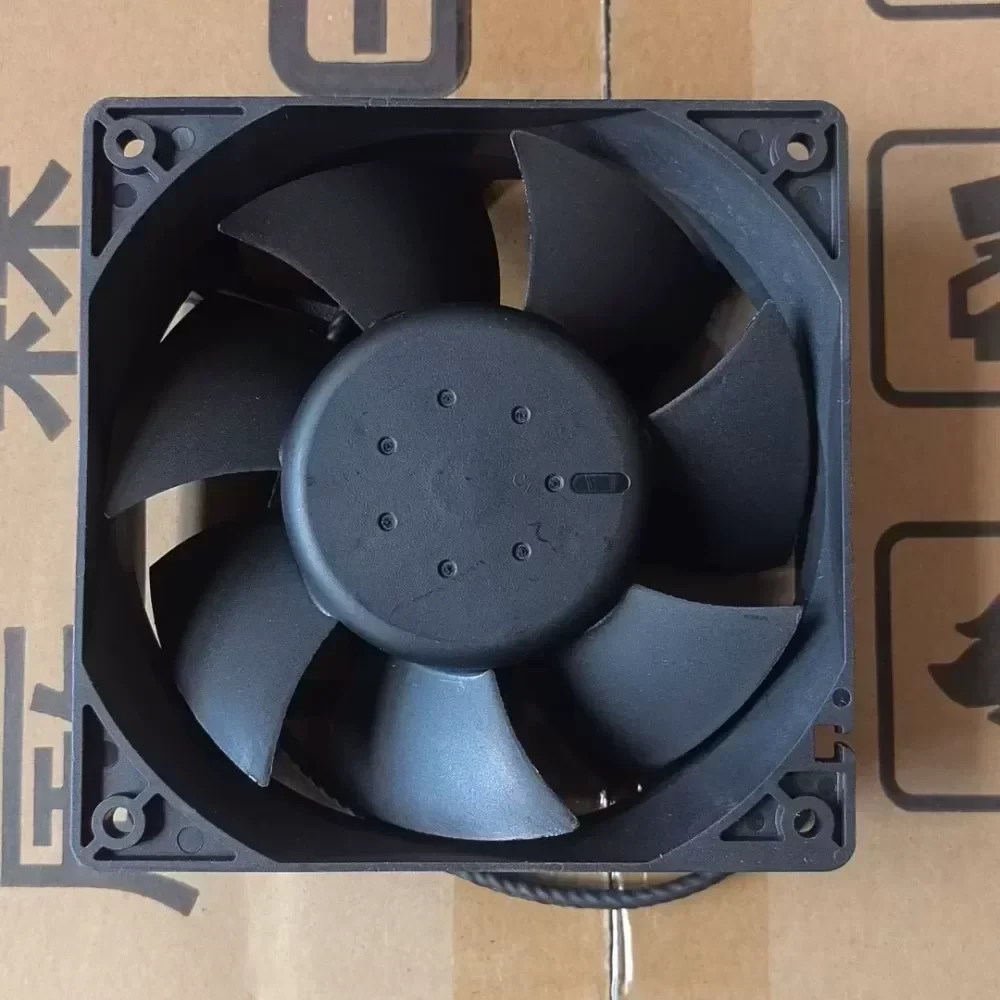

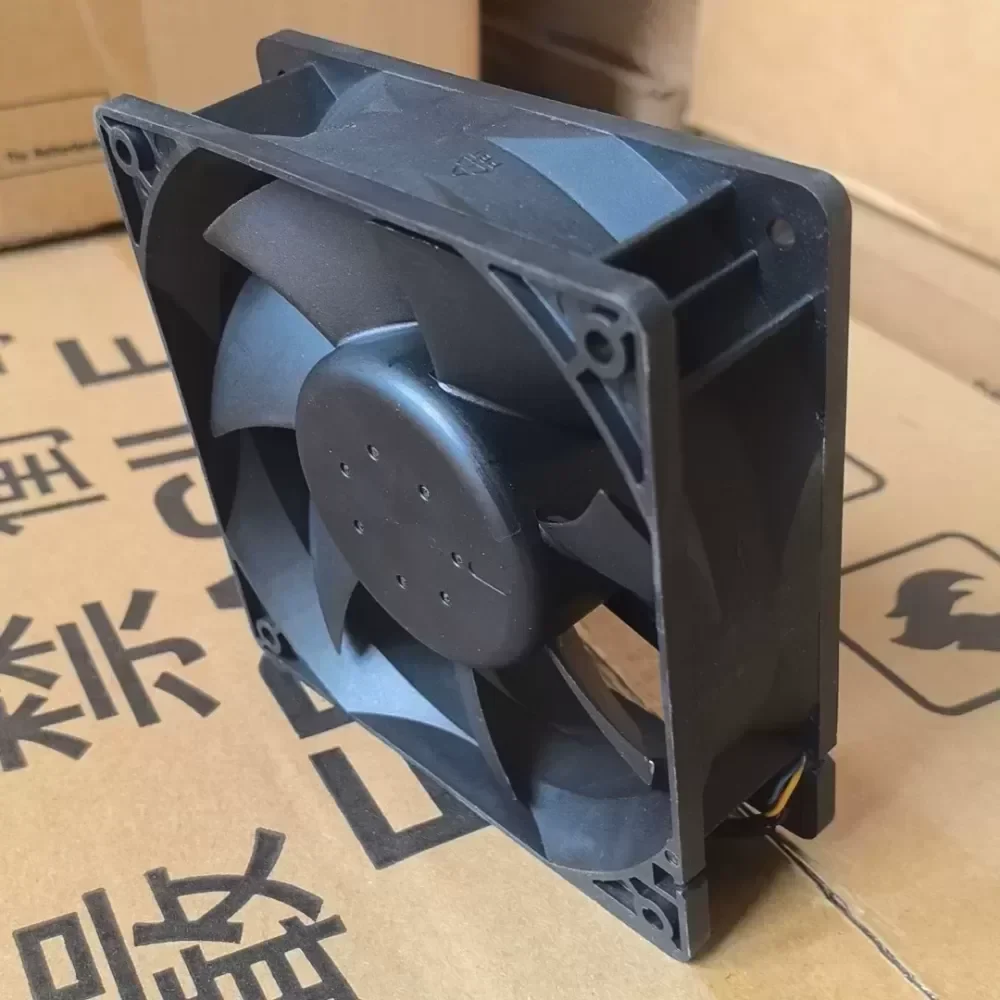

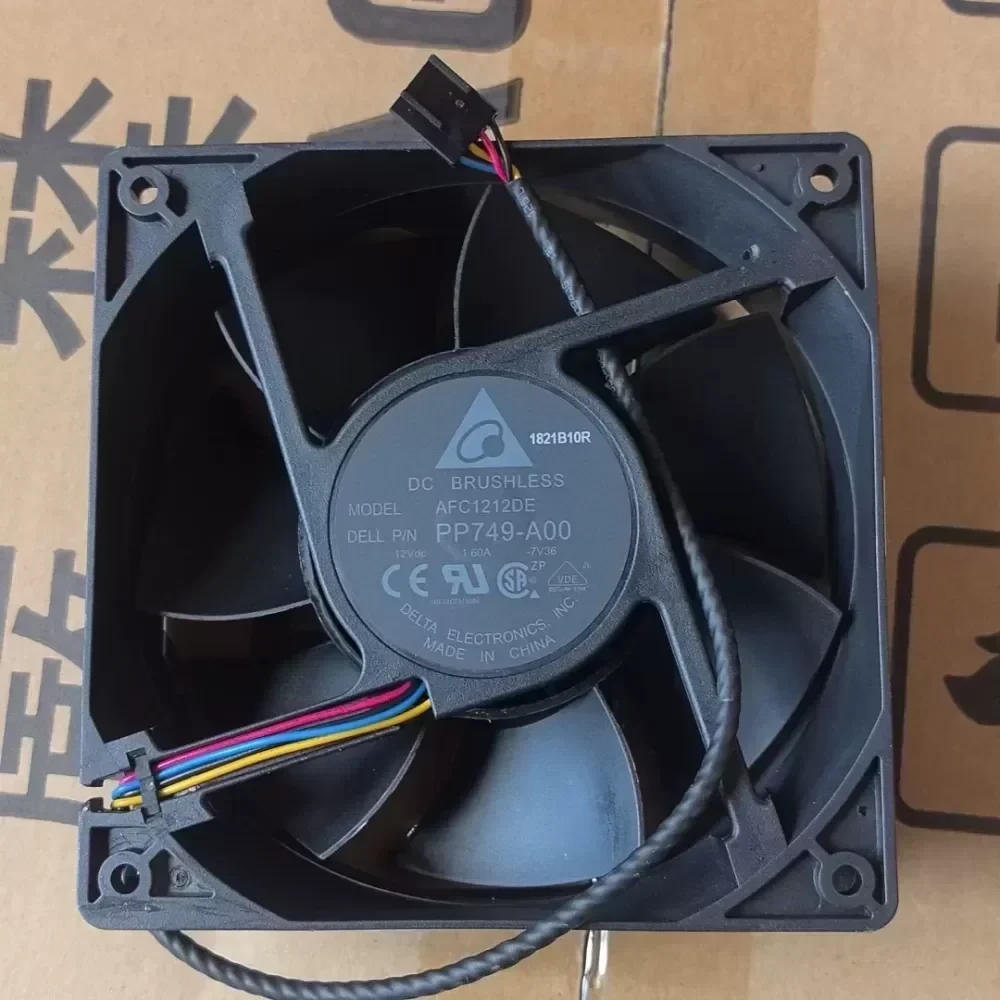

Name: New Delta fan AFC1212DE 12V 1.60
Brand: Delta
SKU: 900235852137
Availability: InStock
Rating: 5 (4 reviews)

$4.43

SKU: 900235852137 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics AFC1212DE is a high-performance industrial axial fan designed for mission-critical thermal management in high-density server environments and automation enclosures. This unit represents Original Engineering from Delta’s AFC series, specifically calibrated for high static pressure applications where airflow must be forced through restricted spaces such as dense heatsinks or filtration arrays. Featuring a robust 12038 form factor, this model utilizes a high-torque motor design to maintain consistent RPM under load, ensuring system stability during peak operational cycles. The integration of a 4-wire PWM interface allows for precise speed regulation and thermal logic integration.

TECHNICAL SPECIFICATIONS:
Manufacturer: Delta Electronics
Model Series: AFC (Axial Fan Cooling)
Model Number: AFC1212DE
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 VDC – 13.8 VDC
Rated Current: 1.60 A
Input Power: 19.20 W
Nominal Speed: 3900 RPM ±10%
Maximum Airflow: 148.34 CFM (4.20 m³/min)
Maximum Static Pressure: 15.04 mmH2O (0.592 inH2O)
Noise Level: 51.0 dB-A
Bearing System: Precision Dual Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C)
Termination: 4-Wire (PWM Speed Control + Tachometer)
Wire Gauge: AWG24
Housing Material: Glass Fiber Reinforced PBT (UL94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL94V-0)
Operating Temperature: -10°C to +60°C
Safety Certifications: UL, cUL, TUV, CE

INDUSTRIAL APPLICATION:
This 1.60A variant is specifically engineered for server chassis cooling (compatible with various Dell PowerEdge configurations) and industrial cabinet ventilation where standard fans fail to overcome system impedance. The high static pressure of 15.04 mmH2O makes it the ideal solution for forcing air through tightly packed drive bays or heavy-duty radiators. Technical Compatibility is assured for systems requiring 4-pin PWM logic for dynamic cooling curves. Contact us for current Lead Time and bulk procurement options for maintenance lifecycles.

New Delta fan AFC1212DE 12V 1.60

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
