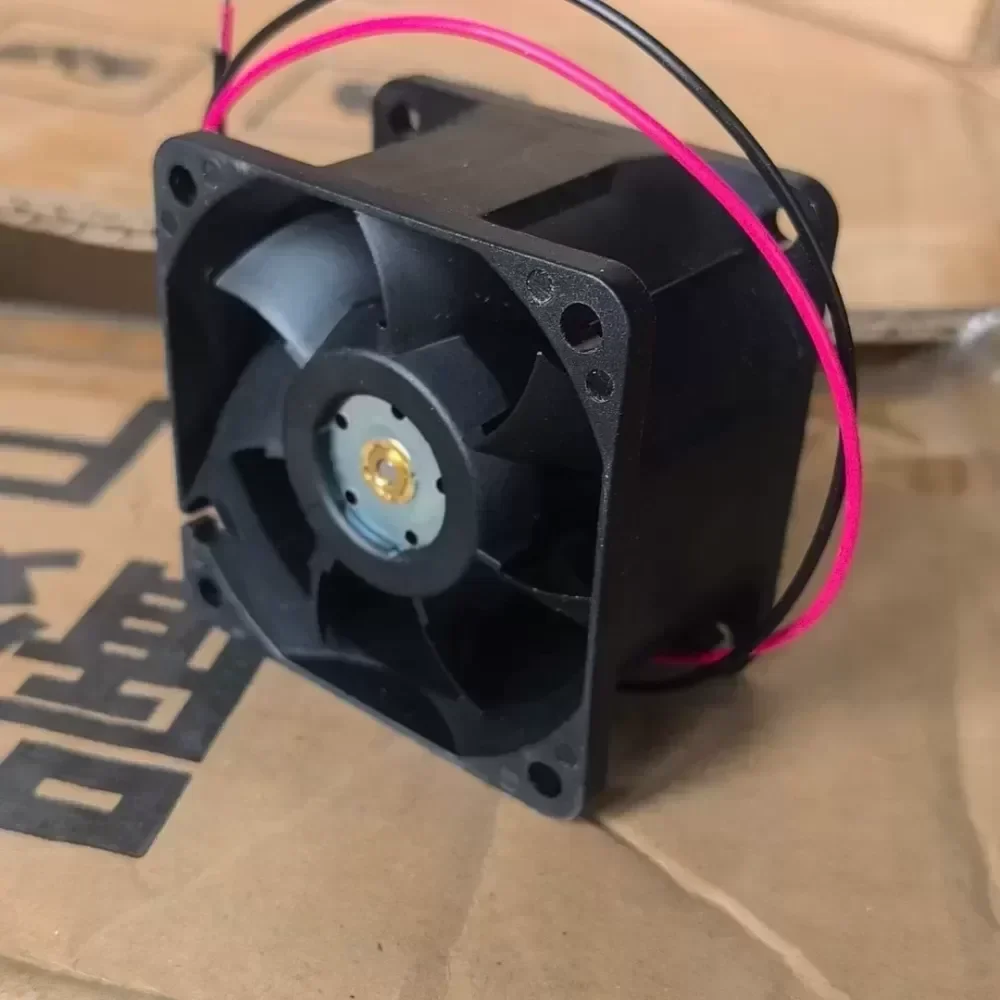

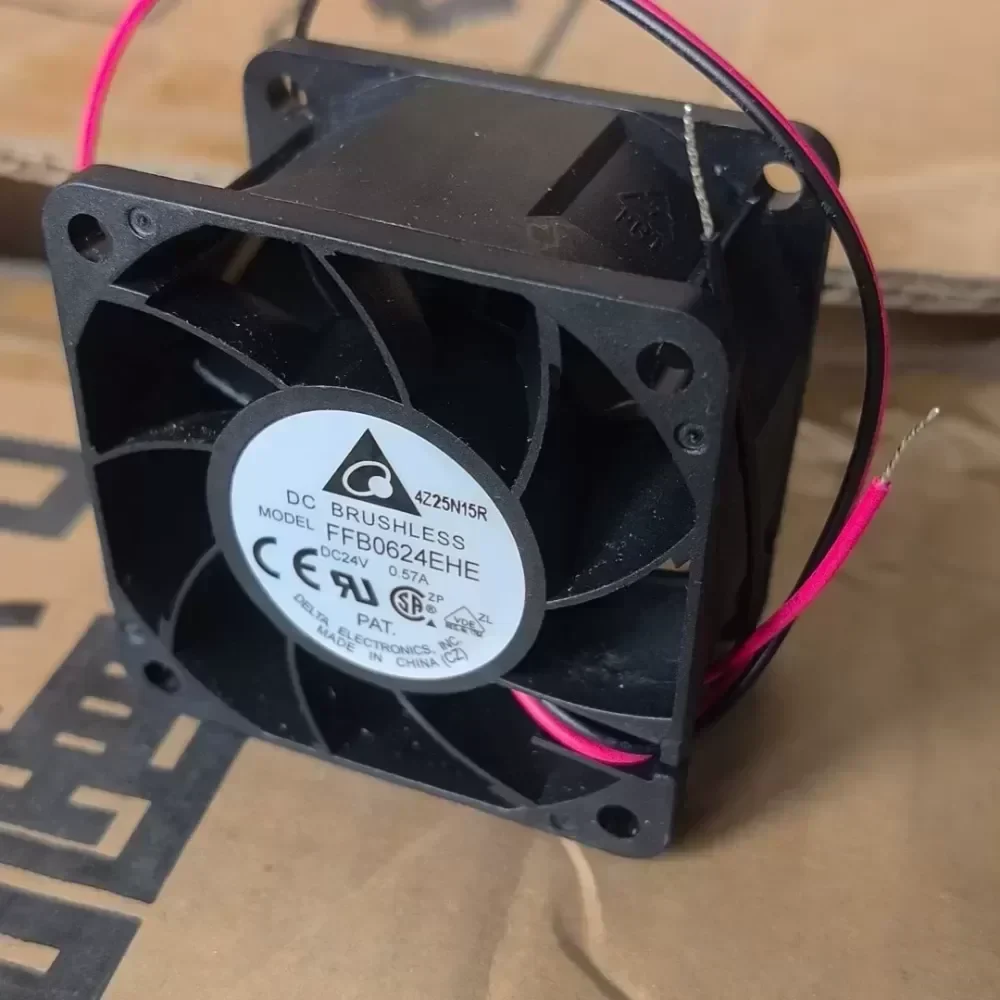

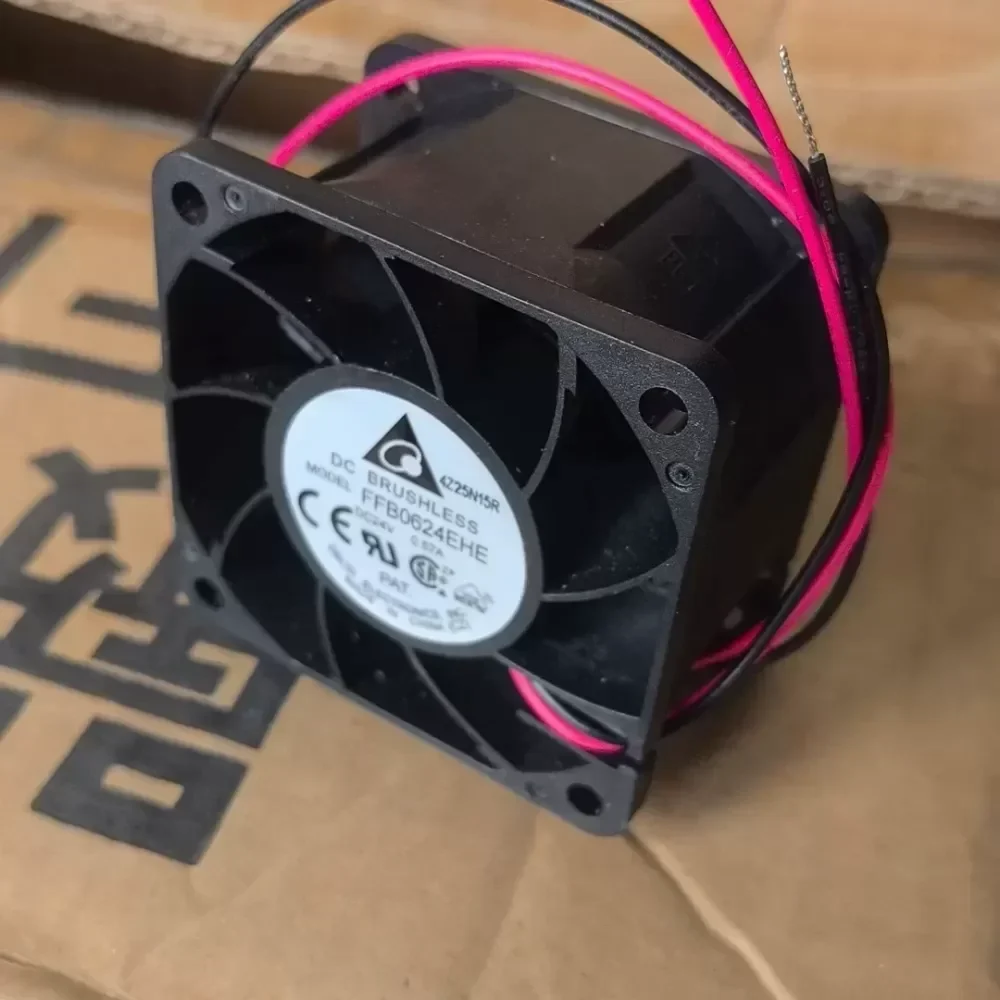

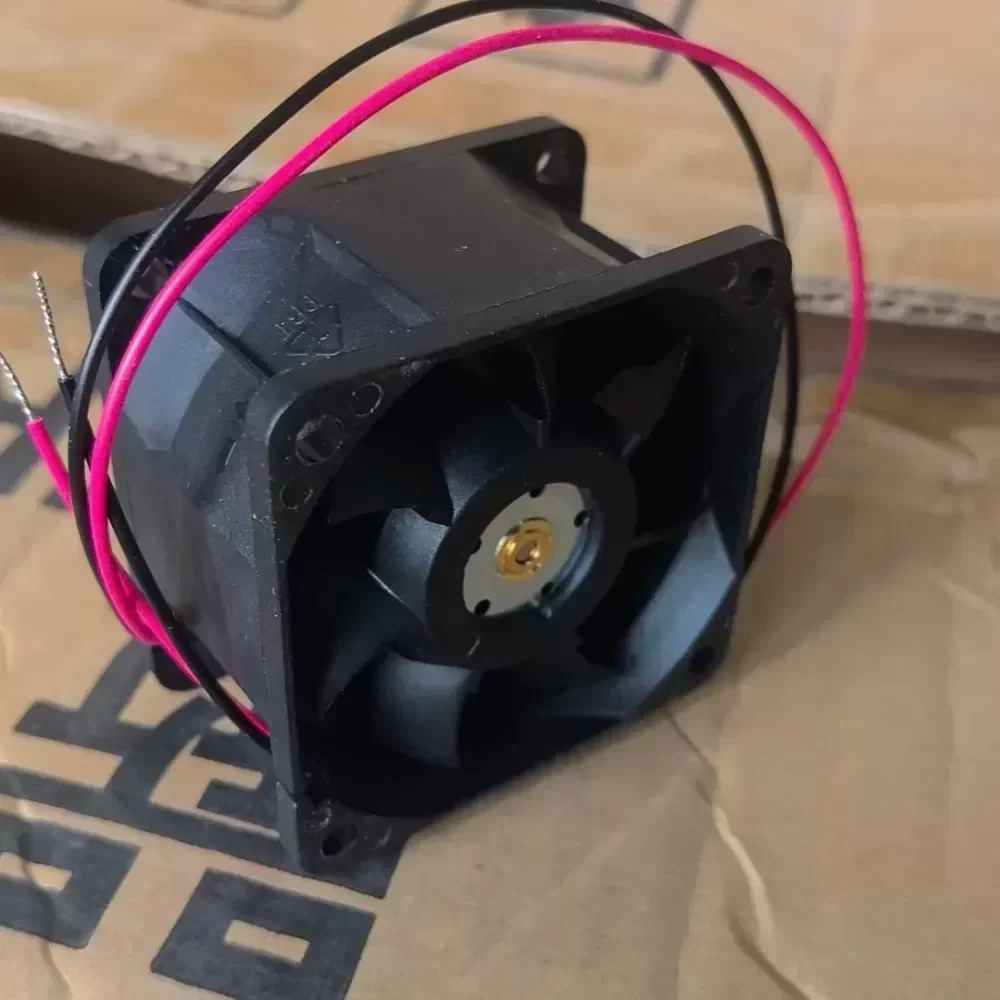

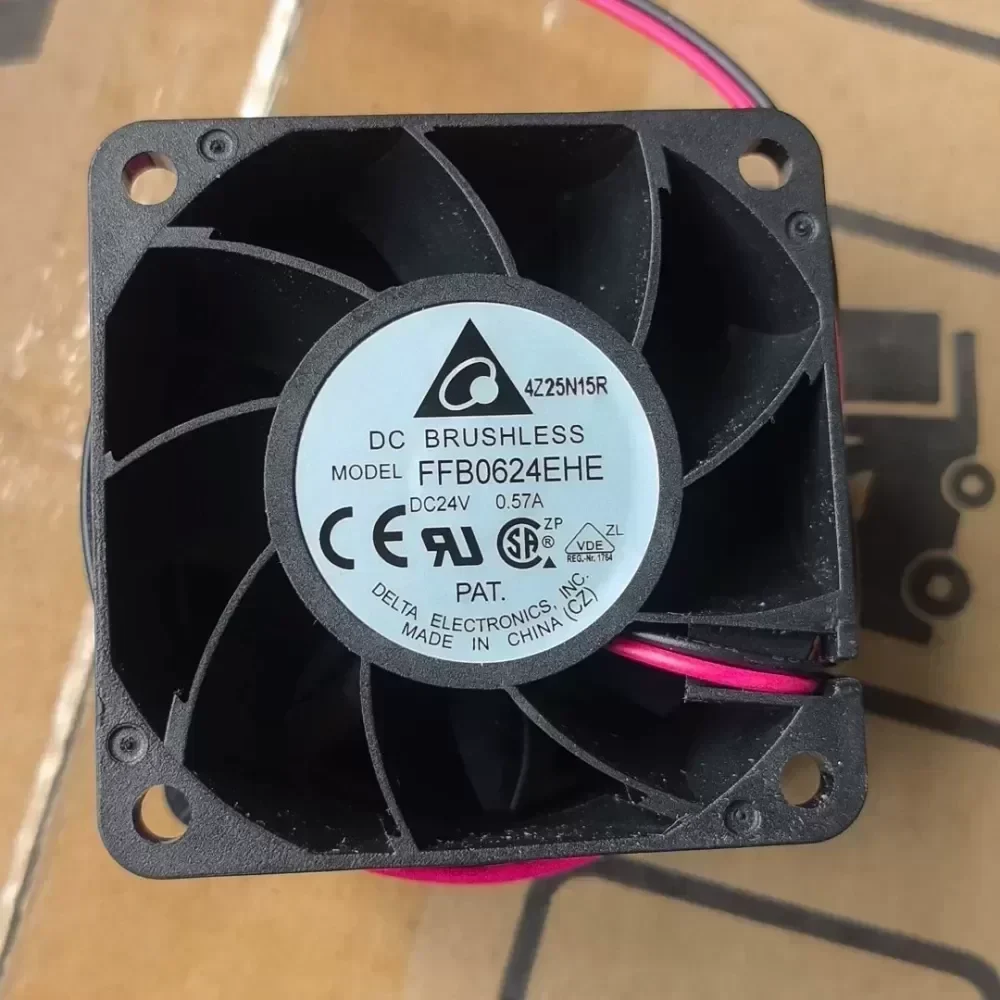

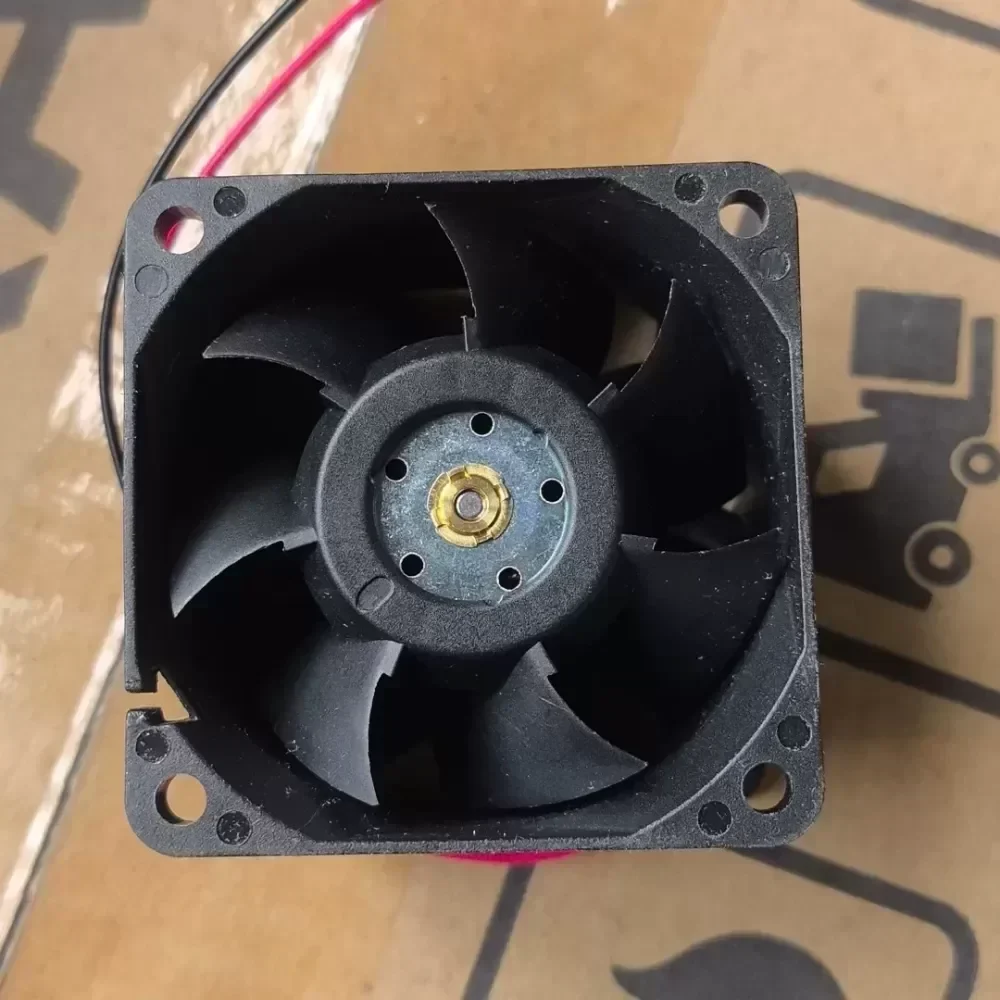

New Delta FFB0624EHE fan 24V 0.57A

Name: New Delta FFB0624EHE fan 24V 0.57A
Brand: Delta
SKU: 904629917975
Availability: InStock
Rating: 5 (4 reviews)

$6.43

SKU: 904629917975 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics FFB0624EHE is a high-performance DC axial fan engineered for rigorous thermal management in industrial power electronics and automation systems. As part of the FFB series, this unit features a 60x60x38mm form factor, significantly deeper than standard 25mm fans, allowing for a high-torque motor and aggressive blade geometry designed to overcome high static pressure resistance. The ‘EHE’ designation indicates an Extra High-Speed configuration, utilizing a precision Dual Ball Bearing system to sustain operation at 8000 RPM, ensuring rapid heat dissipation for critical components. This model includes a 3-wire interface with a tachometer signal output for real-time speed monitoring and failure detection.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: FFB0624EHE
Component Type: High Static Pressure DC Fan
Frame Dimensions: 60mm x 60mm x 38mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V – 27.6V DC
Rated Current: 0.57 A
Input Power: 13.68 W
Nominal Speed: 8000 RPM
Maximum Airflow: 50.15 CFM (1.42 m³/min)
Maximum Static Pressure: 24.7 mmH2O (0.972 inH2O)
Noise Level: 54.5 dB-A
Bearing System: Dual Ball Bearing
Housing Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Termination: 3-Wire (Lead Wire with Sensor)
Signal Output: Frequency Generator (FG) / Tachometer
Life Expectancy: 70,000 Hours at 40°C
Operating Temperature: -10°C to +70°C
Weight: 106 g

Industrial Application:
This fan is specifically calibrated for high-impedance airflow environments where standard fans fail to penetrate. The high static pressure of 0.972 inH2O makes it the definitive solution for cooling dense fin stacks on IGBT modules within 24V industrial inverters, server power supplies, and telecommunications rectifiers. Its Original Engineering guarantees Technical Compatibility with existing thermal control logic, ensuring seamless replacement and preventing thermal shutdowns in continuous-duty machinery. Please verify current Lead Time for maintenance planning.

New Delta FFB0624EHE fan 24V 0.57A

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
