New German EBMPAPST fan K2E200-AH20-05

Name: New German EBMPAPST fan K2E200-AH20-05
Brand: ebmpapst
SKU: 910754582529
Availability: InStock
Rating: 5 (4 reviews)

$250.00

SKU: 910754582529 Brand: ebmpapst, Rittal

Description
Reviews (0)

Description

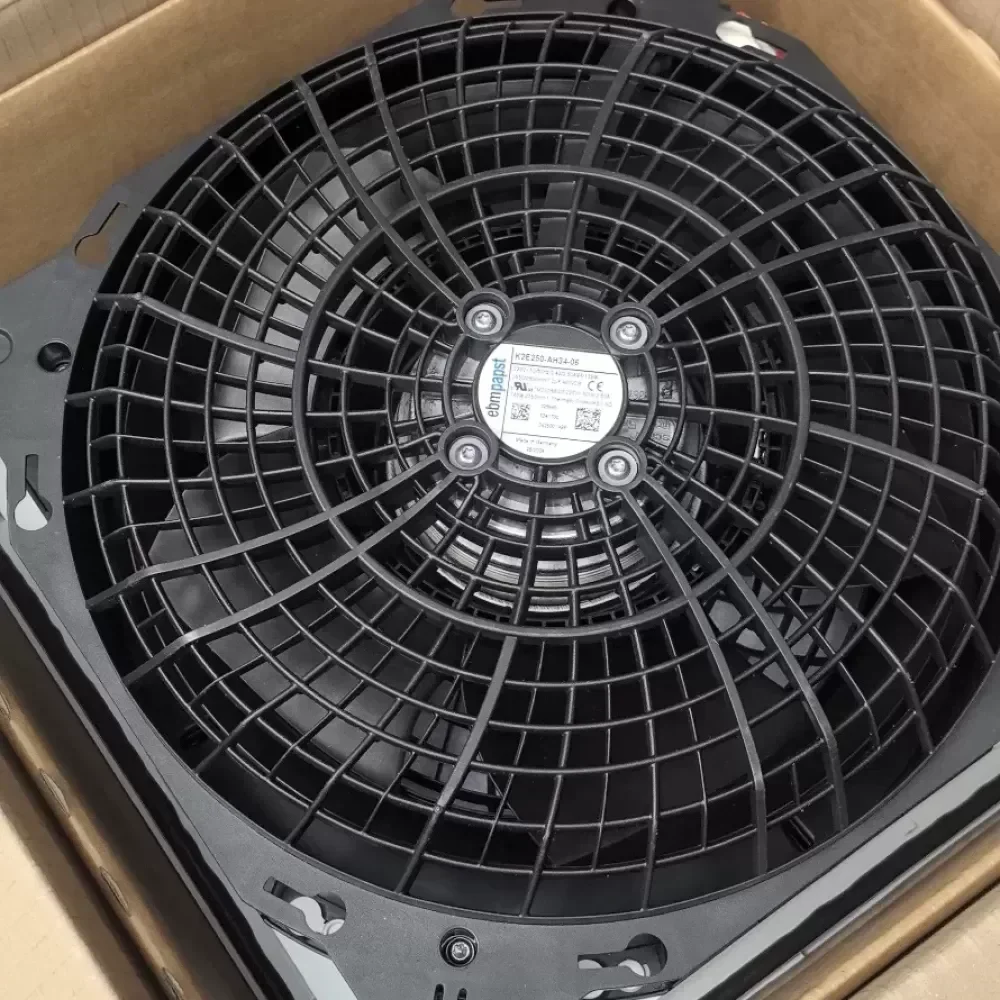

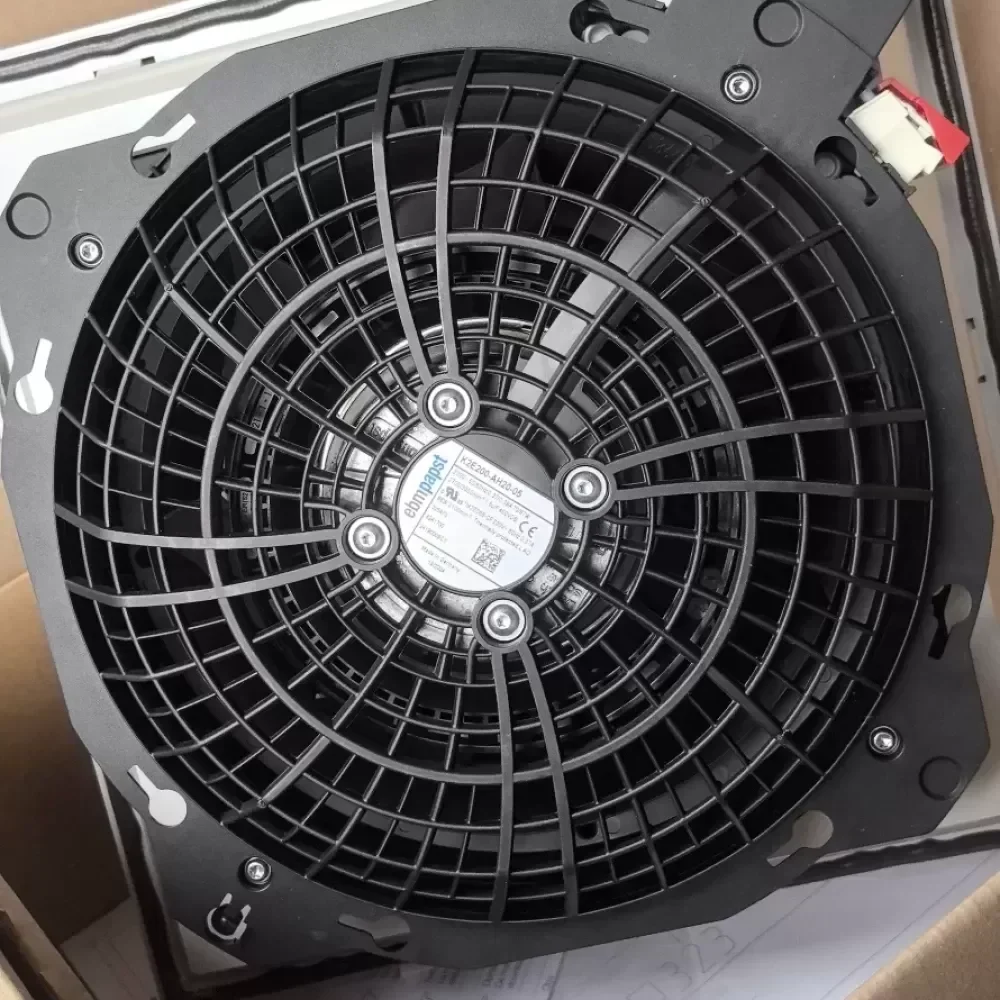

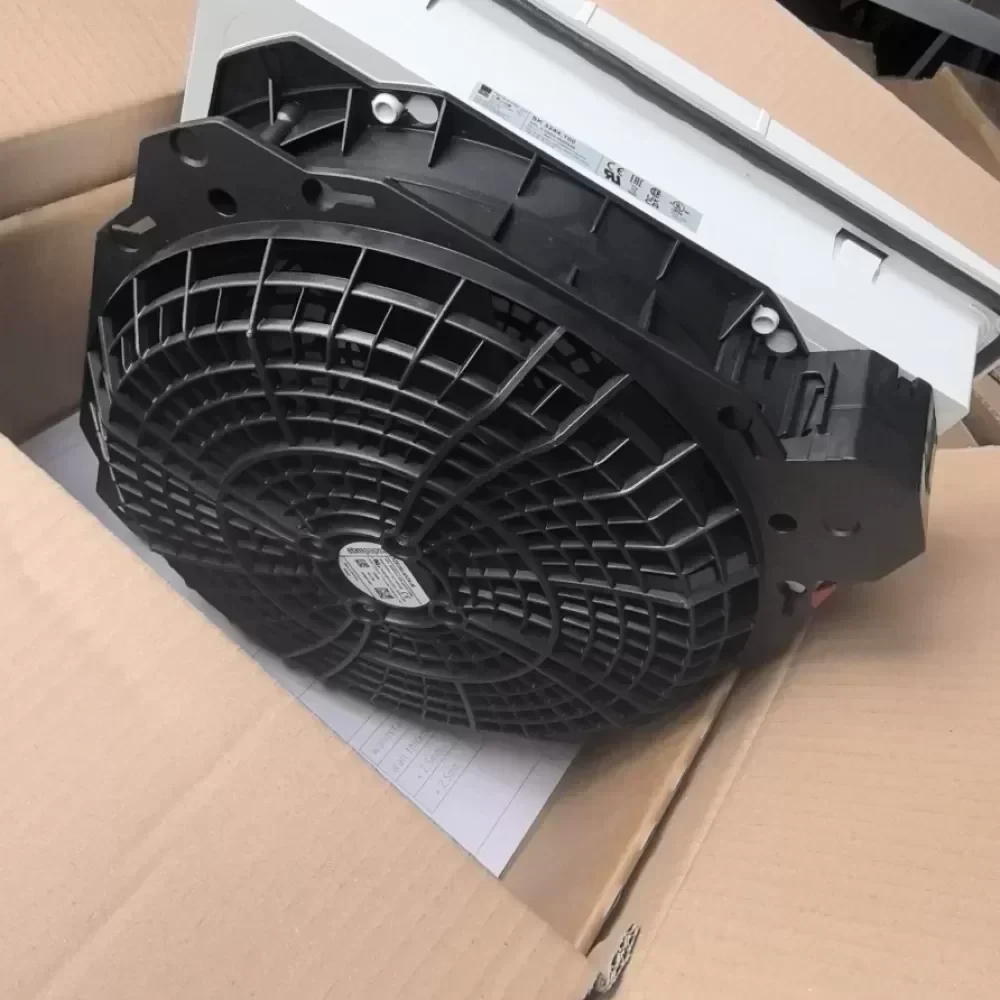

Rittal TopTherm Filter Fan Unit SK 3243.100 featuring EBM-Papst K2E200-AH20-05 Motor Assembly. This industrial cooling solution represents Original Engineering designed for high-efficiency thermal management within electrical enclosures and server cabinets. The unit integrates diagonal fan technology to ensure sustained air throughput and pressure stability, critical for maintaining optimal operating temperatures for sensitive PLCs, VFDs, and switchgear. The assembly includes the housing, filter mat, and the specific EBM-Papst centrifugal motor designed for continuous duty cycles.

TECHNICAL SPECIFICATIONS:
Manufacturer: Rittal / EBM-Papst
System Part Number: SK 3243.100
OEM Motor Model: K2E200-AH20-05
Motor Type: AC Centrifugal Fan
Rated Voltage: 230 V AC
Frequency: 50 / 60 Hz
Air Throughput (Unimpeded): 550 m³/h (50 Hz) / 600 m³/h (60 Hz)
Air Throughput (With Standard Filter): 465 m³/h (50 Hz) / 510 m³/h (60 Hz)
Rated Power Consumption: 65 W (50 Hz) / 87 W (60 Hz)
Rated Current: 0.37 A (50 Hz) / 0.39 A (60 Hz)
Dimensions (W x H x D): 323 x 323 x 118.5 mm
Required Mounting Cut-out: 292 x 292 mm
Installation Depth: 100 mm
Protection Category: IP54 (Standard) / IP55 (With Fine Filter Mat)
Operating Temperature Range: -30 °C to +55 °C
Noise Level: 59 dB(A) (50 Hz) / 61 dB(A) (60 Hz)
Bearing Type: Maintenance-free Ball Bearings
Service Life (L10 at 40 °C): 65,000 Hours
Color: RAL 7035 (Light Grey)
Connection Type: Spring-loaded terminals
Weight: 3.2 kg

INDUSTRIAL APPLICATION:
Designed specifically for high-density control cabinets requiring rapid heat dissipation to prevent thermal throttling or component degradation. The K2E200-AH20-05 motor provides the necessary static pressure to overcome resistance from high-density filter mats, ensuring consistent airflow even in dust-laden industrial environments. This unit ensures Technical Compatibility with standard Rittal TopTherm cut-outs, facilitating immediate retrofit or new installation. We maintain inventory to minimize Lead Time for critical maintenance requirements.

New German EBMPAPST fan K2E200-AH20-05

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
