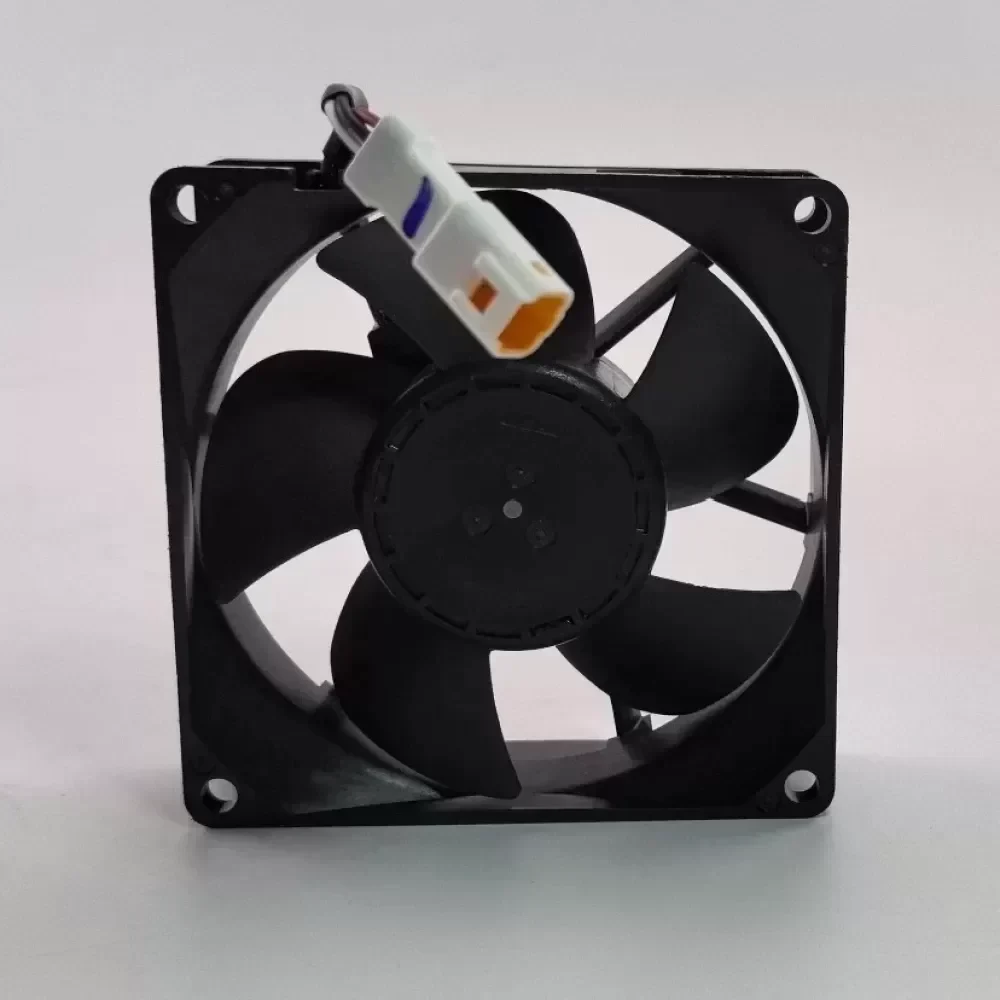

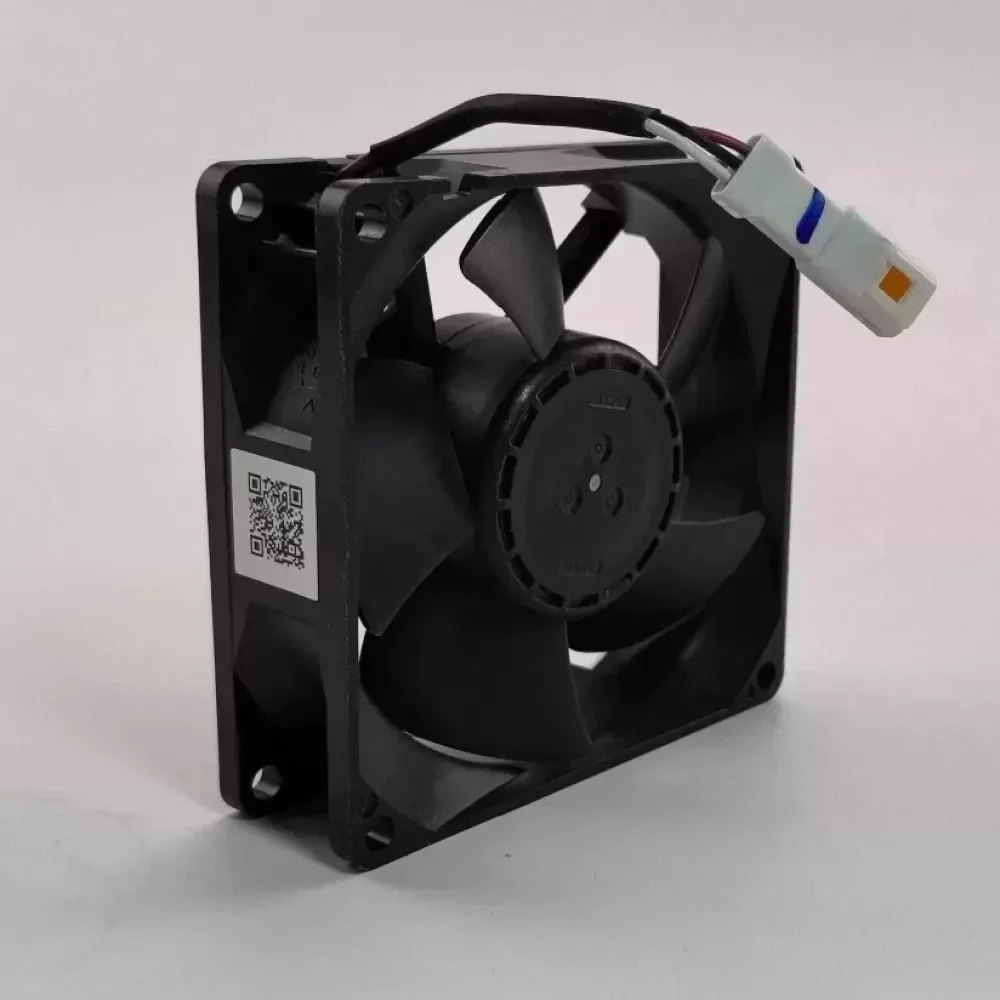

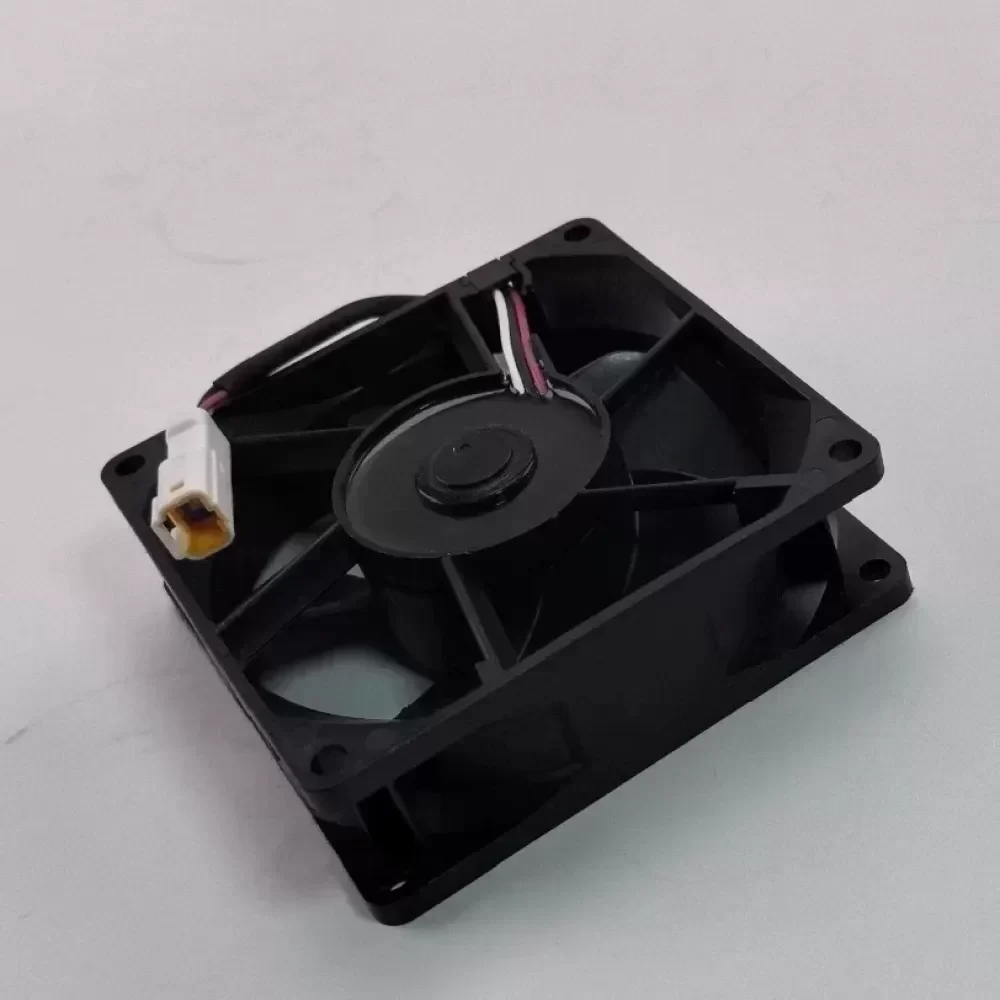

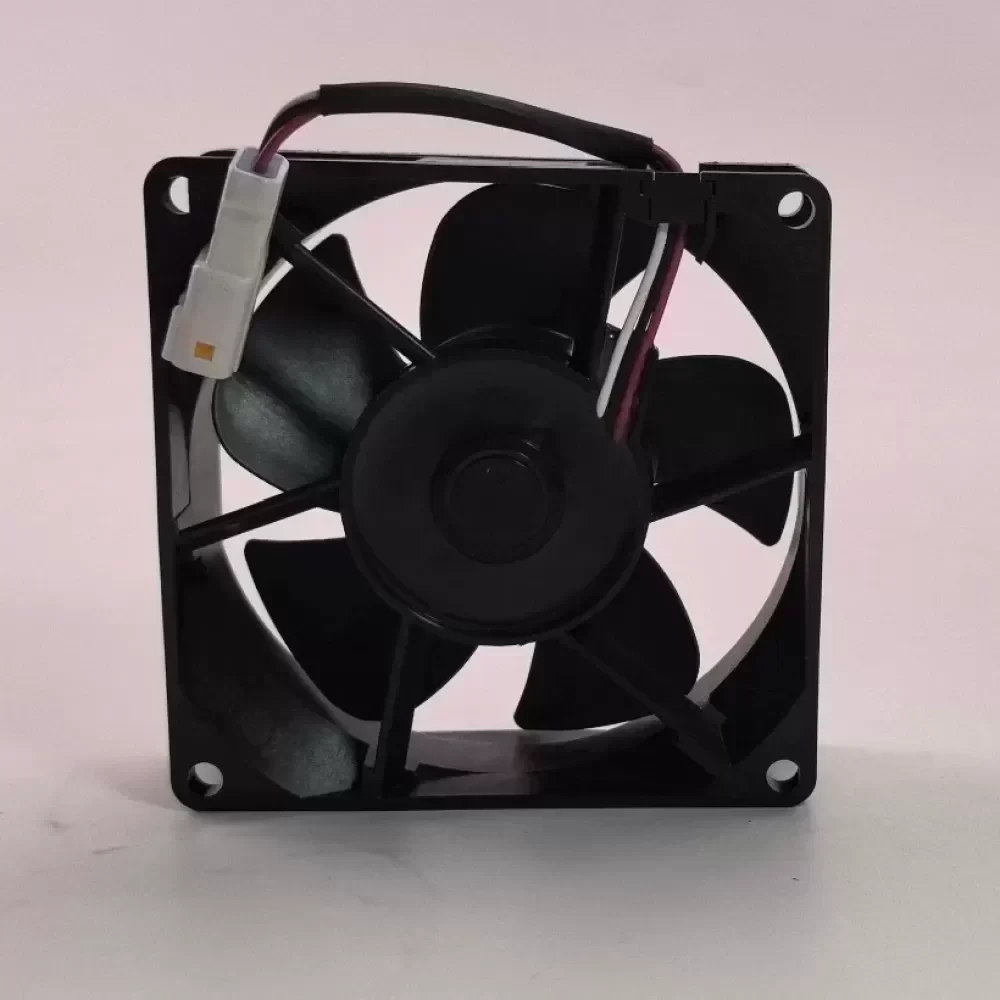

New NMB 08025VE-12P-GLD 8025 Fan

Name: New NMB 08025VE-12P-GLD 8025 Fan
Brand: NMB
SKU: 923209818395
Availability: InStock
Rating: 5 (4 reviews)

$5.43

SKU: 923209818395 Brand: NMB

Description
Reviews (0)

Description

The NMB 08025VE-12P-GLD represents Original Engineering excellence in high-performance thermal management for harsh industrial environments. This 80mm axial fan is engineered with a fully encapsulated motor to achieve superior Ingress Protection, ensuring Technical Compatibility with outdoor cabinets and industrial processing equipment where moisture and dust are prevalent.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 08025VE-12P-GLD
Frame Size: 80 x 80 x 25 mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Rated Current: 0.35A
Input Power: 4.20W
Bearing Type: Precision Dual Ball Bearing
Rotational Speed: 4000 RPM
Maximum Air Flow: 45.9 CFM (1.30 m³/min)
Maximum Static Pressure: 62.0 Pa
Noise Level: 38.0 dB(A)
Ingress Protection Rating: IP68 (Waterproof/Dustproof)
Termination: 3-Wire Lead (Red: Positive, Black: Negative, White: Alarm Signal)
Signal Type: Locked Rotor Alarm (High/Low Logic)
Frame Material: PBT Thermoplastic (Black) UL94V-0
Impeller Material: PBT Thermoplastic (Black) UL94V-0
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Weight: 95g
Life Expectancy: 100,000 Hours (L10 at 25°C)
Safety Certifications: UL, CSA, VDE, CE

Industrial Application:
The 08025VE-12P-GLD is specifically designed for deployment in high-humidity or saline environments, such as marine electronics cooling, outdoor 5G telecommunications base stations, and industrial wash-down zones. The integrated 3-wire alarm signal provides critical system monitoring, allowing for immediate fail-safe protocols if the impeller is obstructed. This component ensures long-term reliability and reduced maintenance cycles where standard fans would succumb to corrosion or electrical shorting. Please contact our technical department for current Lead Time and volume integration support.

New NMB 08025VE-12P-GLD 8025 Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
