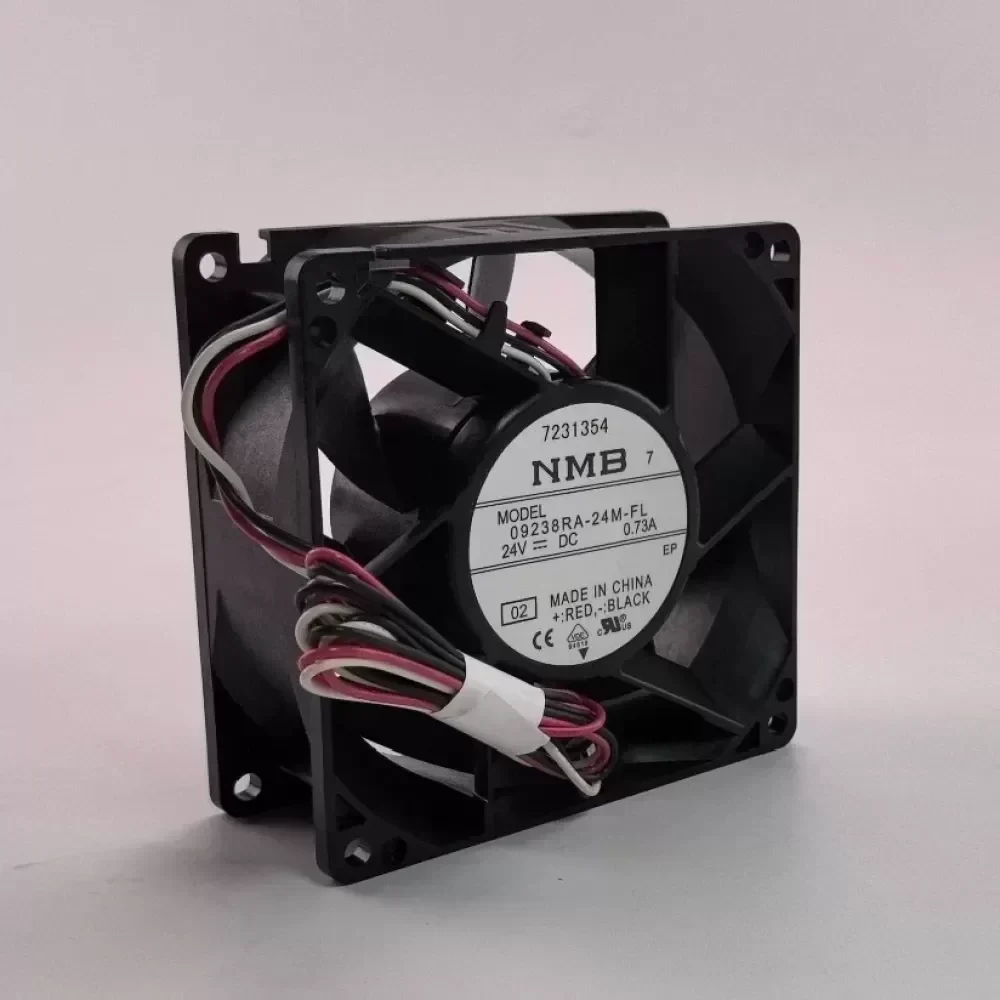

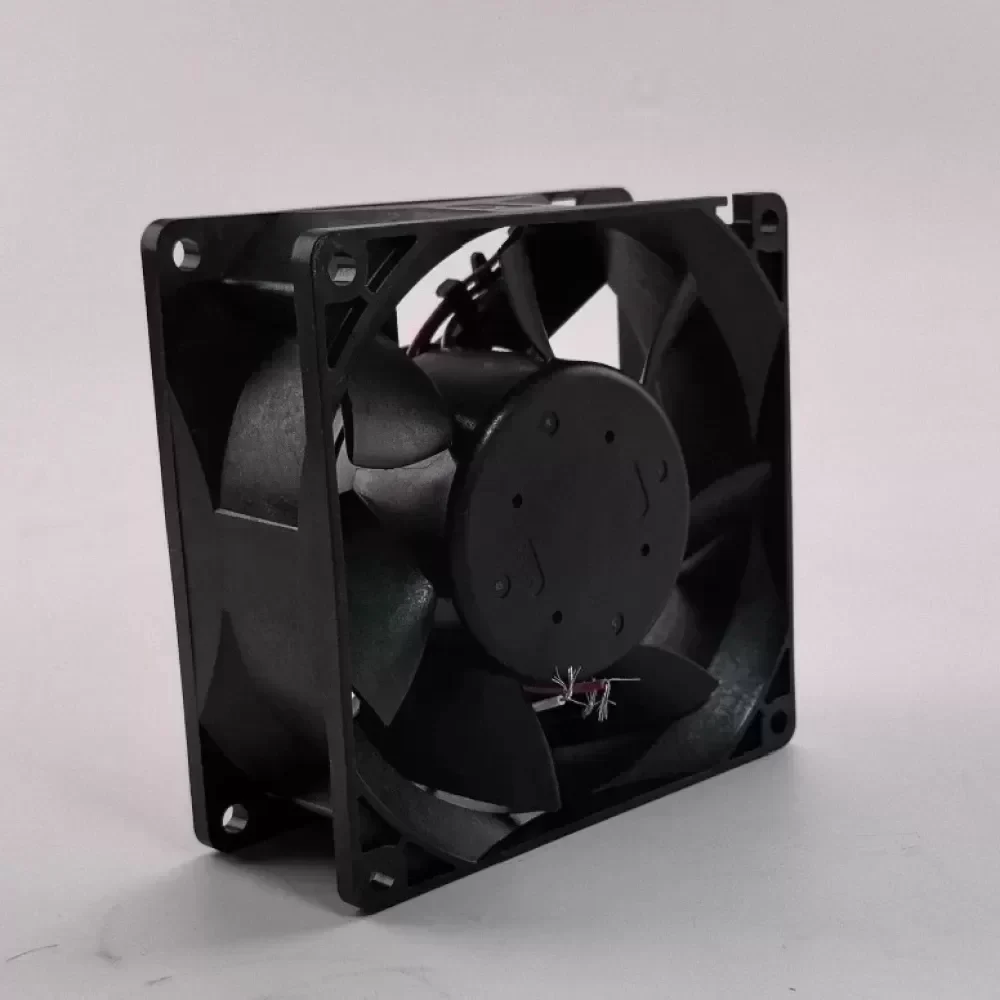

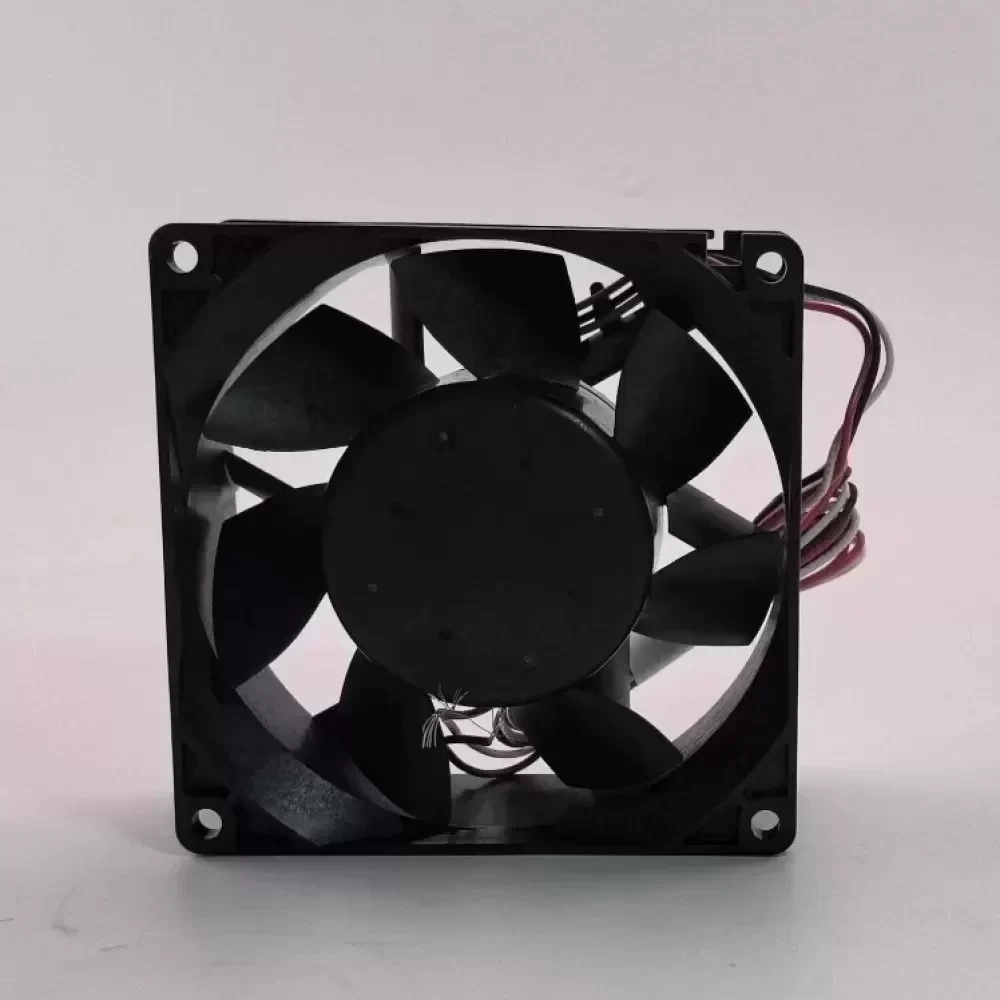

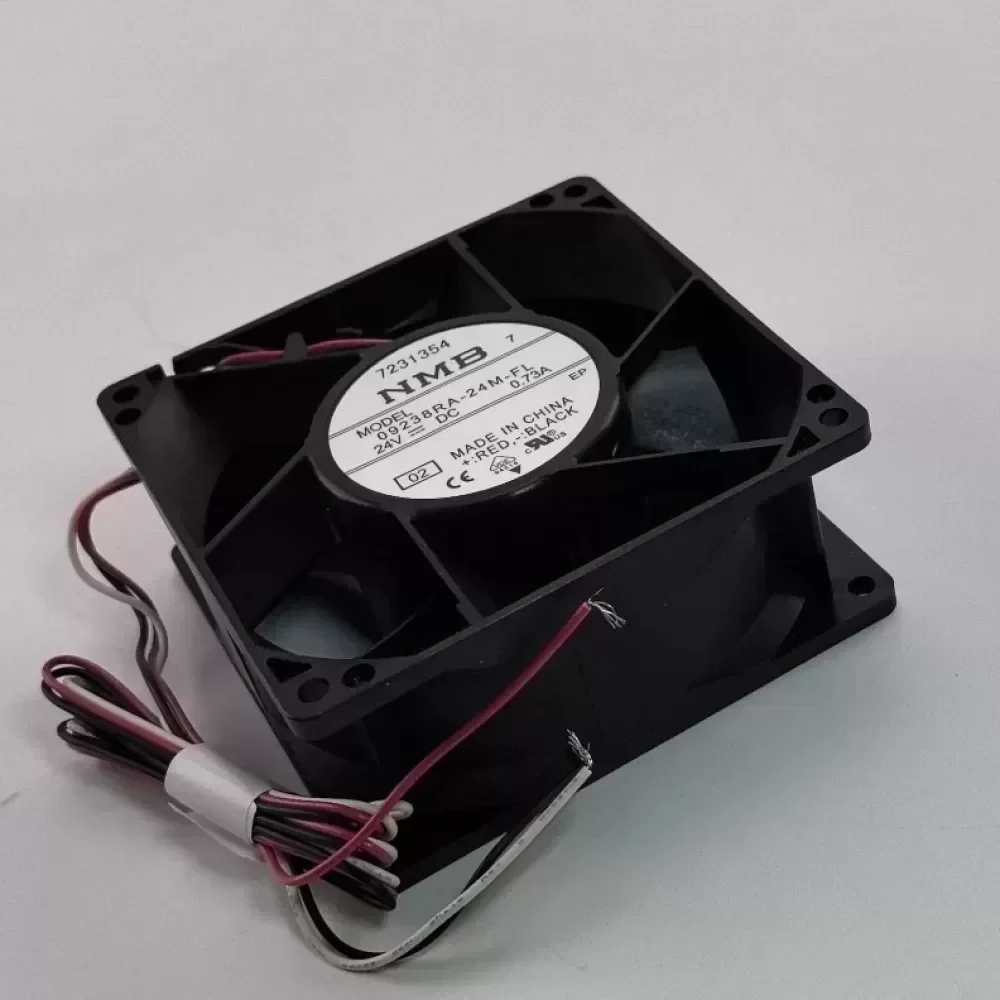

New NMB fan 09238RA-24M-FL 24V

Name: New NMB fan 09238RA-24M-FL 24V
Brand: NMB
SKU: 924203764607
Availability: InStock
Rating: 5 (4 reviews)

$9.71

SKU: 924203764607 Brand: NMB

Description
Reviews (0)

Description

The NMB 09238RA-24M-FL is a high-performance industrial axial fan engineered for critical thermal management in power electronics and automation systems. This 92mm x 38mm component utilizes Original Engineering to deliver the high static pressure and airflow density required for dense inverter enclosures and server environments.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 09238RA-24M-FL
Frame Size: 92mm x 92mm x 38mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.73A
Input Power: 17.52W
Bearing Type: Dual Precision Ball Bearing
Rated Speed: 5400 RPM
Maximum Air Flow: 110.1 CFM
Maximum Static Pressure: 162 Pa
Acoustic Noise: 53.0 dB(A)
Termination: 3-Wire Lead (Red: Positive, Black: Negative, White: Fault Alarm)
Sensor Type: Locked Rotor Fault Alarm (FL)
Frame Material: Reinforced PBT Plastic (UL94V-0)
Impeller Material: Reinforced PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours (L10 at 40°C)
Weight: 210g
Safety Certifications: UL, CSA, VDE, CE

Industrial Application:
The 09238RA-24M-FL is specifically designed for high-reliability inverter cooling and industrial power supply units. The integrated 3-line fault alarm provides essential Technical Compatibility with system monitoring logic, allowing for immediate shutdown or redundancy activation if the fan rotor is obstructed. This prevents catastrophic thermal runaway in sensitive semiconductor environments. Optimized for global B2B procurement with standard Lead Time availability for maintenance and OEM integration.

New NMB fan 09238RA-24M-FL 24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
