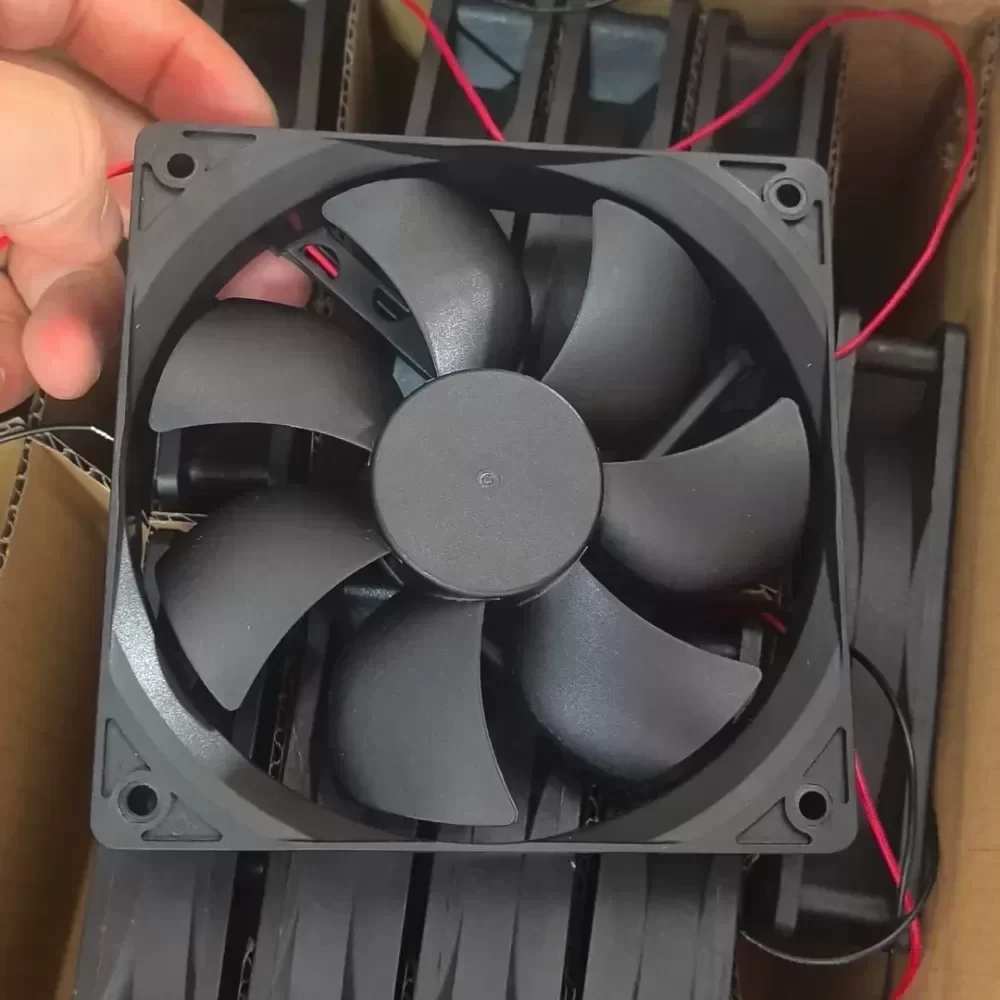

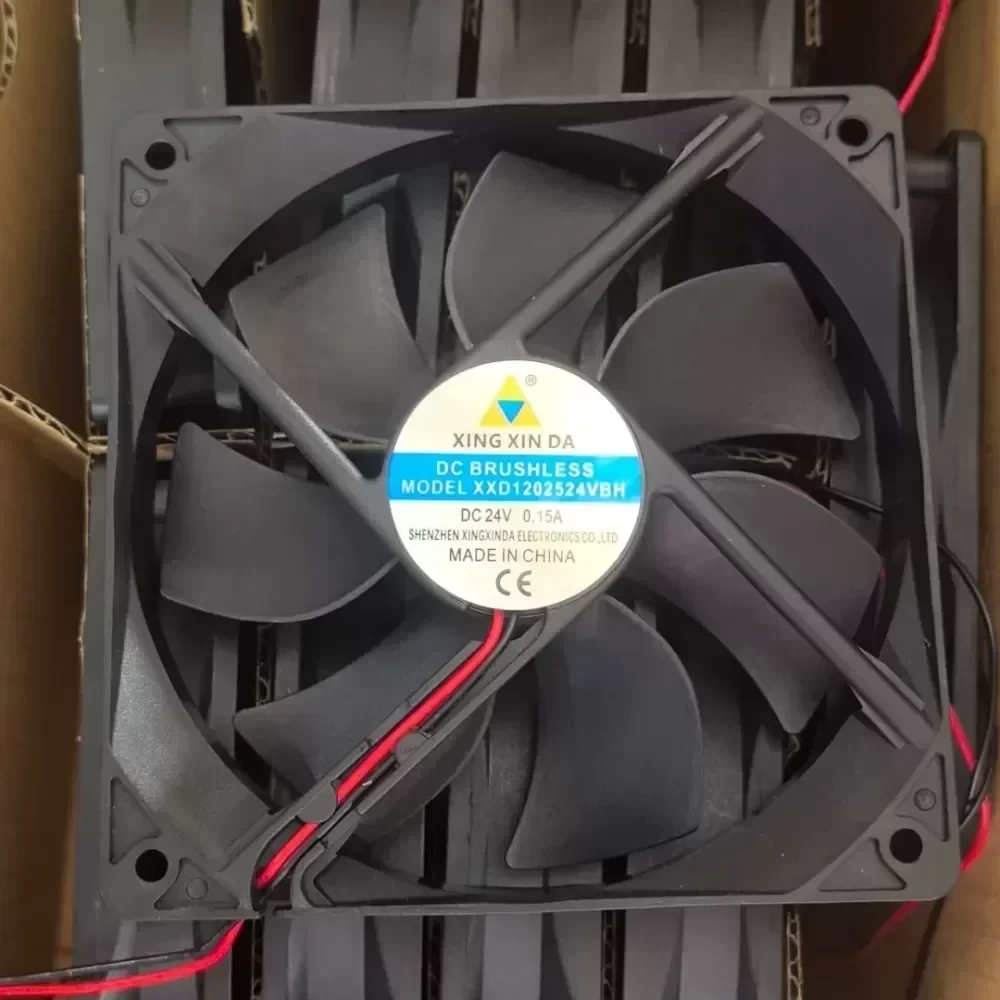

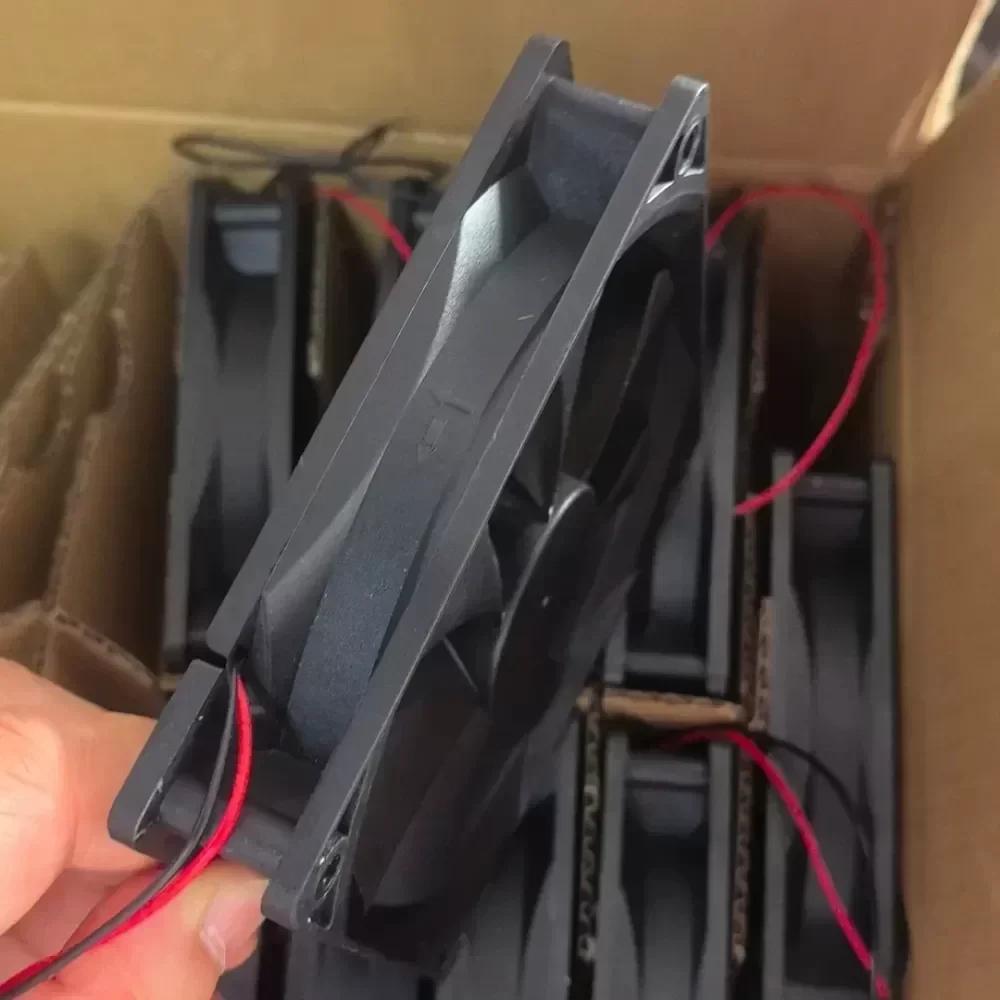

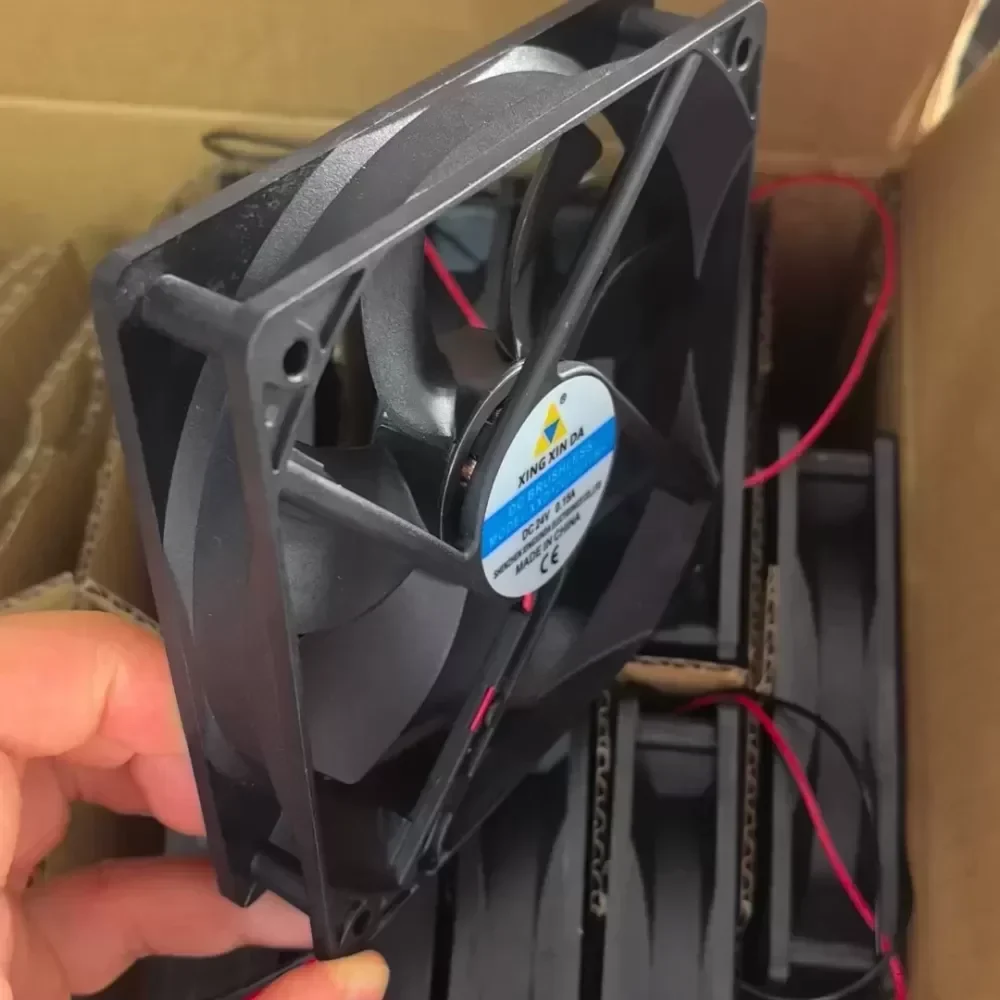

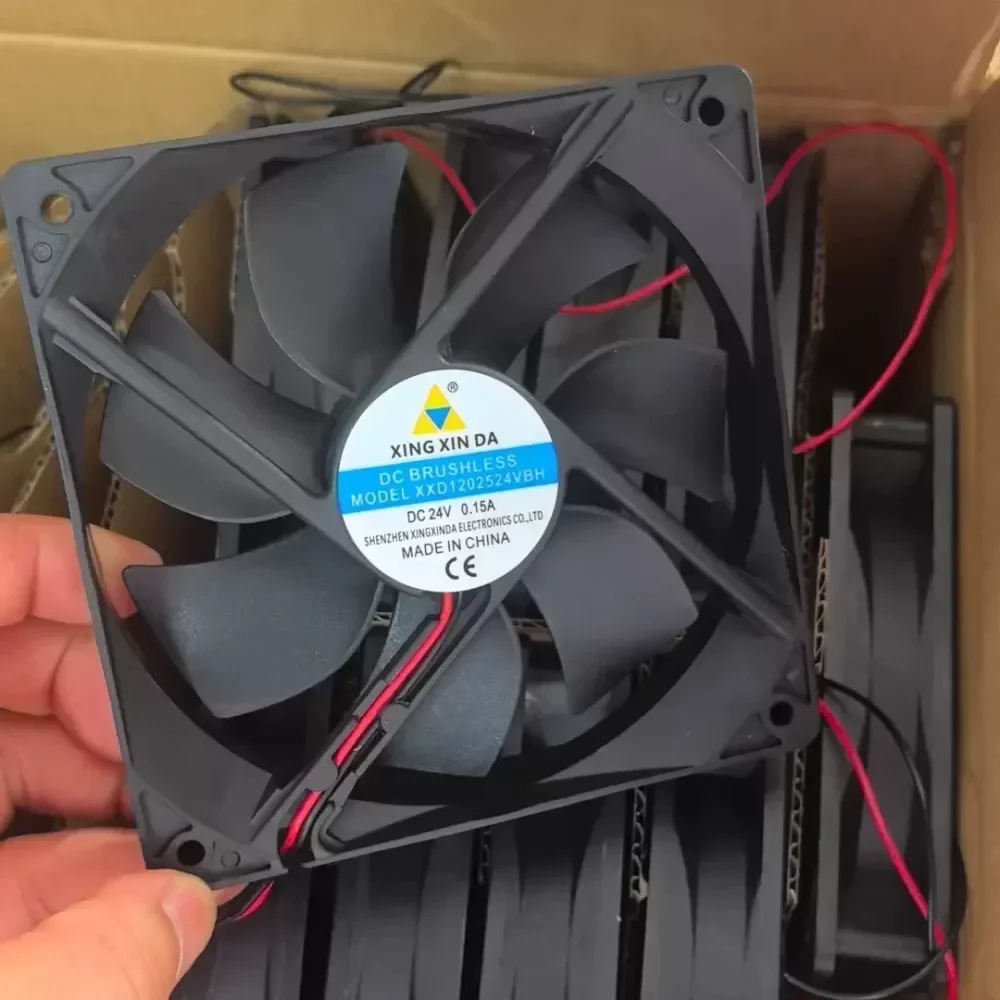

New xING xIN DA 12025 24V 0.15A machine

Name: New xING xIN DA 12025 24V 0.15A machine
Brand: XINGXINDA
SKU: 924728038754
Availability: InStock
Rating: 5 (4 reviews)

$2.14

SKU: 924728038754 Brand: XINGXINDA

Description
Reviews (0)

Description

The XING XIN DA12025 is a high-performance industrial axial cooling fan engineered for continuous thermal management in high-duty cycle environments. Utilizing a dual ball bearing architecture, this unit provides superior mechanical stability and Technical Compatibility for both horizontal and vertical mounting orientations. As an Original Engineering component, it is designed to meet the rigorous demands of industrial power electronics and server chassis cooling.

Technical Specifications:
Manufacturer: XING XIN
Model Number: DA12025
Frame Size: 120 x 120 x 25 mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.15A
Power Consumption: 3.6W
Bearing Type: Dual Precision Ball Bearing
Rated Speed: 2200 RPM ± 10%
Airflow: 85.0 CFM
Static Pressure: 4.20 mmH2O
Noise Level: 38.5 dB(A)
Housing Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Termination: 2-Wire Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +80°C
Life Expectancy: 70,000 Hours at 40°C
Safety Certifications: CE, RoHS Compliant
Weight: 145g

Application Scenario:
The XING XIN DA12025 is specifically optimized for heat dissipation in industrial frequency converters, power inverters, and telecommunications enclosures. In scenarios where internal cabinet temperatures can lead to thermal throttling or component failure, the DA12025 provides a reliable high-static pressure solution to move air through dense internal components. Its low current draw of 0.15A allows for multiple units to be arrayed without overloading the DC bus, effectively reducing maintenance Lead Time and ensuring the longevity of critical power infrastructure.

New xING xIN DA 12025 24V 0.15A machine

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
