Newly built SUNON SF 23080A 2083HBL air

Name: Newly built SUNON SF 23080A 2083HBL air
Brand: SUNON
SKU: 904240998176
Availability: InStock
Rating: 5 (4 reviews)

$6.43

SKU: 904240998176 Brand: SUNON

Description
Reviews (0)

Description

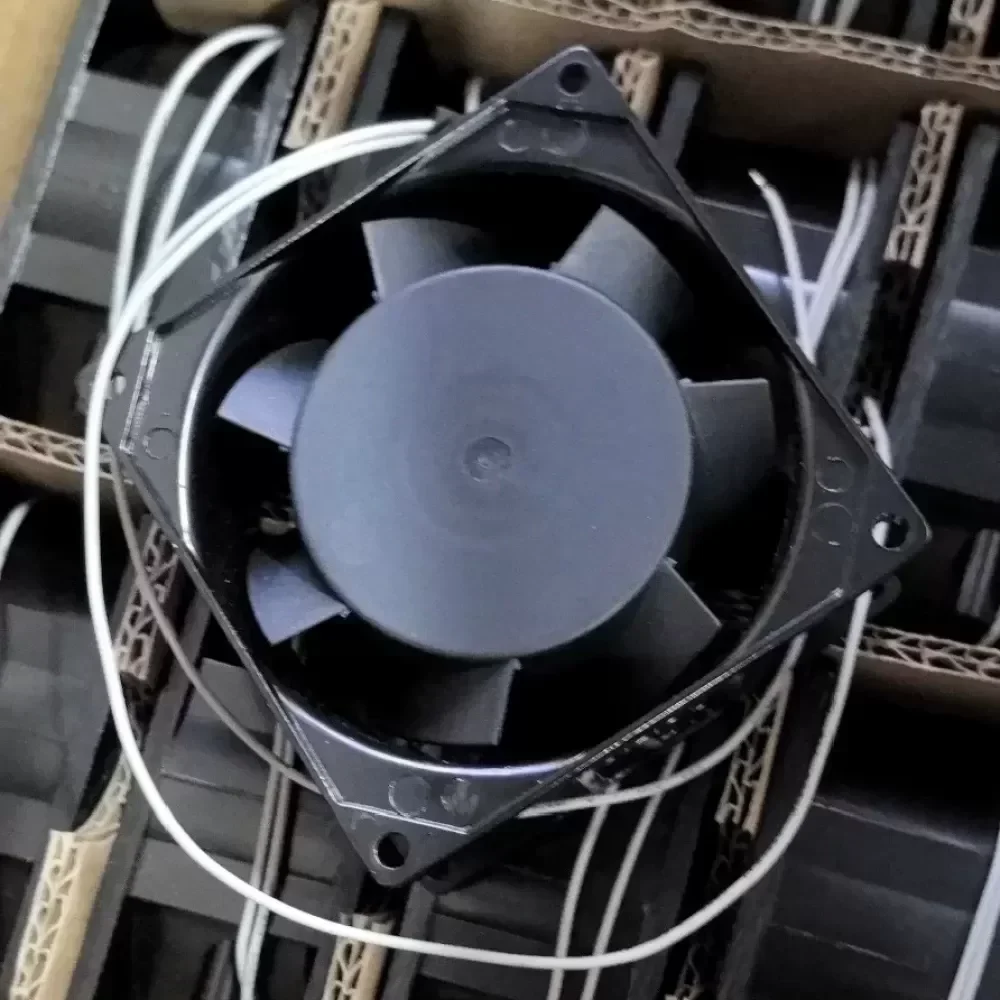

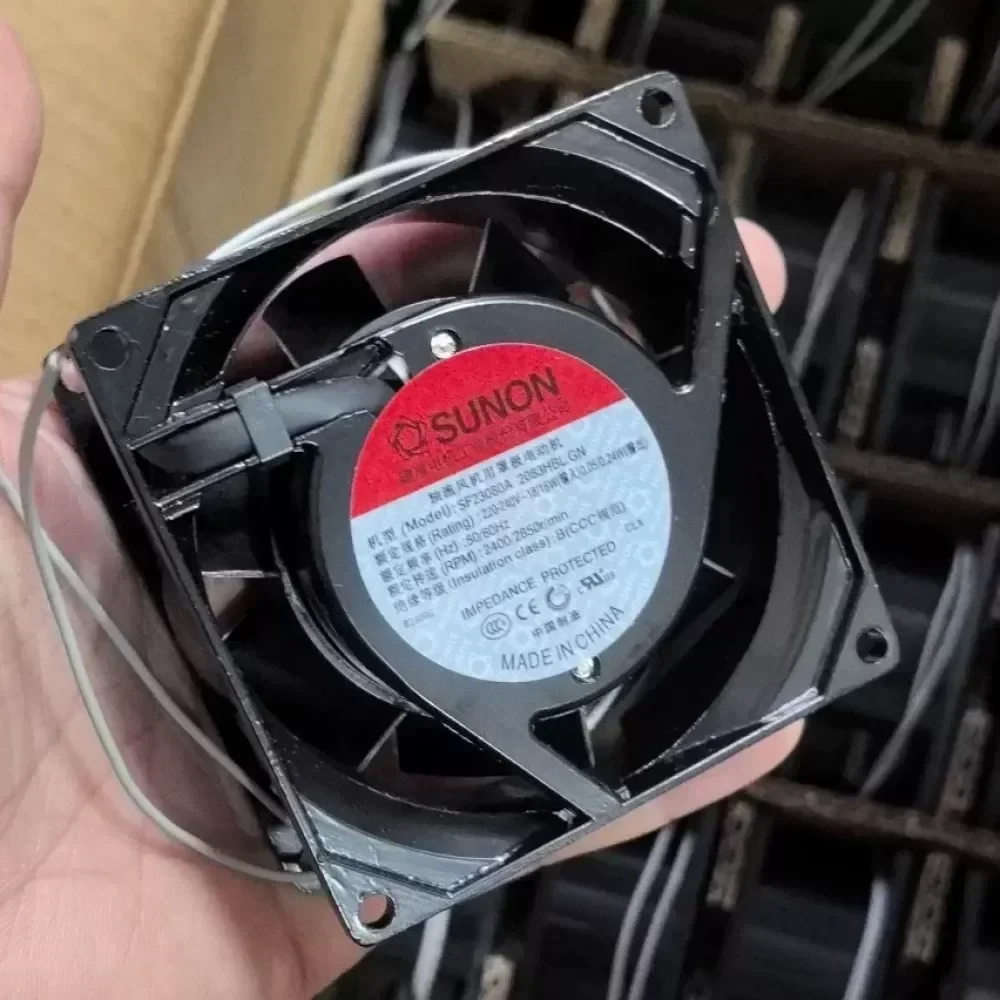

The SUNON SF23080A 2083HBL is a high-performance AC axial fan engineered for critical thermal management in industrial environments. Manufactured by Sunonwealth Electric Machine Industry, this unit features a robust aluminum alloy frame and a precision ball bearing system designed to sustain continuous operation under high thermal loads. The fan operates on a standard 220-240V AC input, providing consistent airflow to prevent thermal throttling in electronic enclosures and machinery. Its compact 80mm form factor allows for seamless integration into space-constrained chassis, ensuring Original Engineering standards are met for system longevity and reliability.

Technical Specifications:
Manufacturer: SUNON
Model Number: SF23080A 2083HBL
Product Type: AC Axial Fan
Rated Voltage: 220-240 VAC
Frequency: 50/60 Hz
Dimensions: 80mm x 80mm x 38mm
Bearing System: Ball Bearing
Airflow: 23.0 – 30.0 CFM
Speed: 2300 – 2750 RPM
Static Pressure: 0.12 – 0.18 Inch-H2O
Current Rating: 0.07 – 0.08 A
Power Consumption: 14.0 – 18.0 W
Noise Level: 31.0 – 35.0 dBA
Frame Material: Die-Cast Aluminum
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Termination Style: Lead Wire
Weight: 340 g
Safety Approvals: UL, CUR, TUV, CE

Industrial Application:
This cooling unit is specifically calibrated for forced air convection within CNC control panels, server racks, and power supply units where high impedance requires reliable static pressure. The ball bearing architecture ensures stability in both vertical and horizontal mounting orientations, significantly extending the Mean Time Between Failures (MTBF) compared to sleeve bearing alternatives. We verify Technical Compatibility for retrofit projects requiring 220V chassis cooling solutions. Please inquire regarding current stock levels and Lead Time for bulk orders.

Newly built SUNON SF 23080A 2083HBL air

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
