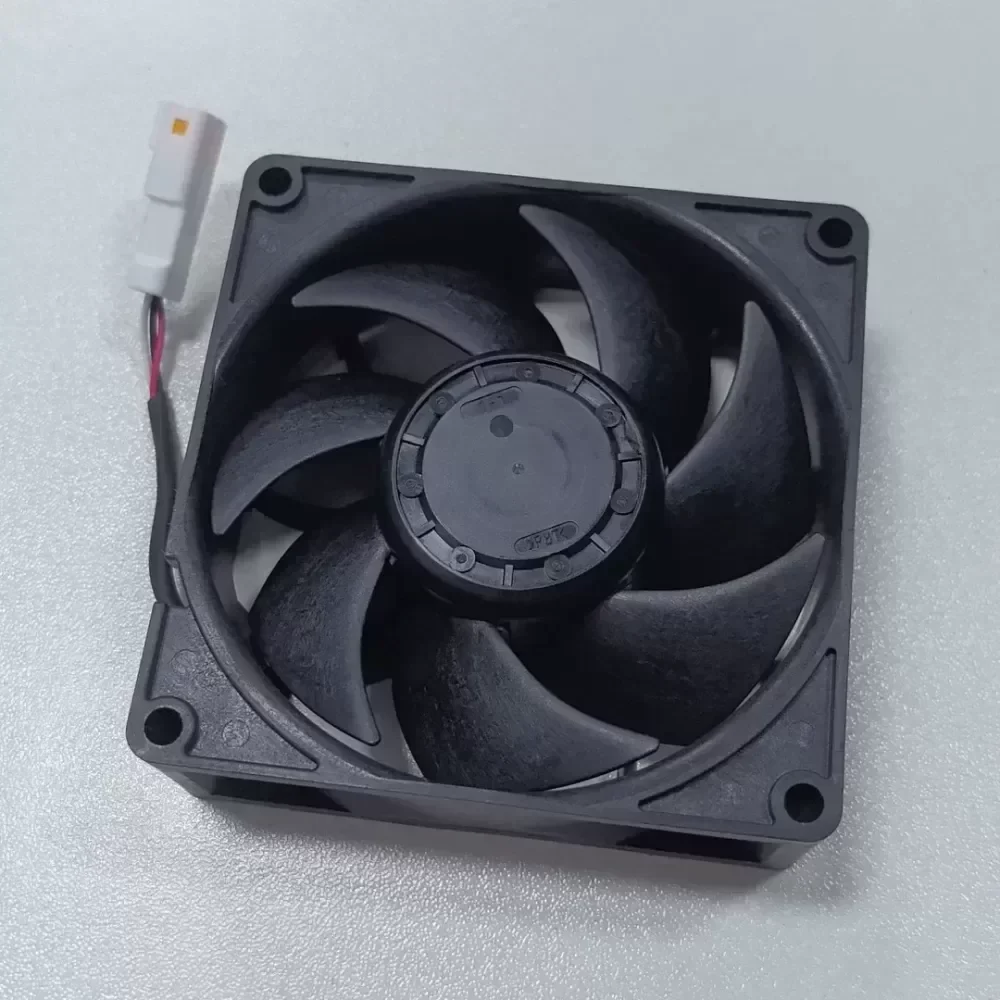

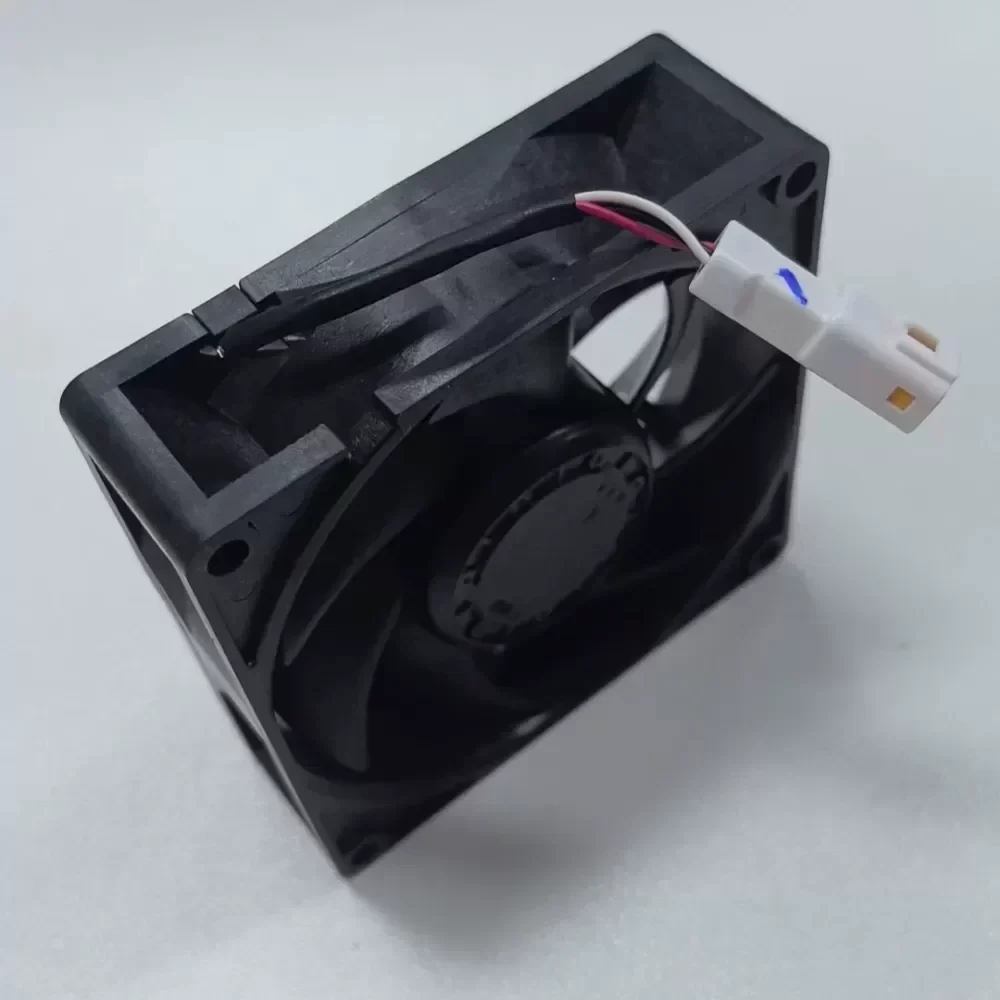

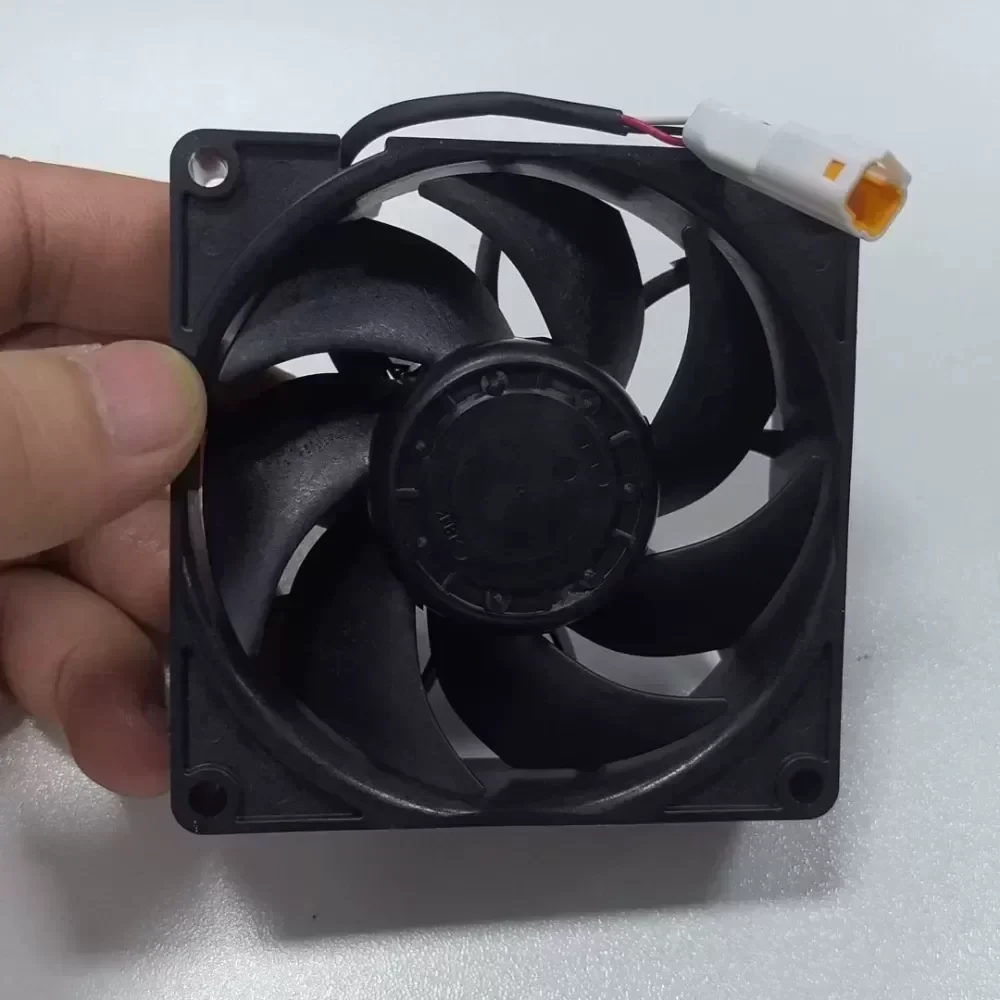

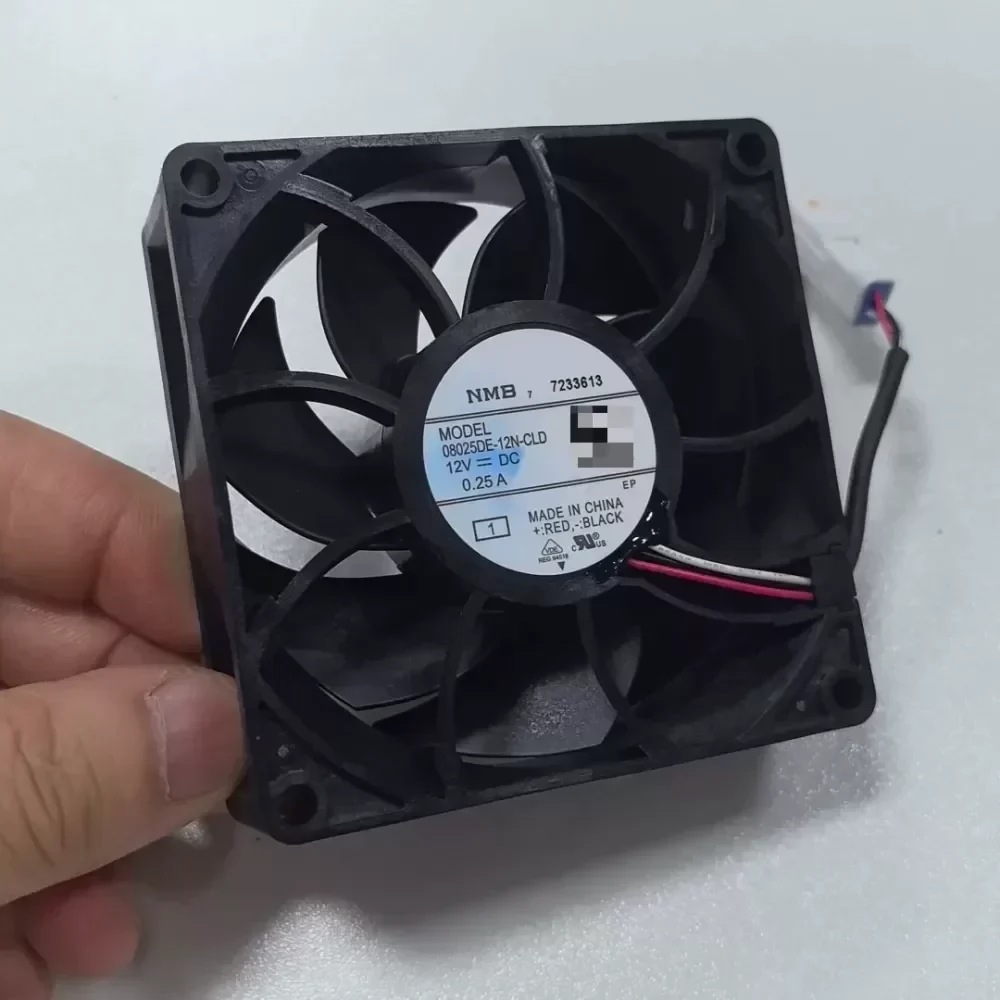

NMB 08025DE-12N-CLD fan

Name: NMB 08025DE-12N-CLD fan
Brand: NMB
SKU: 925291052786
Availability: InStock
Rating: 5 (4 reviews)

$5.14

SKU: 925291052786 Brand: NMB

Description
Reviews (0)

Description

The NMB 08025DE-12N-CLD is a high-performance axial cooling fan engineered by MinebeaMitsumi for demanding industrial environments. This 80mm x 25mm component utilizes a dual ball bearing system to ensure long-term operational stability and high MTBF in continuous duty cycles. Designed for Technical Compatibility with energy storage systems and power inverters, it provides efficient thermal management under varying load conditions. Optimized supply chain management ensures competitive Lead Time for bulk industrial procurement.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 08025DE-12N-CLD
Frame Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12V DC
Operating Voltage Range: 10.2V to 13.8V
Rated Current: 0.25A
Input Power: 3.0W
Bearing Type: Dual Precision Ball Bearing
Termination: 3-Wire Lead (Positive, Negative, Tachometer/FG Signal)
Housing Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours (L10 at 40°C)
Protection Features: Auto-Restart, Polarity Protection
Weight: 95g
Origin: China (Original Engineering)

Industrial Application:
The 08025DE-12N-CLD is specifically optimized for thermal regulation in renewable energy storage inverters and high-density server enclosures. Its 3-wire configuration allows for real-time RPM monitoring via the FG signal, which is critical for system health diagnostics in remote industrial installations. The dual ball bearing architecture ensures the fan maintains consistent airflow even in high-vibration environments, preventing component overheating and extending the lifecycle of the host equipment.

NMB 08025DE-12N-CLD fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
