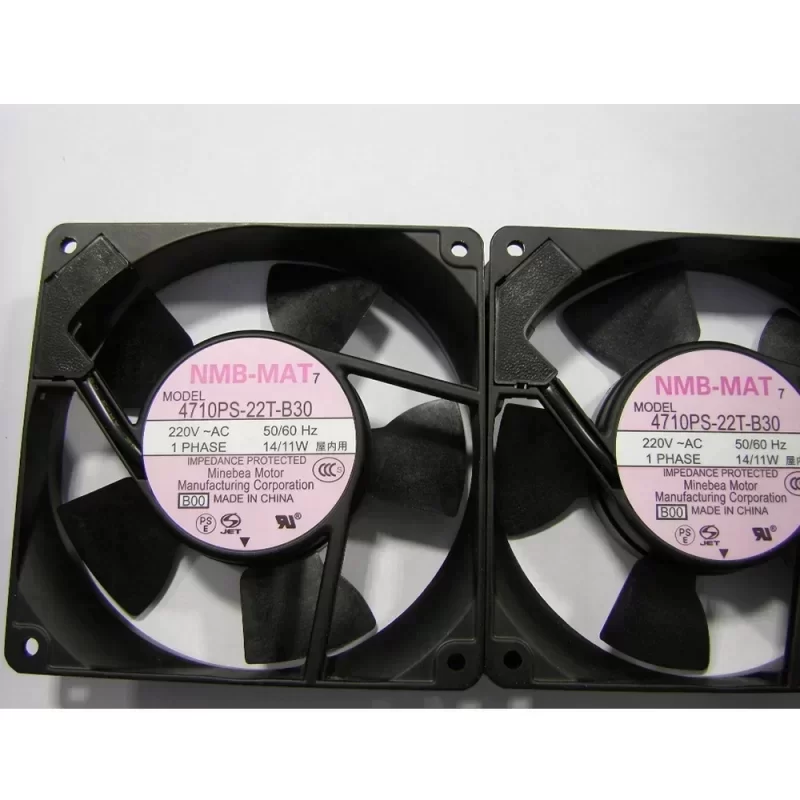

NMB 4710PS-22T-B30 120X120X38mm 220V AC Inverter Axial Fan

Name: NMB 4710PS-22T-B30 120X120X38mm 220V AC Inverter Axial Fan
Brand: NMB
SKU: 62505117843
Availability: InStock
Rating: 5 (4 reviews)

$12.50

SKU: 62505117843 Brand: NMB

Description
Reviews (0)

Description

The NMB 4710PS-22T-B30 is a high-performance AC axial cooling fan engineered by MinebeaMitsumi for demanding industrial thermal management applications. This 120mm x 120mm x 38mm unit is designed for high-reliability environments where consistent airflow is critical for component longevity. Utilizing a robust dual ball bearing system, the 4710PS-22T-B30 offers superior mechanical stability and an extended service life compared to sleeve-bearing alternatives. Its aluminum die-cast housing and reinforced plastic blades ensure structural integrity under continuous operation.

Technical Specifications:
Model Number: 4710PS-22T-B30
Dimensions: 120 x 120 x 38 mm
Input Voltage: 200 – 240 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.08 A
Input Power: 14 W (60 Hz) / 11 W (50 Hz)
Rotational Speed: 2700 RPM
Airflow Capacity: 70.6 CFM (2.00 m³/min)
Static Pressure: 63.7 Pa
Bearing Type: Dual Ball Bearing
Termination: Terminal Type
Weight: 550 g
Safety Certification: UL, CSA, VDE, CE

Industrial Application:
This axial fan is a critical component for heat dissipation in inverter cabinets, industrial control panels, and power supply enclosures. Its high-density airflow profile makes it ideal for cooling high-voltage machinery and server rack infrastructure. The terminal-based connection design allows for secure integration into standardized industrial wiring systems, ensuring original engineering standards are met during maintenance or system assembly. With a focus on reducing lead time for critical spare parts, this NMB model provides the reliability required for 24/7 automated production environments.

Key Attributes
Voltage: 220V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China
Brand name: NMB fan
Model number: 4710PS-22T-B30
Product name: 4710PS-22T-B30
Motor power: 14/11W
Voltage: 220V
Current: 0.08A
Type: Axial fan
Size: 120*120*38MM
Speed: 2700RPM
Air volume: 70.6CFM

Packaging and Delivery
Selling Units: Single item

NMB 4710PS-22T-B30 120X120X38mm 220V AC Inverter Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
