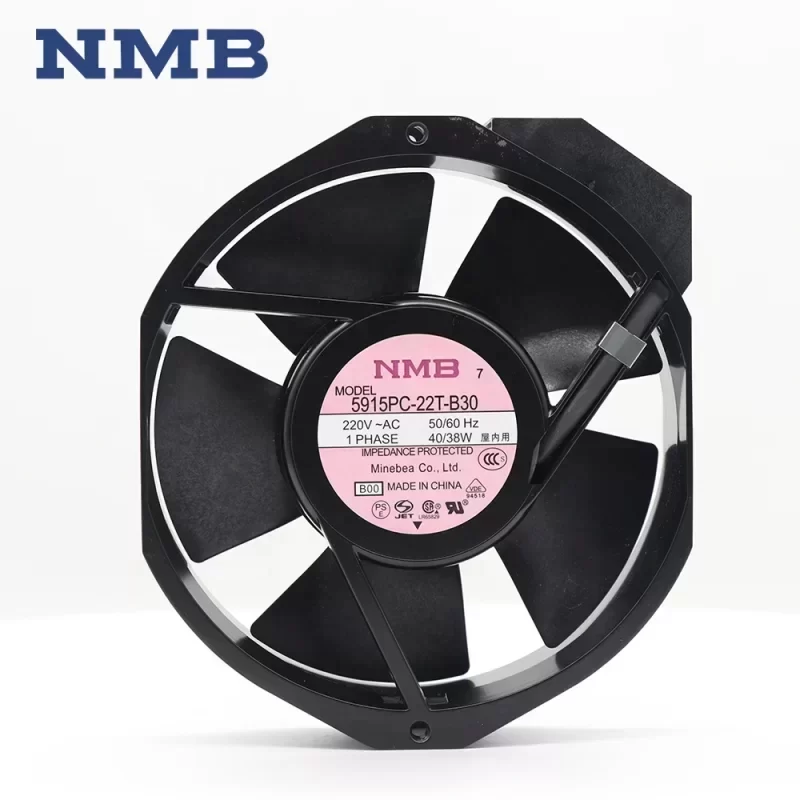

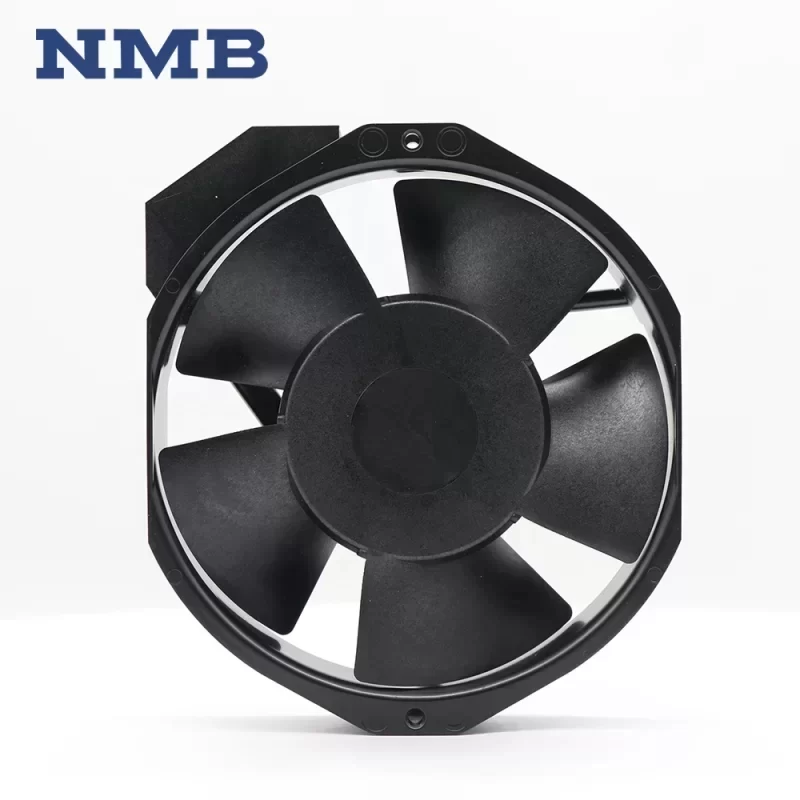

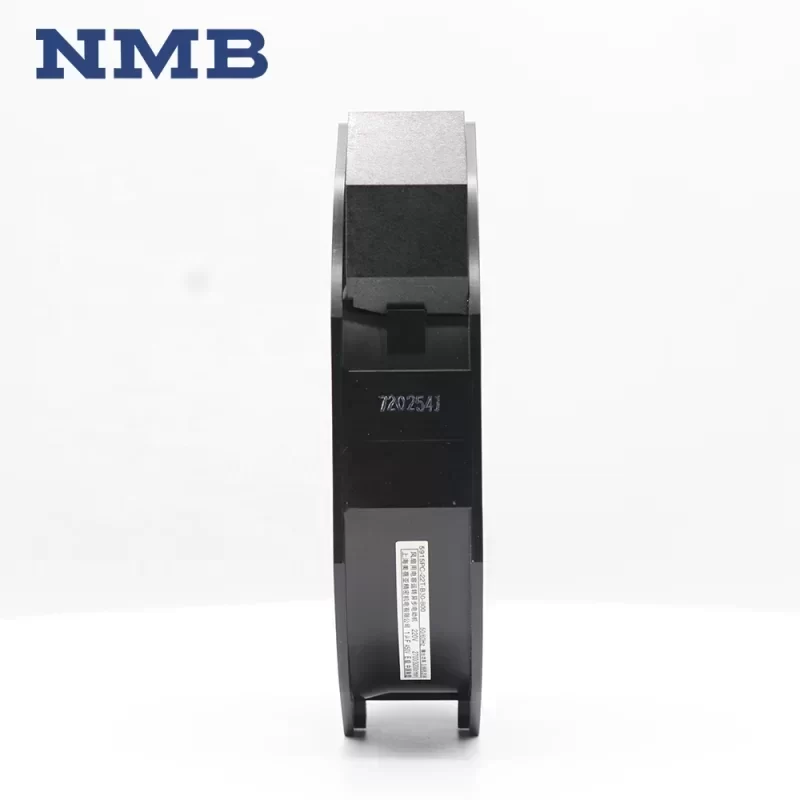

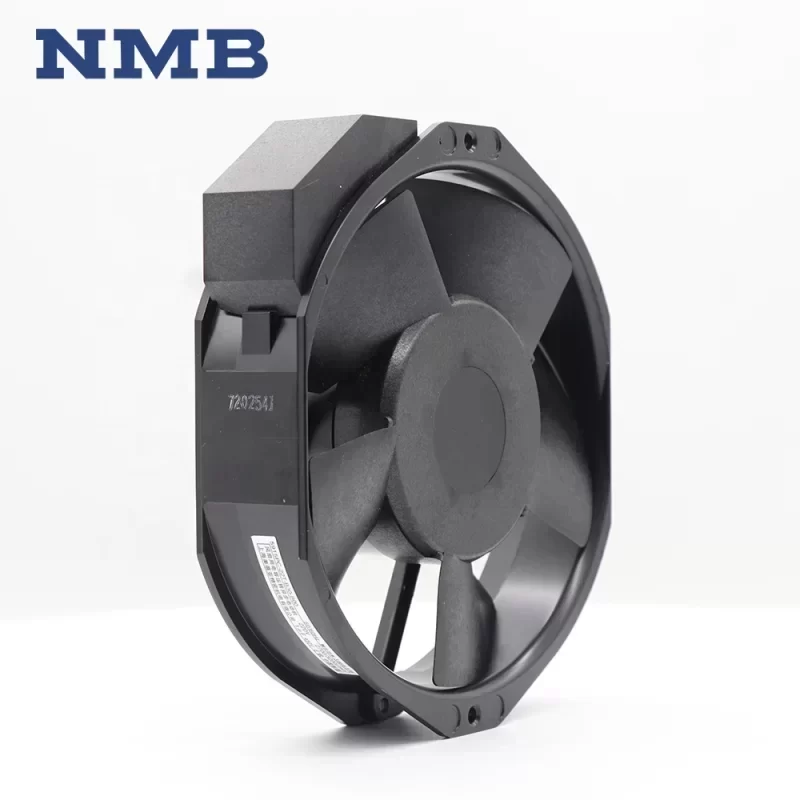

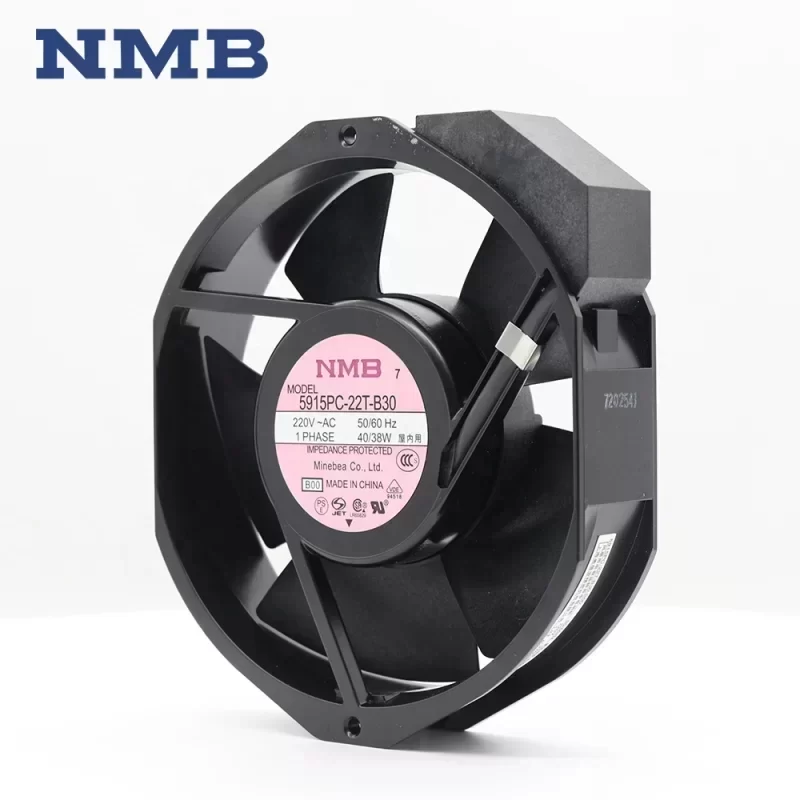

NMB 5915PC-22T-B30 172x38mm 38W 220V AC UPS Axial Fan

NMB 5915PC-22T-B30 172x38mm 38W 220V AC UPS Axial Fan

Name: NMB 5915PC-22T-B30 172x38mm 38W 220V AC UPS Axial Fan
Brand: NMB
SKU: 62076425419
Availability: InStock
Rating: 5 (4 reviews)

$26.80

SKU: 62076425419 Brand: NMB

Description
Reviews (0)

Description

The NMB 5915PC-22T-B30 is a high-performance AC axial fan engineered for industrial-grade thermal management and heavy-duty cooling applications. This unit features Original Engineering by MinebeaMitsumi, specifically optimized for Technical Compatibility with Fuji Inverters, high-capacity UPS power supplies, and server cabinet architectures. The robust die-cast aluminum housing provides superior structural integrity and heat dissipation, while the precision dual ball bearing system ensures an extended operational lifecycle in continuous 24/7 environments. This model is designed to maintain high static pressure to overcome the internal resistance of densely packed electronic enclosures.

Technical Specifications:
Brand: NMB MinebeaMitsumi
Model Number: 5915PC-22T-B30
Frame Dimensions: 172mm x 150mm x 38mm
Input Voltage: 220V AC
Frequency: 50/60 Hz
Rated Current: 0.21A
Input Power: 38W
Rotational Speed: 3200 RPM
Maximum Airflow: 212 CFM (6.0 m³/min)
Static Pressure: 215.6 Pa
Noise Level: 56 dBA
Bearing Type: Dual Precision Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: Polycarbonate (Glass Fiber Reinforced UL94V-0)
Termination: Faston #110 Terminals
Insulation Resistance: 100M Ω min. at 500V DC
Dielectric Withstand Voltage: AC 1800V 1s
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -40 °C to +70 °C
Expected Life L10: 50,000 Hours at 25 °C
Weight: 800g
Safety Certifications: UL, CSA, VDE, CE
Motor Protection: Impedance Protected

Industrial Application:
This axial fan is a critical component for the thermal regulation of Fuji Inverters and industrial power conversion systems. In scenarios where equipment is housed in sealed cabinets or high-ambient temperature zones, the 5915PC-22T-B30 provides the necessary CFM to prevent thermal throttling and component degradation. Its standardized 17238 footprint allows for seamless integration into existing rack-mount systems and power distribution units. Our logistics network ensures minimized Lead Time for critical maintenance, repair, and overhaul (MRO) requirements in global manufacturing facilities.

Key Attributes
Voltage: 220(V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Japan
Brand name: NMB
Model number: 5915PC-22T-B30
Type: Axial Fan
Nominal voltage: 220V
Bearing Type: Ball Bearing
Power consumption: 38 (w)
Current: 0.21(A)
Blade diameter: 172*150*38MM
Speed: 3200 r/min
Airflow: 212 cfm
Housing Material: Aluminum
Noise Level: 56 dba

Packaging and Delivery
Selling Units: Single item

NMB 5915PC-22T-B30 172x38mm 38W 220V AC UPS Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
