NMB Original 06015VA-12P-BU

Name: NMB Original 06015VA-12P-BU
Brand: NMB
SKU: 922843087105
Availability: InStock
Rating: 5 (4 reviews)

$5.00

SKU: 922843087105 Brand: NMB

Description
Reviews (0)

Description

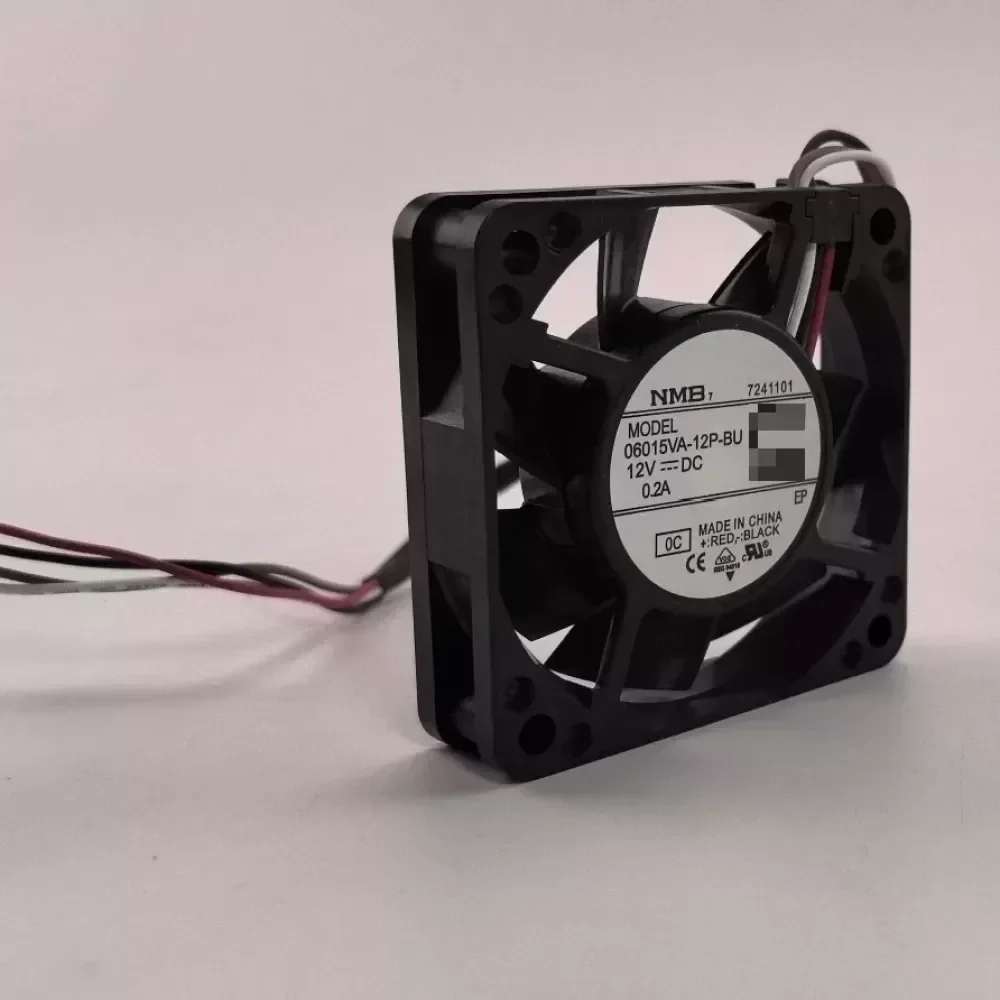

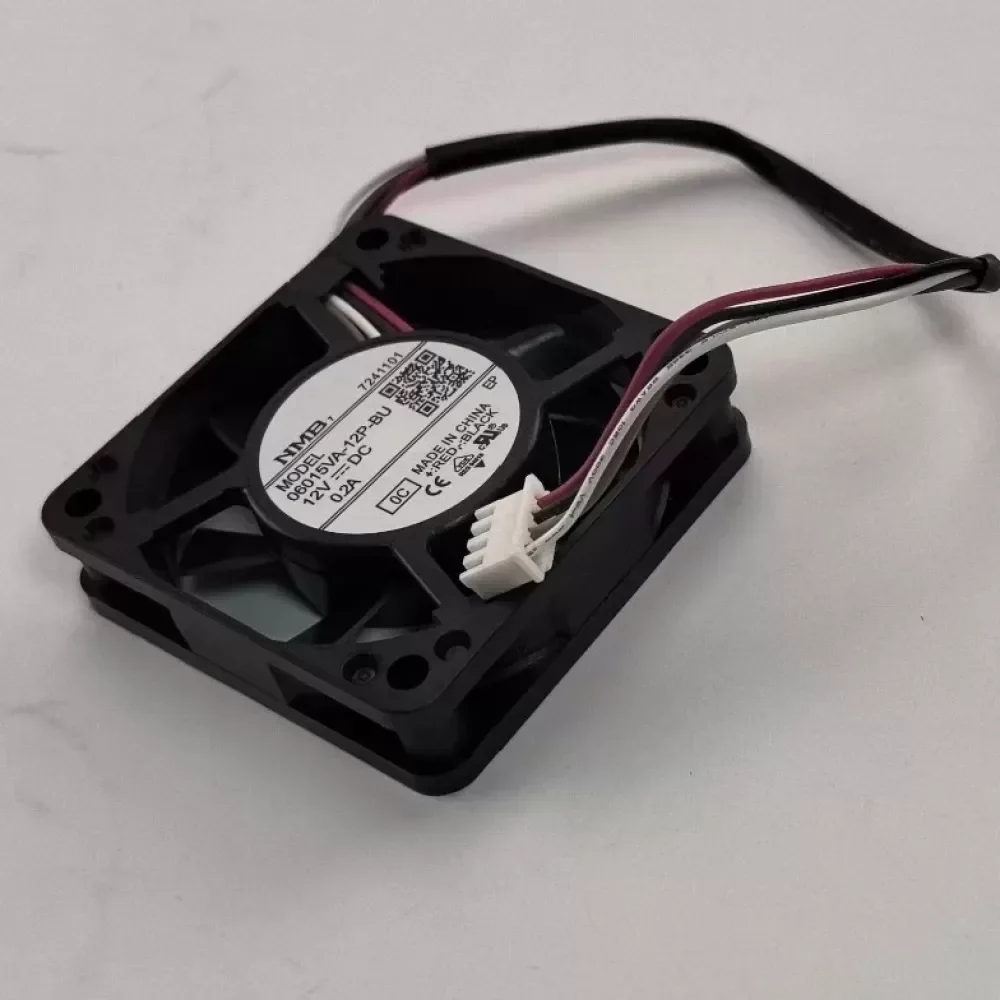

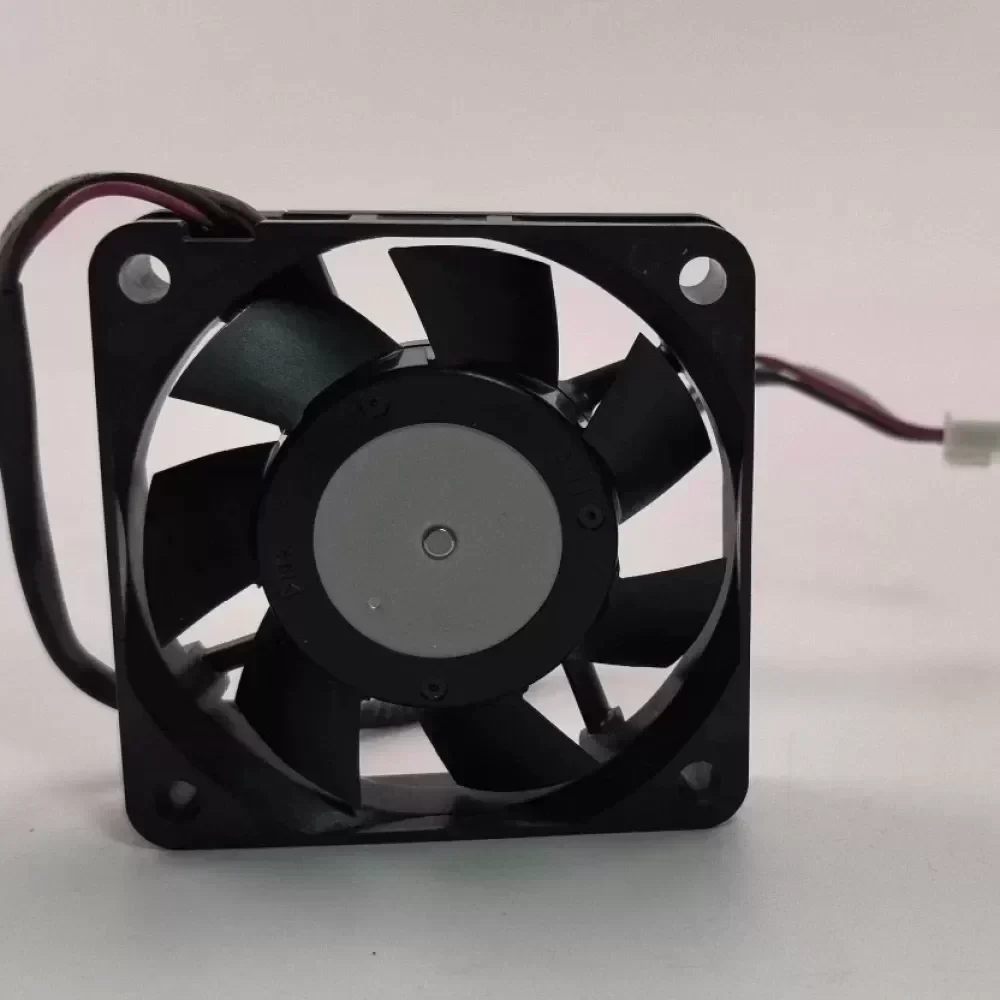

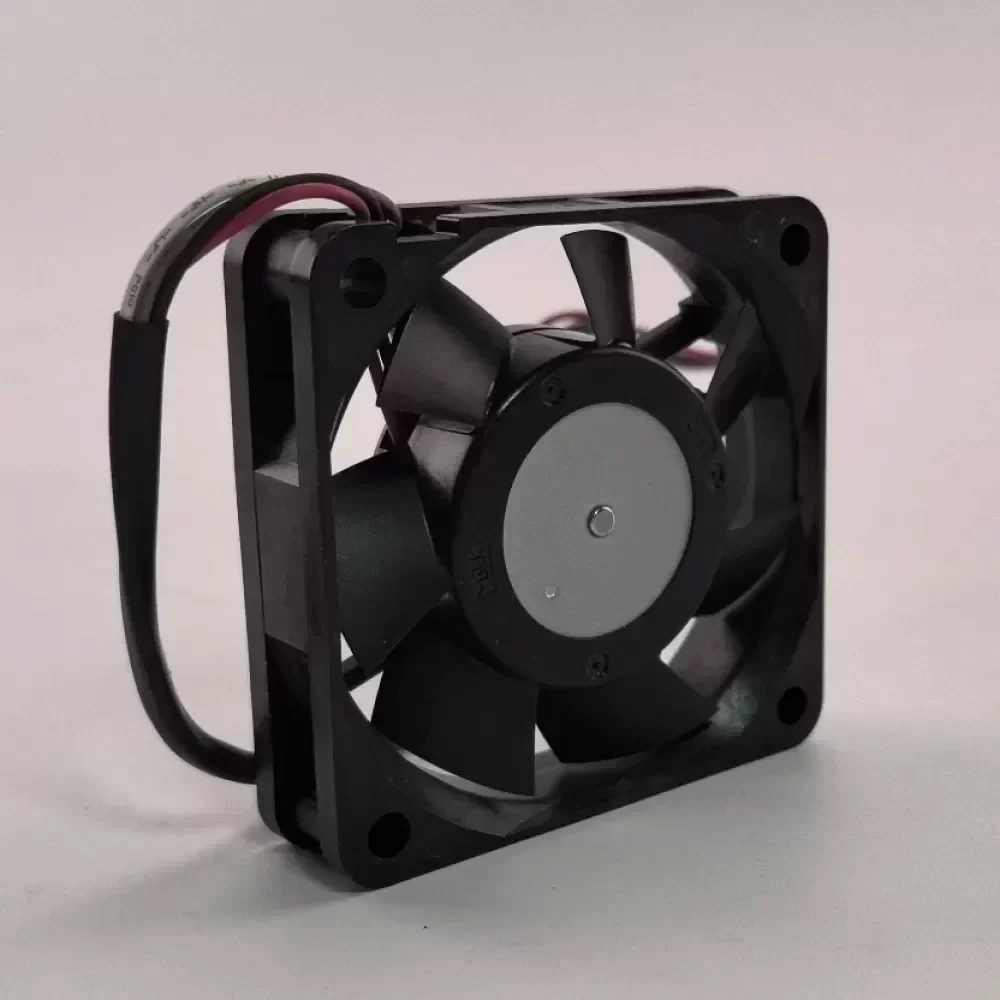

The NMB 06015VA-12P-BU is a high-precision axial cooling fan engineered for demanding industrial environments requiring compact thermal management and precise speed control. This 60mm x 15mm unit utilizes Original Engineering standards to deliver consistent airflow in space-constrained enclosures.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 06015VA-12P-BU
Frame Size: 60mm x 60mm x 15mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V
Rated Current: 0.20A
Input Power: 2.40W
Bearing Type: Dual Precision Ball Bearing
Control Interface: 4-Wire PWM (Pulse Width Modulation)
Speed Control: Variable via PWM signal
Signal Output: Tachometer / Frequency Generator (FG)
Environmental Protection: IP68 Waterproof / Dustproof
Housing Material: Reinforced PBT Plastic (UL94V-0)
Impeller Material: Reinforced PBT Plastic (UL94V-0)
Weight: 45g
Expected Life: 70,000 Hours at 40°C
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Max Airflow: 0.58 m³/min
Static Pressure: 48 Pa
Acoustic Noise: 38.0 dB(A)
Safety Certifications: UL, CSA, VDE, CE
Technical Compatibility: Standard 4-pin industrial headers

Application:
The 06015VA-12P-BU is specifically designed for outdoor telecommunications cabinets and medical imaging equipment where moisture ingress and variable heat loads are critical factors. The integrated PWM logic allows for dynamic cooling adjustments based on real-time thermal data, reducing acoustic noise and extending the component lifecycle. Its waterproof construction ensures operational stability in high-humidity environments or equipment subject to wash-down procedures. Global Lead Time is optimized for MRO supply chains requiring authentic NMB replacements to maintain system integrity.

NMB Original 06015VA-12P-BU

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
