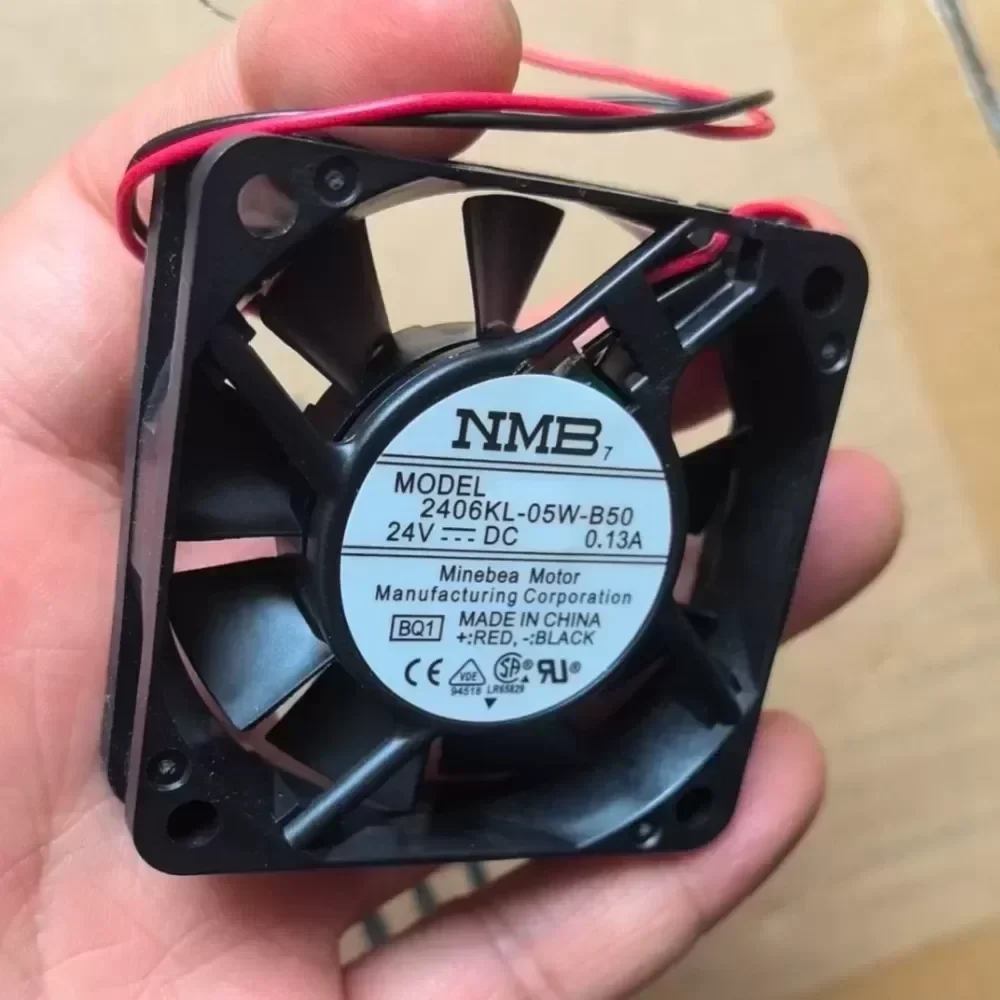

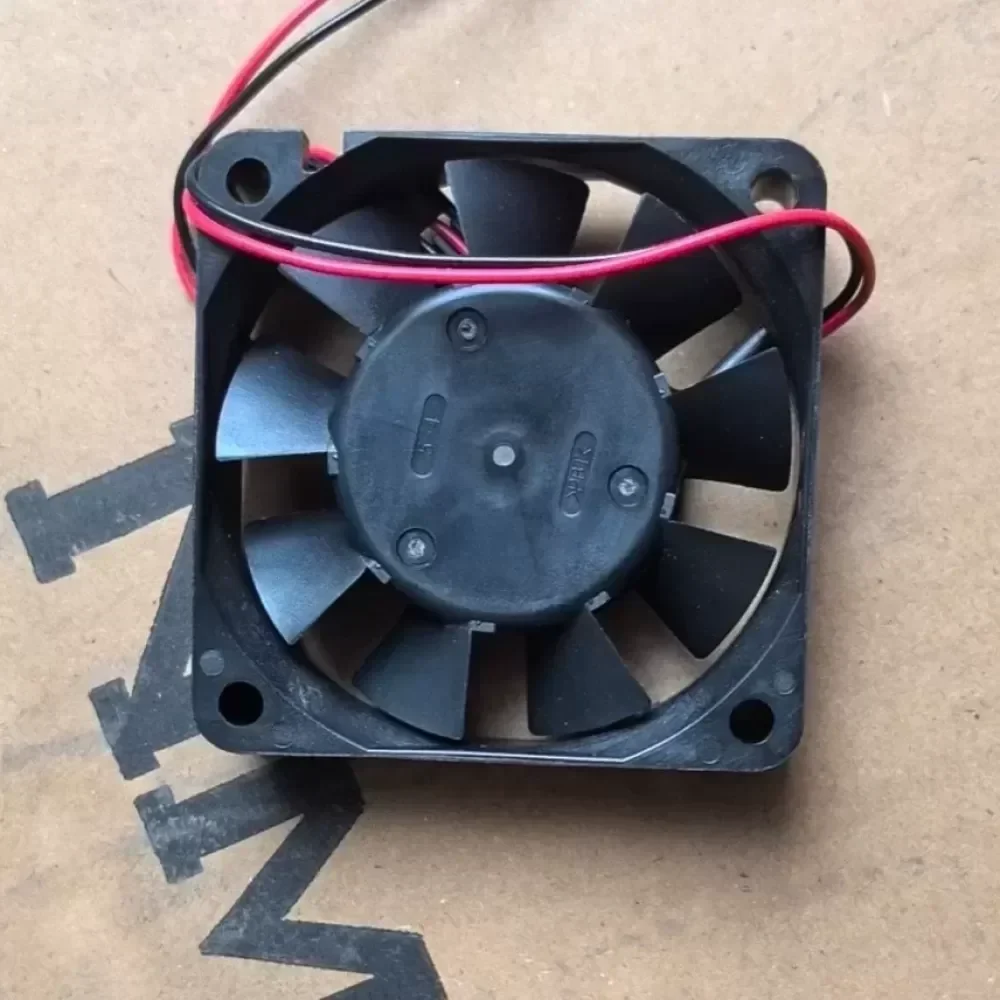

NMB original 2406KL-05W-B50 fan 24V 0.13A

NMB original 2406KL-05W-B50 fan 24V 0.13A

Name: NMB original 2406KL-05W-B50 fan 24V 0.13A
Brand: NMB
SKU: 923744869074
Availability: InStock
Rating: 5 (4 reviews)

$6.00

SKU: 923744869074 Brand: NMB

Description
Reviews (0)

Description

The NMB 2406KL-05W-B50 represents Original Engineering in high-performance thermal management, specifically designed for high-reliability industrial environments. This 60mm x 15mm axial fan utilizes a precision dual ball bearing system to ensure extended lifecycle performance and Technical Compatibility with critical electronic systems.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 2406KL-05W-B50
Frame Size: 60mm x 60mm x 15mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.0V to 27.6V
Rated Current: 0.13A
Input Power: 3.12W
Rated Speed: 4600 RPM
Maximum Air Flow: 18.3 CFM
Maximum Air Flow: 0.52 m³/min
Maximum Static Pressure: 51.2 Pa
Noise Level: 34.0 dBA
Bearing Type: Dual Ball Bearing
Housing Material: Plastic (Black) UL94V-0
Impeller Material: Plastic (Black) UL94V-0
Termination: 2-Wire Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Weight: 45g
Dielectric Withstand Voltage: AC 700V 1s
Insulation Resistance: 10M Ohm or over with a DC 500V Megger
Auto Restart / Polarity Protection: Integrated
Certifications: UL, CSA, VDE, CE

Industrial Application and Logic:
The 2406KL-05W-B50 is a critical spare part for inverter cooling systems, frequency converters, and compact industrial power supplies where space-constrained thermal dissipation is required. Its high static pressure profile makes it ideal for dense PCB environments where airflow resistance is high. This model is frequently integrated into server racks and telecommunications equipment to maintain optimal operating temperatures. Lead Time for this original component is optimized for MRO (Maintenance, Repair, and Operations) requirements to prevent system downtime in automated production lines.

NMB original 2406KL-05W-B50 fan 24V 0.13A

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
